Glory Optical Communication Co.,Limited located in Ningbo China. We are a leading manufacturer of fiber optic cabling and FTTx network field with more than 11 years experience, focus on production, R&D and sales of passive fiber optical products and FTTA/FTTH/FTTR solutions. We have modern production plant, test center and business development department, have established a quality assurance system in accordance with the ISO9001 standards.
Our main products contain: Fiber Optic Termination Box, Fiber Optic Splice Closures, Fiber MST Fiberhub (Box), Fiber Optic Cable, Fiber Optic Adapters, PLC splitter, MTP/MPO Cables, Fiber Optic Patch Panel &ODF, etc.
Glory Optical not only make quality products for our customers, but also provides you with excellent services. We are committed to learning the most advanced technology to meet your various needs for OEM requirements and help promote your business. Our goal is to achieve the satisfaction of all our customers and learn from the challenges.
Glory is one of the leading providers of passive cabling solutions for high-end communication networks, below we outline our vision for the future.
Glory solutions impress with their high degree of quality, innovative functionality, and exceptional convenience in installation and maintenance. We provide added value for all partners and users, from installers through to network operators. Our solutions ensure maximum availability and therefore cost-effective network operation.
INSPIRE: We inspire our customers and partners with innovative solutions.
CARE: We care about our employees and support their development.
HONESTY, RESPECT, MODESTY: We value honesty in business, respect in dealings with one another, and modesty in presentation, within the company itself and with customers and partners.
CULTURE: We work in international teams and respect the different cultures and diversity of our employees.
COMMITMENT: We are committed to achieving our challenging objectives.
RESPONSIBILITY: We exercise corporate responsibility toward society and the environment.
Over the years, Glory has developed a wealth of knowledge and experience. This continues to be developed as we invest in research and development to ensure we are providing the best products and services.
For 11 years, Glory has been proud to work with telecom industry leaders. For the purpose of progressing new interconnection technologies that help change the way people live, work and play.
Because innovation and quality go hand-in-hand, we are always working to improve our factory processes. Our commitment to reducing manufacturing costs as we invest has driven us towards a trend of more efficient operations.
MANUFACTURING CAPABILITIES
Glory products are manufactured in ISO 9000 factories to meet quality standards. Concurrently our quality manufacturing capabilities mean our products are tested to strict guidelines ensuring a consistent level of performance, designed to exceed the relevant standards.
Our client base comprises global corporate and international private clients covering Latin and North America, Europe, the Middle East and Africa.
As a result, we have built significant experience dealing with complex international infrastructure for telecom and data projects and installations.
Technology has allowed the world to get smaller, but it has become more complicated. Our reach and experience afford us unique insights into the world’s future.

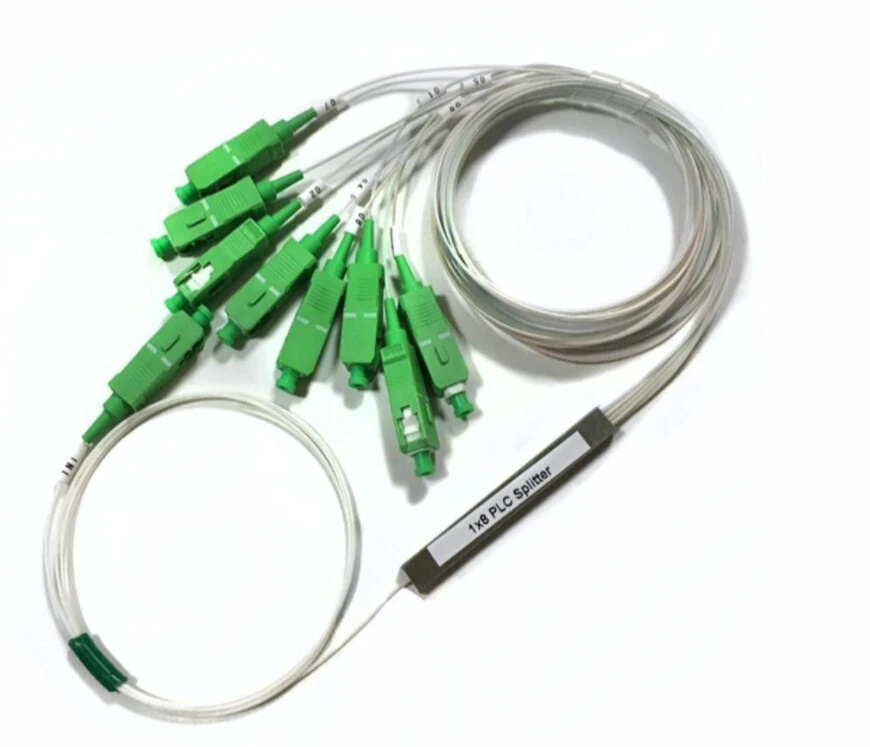

The advantages of fiber optic PLC splitter are as follows:
1. The light splitting is uniform and there are many branches, which can evenly distribute the optical signal to multiple end users, and the number of channels is up to 128;
2. The structure is compact and the volume is small, which can be installed without large space, and it is commonly seen in various transfer boxes;
3. The more branch channels there are, the more obvious the cost advantage there will be;
In short, the PLC splitter is a low-cost, high-stability and reliable solution with an optical splitting ratio of up to 1:128.

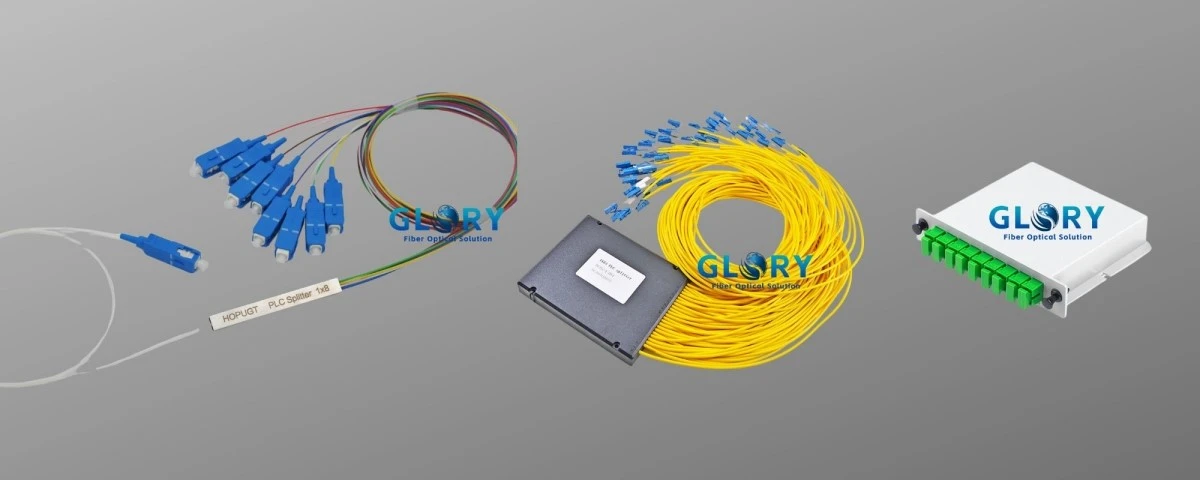

PLC Fiber Optic Splitter can be categorized by the PLC splitter chip they use, meaning there are 1xN and 2xN PLC splitters, such as 1x4 splitter, 1x8 splitter, 1x16 splitter, 2x32 splitter, 2x64 PLC splitters, etc. In addition, PLC splitters also can be classified based on different packages, there are five typical PLC splitters types:
Bare Fiber Optical Splitter
The bare fiber splitter has no connector at the bare fiber ends, so it requires a complete set of protection in the carrying case and on the device. Due to its compact size, it can be easily placed in formal splice boxes and splice boxes. The bare fiber splitter minimizes space occupation and reduces installation costs at the same time. It is commonly used for FTTH, PON, LAN, CATV, test equipment, and other applications.
01
Blockless Fiber Splitter
Although the blockless PLC splitter has a similar appearance to the bare fiber splitter. However, it can provide stronger fiber protection because it has a more compact stainless steel tube package. The blockless PLC splitter does not require fiber optic fusion during installation and is mainly used for different connections above distribution boxes or network cabinets.
02
ABS Module Fiber Splitter
The ABS splitter has a plastic ABS case, which has good protection for internal optical components and cables. ABS splitter is simple and compact, which can be adapted to different installation environments and requirements. It is widely used with outdoor fiber distribution boxes for PON, FTTH, FTTX, GOPN networks.
03
LGX Cassette Fiber Splitter
The LGX PLC splitter is equipped with a rugged metal box. It can be used alone or easily installed in a standard fiber optic patch panel or fiber optic chassis without archival splicing or skilled personnel during deployment. The standard LGX metal box enclosure provides a plug-and-play approach to integration in the network, which eliminates risk during installation.
04
Rack-Mount Splitter
1U and 2U are two available rackmount sizes for splitters on the market, while 1U rack-mount splitters are more commonly used. The 1U 19" rack-mount splitter type adopts a 19-inch rack unit standard, PLC splitter is installed in the rack unit, which has excellent optical performance and convenient network installation. The rack-mount splitter is widely used in EPON, GPON, FTTX, FTTH, etc., and provides an ideal solution for a high-density cabling environment.
05

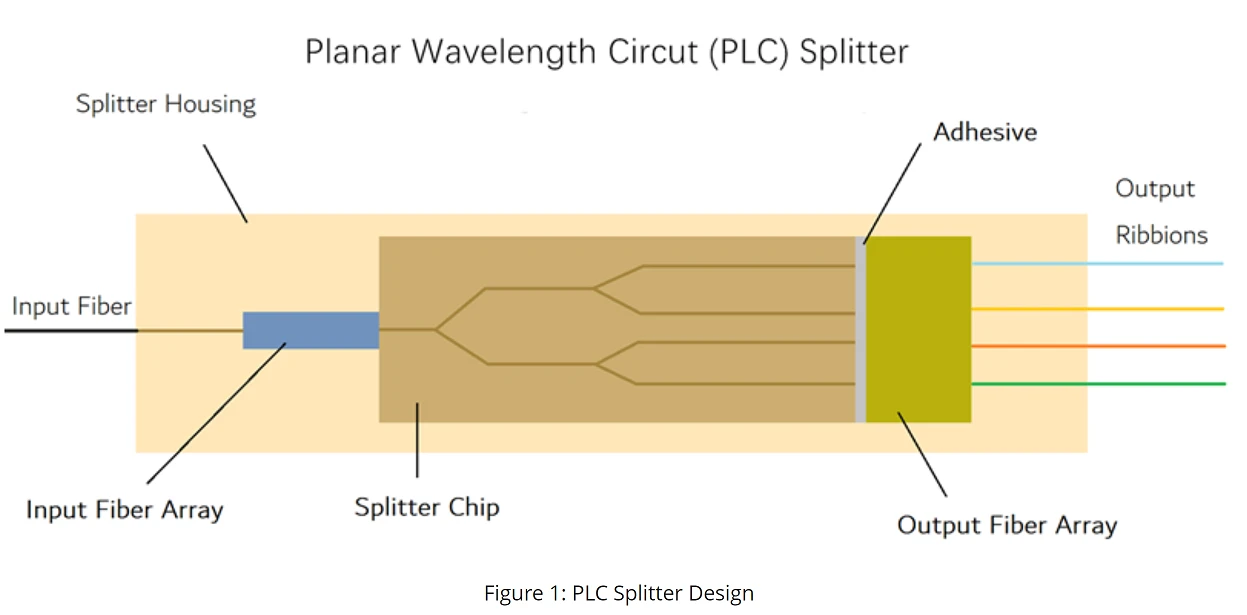

The PLC optical splitter is produced based on planar optical waveguide technology. The PLC optical splitter is composed of a PLC splitter chip and multiple optical waveguide arrays (ie, input and output fiber arrays), and the fiber arrays are respectively coupled to both ends of the PLC splitter chip. That is to say, the two ends of the chip are respectively coupled to encapsulate the input end and the output end of the multi-channel optical fiber array. The function of branching is completed on the chip, and up to 128 branches can be realized on one chip.
PLC splitter is based on Semiconductor technology. As its name shows, PLC splitters are manufactured by planar waveguide circuit technology. PLC splitter design consists of one optical PLC chip and several optical arrays depending on the output ratio. The optical arrays are coupled on both ends of the PLC splitter chip.

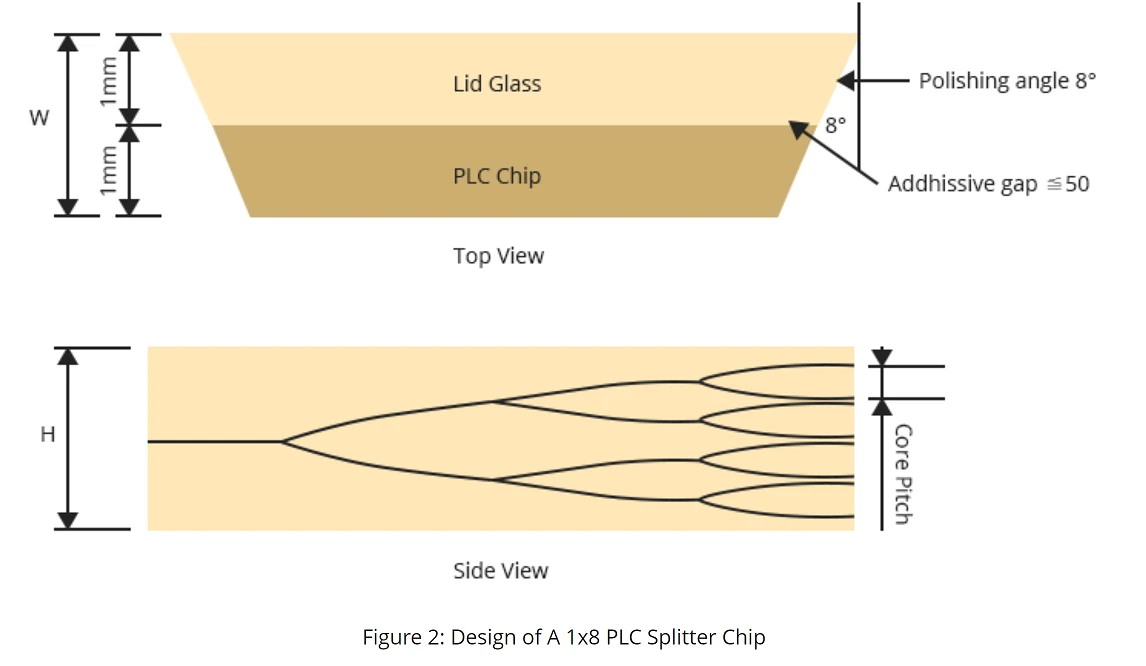

PLC chip is one key component of a fiber PLC splitter. It is available in 1xN (N=2, 4, 8, 16, 32, 64) and 2xN (N=2, 4, 8, 16, 32, 64) splitting ratios. The figure below shows the typical design of a 1x8 PLC splitter chip.
In passive optical networks (PON), a PLC splitter is widely installed between the PON Optical Line Terminal (OLT) and the Optical Network Terminals/Units (ONTs/ONUs) that the OLT serves. The single fiber link coming from the Central Office (CO) OLT is connected with the input of a splitter and is split into a given number of fibers leaving the splitter. The number of outputs in the PLC module determines the number of splits.
PLC splitters can be used in centralized PON architecture or distributed architecture. In a centralized PON architecture, a 1x32 PLC splitter is often used in the Central Office. In a distributed PON architecture, a 1x4 PLC splitter is firstly directly connected to an OLT port in the Central Office, then each of the four fibers is routed to an outside plant terminal/enclosure box that houses a 1x8/1x4 PLC splitter.
To browse our extensive product portfolio, visit our Product Menu, which enables you to navigate by product type or network type. Once you locate your desired product(s), select the Contact button to find our sales team.
To browse our extensive product portfolio, visit our Product Menu, which enables you to navigate by product type or network type. Once you locate your desired product(s), select the Contact button to find our sales team.
Glory Services offers a wide range of communications network solutions that utilize our products as well as a wide range of other manufacturers’ products and equipment.
Our Teams Put You First
Our Services team is comprised of skilled and experienced professionals who invest ample time in understanding your specific needs before designing a custom solution that will address your business challenges. We believe that your success is our success and it begins by ensuring the health and safety of our teams, partners, customers and communities.
Q: 1 What material is used for PLC splitter?
Q: 2 What is PLC splitters?
Q: 3 What is the difference between PLC splitter and FBT splitter?
Q: 4 What size is a PLC splitter?
Q: 5 What is the wavelength of a PLC splitter?
Q: 6 What are the different types of PLC splitters?
Q: 7 What is a splitters purpose?
Q: 8 What is a FBT splitter?
Q: 9 How many types of splitters are there?
Q: 10 How many inputs can a PLC have?
Q: 11 What is 1 to 4 splitter?
Q: 12 How many outputs does a PLC have?
