Cassette Type Splitter

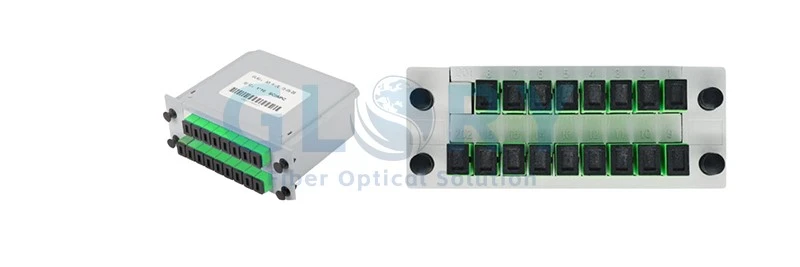

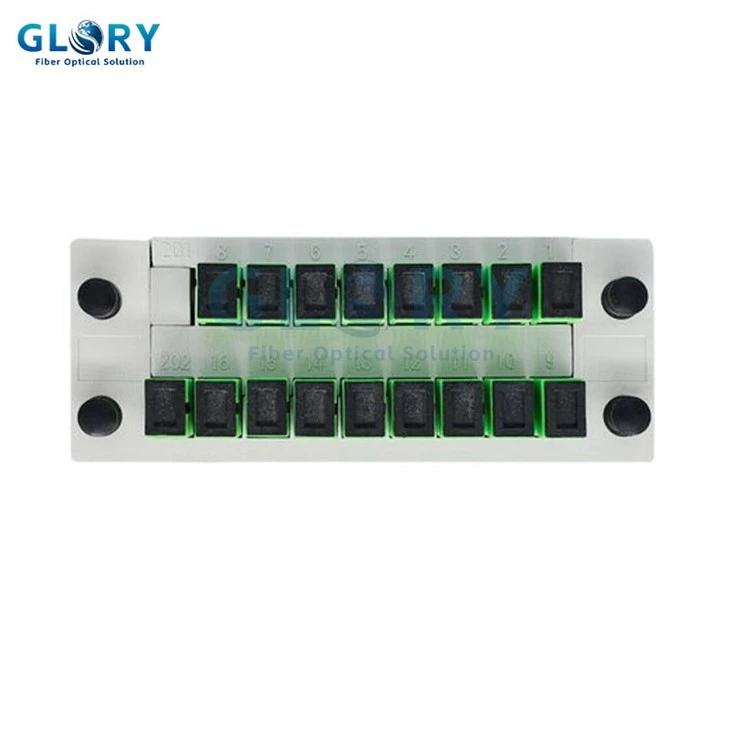

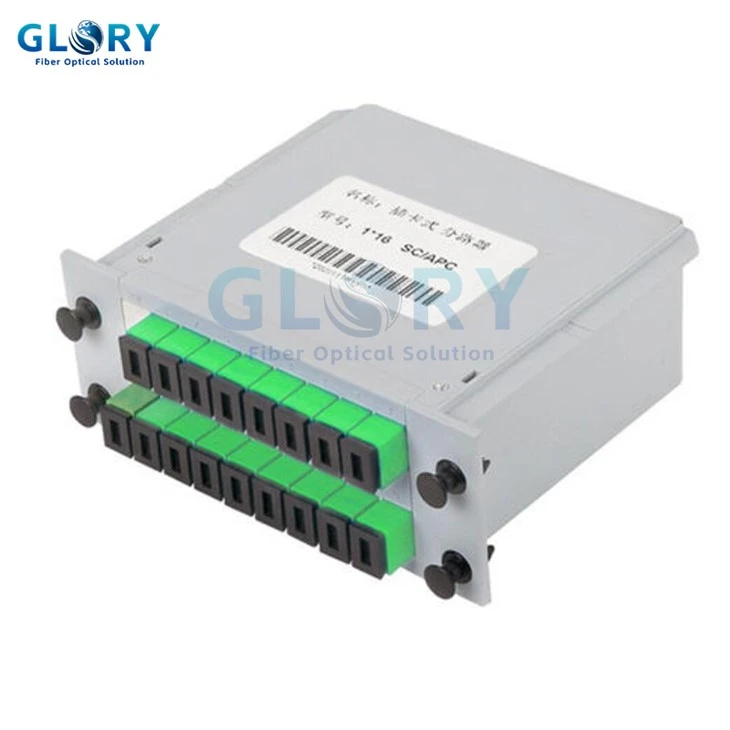

1x16 SC/APC PLC Cassette Type Splitter



The 1x16 SC/APC PLC Cassette Type Splitter is a compact, high-performance passive optical component designed for efficient signal distribution in fiber-optic networks. The cassette type splitter evenly splits a single input signal into 16 output channels with minimal insertion loss and high uniformity. The cassette-type housing allows easy integration into standard fiber distribution frames or enclosures, enabling seamless deployment in FTTH (Fiber-to-the-Home), PON (Passive Optical Network), and data center applications.



Specifications of Cassette Type Splitter:



Parameter	Value
Split Ratio	1×16
Insertion Loss (Max)	13.5 dB (without connectors)
Uniformity (Max)	1.2 dB
Return Loss (Min)	55 dB
Polarization-Dependent Loss	≤0.25 dB
Fiber Type	G.657A1/G.652D (0.9mm cable)
Connector Type	SC/APC
Operating Temperature	-40°C to +85°C



Features of Cassette Type Splitter:



1. Advanced PLC Technology:

• Utilizes silica waveguide technology for low insertion loss (≤13.5 dB) and high uniformity (±1.2 dB).

• Broad operating wavelength range: ​1260–1650 nm, compatible with single-mode fibers (ITU-T G.657A/G.652D).



​2. Robust Design of PLC splitter:

​• Cassette-type housing for easy insertion into LGX-compatible distribution boxes or ODFs.

​• SC/APC connectors ensure low back reflection (return loss ≥55 dB) and stable performance in high-vibration environments.



3.Environmental Resilience:

• Operates in extreme temperatures: ​​-40°C to +85°C with ±0.5 dB stability.

• Compliant with Telcordia GR-1209/1221 and RoHS standards for long-term reliability.



​4. Customization Options:

• Supports OEM/ODM requests, including fiber length (default 1M), connector types, and packaging



Applications:



• FTTH/FTTX Networks: Cassette Type Splitter Distributes signals to multiple end-users in passive optical networks.

​• Telecom Backbone: Integrates into LGX chassis for central office or field deployments.

​• CATV & Broadcast Systems: Ensures stable signal splitting for video transmission.

​• Enterprise Networks: Supports LAN/WAN expansions with high-density splitting





FAQ:



Q: How many splitting ratios does the Cassette Type Splitter have?

A: Cassette Type PLC splitters are available in various splitting ratios, including common configurations such as ​1:2, 1:4, 1:8, 1:16, 1:32, and 1:64, depending on the design and application requirements. The splitting ratio determines how the input optical signal is distributed equally or unequally across the output ports.
