FAT Pre-connectorized Terminal Box
Model: 10 ports FTTX FAT Pre-connectorized Terminal Box GL-FTB-10E
• 10 pcs SC type waterproof adapters
• IP65
• Material: ABS+PC
- Product Introduction
10 Ports FTTX FAT Pre-connectorized Terminal Box
The 10-port FTTX FAT (Fiber Access Terminal) Pre-connectorized Terminal Box is a compact, high-performance fiber optic distribution solution designed for rapid deployment in FTTX (Fiber-to-the-X) networks. Engineered for flexibility and reliability, this terminal box serves as a critical node for fiber splitting, distribution, and management in FTTH (Fiber-to-the-Home), FTTB (Fiber-to-the-Building), and other broadband access applications.
The FAT Terminal Box's pre-connectorized design includes 10 factory-terminated ports (SC hardened connectors), eliminating the need for on-site splicing and significantly reducing installation time and labor costs. Its fully sealed, weatherproof construction allows installation both outdoors and indoors, including on exterior walls, columns, buildings, or messenger cables.
Product Details:
|
Model |
GL-FTB-10E |
Color |
Black |
|
Splice Capacity |
4F splice |
Protection Level |
IP65 Indoor/Outdoor |
|
Material |
PC+ABS |
Flame retardant performance |
Non-flame retardant |
|

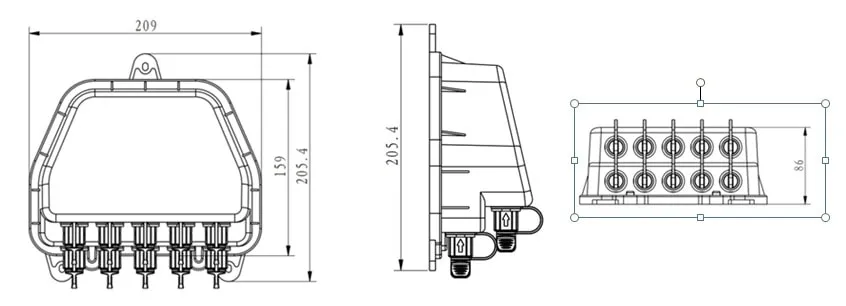

Dimension (LxWxD) |
179x171x66mm |
Suitable Splitter |
1x2+1x8 or 2x8 or 1x9 blockless PLC Splitter |
|
Input Cable Port |
1/2 |
Output Adapter |
10 pcs Mini SC waterproof adapters |
|
Installation Method |
Wall, Pole mounted |
Insertion loss |
≤0.2dB(1310nm & 1550nm) |
|
Environmental requirement |
|
|
Working temperature |
-40℃～+85℃ |
|
Relative humidity |
≤85%(+30℃) |
|
Atmospheric pressure |
70KPa～106Kpa |
|
Main technical parameter |
|
|
Insertion loss |
≤0.2dB |
|
UPC return loss |
≥50dB |
|
APC return loss |
≥60dB |
|
Insulation resistance |
≥2×104 MΩ/500V |
|
Voltage resistance |
≥3000V(DC)/min |
Features of FAT Pre-connectorized Terminal Box :
• Waterproof design with IP65 protection level.
• Integrated with a splice cassette and cable management system.
• Maintains proper fiber bend radius for optimal performance.
• Easy to maintain and expand capacity.
• Compatible with pre-connectorized cable assemblies.
• 10 cable entrance ports for FTTH drop cables.
• Labeled identification table inside the cover.

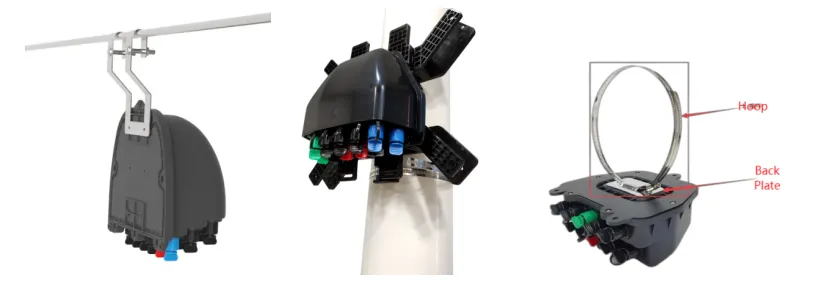

Installation View of FAT Pre-connectorized Terminal Box:
Applications:
• FTTX/PON network distribution points
• Fiber drop cable termination and management
• MDU (Multi-Dwelling Unit) deployments
• Network expansions and last-mile connectivity
