Mini Plc Splitter
Model: 2×8 Fiber Optic Splitter With Steel Tube,0.9mm G657A Fiber LC/APC
Blockless Mini PLC Splitters with SC, LC, or FC connectors are designed for spaces with limited room, such as FTTH boxes or patch panels. They are available in two configurations: without connectors or pre-equipped with connectors, providing flexible options for installation.
- Product Introduction

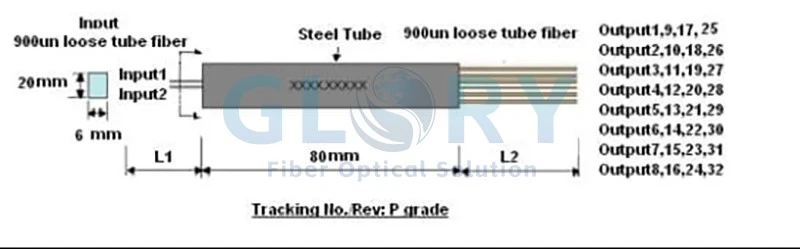

2×8 Blockless Mini PLC Splitter
This 2×8 Steel Tube Fiber Optic Mini PLC (Planar Lightwave Circuit) splitter (0.9mm, G657A Fiber) utilizes planar lightwave technology to deliver accurate, uniform signal splitting in a compact, low-loss package. Splitters are widely used in FTTX, EPON, BPON, and GPON networks, offering consistent performance, low optical insertion loss, low polarization-dependent loss, high reliability and stability, superior environmental/mechanical durability, and quick installation. Mini PLC splitters further enhance network monitoring and management efficiency.
Our products comply with Telcordia GR-1209 and GR-1221 standards and are RoHS-compliant.
Available Blockless Mini PLC splitter configurations: 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 2×4, 2×8, 2×16, 2×32, 2×64
Features:
The 2×8 PLC splitter with steel tube packaging and 0.9mm G657A fiber combines high-performance optical characteristics with robust mechanical design.
1. Design and Construction
• Steel Tube Packaging: Housed in a stainless-steel tube for enhanced durability and protection against environmental stress, such as humidity and physical impacts.
• Compact and Lightweight: Designed for space efficiency, the Mini Plc Splitter's compact form factor suits high-density installations like FTTx networks.
• 0.9 mm G657A Fiber: Utilizes bend-insensitive G657A fiber (0.9mm diameter) to minimize signal loss in tight bends, ideal for indoor/outdoor cabling.
• LC/APC Connectors: Features LC/APC connectors for low insertion loss and high return loss, ensuring reliable connections in high-performance networks.
2. Optical Performance of Mini Plc Splitter
• Low Insertion Loss: Typical insertion loss for 1×8 configurations is 10.7 dB, ensuring minimal signal attenuation.
• Low Polarization-Dependent Loss (PDL): PDL ≤ 0.3 dB, critical for maintaining signal integrity in polarization-sensitive applications.
• Uniformity: Channel uniformity ≤0.8 dB, enabling balanced signal distribution across all ports.
• Wide Operating Wavelength: Supports 1260–1650 nm, compatible with single-mode systems like GPON and XG-PON.
3. Environmental Durability
• Temperature Range: Operates from -40°C to 85°C, with storage temperature range of -50°C to 85°C, suitable for harsh environments .
• Salt Spray Resistance: Stainless steel housing passes stringent salt spray testing, ensuring longevity in coastal or industrial areas.
• Flame Retardancy: LSZH (Low Smoke Zero Halogen) materials reduce toxic emissions during combustion, enhancing safety in confined spaces.
4. Compliance and Reliability
• Telcordia GR-1209/1221 Standards: Meets industry benchmarks for reliability and performance.
• RoHS Compliance: Free from hazardous substances, aligning with global environmental regulations.
Applications of Mini Plc Splitter:
• FTTx Networks: Deployed in passive optical networks (PON) for residential and commercial broadband.
• CATV and LANs: Supports signal distribution in cable TV and enterprise networks.
• Data Centers: Compact design suits high-density patching in data center environments
