Rack Mount PLC Splitter
Item: 1X32 Rack Mount Fiber PLC Splitter SC/APC
Rack Mount PLC splitters are different types including 1×4, 1×8, 1×16, 1×32 ,1×64 PLC Splitters and 2×4, 2×8, 2×16, 2×32 types etc. All with 1U 19″ rack mount enclosures.
- Product Introduction
1X32 1U 19" Rack Mount PLC Splitter
The 1x32 1U 19" Fiber Rack-Mounted PLC Splitter consists of PLC splitters and an enclosure body. It features a standard size for easy installation and offers optional adapter interfaces such as SC, FC, LC, or ST. This rack-mounted PLC splitter is suitable for both indoor and outdoor applications in FTTx projects, CATV networks, or data communication centers.
Our 1U Rack-Mounted PLC Splitters comply with Telcordia standards and are available at competitive prices. Adapter interfaces (LC, SC, FC, ST) and polishing types (APC/UPC) can be customized upon request.

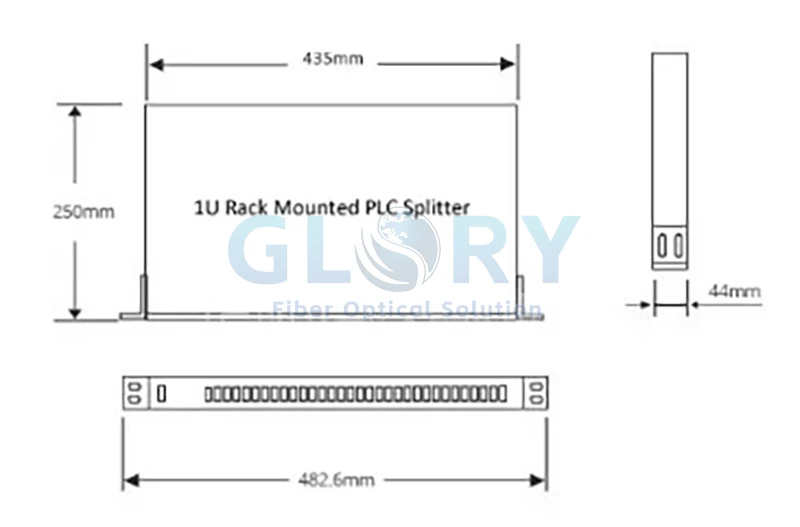

Size and Installation Diagram for Reference:
The splitter is typically housed in a rack-mounted enclosure with a 2.0mm ABS box (a 0.9mm version is also available).
Rack Mount PLC splitters Specifications:
|
Type |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
|
Operating wavelength(nm) |
1260-1650 |
||||||
|
Insertion loss (dB) |
Typical |
3.6 |
7.2 |
10.5 |
13.5 |
17 |
19.5 |
|
Maximum |
4 |
7.5 |
11 |
14 |
17.2 |
21 |
|
|
Uniformity (dB) |
Typical |
0.4 |
0.5 |
0.6 |
1 |
1 |
2 |
|
Maximum |
0.6 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
|
Polarization Dependent Loss (dB) |
Typical |
0.1 |
0.1 |
0.15 |
0.2 |
0.2 |
0.2 |
|
Maximum |
0.15 |
0.15 |
0.25 |
0.3 |
0.3 |
0.3 |
|
|
Wavelength dependent loss (dB) |
Typical |
0.1 |
0.1 |
0.15 |
0.3 |
0.3 |
0.3 |
|
Maximum |
0.2 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
|
Return loss (dB) |
Minimum |
55/50 |
|||||
|
Directivity (dB) |
Minimum |
55 |
|||||
|
Operating temperature (℃) |
-20 to 85 |
||||||
|
Storage temperature (℃) |
-40 to 85 |
||||||
|
Optical fiber type |
SMF-28 Or customer required |
||||||
|
Optical fiber length (m) |
1.2 or customize |
||||||
Fiber Rack Mounted PLC Splitter Key Features:
• Good uniformity and low insertion loss
• Low polarization-dependent loss
• Excellent environmental stability
• Compliant with Telcordia GR-1221 and GR-1209 standards
• TLC-certified components conforming to YD1117-2001
Rack Mount PLC Splitter Applications:
• Date Centers and Server Rooms
Rack Mount PLC Splitters are designed for 19-inch cabinets, making them ideal for data centers and server rooms where space optimization and high-density cabling are critical. They ensure efficient fiber management and support large-scale network infrastructure.
• FTTx Networks (Fiber-to-the-X)
These splitters are integral to passive optical networks (PON) like FTTH (Fiber-to-the-Home) and FTTC (Fiber-to-the-Curb). They enable signal distribution from central offices to multiple end-users, particularly in high-density residential or commercial areas.
• Telecommunications and 5G Networks
In 5G fronthaul and midhaul networks, rack-mount splitters support wavelength division multiplexing (WDM) applications, such as CWDM/LWDM systems, to enhance bandwidth and connectivity for mobile networks.
• Cable Television (CATV) Systems
They are used in CATV networks to split optical signals for broadcasting video and data services across multiple channels, ensuring stable signal transmission.
• Enterprise and Industrial Networks
Rack-mount PLC splitters are deployed in enterprise environments for structured cabling in office buildings, campuses, and industrial complexes, providing scalable connectivity solutions
