Ribbon Fiber Splitter

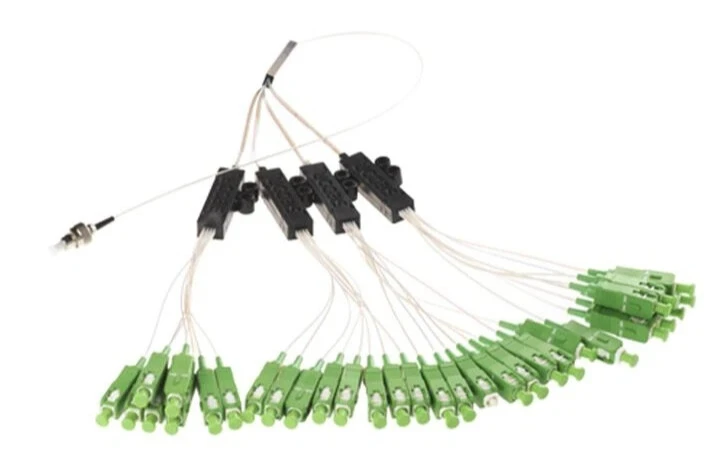

Fan-out Ribbon Fiber Splitter



A ​​Fan-out Ribbon Fiber Splitter​​ is a specialized fiber optic component designed to split a high-density ribbon fiber cable (containing multiple fibers arranged in a flat, ribbon-like structure) into individual or smaller groups of fibers. This device is critical in high-density cabling environments, such as data centers or telecom networks, where efficient management and distribution of optical signals are essential



PLC splitters with fan-out capability are primarily designed for applications involving 0.9mm optical fiber, where ribbon fibers can be transitioned to individual 0.9mm fibers through fan-out technology. These splitters are available in configurations such as 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 2×2, 2×4, 2×8, 2×16, 2×32, and 2×64 split ratios. Fiber adapters can also be integrated at the input/output ports of these splitters to meet compact sizing requirements while maintaining optical performance

Specifications:



Parameter	Unit		1×2	1×4	1×8	1×16	1×32	1×64
Insertion Loss at 23℃	Max	dB	3.8	7.1	10.4	13.7	17.0	20.3
Channel Uniformity	Max	dB	0.5	0.6	1.0	1.3	1.5	1.7
PDL	Max	dB	0.2	0.2	0.3	0.3	0.4	0.4
Operating wavelength	nm	1260～1650
Return Loss	Min	dB	55
Directivity	Min	dB	55
Operating Temperature	℃		-40～85
Storage Temperature	℃		-40～85
Fiber Type	-	-	G.657.A1 or Customized
Basic Type	Dimension H×W×L	mm	4×4×40	4×4×40	4×4×40	4×4×50	4×7×50	4×12×60
900um SFF Type	mm		4×7×60	4×7×60	4×7×60	4×12×60	6×20×80	6×40×100
ABS Module Type	mm		10×80×100	10×80×100	10×80×100	18×80×120	18×80×120	18×115×140

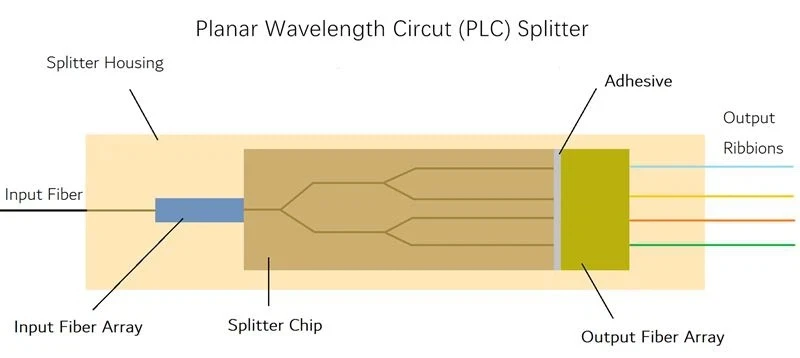

Inner Structure of the Fan-out Ribbon PLC Fiber Splitter



Fanout PLC Ribbon Fiber Splitter Features：



The Fanout PLC Ribbon Fiber Splitter is designed for high-density fiber optic networks, featuring a compact and robust structure that enables efficient splitting of ribbon fiber cables into individual fibers while maintaining minimal insertion loss and high reliability. Utilizing Planar Lightwave Circuit (PLC) technology, it ensures uniform splitting ratios across all output ports, providing consistent signal distribution for applications such as FTTH, data centers, and 5G networks. The splitter's fanout design simplifies cable management by transitioning ribbon fibers into manageable single-fiber subunits, reducing installation complexity and conserving space in high-capacity environments. Constructed with industrial-grade materials and hermetic seals, the device demonstrates exceptional environmental stability, operating reliably across a wide temperature range (-40°C to +85°C) while resisting moisture, dust, and mechanical stress. Compatible with various fiber types (e.g., SMF, MM) and connector configurations (LC, SC, MTP), it supports scalable network expansion and backward compatibility with existing infrastructure. The splitter achieves low polarization-dependent loss (<0.2 dB) and high return loss (>55 dB), optimizing signal integrity for high-speed data transmission.



• Modular housing for flexible deployment in patch panels, closures, or wall-mounted enclosures

• Color-coded fibers and clear labeling for streamlined maintenance and troubleshooting

• Advanced thermal compensation technology ensuring stable performance under fluctuating conditions

• Compliance with Telcordia GR-1209-CORE and GR-1221-CORE standards for carrier-grade quality

• Tool-free installation design and pre-terminated connector options reduce labor costs and deployment time

• Bend-insensitive fiber protection minimizes micro-bending losses during tight routing

• Rigorous testing for vibration resistance, thermal cycling, and accelerated aging meets global telecommunications certification requirements



Applications of Fanout Ribbon Fiber Splitter：



• Fiber to the point (FTTX)

• Fiber to the home (FTTH)

• Passive optical networks (PON, GEPON)

• Local area networks (LAN)

• Cable television (CATV)

• Test equipment
