Fibre Splitter
Model: 1x4 PLC Fiber Optic Splitter- FTTH Single Mode 2.0mm Cassette MPO MTP Connector
This PLC splitter is a passive optical device featuring one input port and four output ports. It is especially designed for PON applications (including EPON, GPON, BPON, FTTX, etc.), facilitating connections between the MDF (main distribution frame) and end terminals by branching the optical signal.
- Product Introduction

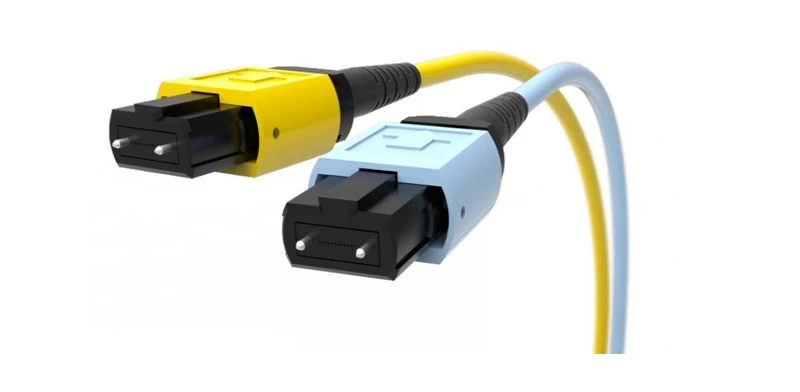

PLC Optical Fibre Splitter with MPO/MTP Connector for High-Density Network
The MPO/MTP connector used in conjunction with a fibre optic splitter offers several advantages for fiber optic networks. One of the primary benefits is its high optical fiber density, which facilitates efficient use of space. Additionally, the push-pull mechanism of the MPO/MTP connector allows for quick and easy installation. The precise alignment of its ferrule design minimizes loss and improves signal quality. Furthermore, the multi-fiber design simplifies testing and troubleshooting, and its compatibility with a variety of systems and equipment makes it versatile. Lastly, the use of MPO connectors with optical PLC splitters can result in cost savings due to their high optical fiber density and ease of installation/maintenance.
Product Description
|
Model |
Fibre Splitter with MPO/MTP Connector |
Transmission Medium |
Single-Mode |
|
Structure |
MPO |
Number of Cores |
Single-Core |
|
Ferrule Endface |
MPO/APC |
Shape |
Circular |
|
Fabrication Process |
Coupling |
Application |
Fiber Distribution Frame, Network Equipment, Fiber Module, CATV LAN |
|
Operating Temperature |
-40ºC-+85ºC |
Operating Wavelength |
1310and1550 |
|
Polarization Dependent Loss |
≤0.15dB |
Directivity |
≥55 |
Specification:
|
Parameter |
Unit |
|
Value |
|||
|
Type |
|
Dual-Window Coupler (DWC) |
Three-Window Coupler (TWC) |
|||
|
Grade |
|
P |
A |
P |
A |
|
|
Operating wavelength |
nm |
1310 and 1550 |
1310,1490 and 1550 |
|||
|
Operating bandwidth |
nm |
1310/1550±40 |
1310/1550±40 and 1490±10 |
|||
|
Insertion loss |
50/50 |
dB |
≤3.6 |
≤3.8 |
≤3.6 |
≤3.8 |
|
Polarization Dependent Loss |
dB |
≤0.15 |
≤0.2 |
≤0.15 |
≤0.2 |
|
|
Temperature Dependent Loss |
dB |
≤0.2 |
||||
|
Directivity |
dB |
≥55 |
||||
|
Return Loss |
dB |
≥55 |
||||
|
Operating Temperature |
°C |
-40~+85 |
||||
|
Storage Temperature |
°C |
-40~+85 |
||||
Characteristic of Fibre Splitter with MPO/MTP Connector:
MPO/MTP cables are designed to provide optimal connectivity with fiber optic PLC splitters, offering exceptional tensile strength, fire-retardant properties, and a favorable bend radius. Their durability, safety, and ease of installation make them ideal for various network environments. These cables are constructed with high-quality materials and undergo rigorous testing to meet industry standards, ensuring reliable and long-lasting connections. MPO/MTP cables guarantee superior performance when paired with fiber optic PLC splitters, contributing to the overall efficiency and longevity of network infrastructures.
• High Quality and Cost-effective 9/125μm
• SM Breakout fiber Pigtail
• 12 fibers/colored pigtail
• The cable size could be 0.25, 0.9,
• There are 12 colors for your option.

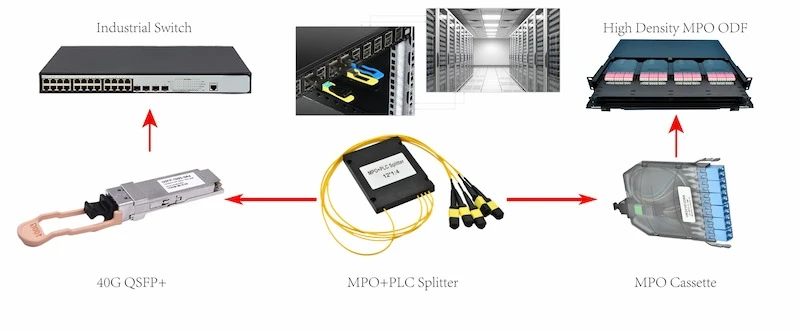

Application of Fibre Optic PLC Splitter in Data Center:
Fibre optic PLC splitters are essential components in data center networks. They enable the efficient distribution of optical signals among different network devices, including switches, optical transceiver modules, and fibre optic patch panels, facilitating high-speed networking and reliable data transmission. In addition, they play a crucial role in redundant network setups, distributing optical signals across redundant paths or devices to ensure uninterrupted operation in the event of equipment failure. Overall, fibre optic PLC splitters provide critical support for the complex infrastructures found in data centers, enabling efficient communication, data transfer, and network resilience.
