Q: What is the 3rd Generation Optical Distribution Network (ODN)?
A: Traditional ODN deployments inevitably require a large amount of fiber smelting work, requiring a large number of well-trained and skilled employees to operate with expensive fiber smelting equipment, and the deployment cost is high. At present, ODN is developing in the direction of pre-connectivity and digitalization. The third-generation ODN solution uses pre-connection technology and digital image recognition technology to greatly improve the ODN deployment efficiency and port resource accuracy, making the ODN network an easy-to-deploy, visual, and manageable intelligent optical distribution network.

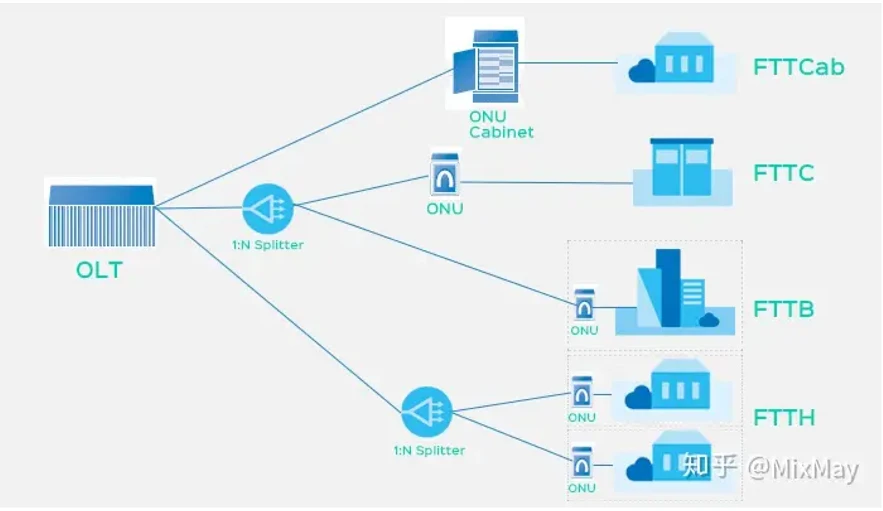

Q: Get a quick overview of FTTx/FTTC/FTTB/FTTH?
A: What is FTTx?
FTTx stands for "Fiber To The x", which is a general term for optical fiber access in optical fiber communication, and x represents the destination of the optical fiber line. For example, x = H (Fiber to the Home), x = O (Fiber to the Office) to the office, x = B (Fiber to the Building). FTTx technology ranges from the central office equipment of regional telecommunication equipment rooms to user terminal equipment, including optical line terminal (OLT), optical network unit (ONU), and optical network terminal (ONT).
According to the location of the optical network unit ONU at the user end, there are various types of FTTx, which can be divided into fiber-to-the-box (FTTCab), fiber-to-the-curbside (FTTC), fiber-to-the-building (FTTB), fiber-to-the-home (FTTH), fiber-to-the-office (FTTO) and other service forms. U.S. carrier Verizon refers to FTTB and FTTH together as Fiber-to-the-Premises (FTTP).
Q: FTTCab (Fiber To The Cabinet) is a fiber-to-the-box switchbox?
A: Optical fiber replaces traditional cables, the ONU is placed at the transfer box, and copper wires or other media are used below the ONU to access the user.
Q: FTTC (Fiber To The Curb) fiber-to-the-curb?
A: Installation and use of fiber optic cables from the central office to the curb within a thousand feet of the home or office. Generally, a potential broadband transmission link close to the user is laid first, and once there is a broadband service need, the optical fiber can be quickly led to the user to realize fiber to the home.
Q: FTTB (Fiber To The Building) is fiber-to-the-building?
A: It is a broadband access mode based on optimized optical fiber network technology, which adopts optical fiber to the building and network cable to the home to achieve broadband access for users. Generally, private line access is used, which is easy to install, and can provide a maximum uplink and downlink rate of 10 Mbps (dedicated).
Q: FTTH (Fiber To The Home) fiber-to-the-home?
A: FTTH refers to the installation of optical network units (ONUs) at home users or enterprise users, and is the type of optical access network application closest to users except for FTTD (fiber-to-the-desktop) in the optical access series. PON technology has become a hot topic for broadband operators around the world, and is considered to be one of the best technical solutions to achieve FTTH.
Q: FTTP (Fiber To The Premise) Fiber to the Premise?
A: FTTP is a North American term that includes FTTB, FTTC, and FTTH in the narrow sense, extending fiber optic cables all the way to homes or businesses.
Q: What is fiber optic splice closure?
A: Fiber optic closure, also known as fiber optic splicing closures, is a device used to provide space and protection for fiber optic cables spliced together. The fiber optic closure connects and stores optical fibers safely either in the outside plant or indoor buildings.
Q: What are the different types of splice closures?
A: 1. According to the shape and structure, it can be divided into two types, vertical optical fiber splice closure and horizontal optical fiber splice closure. 2. According to the laying method of optical fiber cable, there are overhead, pipeline (tunnel) and direct buried types.
When preparing a splice closure what should be done? For every splice closure, it is important to follow the manufacturer's instructions on stripping the cable to ensure proper lengths of strength members to secure the cable to the closure and proper lengths of buffer tubes to connect to the splice trays.
Q: Is it OK to splice fiber optic cable?
A: Fiber optic splicing is the process of joining two different fiber optic cables and creating one functioning cable. When done correctly, splicing creates a cable with improved durability and minimal loss. The two most common methods of fiber splicing are mechanical and fusion.
Q: What are the two types of fiber optic splicing?
A: "There are two types of fiber splicing – mechanical splicing and fusion splicing.
1 Mechanical splicing doesn't physically fuse two optical fibers together, rather two fibers are held butt-to-butt inside a sleeve with some mechanical mechanism. 2 The second type splicing is called fusion splicing."
Q: When pulling fiber optic cables it is important to connect a pulling line onto?
A: Most fiber optic cable contains strength members; either a central strength member (usually a fiberglass rod) or aramid yarn(sometimes referred to as "Kevlar"). Installers should always pull the cable by attaching directly to one or both of these components as they have much higher pull strength values.
Q: When would an in line splice of fiber optic cable be used?
A: Fiber optic splicing is used to join two fiber optic cables together. This is most commonly done when a cable is accidentally severed, or when fiber cables need to be lengthened during a cable run.
Q: What not to do with fiber optic cable?
A: Never look directly into the end of a fiber optic cable. You won't see anything, even if the cable is live - but the invisible infrared light could still do damage to your eyes. Not only can the right tool help you get the job done better and faster, it can help you avoid possible injury.
Q: What are 3 disadvantages of fiber optic cables?
A: Although fiber optic networks present many advantages, there are also some disadvantages to take into consideration. These include physical damage, cost considerations, structure, and the possibility of a "fiber fuse".
Q: When inspecting fiber optic cable what should be done to prevent eye damage?
A: Always wear safety glasses with side shields and protective gloves. Treat fiber optic splinters the same as you would treat glass splinters. Never look directly into the end of fiber cables until you are positive that there is no light source at the other end.
Q: What is the purpose of buffer tubes in fiber optic cable?
A: Buffer tubes are used on fiber optic cables to protect the fibers from signal interference and environmental factors since they are often used in outdoor applications.
Q: What is the purpose of cable splicing?
A: The primary purpose of splicing is to allow spliced wires to carry the current. By performing splicing, you have the opportunity to connect damaged cables instead of installing new ones. Splicing cables can be a cheaper alternative to investing in new ones.
Q: What is a fiber optic termination box?
A: The fiber termination box is an interface between the fiber cable from the line side and the pigtails to be passed to the fiber distribution frame. A fiber pigtail is a specific hardware connection used for cable termination.
Q: Can I terminate my own fiber optic cable?
A: Most fiber connectors are the plug-and-play type to allow average users to terminate the fiber cables by themselves. Numerous types of connectors have been developed, such as ST, SC and LC, to offer easier termination at a rather lower cost.
Q: What is the fiber optic box called?
A: When these optical fibers are installed or laid out, a Fiber Termination Box, or FTB, is used to distribute and protect the optical fiber links in FTTH networks. The fiber termination box is an interface between the fiber cable from the line side and the pigtails to be passed to the fiber distribution frame.
Q: What is the termination method of fiber optics?
A: TWO COMMON METHODS OF FIBER OPTIC TERMINATION. One type of fiber optic termination is the use of connectors that join two fibers to form a temporary joint. Splicing is the other type, and this involves connecting two bare fibers directly without any connectors. Splicing is a permanent method of termination.
Q: What is the average cost for fiber termination?
A: Unlike copper cabling with very inexpensive tooling, fiber-optic termination startup costs are typically much higher. Toolkits required for most no-epoxy/no-polish (mechanical) systems range from about $700 to $2,000 with an average cost of $1,500.
Q: What is the use of termination box?
A: Termination boxes are closures which are mounted directly on the wall. Termination boxes are mainly used when the number of terminated fibres is small and when it is not possible to mount termination point in a 19" rack.
Q: What are the two types of optical fiber termination?
A: It is a necessary step for installing a fiber optic network, which provides easy ways for fiber cross connection and light wave signal distribution. There are generally two ways how we terminate fiber optic cables, using connectors or splicing.
Q: Do I need to rewire my house for fiber optic?
A: Fiber optic cables require a different type of wiring than traditional copper cables. If your house already has fiber optic wiring in place, you may not need to rewire. However, if your home is still using copper wiring, you may need to upgrade to fiber optic-compatible cables.
Q: How does fiber internet terminate in home?
A: First, an installer inserts a feeder or distribution cable into the terminal. The installer then extracts the number of fibers required and fusion splices them to a pre-terminated splitter or drop fiber. Aerial or underground drop cables are then deployed from the terminal to individual residences.
Q: How do I connect my fiber optic to my router?
A: Before connecting the cable, locate the fiber optic port on your router. It's typically labeled as "Fiber," "ONT," or "WAN" (Wide Area Network). Now, it is time to make the connection: Align the connectors on the fiber optic cable and the router's port.
Q: Is a fiber box a modem?
A: Since the optical wiring is designed for data connections, Fiber doesn't require a modem. Instead, it uses an ONT at each endpoint, short for Optical Network Terminal. An ONT converts the optical signals into the common Ethernet standard via a Base-T or SFP/SFP+ port.
Q: What are the 4 common fiber optic connectors?
A: The common types of fiber optic connectors are LC, SC, MTP/MPO, ST, and FC. LC connector, as a main fiber optic connector, tends to be the most preferred one due to its compact size, high performance, and ease of use.
A: Rosette Box allows you to extend the length of two telephone cables in an easy and simple way. RJ11 biscuit jack singal ports is an ideal solution for you to add one telephone outlets at any surface-mountable locations.
Q: What is fiber rosette box?
A: It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.
Q: What is fiber box on house called?
A: An ONT is an Optical Network Terminal and is also commonly referred to as a "fibre box". The ONT is what allows the fibre optic cable to be connected from inside your home, out through your property and to the fibre network at the street.
Q: How does a fiber box work?
A: A fiber distribution box is used to convert the distribution cable into individual cables to reach the end-user. It provides a safe point to splicing, splitting, branching, straight-through or fiber termination, protecting from environmental hazards like dust, moisture, water or UV light if used outdoor.
Q: What does an optical distribution frame do?
A: An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit.
Q: What is the difference between optical distribution frame and patch panel?
A: In simple terms, fiber optic patch panel's function is to terminate the fiber optic cable and provide access to the cable's individual fibers for cross connection. A basic Optical Distribution Frame is typically made up of a metal frame that encloses the adapter panels, the connector coupler and a splice tray.
Q: What is an ODF in telecom?
A: An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit.
A: The ODF is a purpose-made rack designed to accommodate high density Feeder Panels or Splitter Panels used in FTTH PON networks. The rack can be made as a stand-alone solution, or it can be made as a 'side-by-side' system with integrated cable management in the middle.
Q: What is the difference between ONT and ONU?
A: ONU stands for Optical Network Unit. An ONT and an ONU are the same things. ONT and ONU both refer to the consumer end equipment in an optical fiber to the home (FTTH) communication link. But if you want to get technical, there is one difference and that is that ONT is an ITU-T term, whereas ONU is an IEEE term.
Q: What are the advantages of main distribution frame?
A: An MDF can provide flexibility in assigning telecommunications facilities at a lower cost and higher capacity than a patch panel. The most common kind of MDF is a long steel rack that is accessible from both sides.
Q: Is a patch panel a distribution frame?
A: 19″ fiber optic patch panel, also called as optical distribution frame(ODF), is made for Splicing and distribution of fiber optic cables, using fiber optic adapters. The box body is made of high quality cold rolled steel, electrostatic coating, the appearance is simple but beautiful, and the operation is convenient.
Q: What are the two types of patch panel?
A: Patch panels come in fixed or modular form factors. A fixed patch panel has connectors that cannot be changed or altered. Modular patch panels can swap out the connector types, enabling increased flexibility when it comes to terminating different types of twisted-pair copper, fiber optic and coax cabling.
Q: Should you use a patch panel for home network?
A: Patch panels are a great way to improve your network management by making it simple to organize your cables and connections. Patch panels even let you change cables and which devices are connected to what network at any one time.
Q: What is the advantage of ODF?
A: ODF helps separate the document (information) from the application that created it. This document can then be processed by other applications seamlessly and with fidelity, without interference of any proprietary code or any other restrictions.
Q: What is fiber terminal?
A: Fiber access terminal (FAT) is a device used for fiber cabling and cable management in FTTH applications. This device integrates fiber splicing, splitting, and distribution while also providing outstanding protection & control for network line deployment.
Q: What are the four 4 types of fiber optic connectors?
A: The most commonly used connectors today are ST, SC, FC, MT-RJ, & LC connectors while Plastic FOC, Opti-Jack, LX-5, Volition, MU, and E2000 are less used options. Finally, MPO / MTP connectors are fiber connectors that have become widely used in today's data centers.
Q: What is Fibre access terminal?
A: The Fiber Access Terminal (FAT) is a compact termination box used at the building premises such as residences, offices, etc. in the FTTx networks. It is used for straight joint, branch, and pass through the FTTx Network and provides connectivity to the subscriber.
Q: What is a fiber connector?
A: Optical fiber connectors are used in telephone exchanges, for customer premises wiring, and in outside plant applications to connect equipment and fiber-optic cables, or to cross-connect cables. Most optical fiber connectors are spring-loaded, so the fiber faces are pressed together when the connectors are mated.
Q: Where is my fiber network terminal?
A: Your ONT is typically located in your garage, basement or outside your home within a few feet of your home's power box. Often, you can resolve internet issues by checking the power to, or restarting, your ONT. Not sure if you have an ONT? The video below can help you identify if you have one.
Q: How do you connect the fiber terminal to the network box?
A: Connect the ethernet cable from the Fiber Jack to the WAN port on the new Network Box. Connect the new Network Box's power cable to an electrical outlet. As soon as you connect it to power, the Network Box starts to power on.
Q: What are the 3 most common fiber connectors?
A: There are three types of fiber optic cable: single mode, multimode and plastic optical fiber (POF).
Q: What does a fiber optic connector look like?
A: Most fiber optic connectors are plugs or so-called male connectors with a protruding ferrule that holds the fibers and aligns fibers for mating. They use a mating adapter to mate the two connector ferrules that fits the securing mechanism of the connectors (bayonet, screw-on or snap-in.)
Q: What are the two basic types of fiber optic connectors?
A: LC and SC tend to be the most commonly used styles. Today, ST connectors are seeing more limited usage.
Q: What does an fiber distribution box do?
A: A fiber distribution box is one more product widely used for a better performance of networks. It has the goal of protecting the connection point of the optical cable to access the user end, making it more stable, waterproof and dust-proof.
Q: What is a fiber optic box called?
A: Fiber optic distribution box (FDB) is widely used in FTTH access network, Telecommunication network, CATV network, Data communication network and local area network (LAN). It connects the distribution fiber optic cable and FTTH cables.
Q: How is fiber optic internet distributed?
A: The distribution network is a Point-to-Point fibre optic network installed between the Fiber Distribution Hub or Street Cabinet and the Optical Distribution Points (Terminal boxes) or Building Entry Points intended to serve all the premises for which optical links have been routed from the Street Cabinets.
Q: What is the advantage of distribution box?
A: Distribution boxes allow for balanced power allocation to various circuits, preventing overload on individual circuits and ensuring equipment operates within safe limits.
Q: What is the purpose of the distribution panel box within an installation?
A: A distribution board (also known as panelboard, breaker panel, electric panel, fuse box or DB box) is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure.
A: Multi-fiber push on connectors, or MPOs for short, are fiber connectors comprised of multiple optical fibers. While defined as an array connector having more than 2 fibers, MPO Connectors are typically available with 8, 12 or 24 fibers for common data center and LAN applications.
Q: What is the difference between LC and MPO cable?
A: In summary, MTP®/MPO connector is multi-fiber connectors used for high-density applications, while traditional LC connector is single-fiber connectors used in various networking and data communication scenarios.
Q: What is the difference between MPO and MTP cables?
A: The key difference between MTP® and MPO fiber optic cables lies in their fiber optic connectors. As the improved version, MTP® cables equipped with MTP® connectors have better mechanical designs and optical performances.
Q: Is MPO single mode or multimode?
A: MPO connectors are made for both singlemode and multimode multifiber cables. Singlemode multifiber cable jackets are yellow, and they generally come with angled physical contact (APC) connectors.
A: MPO Connectors have been used in duplex 10 Gig fiber applications throughout the data center for several years as a way to deploy preterminated plug and play backbone cables between switches that take up less pathway space and ease cable management while offering faster deployment.
Q: Are all MPO connectors APC?
A: MTP/MPO's come in both single mode and multimode styles; there are differences in multimode and single mode MTP/MPO's. For a single mode MTP/MPO, it is always an APC (angled physical contact) polish while in multimode applications it is generally an ultra physical polish (UPC).
Q: What are the different types of MPO fiber cables? "MPO Fiber-Polarity Type
A: Type A – Straight: The Left (Key Up) side is connected to the Right (Key Down) side. ...
Type B – Reversed: The Left (Key Up) side is connected to the Right (Key Up) side. ...
Type C – Cross Pair: The Left (Key Up) side is connected to the Right (Key Down) side. ...
MPO-12-4LC:
MPO-16-8LC:"
Q: How long is MPO cable?
A: Stock cables range from . 5 meter (1.64 ft) to 50 meters (164.04 ft). Custom lengths available as well. Number of fibers are 8, 12 or 24 and jacket materials are OFNP (plenum), OFNR (riser) and Low Smoke Zero Halogen (LSZH).
Q: What size is the MPO connector?
A: The MPO Connector, with its familiar push-on/pull-off insertion release mechanism, pro- vides consistent and repeatable interconnections with up to 48 fibers in a 0.7" x 0.4" mini- mum footprint.
Q: What is fiber optic cable used for?
A: Fiber optics is used for long-distance and high-performance data networking. It is also commonly used in telecommunication services, such as internet, television and telephones.
Q: What are the 3 types of fiber optic cable?
A: There are three types of fiber optic cable: single mode, multimode and plastic optical fiber (POF).
Q: What are 3 disadvantages of fiber optic cables?
A: Although fiber optic networks present many advantages, there are also some disadvantages to take into consideration. These include physical damage, cost considerations, structure, and the possibility of a "fiber fuse".
Q: Is fiber optic cable better than regular cable?
A: One of the most important reasons to choose fiber optics over regular wire cables is that they offer much higher data speeds. Fiber optic cables are capable of transmitting data at speeds of up to 100 Gbps, which is significantly higher than the best that regular cables can manage (around 30 Gbps).
Q: What not to do with fiber optic cable?
A: Never look directly into the end of a fiber optic cable. You won't see anything, even if the cable is live - but the invisible infrared light could still do damage to your eyes. Not only can the right tool help you get the job done better and faster, it can help you avoid possible injury.
Q: Is fiber optic cable worth it?
A: The average internet speed is 75-150 Mbps, but fiber optics deliver speeds up to 1,000 Mbps. Not only are they faster than traditional copper cables, they carry a higher bandwidth as well. Less Interference – Fiber optics are less vulnerable to interference due to the physical properties of the cables themselves.
Q: What does a fiber cable look like?
A: In terms of appearance, a fiber optic cable typically consists of a thin, cylindrical shape with a shiny outer surface. The color of the cable may vary depending on its purpose and manufacturer.
Q: What does fiber optic look like?
A: Fiber optics, or optical fibers, are long, thin strands of carefully drawn glass about the diameter of a human hair. These strands are arranged in bundles called fiber optic cables. We rely on them to transmit light signals over long distances.
Q: How far can fiber travel?
A: Although the maximum distance of fiber optic cable is affected by both attenuation and dispersion, for most applications, the maximum distance of any type of fiber optic cable is around 62.14 miles (100 kilometers). However, some applications require longer distances.
Q: Does fiber optic require electricity?
A: Fiber-optic cable does not rely on electricity, so power outages will have little to no effect of fiber-optic internet quality (if you are experiencing a power outage in your own data center or at home, you may experience down time due to your hardware being off-line).
Q: What is PLC splitters?
A: PLC splitters, are used to evenly divide one or two optical signals into multiple optical signals. PLC splitters are passive optical devices that are widely used in Passive Optical Networks. (PON) by connecting to the Main Distribution Frame (MDF).
Q: What is the difference between PLC splitter and FBT splitter?
A: FBT splitters differ from PLC splitters in that they can split an input signal into unequal signals at a specific percentage. While they can split signal equally in 1X2, 1X3, 1X4, and 1X8 ratios, FBT splitters aren't recommended for ratios greater than 1X4.
Q: What size is a PLC splitter?
A: The basic size of Insertion module package PLC Splitter is 130mm×100mm×25mm and it occupies 1 slot.
Q: What is the wavelength of a PLC splitter?
A: FBT splitter only supports three wavelengths: 850nm, 1310nm, and 1550nm, which makes its inability to work on other wavelengths. The PLC splitter can support wavelengths from 1260 to 1650nm. The adjustable range of wavelength makes PLC splitter suitable for more applications.
Q: What are the different types of PLC splitters?
A: rom a technology standpoint, there are two commonly used types of optical splitters: Fused Biconic Tapered (FBT) Planar Lightwave Circuit (PLC)
Q: What is a splitters purpose?
A: A splitter is a device used to split a cable signal between two or more devices.
Q: What is a FBT splitter?
A: Fused biconical taper(FBT Splitter): Bundle two or more optical fibers together, melt and stretch them on a tapering machine at high temperature, and monitor the changes in the splitting ratio in real time. The melt stretching is finished when the splitting ratio reaches the requirements.
Q: How many types of splitters are there?
A: From a technology standpoint, there are two commonly used types of optical splitters: Fused Biconic Tapered (FBT) Planar Lightwave Circuit (PLC)
A: FBT Splitters: FBT splitters use a technique called fusion splicing to combine and split optical signals. They achieve signal splitting by fusing together two or more fibers, which gradually taper down to a smaller diameter, causing the light to distribute between the output fibers based on the taper ratio.
Q: How many inputs can a PLC have?
A: PLCs are classified into following the main categories based on the number of input and outputs they can handle: Nano PLC: PLC that has less than 32 input/output (I/O) functions. Micro PLC: PLC that has more than 32 Input/Output (I/O) points but not more than 128 input/output (I/O) functions.
Q: What is 1 to 4 splitter?
A: HDMI Splitter 1x4 distributes the input HDMI signals to 4 identical HDMI outputs simultaneously. (NOTE: This HDMI splitter just mirror the screen,not support extend, each screen will shows the same page.) - Supported Audio: DTS-HD, Dolby-trueHD, DTS, Dolby-AC3, DSD etc.
Q: How many outputs does a PLC have?
A: Discrete output cards for PLCs also typically have 4, 8, 16, or 32 channels.
Q: Can fiber optic cable be patched?
A: Fiber optic cables are repaired in the same way that they are spliced. Unlike conventional copper wire, a cut fiber cable cannot simply be twisted or crimped back together. If the fiber isn't cut but damaged, then the bad section is removed and the remaining fiber must be carefully spliced.
Q: What is the difference between fiber cable and fiber patch cord?
A: A "patch" cable is like an Ethernet cable and transmits the signal electrically through copper wires between devices and connects via an Ethernet plug and socket. A fiber optic cable uses a bundle of flexible glass fibers to transmit a signal vis light between devices and has a special connector on each end.
Q: Which is better fiber or copper patch cable?
A: Fiber optic cables offer superior performance compared to copper cables, especially over long distances. They provide higher data transmission rates, larger bandwidths and are immune to electromagnetic interference.
Q: What is the difference between blue and green fiber patch cords?
A: In general, the higher the return loss the better the performance of the mating of two connectors. Besides the fiber end face, another more obvious difference is the color. Generally, UPC connectors are blue while APC connectors are green.
Q: What are the two types of patch cables?
A: "Straight-Through and Crossover Patch Cord Cables
These are called straight-through cables and crossover cables, and the differences between them are related to the network interfaces of the various components they connect."
Q: What is a fiber pigtail used for?
A: Fiber optic pigtails are basically used to splice with the fiber so that they can be connected to the patch panel or equipment. They also present a feasible and reliable solution for easier fiber termination, effectively saving operating time and labour cost.
