MultiPort Flex Splitter Terminal
Model: Outdoor Splitter Stap (SC/APC) Cable Assemblies 1x2 1x4 1x8 1x16
MultiPort Flex Splitter Terminal is a cost-effective and rapid method of deploying optical fiber in OSP distribution networks, these mini flexible fiber access terminals ensure an easy one-step connection system with the combined push-pull insertion and nut-style latch.
- Product Introduction
MultiPort Flex Splitter Terminal offer a highly efficient and economical solution for deploying fiber optic fiber in outdoor distribution networks, surpassing traditional installation methods. These compact terminals ensure a straightforward, one-step connection system featuring a push-pull mechanism and nut-style latch. Our mini terminals enable quick installation and exceptional performance when used with SuperTap® connectors, which are compatible with older hardened connector systems. Hardened connectors deliver environmental protection suitable for demanding outdoor applications. Staggered length connector cables give installers added adaptability in confined and challenging installation environments.
Features of MultiPort Flex Splitter Terminal:
• Cost effective solution for in house termination.
• Low insertion loss and added loss.
• Height of attenuation.
• IP68 Waterproofing grade, dust proof and corrosion resistant
• The material in the jumper cable are all-weather and UV-resistant.
• RoHS and REACH materials compliant.
• Durability:200 matings
• Branch injection molding.
• Operation temperature:-40°C to +85°C
• Storage Temperature:-40°C to +85°C
Dimensional Diagrams:

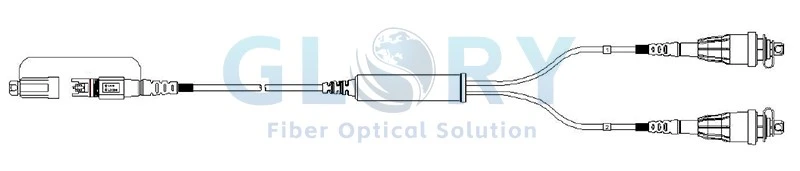

Stap (SC/APC) with Connector 1x2 PLC Splitter

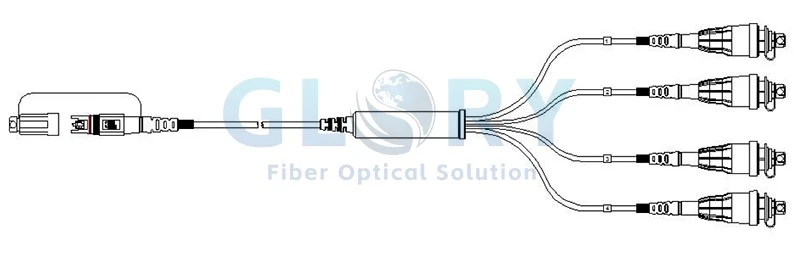

Stap (SC/APC) with Connector 1x4 PLC Splitter
Optical Specifications:
|
Type |
Insertion loss (dB) |
Return loss (dB) |
|
10/90 1x2 Coupler |
≤11.5/1.05 |
≥55 |
|
20/80 1x2 Coupler |
≤8.2/1.6 |
≥55 |
|
30/70 1x2 Coupler |
≤6.3/2.2 |
≥55 |
|
40/60 1x2 Coupler |
≤4.5/3.0 |
≥55 |
|
50/50 1x2 Coupler |
≤3.9/3.9 |
≥55 |
|
1x2 PLC Splitter |
≤4.2 |
≥55 |
|
1x4 PLC Splitter |
≤7.8 |
≥55 |
|
1x8 PLC Splitter |
≤10.9 |
≥55 |
|
1x12 PLC Splitter |
≤12.9 |
≥55 |
|
1x16 PLC Splitter |
≤13.9 |
≥55 |
Application of MultiPort Flex Splitter Terminal
• Multi-purpose Outdoor.
• For connection between distribution box and RRH.
• Deployment in Remote Radio Head cell tower applications.
