Cassette Splitter
Model: Optical Cassette Splitter 1x16 HLGX type, with input of 1,8mm fiber length 3m, protection boot on the case and output with n.16 SC/APC adapters
The 1x16 LGX PLC cassette splitter is a highly efficient and cost-effective solution for splitting optical signals in telecom and datacom networks. Its compact design, high performance, and low cost make it an ideal choice for technicians and network operators seeking an easy-to-use, reliable splitting solution.
- Product Introduction

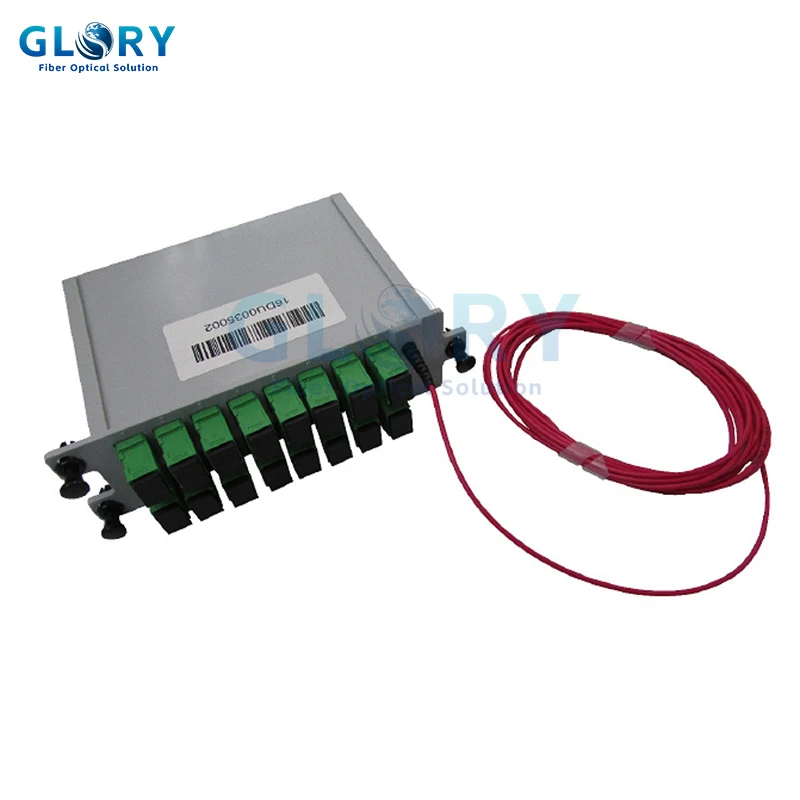

1x16 LGX PLC Cassette Splitter
The Cassette Splitter (Optical Splitter 1x16 HLGX Type) is a highly efficient and cost-effective solution for distributing optical signals in telecom, CATV, and FTTx networks. It splits a single input signal into sixteen equal output signals while maintaining signal quality and integrity. The LGX Splitter is a critical component in optical networks, designed to minimize signal loss and enhance overall network performance.
In this article, we will discuss the features and benefits of the 1x16 LGX PLC Cassette Splitter in detail and explain why it is an ideal solution for telecom and datacom applications. With its wide operating wavelength range and excellent stability, the LGX Splitter is a reliable choice for telecom, CATV, and FTTx networks.

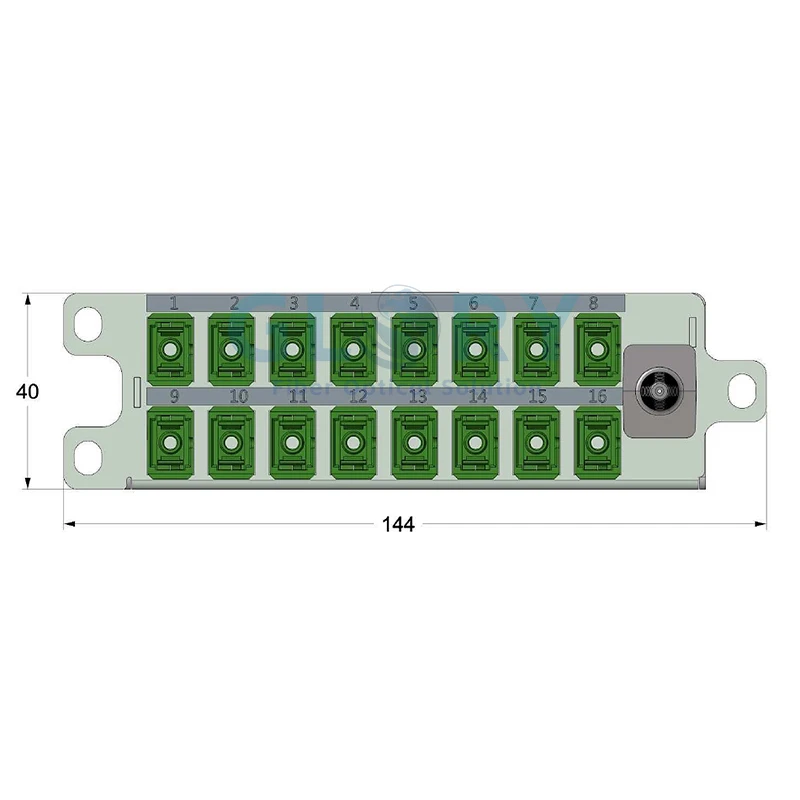

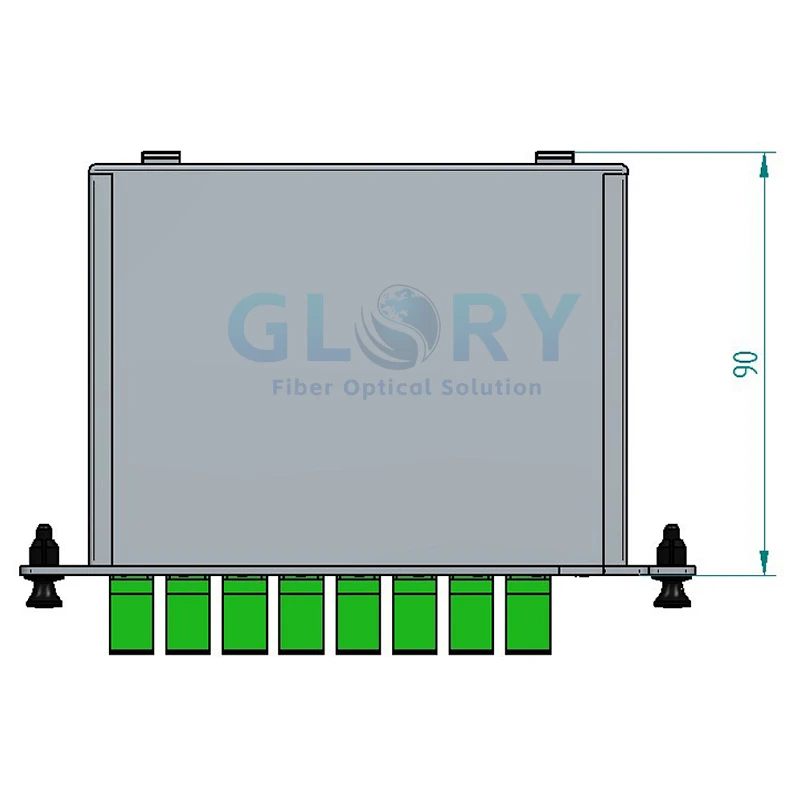

Dimension:
Features
Low Insertion Loss
The cassette splitter has low insertion loss, which means it has minimal impact on the output signal, ensuring that the signal is transmitted over long distances without any significant degradation.
01
High Split Ratio
The 1x16 LGX PLC Cassette Splitter has a high split ratio of 1:16, which means a single input can be divided into sixteen output signals without any signal degradation.
02
Excellent Stability
The splitter has excellent stability, which ensures that the output signal is consistent and of high quality. It can operate over a wide temperature range and is resistant to fluctuations in power supply.
03
Compact Design
The Optical Cassette Splitter 1x16 HLGX type has a compact design, which makes it easy to install and saves space.
04
Wide Operating Wavelength
The splitter can operate over a wide wavelength range, making it ideal for use in a wide range of applications.
05
Specifications:
|
Parameter |
Unit |
Specification (P Grade) |
||||||||||
|
Operation Wavelength |
nm |
1260~1650 |
||||||||||
|
Channel Number |
1X2 |
1x3 |
1X4 |
1x6 |
1X8 |
1x12 |
1X16 |
1x24 |
1X32 |
1X64 |
1x128 |
|
|
Insertion Loss (Max) |
dB |
4.3 |
6.2 |
7.2 |
9.8 |
10.5 |
12.5 |
13.6 |
16.5 |
17.2 |
21.0 |
25.5 |
|
Uniformity (Max.) |
dB |
0.5 |
0.6 |
0. 6 |
0.8 |
1.0 |
1.0 |
1.4 |
1.5 |
1.6 |
2.0 |
2.5 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
0.8 |
|
Return Loss |
dB |
≥55 |
||||||||||
|
Directivity |
dB |
≥55 |
||||||||||
|
Parameter |
Unit |
Specification (P Grade) |
||||||
|
Operation Wavelength |
nm |
1260~1650 |
||||||
|
Channel Number |
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
2x128 |
|
|
Insertion Loss (Max.) |
dB |
4.5 |
7.5 |
11.2 |
14.6 |
17.5 |
21.5 |
25.8 |
|
Uniformity (Max.) |
dB |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.5 |
3.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
1.0 |
|
Return Loss |
dB |
≥55/50 |
||||||
|
Directivity |
dB |
≥55 |
||||||
Applications
Telecom Networks
Split optical signals in telecom networks, allowing for efficient signal transmission over long distances.
Datacom Networks
Used in datacom networks to split optical signals between multiple data centers or to multiple servers.
CATV Networks
The cassette splitter is used in CATV networks to split signals between multiple homes or apartments, allowing for efficient distribution of television signals.
