Fiber Splitter

PLC (Planar Lightwave Circuit) Splitters are designed as single-mode splitters, ensuring an even split ratio from one input fiber to multiple output fibers.



The 1x32 Fiber Splitter features 1 input and 32 output fibers with a consistent split ratio across all fibers, regardless of input wavelength.



These splitters are available with 900um loose tube single-mode fiber and can be tailored with terminations to meet your specific requirements.



For easy splicing or connection, un-connection PLC splitters come without connectors. Their flexibility and ease of use make them an excellent choice for various optical network applications.





• High-quality PLC design with a protective metal casing around the fibers



• PLC splitting mechanism ensures equal division of input signal among all output fibers



• Built with options of 900um loose tube fiber, 250um bare fiber, or 2mm buffered fiber



• Available unconnectorized or pre-terminated with LC/UPC, LC/APC, SC/APC, FC/UPC, FC/APC and ST/UPC connectors



• This is a single mode 1 to 32 Fiber Splitter.



• All fibre optic structure and the environmental stability is good.

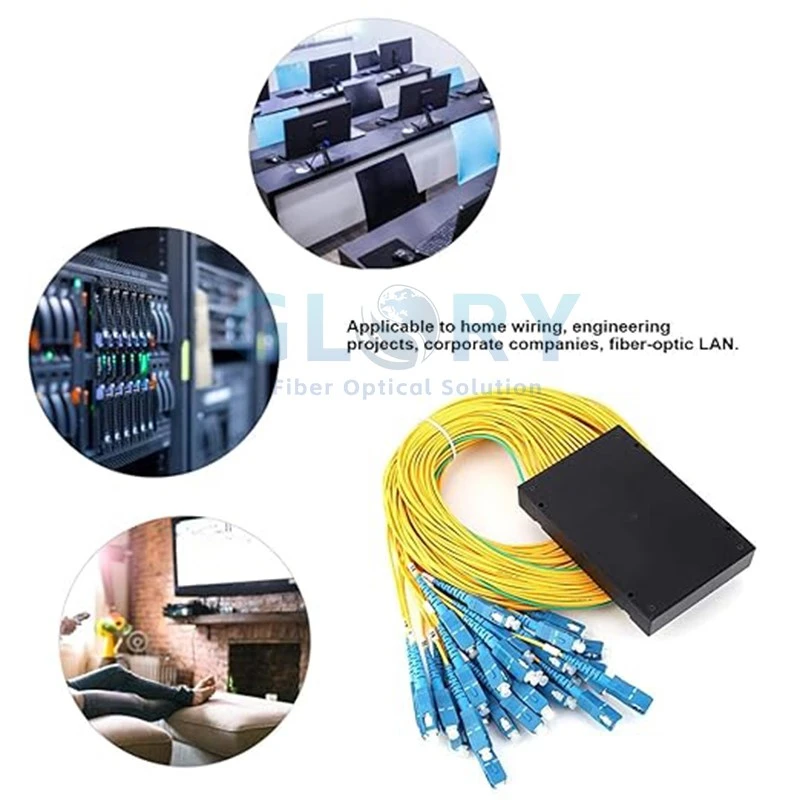

• Applicable to home wiring, engineering projects, corporate companies, fiber-optic LAN.



• Low insertion loss and low back reflection.





Package type	ABS Box	Port configuration	1X32
Fiber type	G.657A1	Optical fiber model	Single mode
Connector type	SC/APC	Spectral ratio	50/50
Fiber diameter	2.0mm	Fiber length	1.5M
IL	≤17dB	RL	≥55dB
UF	≤1.5dB	DIR	≥55dB
PDL	≤0.3dB	TDL	≤0.5dB
WDL	≤0.5dB	Working wavelength	1260~1650nm
Working temperature	-40~85℃	Storage temperature	-40~85℃
Steel size (H x W x D)	18x120x80mm
