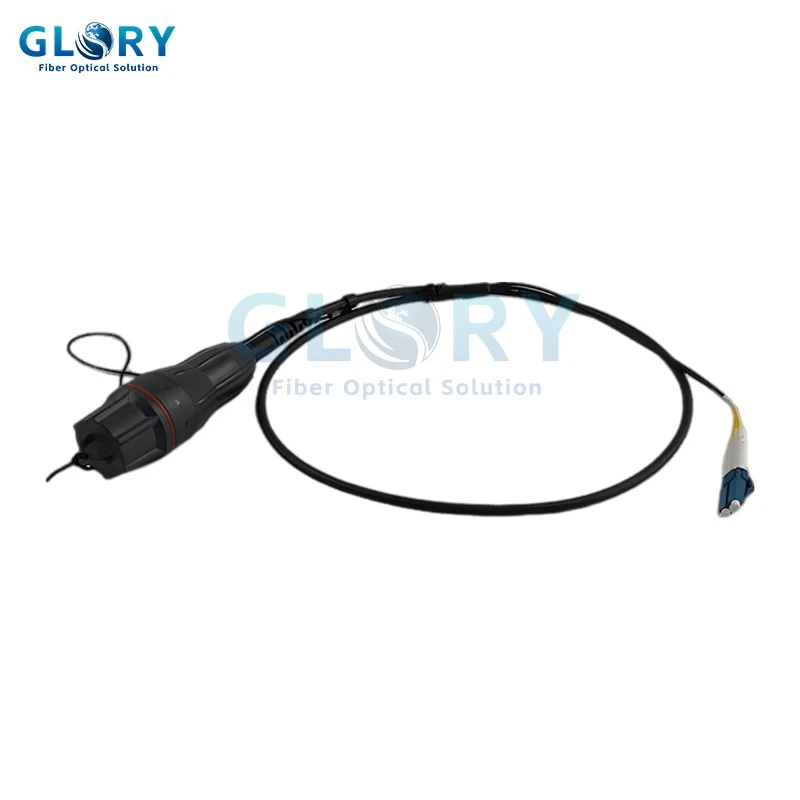

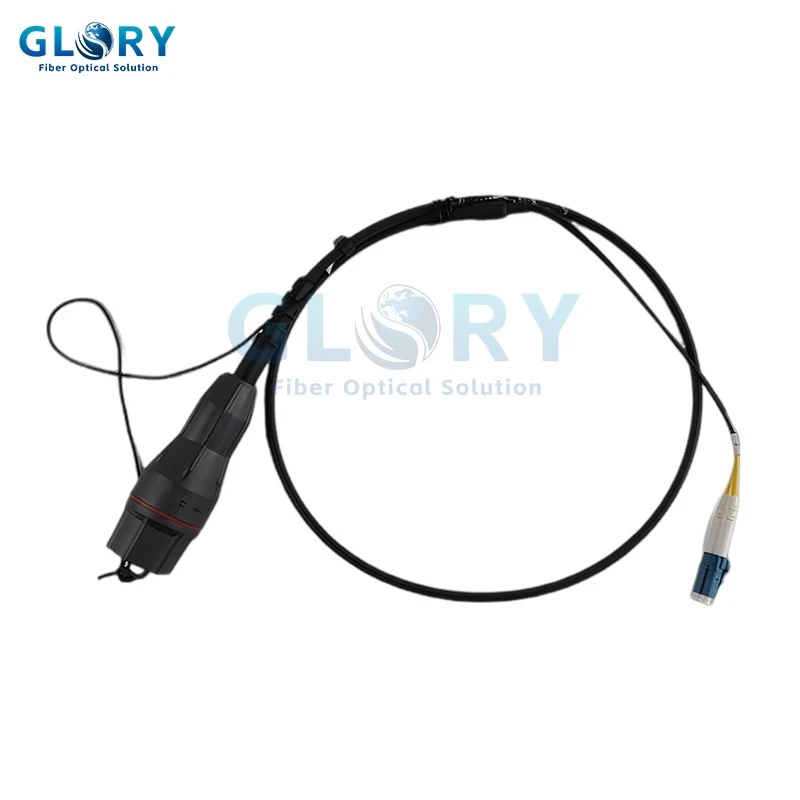

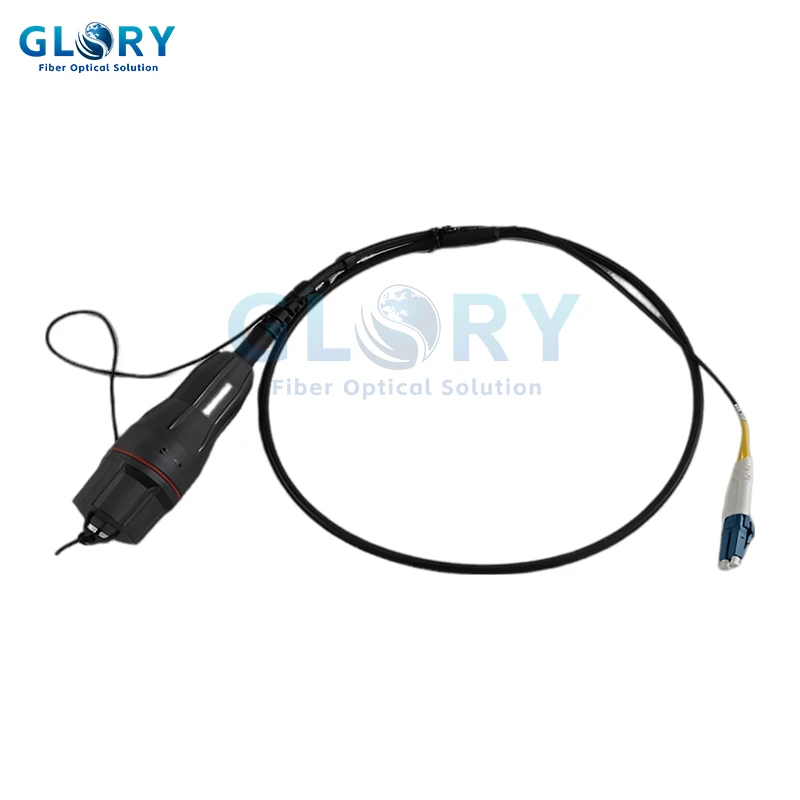

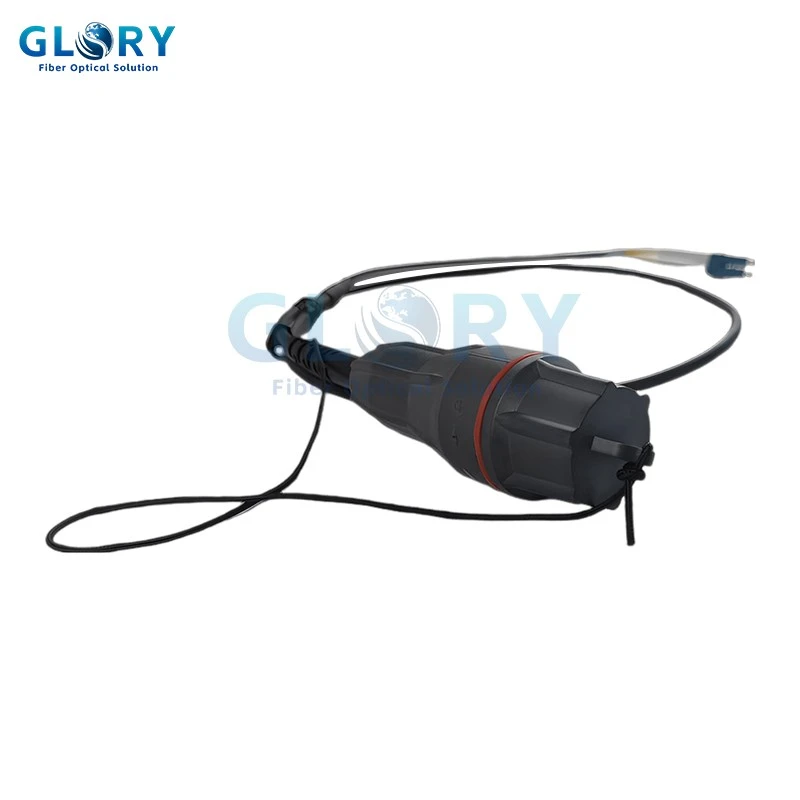

Fullaxs To LC Patch Cord IP67 Waterproof DX SM 4.8mm Cable



Next generation WIMAX and Long-Term Evolution (LTE) Fiber to The Antenna (FTTA) connectivity designs require rugged cable assemblies for outdoor use. For direct connection, these cable assemblies need to plug directly into the optical transceivers through a bulkhead construction. For this specific application, the connector design will need to accommodate a large tolerance in Z-direction. Furthermore, the Fullaxs To LC Patch Cord connector shell must allow easy one-handed mating. The FullAXS connector system meets this requirement by accommodating a large Z-direction tolerance while also offering the benefit of one-hand installation of the connector shell. With this Fullaxs To LC Patch Cord offering, users can also conveniently remove and replace the transceivers through a cutout in the bulkhead that completely eliminates the need to open the entire remote radio box, exposing its contents to hazardous weather conditions. For the optical connection, the connector system includes an industry-standard duplex LC interface for fast mating with all LC duplex SFP transceivers.



The FullAXS To LC Patch Cord connector can be designed for either single mode or multimode optical transmission applications. The cable assembly is firmly mounted through the bulkhead and directly inserted into the optical transceiver, providing direct connection to the WiMax and LTE equipment in the FTTA application.

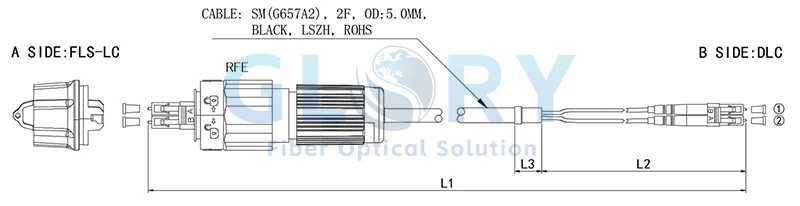

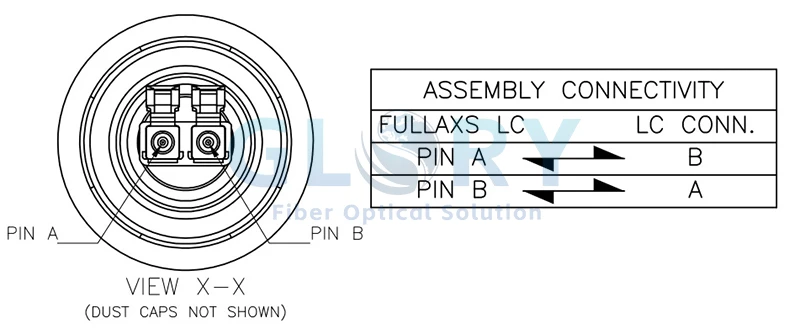

FTTA Fiber Cable Assembly:







Connector top: 1 x LC-CP, single mode

Connector bottom :1 x LC-Duplex, single mode

Cable: Halogen free TPU, flame retardant, UV resistant UL1581, Flame retardant



Cable	2 fibres
Fiber	9/125 µm single mode optical fibre
Attenuation Coefficient
≤ 0.25 dB / km	≤ 0.40 dB / km
Connectors (A side)	LC- Duplex
Insertion loss	max. 0.30 dB
Return loss	typ. 55 dB (UPC)
Connector (B side)	LC-Duplex
Insertion loss	max. 0.30 dB
Return loss	typ. 55 dB (UPC



Mechanical Data:



Cable diameter, jacket	4.8 mm
Minimum bending radius cable
Installation	20 mm
Operation	20 mm
Max. tensile strength cable
Installation	450 N
Permanent	300 N
Crush resistance	3000 N / 100 mm
Max. tensile strength connector
LC Duplex	70 N
Hoisting grip/ option
Max. tensile strength- hoisting option RFE based for cables up to 100 meters max.	30 N



Environmental Data:



Temperature range operation	-40 °C to +70 °C (IEC 60794-1-2)
Temperature range storage	-40 °C to +70 °C
Temperature range installation	-20 °C to +60 °C
RoHS	compliant
Length (m)	Tolerances (mm)
L<=5	+/-50
5	+/-100
10	+/-200
20 < L ≤ 50	+/- 500
L>50	+/-1000
Cable assemblies in additional length variants are available.



Features for Fullaxs To LC Patch Cord:



• Open bulkhead for easy access to SFP
• Positive feedback to operator when fully mated
• One-hand mating
• Duplex LC interface
• Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
• Robust bayonet locking for easy, fast, and secure mating
• Fullaxs To LC Patch Cord is available for Multimode and single mode
• Waterproof, dustproof and corrosion resistant
• Expansion to RJ45, etc.
• Plug has tolerance free design, fully free floating in Z-axis
• No Cable buckling at any time during or after installation
• 100% tested and serialized Fiber Assemblies
• Field installable version available



Application:



• WIMAX and LTE Base Stations
• Remote Radio Heads (RRH)
• Industrial outdoor applications
• Robotics
• Aerospace & Defense
