Lc Patch Cord
Item: LC Patch Cord

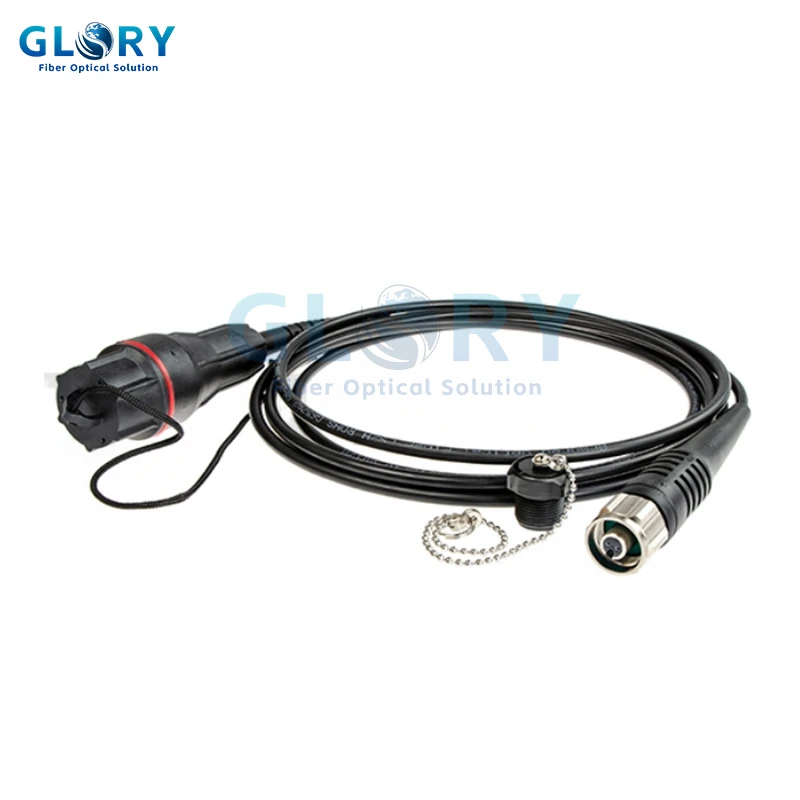

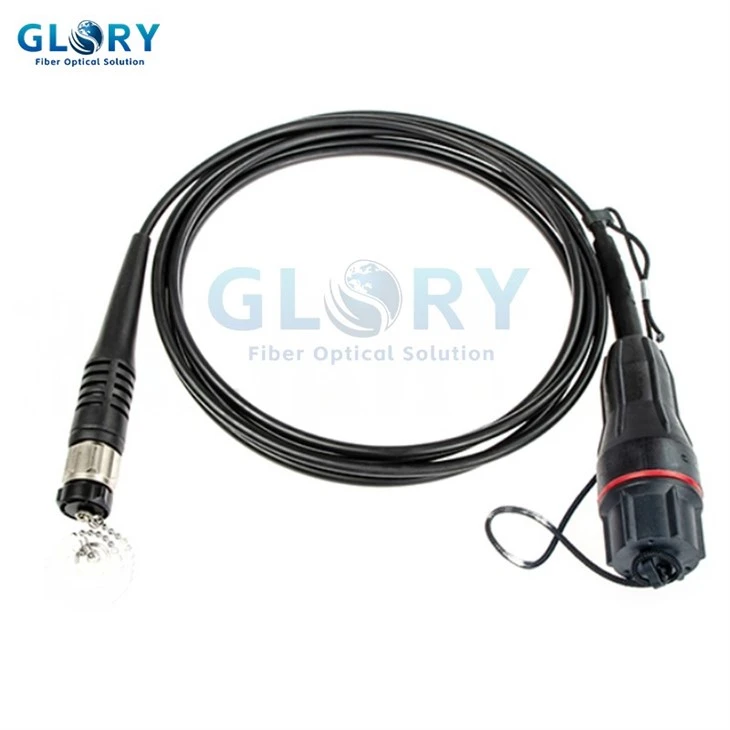

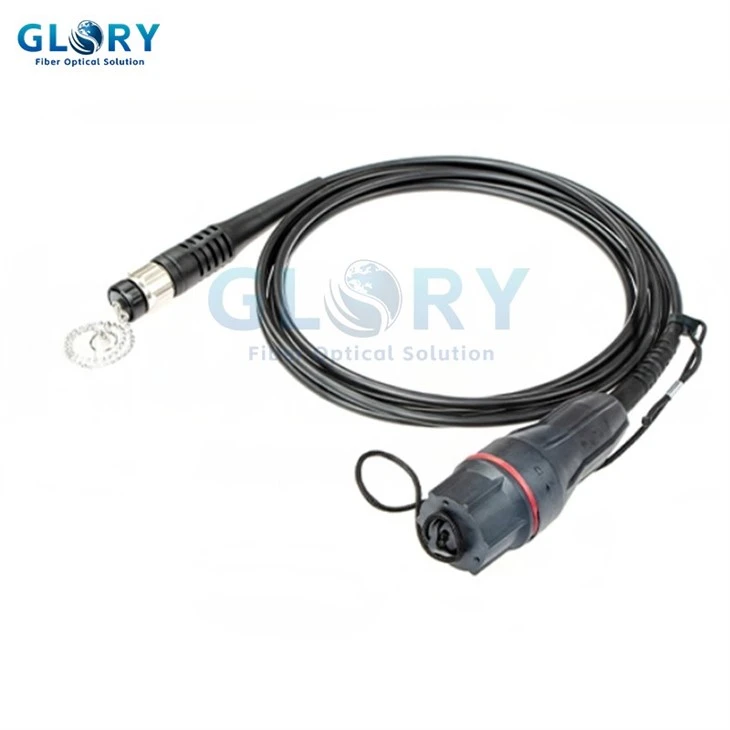

Model: Armoured ODC Male-FullAXS LC SM &5mm Outdoor Waterproof Fiber Patch Cable
Compliant with IEEE 802.3z standards for Fast Ethernet and Gigabit Ethernet applications.
All the fiber patch cables we all 100% totally tested well before shipment.
- Product Introduction
ODC-FULLAXS LC Patch Cord is a type of fiber optic cable that uses the ODC connector, which is a rugged, waterproof connector commonly used in harsh outdoor environments. The FULLAXS part of the name refers to the design of the connector, which features a circular interface with a bayonet locking mechanism that provides a secure, vibration-resistant connection. Armoured ODC Male-FullAXS LC patch cords are typically used in applications such as remote radio heads, small cell deployments, and other outdoor wireless infrastructure.
Specifications:
|
Connector |
ODC to FULLAX |
Jacket OD |
5.0mm |
|
Fiber Mode |
G.657A |
Jacket Color |
Black |
|
Polish |
UPC to UPC |
Wavelength |
1310/1550nm |
|
Fiber Type |
2Fibers |
Jacket Material |
LSZH/TPU |
|
Insertion Loss |
≤0.3db |
Insertion Loss |
≤0.2db |
|
Return Loss |
≥50db |
Storage Temperature |
-40~+85 |
|
Operating Temperature |
-40~+75 |
Features for ODC-FULLAXS LC Patch Cord:
• ODC thread locking mechanism can ensure long-term reliable connection.
• With special guide mechanism, it can be blindly inserted with on hand, simple and fast connection and installation.
• Completely sealed design.
• Compact design, easy to operate, durable.
Application:
• Optical Fiber Communication connection in harsh outdoor environment.
• Military commutation equipment connection.
• Oil field and mine communication Connection.
• Remote wireless base station.
• Video surveillance system
• Fiber optic sensing
