Lc Lc Duplex Patch Cord

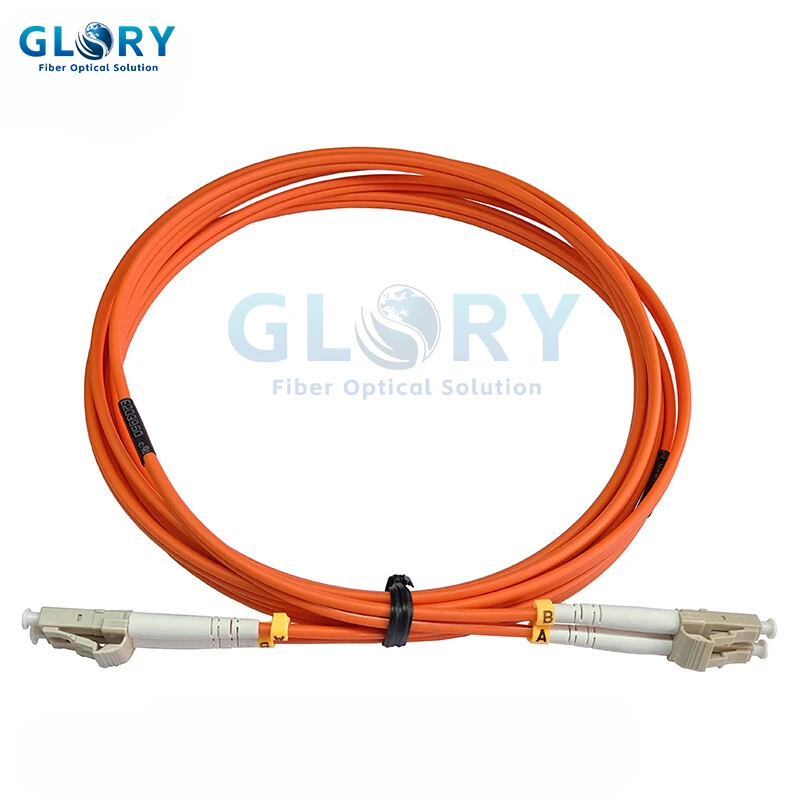

Item: LC LC Duplex Patch Cord
Model: Fiber Optic Patch Cord LC UPC-LC UPC Fiber Jumper OM3 Duplex Simplex 3.0mm LSZH The LC type connector has a modular jack latch for easy operation and half the size of ordinary SC and FC. It is generally used in optical transmission modules.

Send Inquiry

Product Introduction

LC-LC Duplex Patch Cord is a popular product with a spiral stainless-steel strip on the fiber for excellent kink and compression resistance. The rugged outer jacket protects the cable in the data center space. Better work inside and in harsh environments. LC/UPC-LC/UPC Duplex 10G Multimode OM4 Armored Fiber Patch Cable.

Specifications:

Parameter	Unit	FC, SC, LC			ST, MU, MTRJ
		SM		MM	SM	MM
		UPC	APC	UPC	UPC	UPC
Insertion Loss	dB	≤0.2			≤0.2
Return Loss	dB	≥55	≥65	≥35	≥55	≥35
Repeatability	dB	△IL≤0.2 △RL≥5		△IL≤0.1	△IL≤0.1	△IL≤0.1
Durability	dB	△IL≤0.2 △RL≥5		△IL≤0.1	△IL≤0.1	△IL≤0.1
Exchangeability	dB	△IL≤0.2 △RL≥5		△IL≤0.1	△IL≤0.1	△IL≤0.1
Compressive Strength	N	F＞300
Operation life Span	Times	n＞1000
Operation Temperature	℃	-40~75
Storage Temperature	℃	-45~85
Cable Diameter	cm	0.9, 2.0, 3.0 or specified

Fiber Connector	LC to LC	Fiber Type	SM: Yellow/Blue/White; OM1&OM2: Orange; OM3: Aqua; OM4: Aqua/Violet/ Magenta
Cable OD &Jacket	1.6/2.0mm&PVC/LSZH	Fiber Counts	2 Fibers
Insertion Loss	≤0.3dB(IEC Grade C) ≤0.12dB(IEC Grade B)	Return Loss	SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min) MM PC ≥ 35dB(min)
Pull-out Force	100N	Durability	500 Cycles
AB Polarity Switchable	Available	Operating Temperature	-40 to + 85°C

Detailed introduction:

1.Connector Type: LC, SC, FC, ST, FC, Mu MTRJ, MPO, E2000
2. Polish: PC, APC, UPC
3. Fiber Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um of 62.5/125um);
4. Cable Diameter: 3.0mm, 2.0mm,. 0.9mm;
5. Length: 1,2, 3,5, 10 meters of customized length;
6. Cable material: PVC, LSZH
"SM = Single mode; MM = Multi mode; SX = Simplex; DX = Duplex "
