SC LC Fiber Patch Cord
Model: LC-SC SM Simplex Fiber Patch Cord with Low IL and High RL (0.9mm, 2.0mm, or 3.0mm Diameter Options)
• Custom specifications and lengths available.
• Customizable connectors (FC, LC, SC, ST), polish (UPC or APC), and fiber type (single-mode, multi-mode, OM3, OM4, OM5).
- Product Introduction

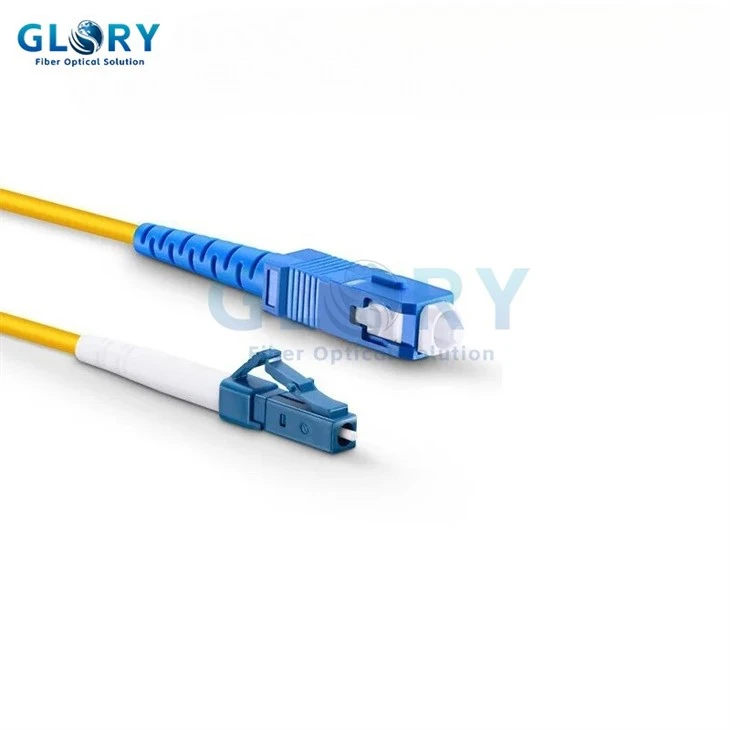

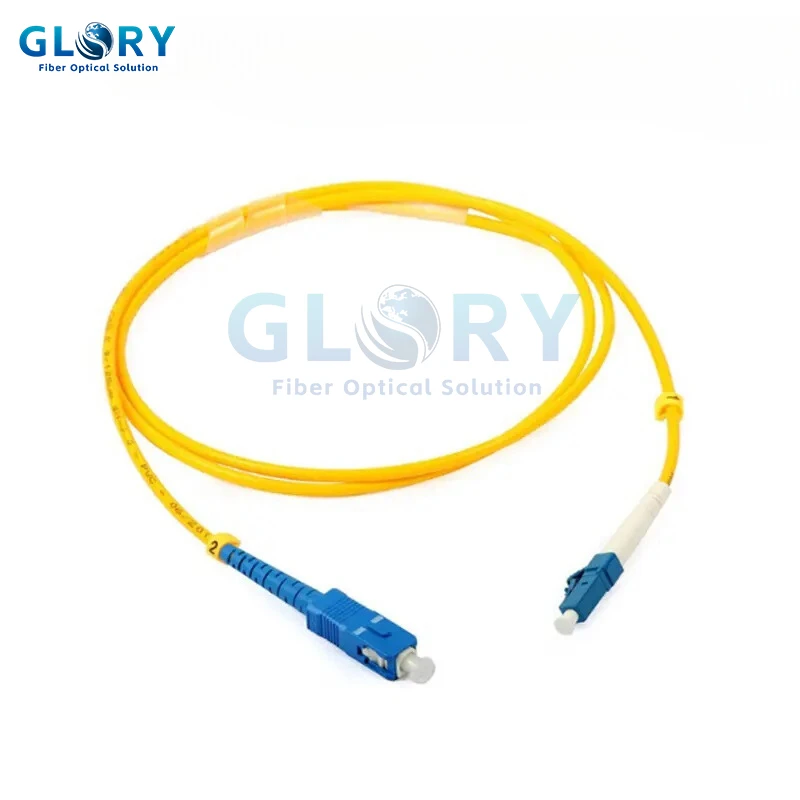

SC-LC SM Simplex Fiber Patch Cord
The SC LC Fiber Patch Cord is best used for long cable runs in any single-mode network. It features a yellow OFNR cable jacket. Each fiber optic cable is functionally tested to guarantee top performance upon delivery. Utilizing this fiber optic patch cord assures critical network uptime. Custom lengths, connector combinations, and polishes are available. This is one of thousands of fiber optic connectivity products in stock and ready to ship.
Features for SC LC Fiber Patch Cord:
- Low-insertion loss and high-return loss
- Good compatibility
- Good durability
- High-temperature stability
- High-precision of mechanical dimensions
- Available for single mode/multi-mode and simplex/duplex
- 0.9/2.0/3.0mm diameter cable available
Application in Area Network:
• Interconnecting Network Equipment: The SC-LC simplex fiber patch cord provides a compact solution (LC end) for high-density network equipment ports like switches and routers, while its SC end seamlessly connects to existing carrier-grade optical line terminal (OLT) or transmission equipment interfaces common in Metropolitan Area Networks (MAN) or Wide Area Networks (WAN) infrastructure. This hybrid design bridges equipment generations efficiently over single-mode fiber distances.
• Facilitating Backbone Links: Crucial for extending core network backbone links within an area network (e.g., MAN), the SC-LC Simplex cord leverages single-mode fiber for high-bandwidth, low-loss transmission over kilometers. Its hybrid connectors (SC for legacy panels/frames, LC for modern devices) efficiently interconnect disparate optical hardware components across facilities or aggregation points without excessive space use.
Specifications:
|
Item |
Unit |
SM |
MM |
|||
|
PC |
UPC |
APC |
PC |
|||
|
Insertion loss |
dB |
≤0.20 |
||||
|
Max. Insertion loss |
dB |
≤0.30 |
||||
|
Repeat-ability |
dB |
≤0.10 |
||||
|
Changeability |
dB |
≤0.20 |
||||
|
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥35 |
|
|
Operation Temperature |
℃ |
-40 ~ +85 |
||||
|
Storage temperature |
℃ |
-40 ~ +85 |
||||
|
Fiber type |
um |
9/125 |
50/125, 62.5/125 |
|||
|
Core number |
Single or dual fiber |
|||||
|
Durability |
>1000times |
|||||
