Lc To Lc Multimode Fiber Patch Cable

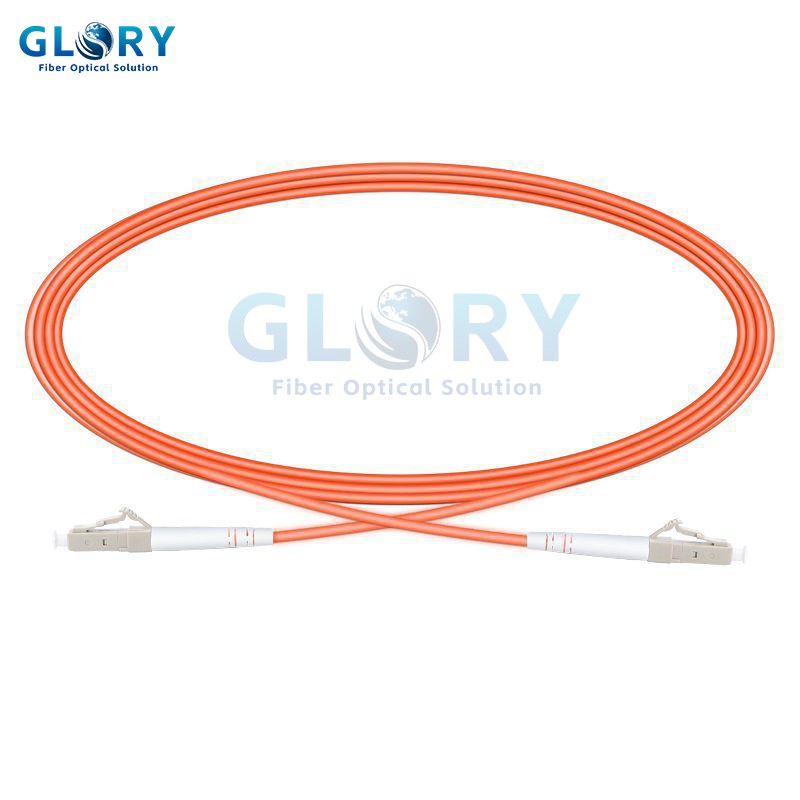

Item: LC To LC Multimode Fiber Patch Cable
Model: LC/LC 50/125 Multimode Simplex Fiber Patch Cable, OM2, 10 Meter
With LC to LC connectors, Multimode Fiber Patch Cable is ready for deployment in any multimode OM2 50/125 network. This multimode, simplex fiber cable is comprised of corning optical fiber with ceramic connectors. The patch cable has an orange, riser rated, PVC jacket.
- Product Introduction
This LC To LC fiber patch cord is a multimode cable with LC UPC connector on both ends. Fiber patch cord is commonly used to connect the equipment in fiber-optic networks. The fiber optic jumper can be categorized by fiber optic connector types, when we name LC fiber patch cord because this optical cable comes with an LC connector, and it also can be named as PC, UPC, APC type fiber patch cable because of the polishing way of fiber connectors.
Our fiber optic jumper is available in single mode and multimode type, also features a range of fiber optic connectors SC/LC/ST/E2000. Cable color, fiber diameter, and jacket are optional.
Specifications:
|
Connector Type |
LC-LC |
Cable Diameter |
0.9mm/2.0mm/3.0mm |
|
Fiber Type |
SM, MM |
Fiber Count |
Simplex/Duplex/Quad |
|
Polish |
UPC, APC |
Jacket Material |
PVC/LSZH |
|
Insertion loss |
≤0.25dB |
Attenuation at 1310 nm |
0.36 dB/km |
|
Return loss |
≥50dB |
Attenuation at 1550 nm |
0.22 dB/km |
|
Minimum Bend Radius |
30mm |
Operating temperature |
-40°C~80°C |
|
Fiber-Grade |
G652D, G657A, G651 |
Cable Length |
1m/2m/3m/5m… |
Features for Fiber Optic Patch Cord:
• Low insertion loss, high return loss
• High environmental stability
• Good exchangeability and durability
• 100% quality inspection
• Available to customize length, fiber diameter, connector
Application
• Fiber Network Deployments
• Fast Ethernet
• Gigabit Ethernet
• Server Farms
• FTTX
