Outdoor OptiTap 4.5 * 9.8mm SST Toneable Flat drop Cable Assemblies-Fiber Optic Cable Patch Cord

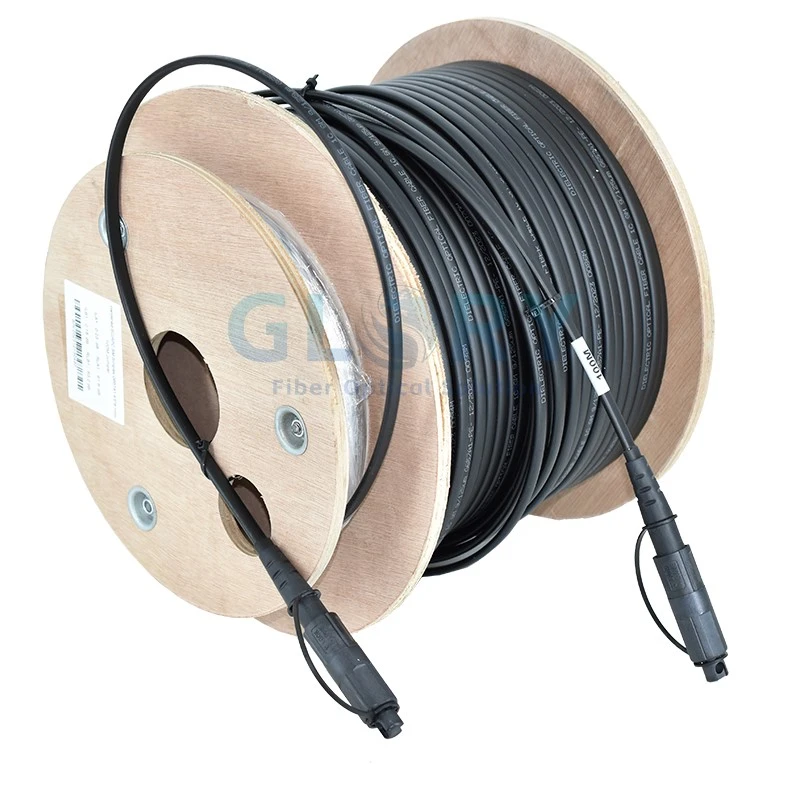

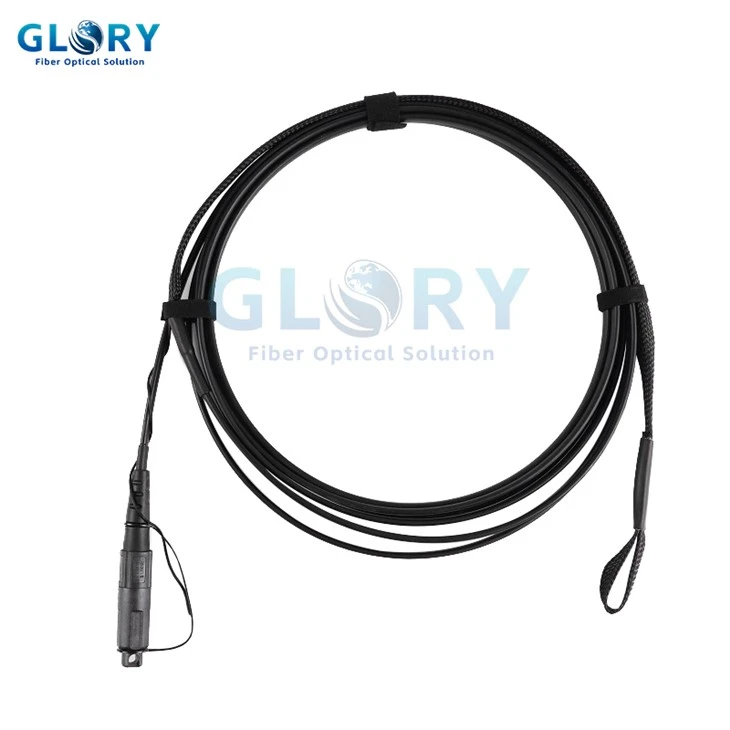

This Toneable OptiTap SC/APC Compatible Flat Drop Cable Assembly is a factory pre-terminated solution for FTTx, enabling fast "plug and play" Fiber Optic Cable Patch Cord. Featuring a 4.5 * 9.8mm flat drop cable and a locate wire (copper conductor), it facilitates easy cable detection and location in underground applications (non-toneable option available). The assembly is designed with a pulling eye and offers a compact, durable, and easy-to-locate optical fiber solution, suited for Acometida Exterior applications. It is also available with traditional round style OSP cables.

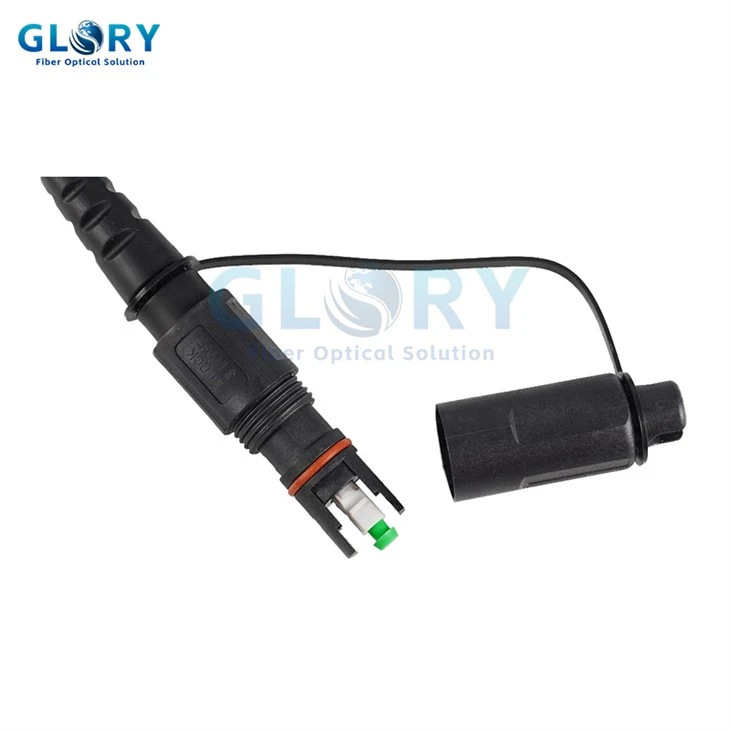

The Fiber Optic Cable Patch Cord incorporates a hardened connector end with an SC/APC connection housed within a slim, sealed, threaded polymer housing. This hardened OptiTap ROC connector allows easy connection to multiport terminals or in-line extension receptacles and mates to a standard adapter, providing a common FTTH interface. This design, available with flat drop or traditional round OSP cables, makes it an ideal solution for outdoor installations including direct burial, conduit, or aerial deployments.



Features:



• Compatible with H-Connector

• Cable length customized

• Factory terminated for high performance

• Available with one or both ends connectorized

• Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip

• Available in dielectric or toneable

• IP-68 water and dust protection

• -40℃~85℃ working temperature



Specifications:



Product Name	Fiber Optic Cable Patch Cord SST Toneable flat drop cable with pulling eyes

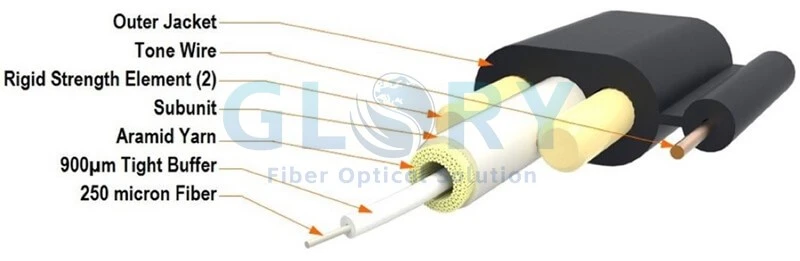

Cable Type	Tonable cable flat wire tracer wire
Cable Diameter	4.5*9.8mm Flat Drop Fiber Cable
Applications	Aerial, Direct Buried, Duct
Termination	Both ends terminated or one end terminated
Specifications - Connector A
Reflectance, Typical	-65 dB
Insertion Loss, Typical	≤ 0.15 dB
Connector Type	SC/APC OptiTap connecto r(H Connector)
Specifications - Connector B
Reflectance, Typical	-65 dB
Insertion Loss, Typical	≤ 0.15 dB
Connector Type	Standard SC/APC Connectors
Optical Characteristics
Fiber Type	Single-mode
Fiber count	1F
Fiber Category	G652D or G657A1 G657A2
Wavelengths	1310 nm / 1550 nm
Maximum Attenuation	0.35 dB/km / 0.25 dB/km



Applications:



These compact 4.5 * 9.8mm SST Toneable Flat Drop Cable Assemblies are designed for efficient FTTx network deployments and repairs, providing a streamlined solution for connecting terminal points to subscriber premises (FTTH/FTTP). Their flat design simplifies aerial or buried installation in access networks, while the integrated toneable feature enables non-disruptive cable location and identification for maintenance. The SST sheath enhances mid-span access during splices.
