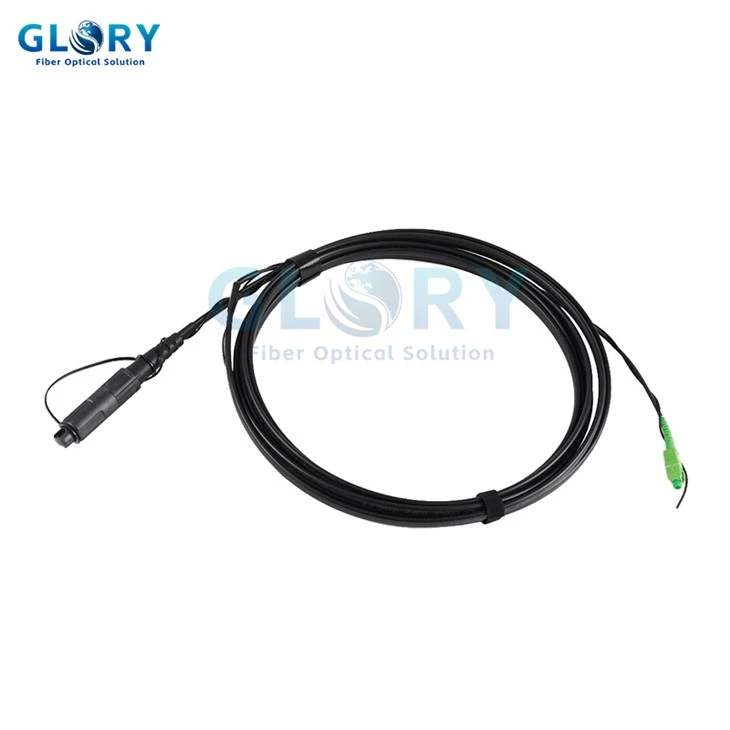

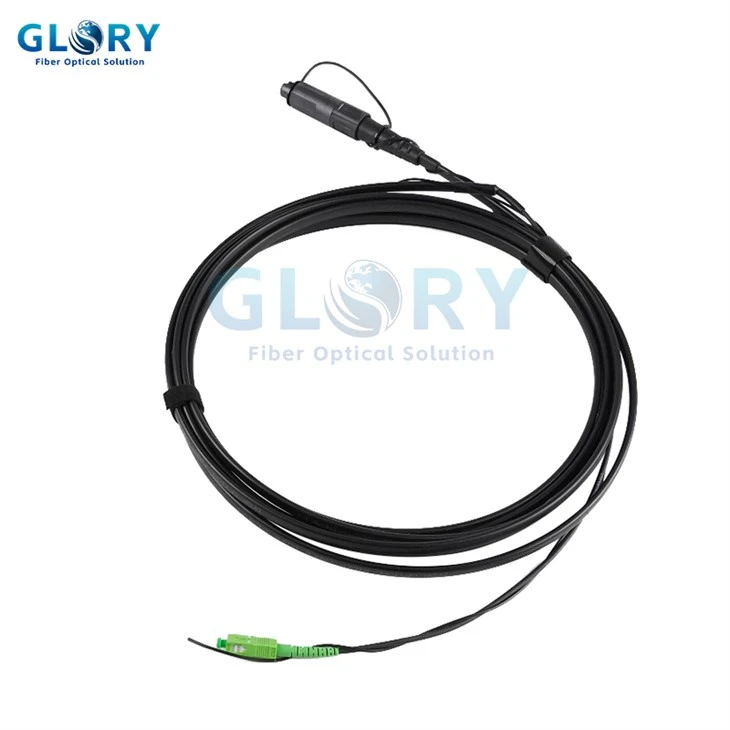

OptiTap SST Toneable 4.5 * 9.8mm Breakout Fiber Optic Patch Cable Assemlies

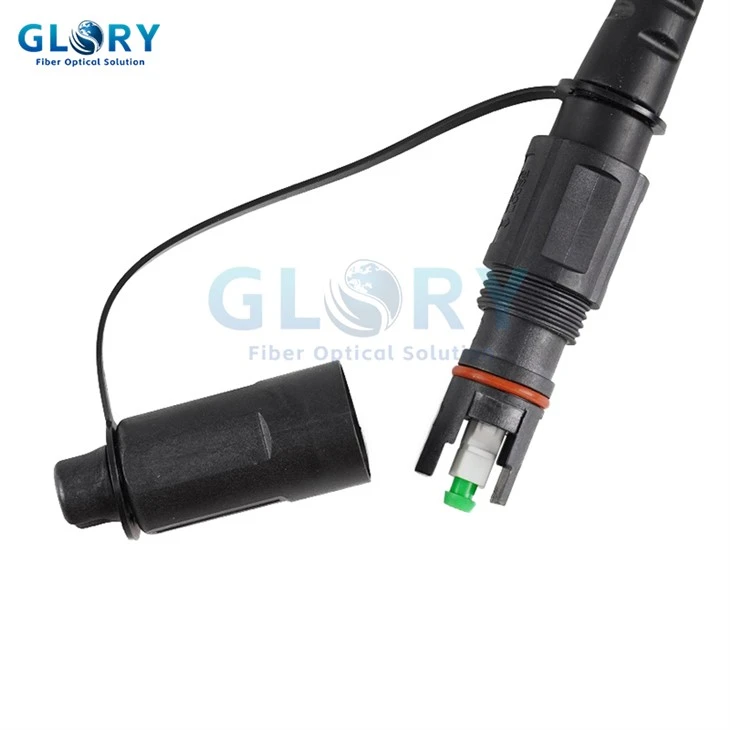

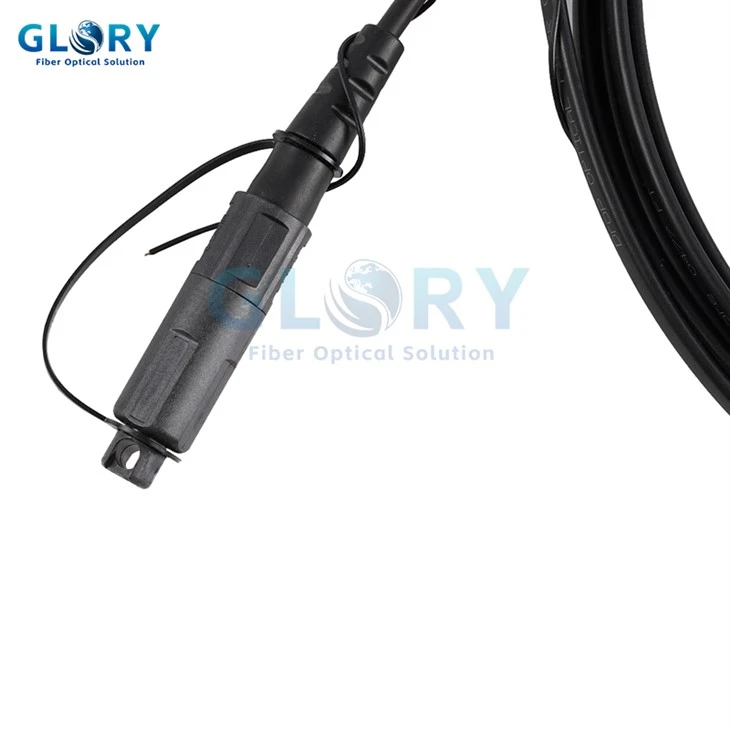

​​OptiTap SST Toneable 4.5x9.8mm Drop/Breakout FTTH Fiber Optic Patch Cables​​ offer easy handling and installation, saving time and costs in the field. Featuring hardened SC/APC connectors within slim, sealed, threaded polymer housings, they connect easily to multiport terminals or in-line expansion receptacles. Designed for challenging environments-including harsh outdoors and demanding indoors-these cables are suitable for overhead, direct burial, and duct installations. As the final drop cable in FTTH projects, they provide simple fiber access and are ideal for connections to MSTs, FATs, FTTX Pro-connectorized terminal boxes, and similar termination points.





Features for FTTH Fiber Optic Patch Cable 4.5*9.8mm:



• IP68;

• Gel-free, waterproof, UV-resistant;

• Compatible with OptiTap and H-Connector;

• Available in Dielectric or Toneable;

• Hybrid (one end with OptiTap and one end with Standard SC connector) with or without a pull handle.



Specification：



Product Name	OptiTap SST Toneable drop breakout Fiber Optic Patch Cable

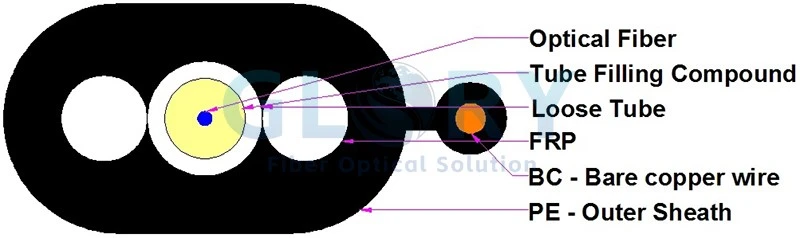

Cable Type	Toneable cable flat wire tracer wire
Cable Diameter	4.5*9.8mm drop FTTH
Applications	Aerial, Direct Buried, Duct
Termination	Both ends terminated or one end terminated
Specifications - Connector A
Reflectance, Typical	-65 dB
Insertion Loss, Typical	≤ 0.15 dB
Connector Type	SC/APC OptiTap connector(H Connector)
Specifications - Connector B
Reflectance, Typical	-65 dB
Insertion Loss, Typical	≤ 0.15 dB
Connector Type	Standard SC/APC Connectors
Optical Characteristics
Fiber Type	Single-mode
Fiber count	1F
Fiber Category	G652D or G657A1 G657A2
Wavelengths	1310 nm / 1550 nm
Maximum Attenuation	0.35 dB/km / 0.25 dB/km



Length Tolerance：

Overall Length(L) (m)	Length of tolerance (cm)
10	+15/-0
40	+0.5% x L/-0



FAQs:



Q: Where is it typically used?​

A: OptiTap SST Toneable Breakout Fiber Cable Assemblies are primarily used in FTTH/FTTA network drops for outdoor environments, closures, and MST enclosures; they also serve rugged industrial/military applications demanding quick deployment and high durability, while their breakout design enables high-density terminations in data centers.



Q: What is ​​installation advantages?​

A: Installation advantages include a preconnectorized design with IP68-rated OptiTap hardened connectors, which eliminates field termination time and features screw-sealed closures for rapid adapter mounting; the integrated copper tracer wire allows tone-based cable location in buried installations, while the pulling eye supports up to 100 lb (45 kg) tension, and color-coded subunit identification simplifies fiber tracing.

Q: What is your company's OEM and logistics support for OptiTap SST Toneable Breakout Fiber Optic Patch Cable Assemlies?



A: Customization options cover fiber counts ranging from 1 to 144 fibers, flexible connector choices including SC/APC, LC, FC, or ST with UPC/APC polish, subunit diameters of 0.9mm, 2.0mm, or 3.0mm within the breakout assembly, outer jacket material (LSZH or PE), length specifications, and OEM logistics with a 100-piece MOQ, 10–15-day lead time for stock items, and weatherproof packaging.
