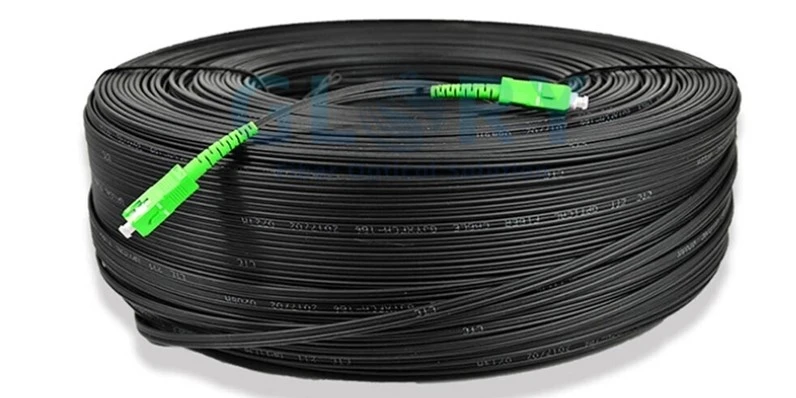

Fiber Optic Patch Cords
Model: FTTA SC/APC Pre-connectorized Drop Cables 2.0*5.0mm
The Fiber Optic Patch Cords is for FTTX application, with SC/APC connector pre-connected.
- Product Introduction
Fiber Optic Patch Cords-SC/APC Pre-connectorized Drop Cables 2.0*5.0mm
The Fiber Optic Patch Cords - Pre-assembled IP67 Outdoor FTTH Drop Cable External Bayonet Type SC/APC FastConnector Assembly- provides easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps. The ruggedized connector, an outside plant Mini SC/APC connector, is compatible with industry-standard OSP terminals.
The FTTH Outdoor Drop Cable Fiber Optic Patch Cord offers higher bandwidth and faster data transfer rates, making it an ideal solution for high-speed internet access in residential areas. Additionally, it is resistant to environmental factors like water, UV, and temperature changes, ensuring a reliable and long-lasting connection.
Features for Fiber Optic Patch Cords with FTTH Drop Cable 2.0*5.0mm:
• Low insertion loss and added loss
• Compact size, easy to operate, durable
• Easy connection to hardened adapters on terminals or closures
• Reduce welding, connect directly to achieve interconnection
• Spiral clamping mechanism ensures long-term reliable connection
• Guide mechanism, can be blinded with one hand, simple and quick, connect and install
• Seal design: It is waterproof, dust-proof, anti-corrosion and so on.
• Cost effective solution for in house termination
Specifications:
|
Product Name |
Fiber Optic Patch Cords MINI SC Fastconnect Pre-connectorized FTTH Drop Cable 2.0*5.0mm |
|
Fiber Type |
SM: G657A1 |
|
Fiber Count |
Simplex |
|
Cable Dia. |
2.0*5.0mm |
|
Outer Jacket Material |
LSZH/HDPE |
|
Outer Jacket Color |
Gray/Black |
|
Connectors |
Connector A: MINI SC |
|
Insertion Loss |
SM /APC≤0.3dB |
|
Return Loss |
SM/APC≥60dB |
|
Cable Length |
1~200M or Customized |
|
Branch Length |
Customized |
|
Working Temperature |
-20°C~+70°C |
|
Storage Temperature |
-20°C~+70°C |
|
Tensile Data |
Tensile between junction and fiber cable≥100N |

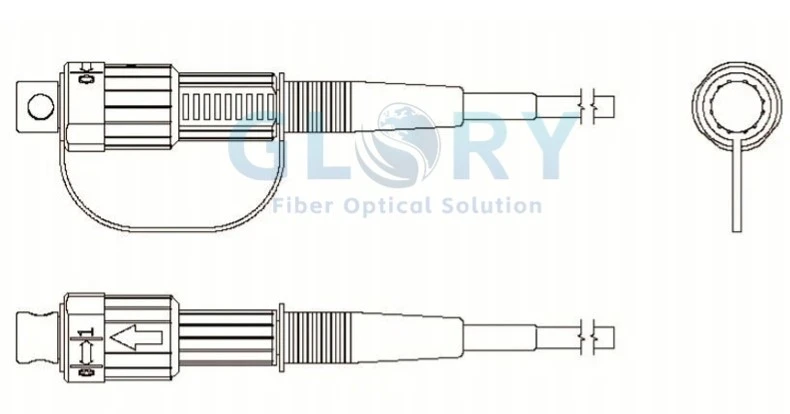

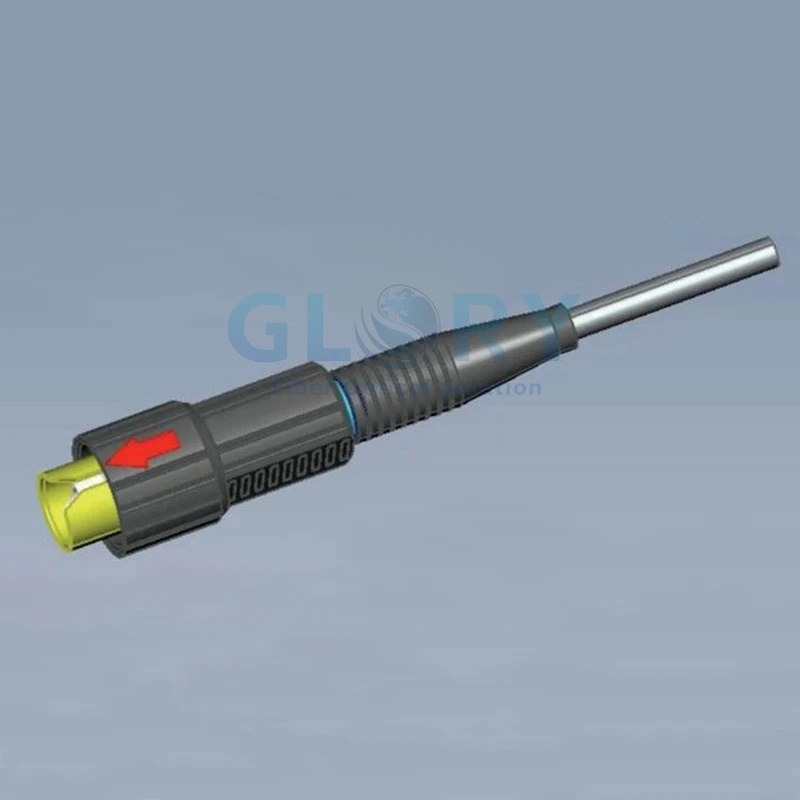

MINI SC Connectors Pictures:
Application of Fiber Optic Patch Cords:
• FTTH Application
• Fiber optic communications in harsh outdoor environments
• Outdoor communication equipment connection
• waterproof fiber equipment SC port
• Remote wireless base station
• FTTx FTTA wiring project
OEM/ODM Service:
|
Glory Optical Communication has rich experiences in producing OEM/ODM |
|
|
• Customized Logo |
|
|
• Printing on Cable |
|
|
• Label/PE bag/Carton design |
|
|
• Different Color & Different Lengths Available
|
