Fiber Optic Dome Enclosures
Model:GL-M9/JFT-BS Fiber Optic Dome Enclosures
High-performance fiber splice enclosure for demanding outdoor and underground environments,Compact yet high-capacity fiber splice enclosure designed for FTTH, FTTx, backbone, and distribution networks
- Product Introduction

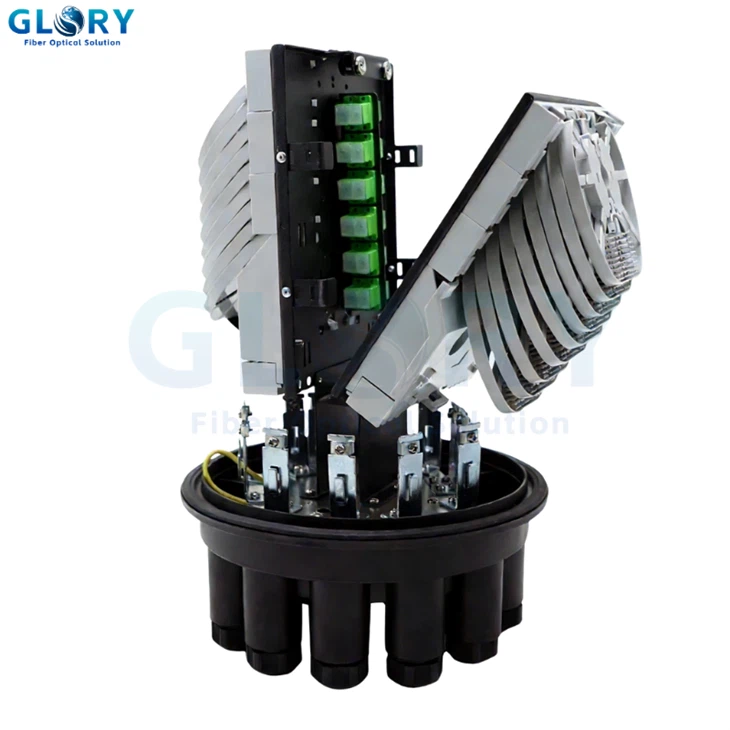

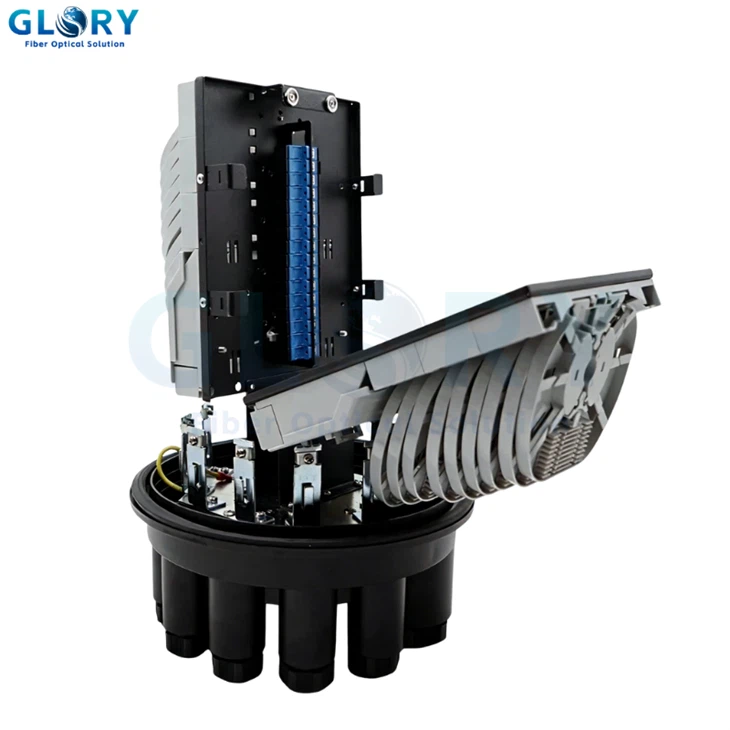

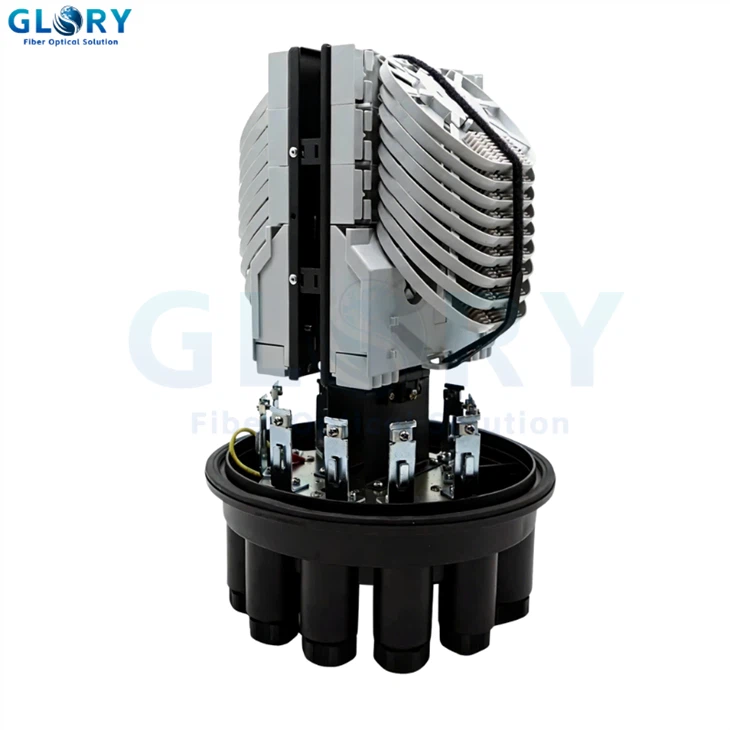

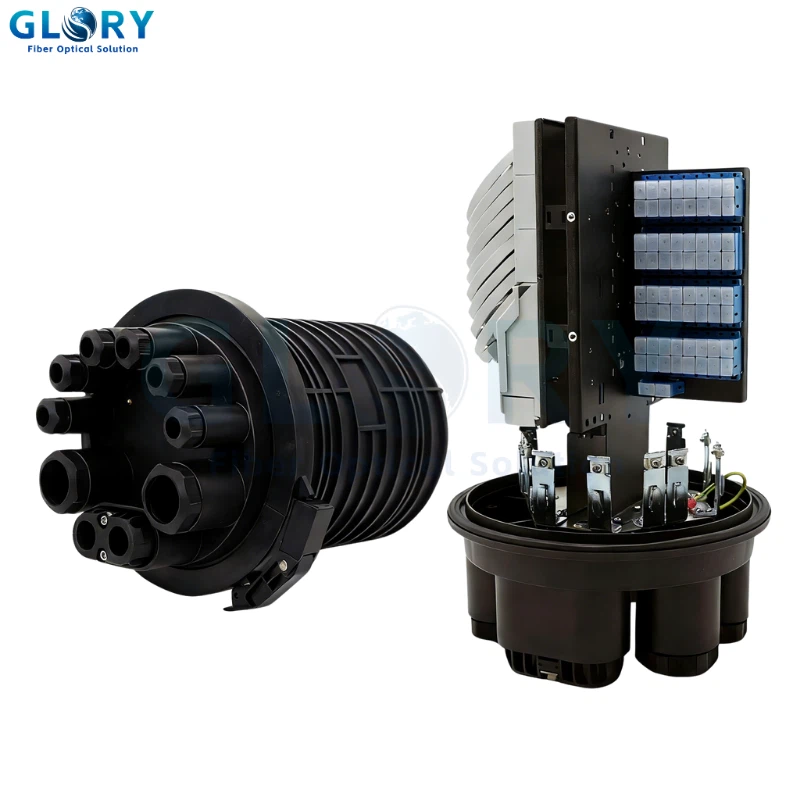

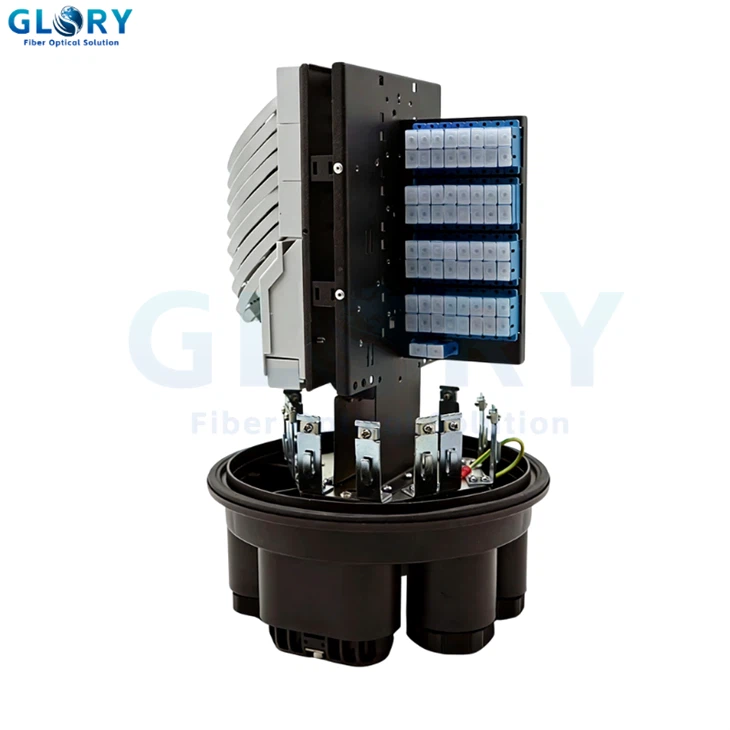

The GL-M9/JFT-BS Dome Closure from Glory Optical Communication is a robust and versatile solution for protecting optical fiber connections in harsh outdoor and underground environments. Engineered with precision, this dome-type mechanical seal closure offers exceptional durability and flexibility for modern network infrastructure.
With its IP68-rated sealing and compact design (Φ330 × 390 mm), this enclosure provides reliable protection against water, dust, and mechanical stress while accommodating up to 432 fiber cores. The innovative stacked tray design and support for SC simplex and duplex adapters make it an ideal choice for both new deployments and network upgrades.
Whether deployed in FTTH distribution nodes, access point fiber joints, or harsh weather areas requiring waterproof protection, the GL-M9/JFT-BS ensures secure joint protection, convenient installation, and flexible capacity expansion.
Key Features
Designed for performance, durability, and flexibility in demanding environments
High Capacity Design
Despite its compact size, the closure supports multiple splice tray types and can accommodate up to 432 fiber cores in the SC16 model, making it ideal for space-constrained deployment sites.
IP68 Protection
Constructed with high-strength engineering plastic, the enclosure provides excellent resistance to mechanical stress, UV, corrosion, and aging, with IP68 rating ensuring reliable waterproof and dustproof performance.
Flexible Port Configuration
With a total of 9 cable ports (1 oval + 8 circular) compatible with cable diameters from 7mm to 26mm, the closure offers versatile installation options for loop-through or mid-span branching.
Adapter Integration
Supports SC simplex adapters (up to 17 pcs in SC16 model) and SC duplex adapters (up to 33 pcs in 2SC32 model), with integrated slots for PLC splitters ideal for GPON/EPON access deployments.
Mechanical Seal Design
No heat shrink required - mechanical sealing via threaded locking ensures easy installation, maintenance, and re-sealing while maintaining tight seal under temperature changes and vibrations.
Safety & Grounding
Built-in independent insulation grounding system enhances operator safety and fiber protection, simplifying ground wire management during cable entry.
Technical Specifications
Comprehensive specifications for both SC16 and 2SC32 models
| Parameter | SC16 Model | 2SC32 Model |
|---|---|---|
| Type | Dome-type mechanical seal closure | Dome-type mechanical seal closure |
| Dimensions | Φ330 × 390 mm | Φ330 × 390 mm |
| Cable Ports | 1 oval + 8 circular | 1 oval + 8 circular |
| Max Fiber Capacity | Up to 432 fibers | Up to 216 fibers |
| Adapter Support | SC Simplex – 17 pcs | SC Duplex – 33 pcs |
| Max Splitting Support | 1:16 (1 pcs) | 1:32 (2 pcs) |
| Operating Temperature | -20°C ~ +60°C | -20°C ~ +60°C |
| Protection Rating | IP68 | IP68 |
| Weight | ≈10.5 kg | ≈10.5 kg |
Application Scenarios
Ideal for various deployment environments and network requirements
FTTH Distribution Nodes
Serve as terminal points for residential connections in Fiber-to-the-Home networks, providing reliable protection and organization for fiber splices.
Access Network Branch Points
Enable mid-span or loop-through fiber splicing in access networks, offering flexibility for network expansion and maintenance.
Underground Installations
Excellent water and dust sealing performance makes it suitable for manholes, handholes, and direct burial applications.
Pole-Mounted Distributors
Compact and durable design ideal for elevated installations in aerial fiber distribution networks.
Quality Assurance
Rigorous Quality Control
We implement strict quality control standards, with every batch of products undergoing comprehensive testing before shipment. From raw material procurement to finished product delivery, each step is supervised by professional quality inspectors to ensure stable and reliable product quality.
15+ Years Professional Experience
Glory Optical has over 15 years of extensive experience in the fiber optic communication and FTTx network field. We specialize in the R&D, production, and sales of passive fiber optic products and FTTA/FTTH/FTTR solutions, with strong technical capabilities.
Professional Service Team
We have an experienced technical team that can quickly respond to customer needs, providing comprehensive support from product design to customized services. No matter what technical issues you encounter, our expert team can provide professional solutions.
Efficient Delivery Speed
We are committed to doing our best to ensure all orders are delivered within 20 days. With over 25 production lines and 2 production bases, we have strong production capacity to meet urgent customer needs.
At Glory Optical, customer satisfaction is always our top priority. We not only provide high-quality products but are also committed to offering customers the best value-for-money solutions. Whether you need standard products or customized services, we can meet your requirements and ensure you receive an excellent product experience.
Our products are widely used in telecommunications, data centers, smart buildings, and other fields, receiving high recognition from domestic and international customers. Choosing Spring Optical means choosing reliability, professionalism, and quality assurance.
Get More Information
Contact us for detailed specifications, pricing, and customization options
