Vertical Fiber Closure
Model: GL-GPJ09-5817 series (A/B/C type)
Max Capacity: 648 single fibers
Application：aerial, pole-mounting, wall-mounting and underground
ROHS Material and IP 68

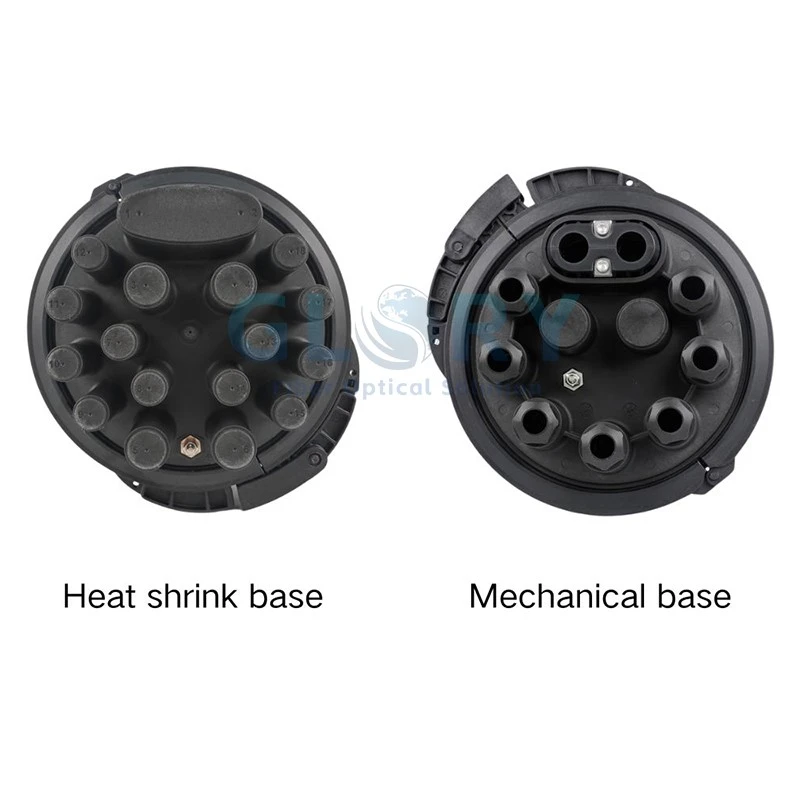

This series products equip with same base with different size dome, both heat shrink sealing and mechanical sealing are available.
- Product Introduction
GL-GPJ09-5817 series Vertical Fiber Closure is with the high-capacity design. The fusion splice capacity range is 144F~648F, with 12F/ 6F tray capacity. The splice trays for the joint closures are interchangeable with splitter trays. Both fusion splice and splitter installation are feasible. Employing the heat shrink seal, the protection grade of this series can reach IP68. The heat-shrink sealing base is interchangeable with the mechanical sealing base. This series include three models GL-GPJ09-5817-A, GL-GPJ09-5817-B and GL-GPJ09-5817-C, designed for use with comment cable construction (loose buffer tube, loose fiber), in any environmental (aerial, pedestal, buried, handhole, manhole).
Specifications
|
Item Name |
Vertical Fiber Closure GL-GPJ09-5817 series |
|
Size (mm) |
Type A: 400 × Φ270 Type B: 500 × Φ270 Type C: 625 × Φ270 |
|
Color |
Black |
|
Cable ports |
1 oval port for Φ10 – Φ25mm fiber cable 4 round ports for Φ14 – Φ22mm fiber cable 12 small round ports forΦ8 – Φ16 mm fiber cable |
|
Protection Grade |
IP68 |
|
Fiber Splice Capacity |
Type A: 144 fibers Type B: 360 fibers Type C: 648 fibers |
|
Capacity of single tray |
6F or 12F |
|
Application |
Aerial/Manhole/Wall/Pole mounting |
|
Inner Carton (mm) |
Type A: 550×315×285 Type B: 650×315×285 Type C: 775×315×285 |
|
Outer Carton (mm) |
/ |
Feature
• Made of modified engineering plastic with high strength, anti impact and anti corrosion.
• Two kinds of closure base are provided for options.
• 3 types of splice trays are available for selection, including 12F tray, 6F tray and splitter tray
|
Picture |
Tray code |
Dimension(mm) |
Capacity |
|
45# |
133×110×4 |
6 Fibers |
|
|
46# |
133×110×8 |
12 Fibers |
|
|
52# |
133×110×8 |
Install 1 x 1：8 micro splitter and 2 x 1：4 micro splitters |

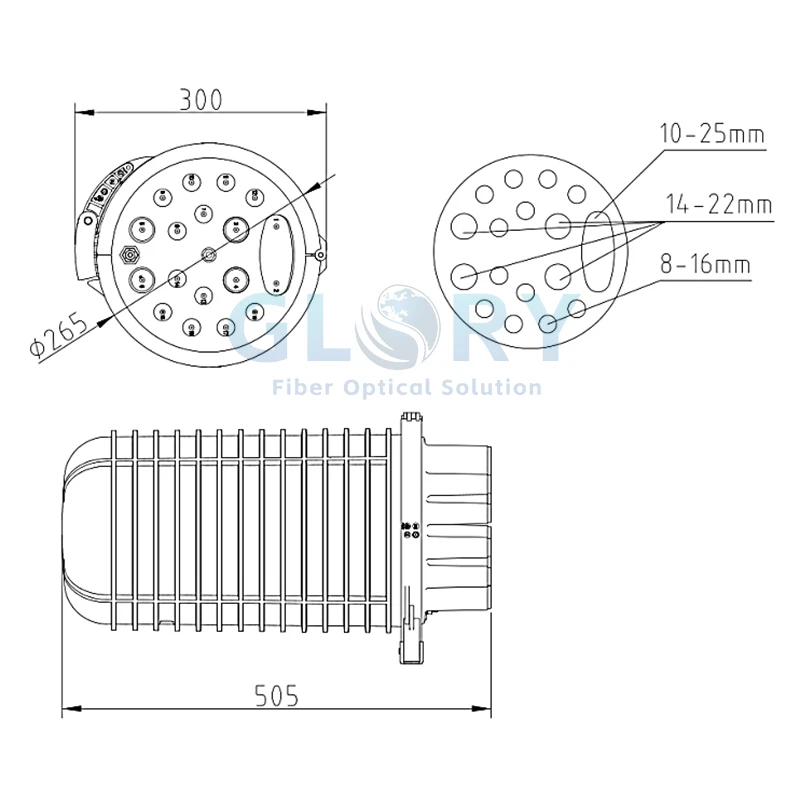

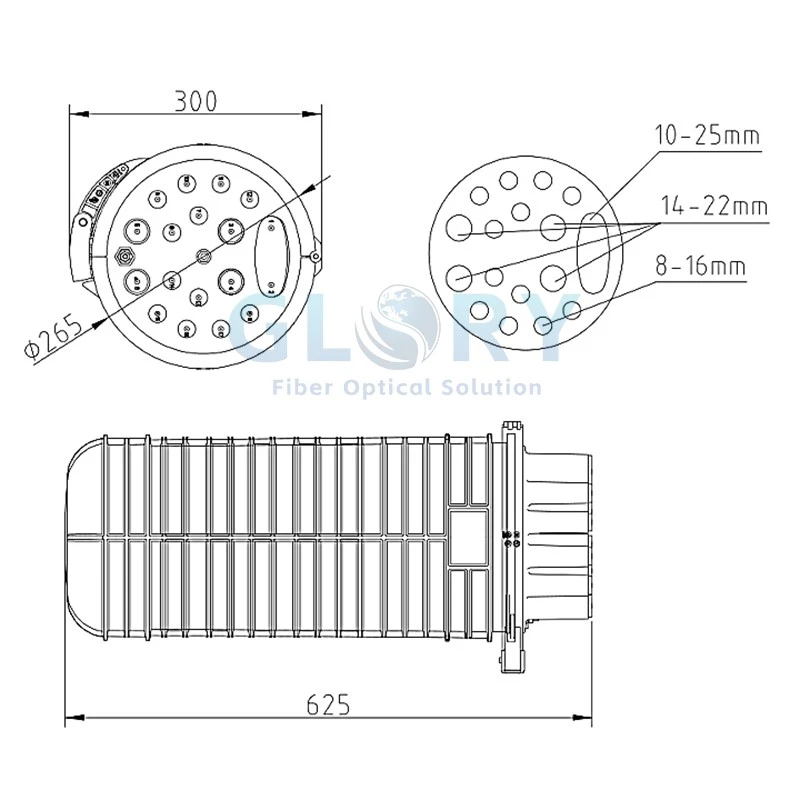

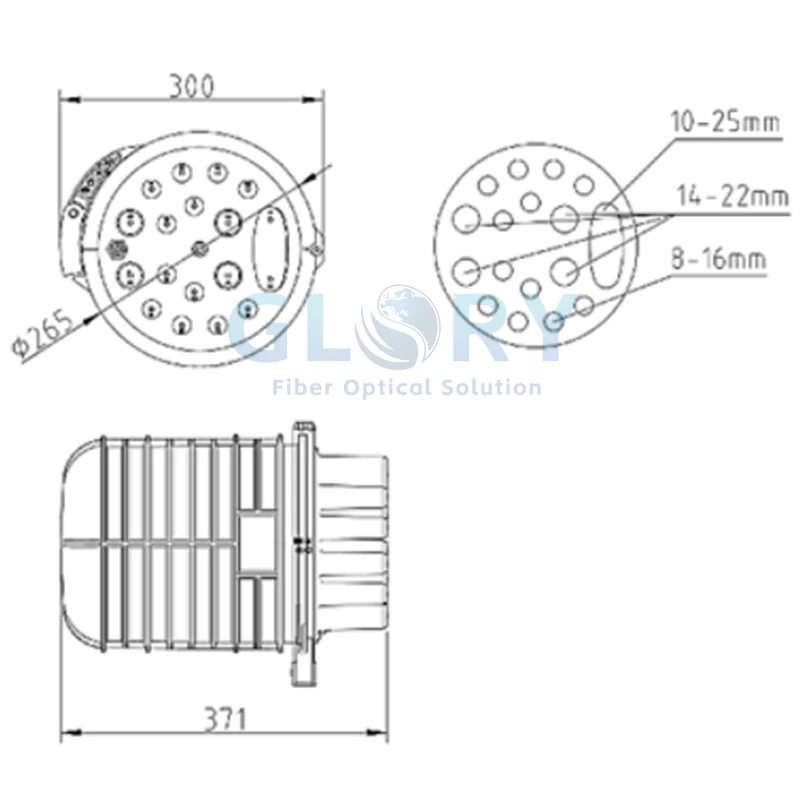

Structure drawing:
GL-GPJ09-5817-A
GL-GPJ09-5817-B
GL-GPJ09-5817-C
Installation:

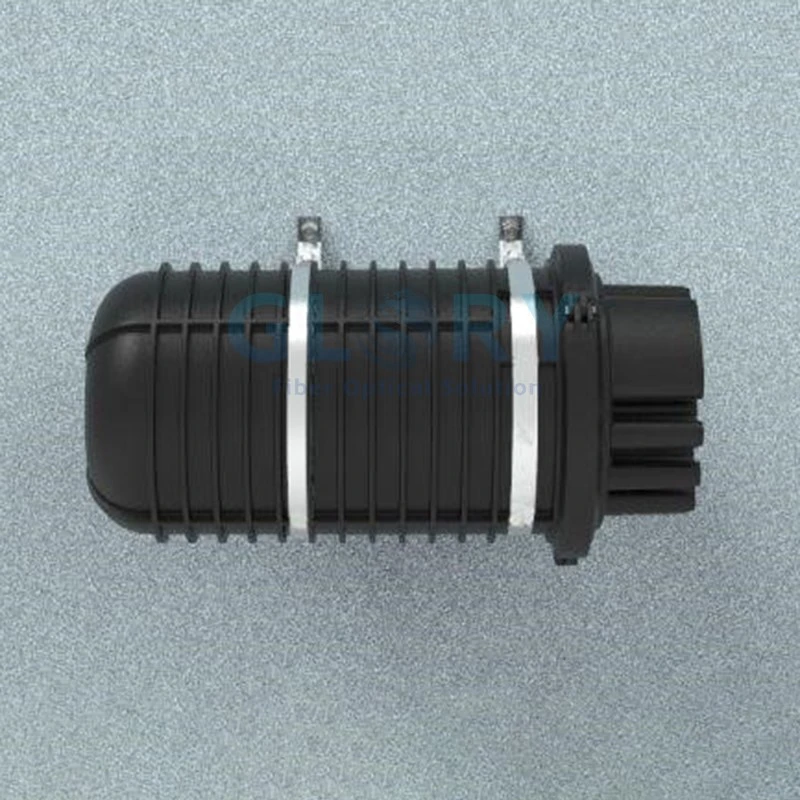

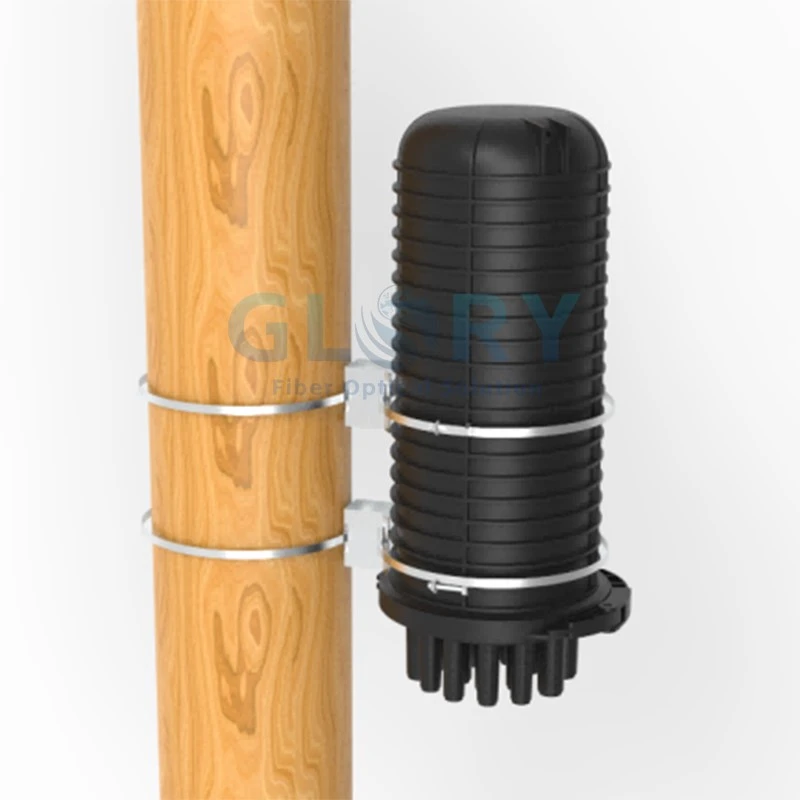

Suitable for direct buried, aerial, pole, pipeline, manhole, wall
FAQ
1 How to order GL-GPJ09-5817 series of Vertical Fiber Closure ?
We need the following information for quotation
Sealing type: heat shrink or mechanical base
Max capacity
Splice tray type, 6F or 12F
Do you need to install splitter? How many pieces?
Installation method: pole, wall or aerial
Optional accessories: air valve, grounding device
Package: carton, pallet
Trade term: FOB, CIF or CFR
