Dome Fiber Optic Splice Closures
Model:GL-M9/JFT-BS Fiber Optic Dome Enclosures
High-performance fiber splice enclosure for demanding outdoor and underground environments,Compact yet high-capacity fiber splice enclosure designed for FTTH, FTTx, backbone, and distribution networks
- Product Introduction

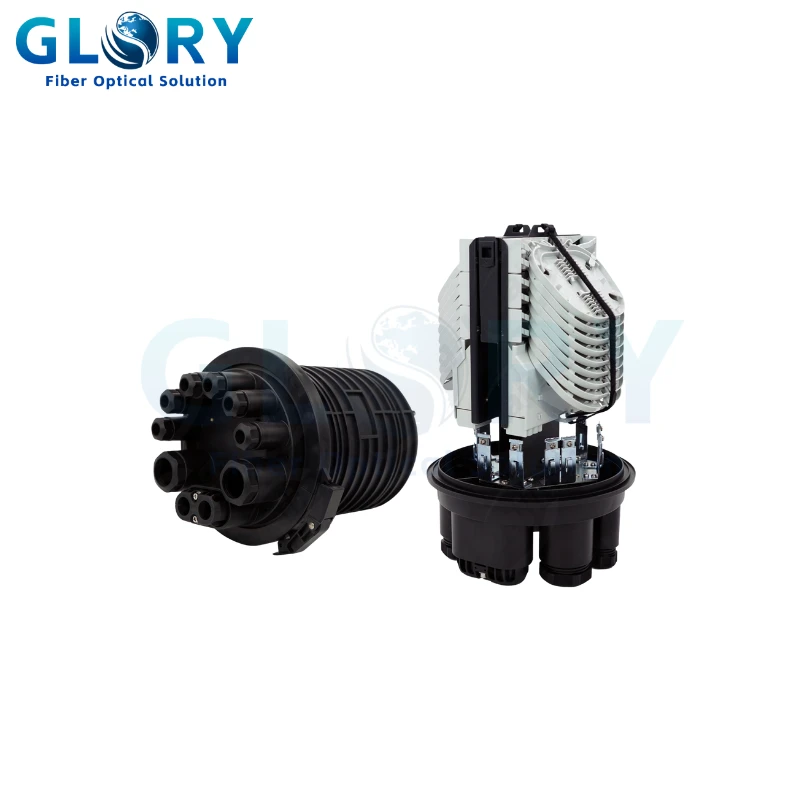

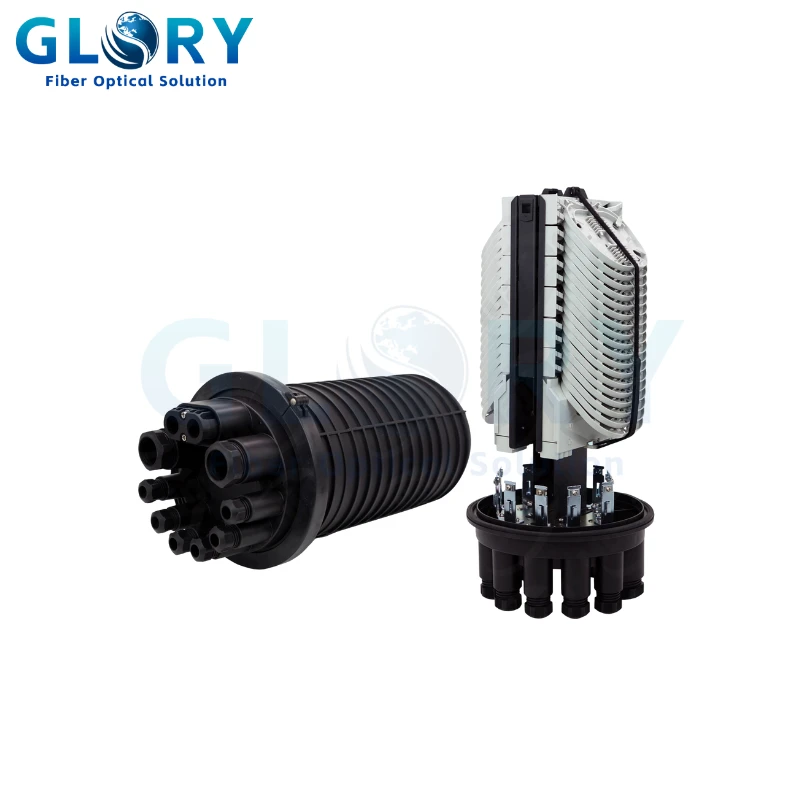

The GL-M9/JFT-B is a high-performance dome fiber optic splice closures designed for the straight-through connection and protection of optical fiber cables in telecommunication networks. Its primary application is to provide a secure, sealed, and robust enclosure for fiber optic splices, ensuring long-term stability for signal transmission.
This product is engineered to meet the stringent requirements of the Chinese communication industry standard YD/T 814.1-2013. The closure features a sturdy shell made of high-strength engineering plastic, which offers an excellent combination of being lightweight yet highly resistant to impact, aging, corrosion, and lightning. With dimensions of Φ325 mm in diameter and 530 mm in height, it provides ample internal space.
It is equipped with 9 cable ports (8 circular and 1 oval) to accommodate cables with diameters ranging from Φ7 mm to Φ26 mm, supporting both branching and straight-through cable installation methods. The closure is highly scalable, with models (B1, B2, B3) offering maximum splice capacities ranging from 576 to 864 single fibers by utilizing stackable splice trays.
key features
Firstly, it employs a mechanical sealing method that eliminates the need for traditional gel tapes, providing a more reliable and durable seal that achieves the highest IP68 protection rating. This ensures complete protection against dust and water ingress, even during prolonged submersion.
Secondly, its modular internal design is a significant advantage. The use of stackable splice trays allows for flexible fiber management and easy future capacity expansion. An independent insulation grounding device is integrated for operational safety.
Furthermore, the design prioritizes installation and maintenance convenience. The closure includes two additional storage boxes and an inclined storage tray, providing generous space for organizing and storing fiber slack. This promotes neat cable management and helps prevent signal loss due to tight bending radii.
In summary, with its high capacity, superior protection, and flexible configuration, the GL-M9/JFT-B is an ideal solution for various installation environments, including aerial, pole-mounted, wall-mounted, and underground applications.
Technical Specifications
Comprehensive specifications for dome fiber optic splice closures
|
Type |
GL-M9/JFT-BS(1~3) |
GL-M9/JFT-B(1~3) |
||||
|
Size(mm) |
Φ325*390 |
Φ325*530 |
||||
|
Cable port |
1 oval port,8 circular ports |
1 oval port,8 circular ports |
||||
|
Cable diameter(mm) |
Φ7~Φ26 |
Φ7~Φ26 |
||||
| Splice tray type |
BS1 |
BS2 |
BS3 |
B1 |
B2 |
B3 |
|
Capacity of splicing tray(single fiber) |
8 |
16 |
24 |
8 |
16 |
24 |
|
Max No of splicing tray |
36pcs |
18pcs |
18pcs |
72pcs |
36pcs |
36pcs |
|
Max capacity:(single fiber) |
288 |
288 |
432 |
576 |
576 |
864 |
Application Scenarios
Ideal for various deployment environments and network requirements
FTTH Distribution Nodes
Serve as terminal points for residential connections in Fiber-to-the-Home networks, providing reliable protection and organization for fiber splices.
Access Network Branch Points
Enable mid-span or loop-through fiber splicing in access networks, offering flexibility for network expansion and maintenance.
Underground Installations
Excellent water and dust sealing performance makes it suitable for manholes, handholes, and direct burial applications.
Pole-Mounted Distributors
Compact and durable design ideal for elevated installations in aerial fiber distribution networks.
