Fiber Optic Ribbon Splitter

Model: 1x64 G652D FTTH Fiber Optic Ribbon Splitter
A planar lightwave circuit splitter (PLC splitter) is a type of optical power management device fabricated using silica optical waveguide technology. It is used to split an optical fiber signal into multiple signals at a specific splitting ratio. As a critical passive component in passive optical networks, it enables efficient signal distribution.

Send Inquiry

Product Introduction

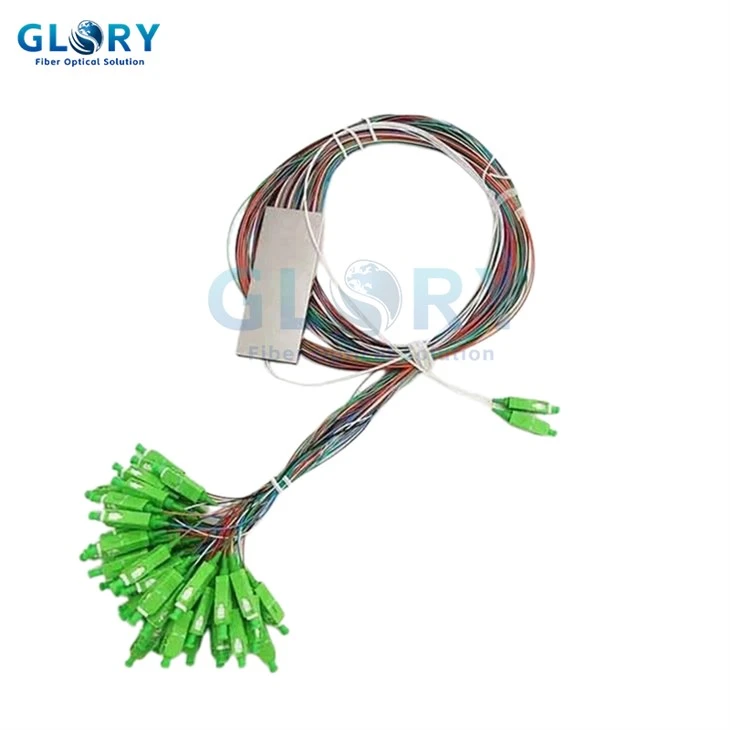

Fiber Optic Ribbon Splitter

Fiber Optic Ribbon Splitter is a planar wavelength integrated optic device based on a quartz substrate. It features a small size, wide-field operation wavelength range, high reliability, and a high splitting ratio. The Single-Mode Fiber Optic Ribbon Splitter is available in a variety of package types and configurations.

Our 1x64 Fiber Optic Ribbon Splitter is one of our best-selling products and can be supplied with or without connectors. Fibers such as G652D, G657A1, and G657A2 are also available for your selection. Glory Optical manufactures all series of 1xN and 2xN products and offers customization to meet customer requirements for different applications.

Key Features

· Fiber Type: Compatible with ITU-T G.652D single-mode fiber, optimized for low water peak performance and high bandwidth across 1310 nm, 1490 nm, and 1550 nm wavelengths.

· Ribbon Fiber Design: Integrates ribbonized fiber cables for high-density connectivity, enabling efficient splicing and reduced installation time in FTTH deployments.

· Low Insertion Loss: Ensures minimal signal degradation, with typical insertion loss values compliant with industry standards (e.g., ≤15.5 dB for 1x64 splitting).

· High Uniformity: Delivers consistent optical power distribution across all output ports for reliable network performance.

· Compact and Robust Housing: Built with a rugged, weatherproof casing (optional) for durability in both indoor and outdoor environments.

· Wide Temperature Range: Operates reliably from -40°C to +85°C, suitable for harsh climatic conditions.

Single mode Fiber Optic Ribbon Splitter in a variety of package types and configurations

Optical performance 100% factory tested

UPC, and APC polish types available for connectorized products

Low Insertion Loss, Back Reflection and PDL

Telcordia GR-CORE 1221 certified

Specifications:

Table 1 – 1×N PLC Fiber Optic Ribbon Splitter

1×N (N≥2) PLC splitter Parameters
Item	unit	Parameters
Operating Wavelength	nm	1260-1650
Structure	/	1×2	1×4	1×8	1×16	1×32
Max Insertion Loss (dB)	dB	4.1	7.4	10.5	13.8	17.1	20.4
Max Uniformity	dB	0.8	0.7	0.8	1	1.5	2
Max Polarization Dependent Loss (PDL)	dB	0.2	0.2	0.2	0.3	0.3	0.3
Return Loss	dB	50 (UPC); 55 (APC)
Min Directivity	dB	55
Working Temperature	°C	-40 ~ +85
Storage Temperature	°C	-40 ~ +85
*Insertion lost for splitters with connectors will be 0.3 dB less.

Table 2 – 2×N PLC Fiber Optic Ribbon Splitter

2×N (N＞2) PLC splitter Parameters
Item	unit	Parameters
Operating Wavelength	nm	1260-1650
Structure	/	2×4	2×8	2×16	2×32	2×64
Max Insertion Loss	dB	7.7	10.8	14.1	17.4	20.6
Max Uniformity	dB	0.7	0.8	1	1.5	2
Max Polarization Dependent Loss (PDL)	dB	0.2	0.2	0.3	0.3	0.3
Return Loss	dB	50 (UPC); 55 (APC)
Min Directivity	dB	55
Working Temperature	°C	-40 ~ +85
Storage Temperature	°C	-40 ~ +85
*Insertion lost for splitters with connectors will be 0.3 dB less.
