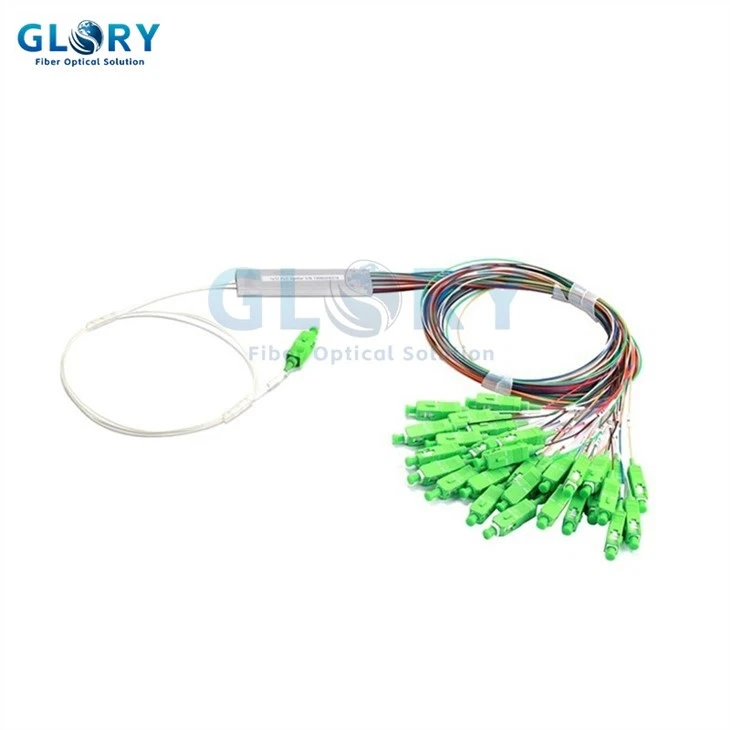

Fiber Optic PLC Splitter
Model: GPON Fiber Optic PLC Splitter 1x2 1x4 1x8 1x16 1x32 Single
1X2 1X4 1X8 1X16 1X32 1X64 Blockless Fiber Optic PLC Splitters primarily used in FTTH, GPON, Telecommunications, and CATV. All PLC splitters we produce are telecom-grade, with insertion loss and return loss meeting industry-standard specifications. Every splitter undergoes 100% testing prior to shipment. We support OEM services and offer FOB/EXW terms from Shenzhen/Ningbo.
- Product Introduction

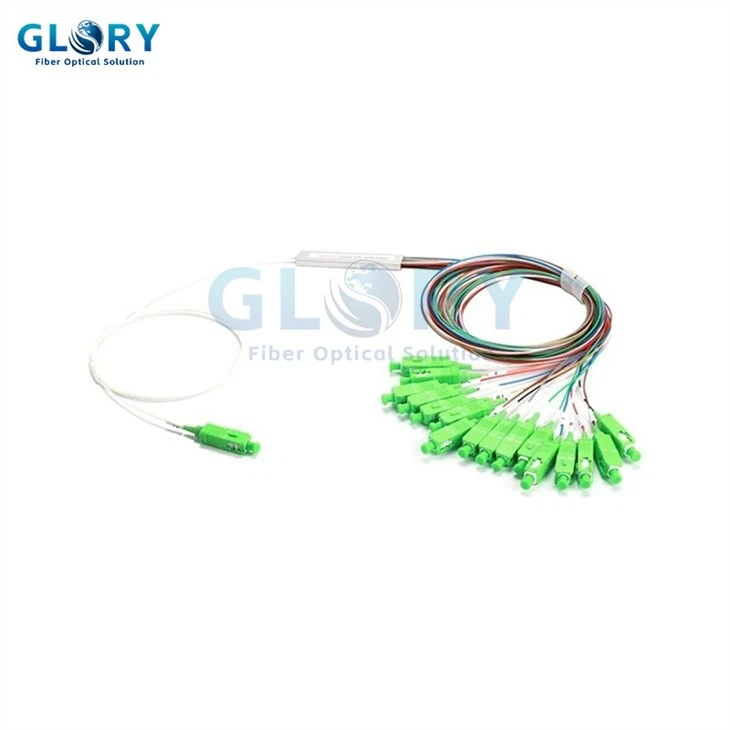

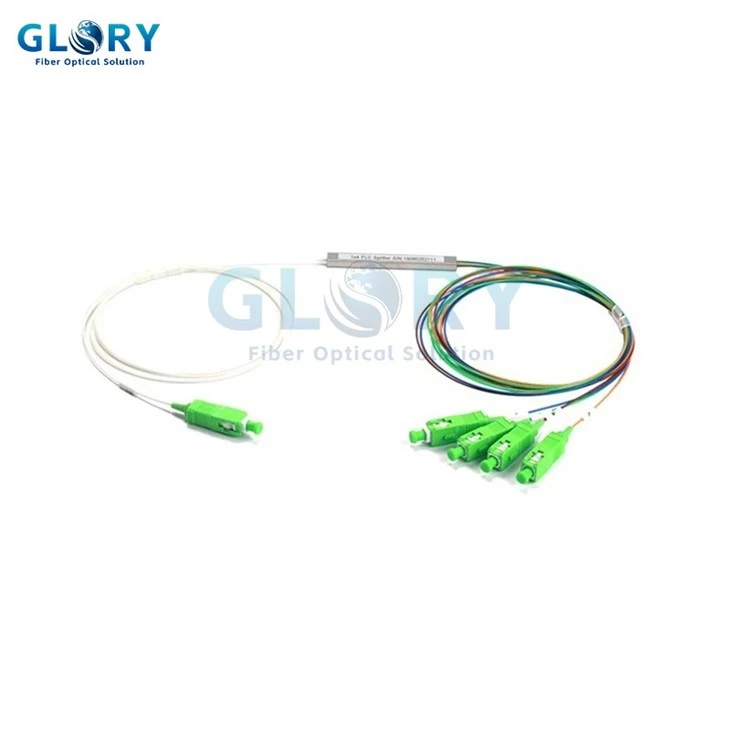

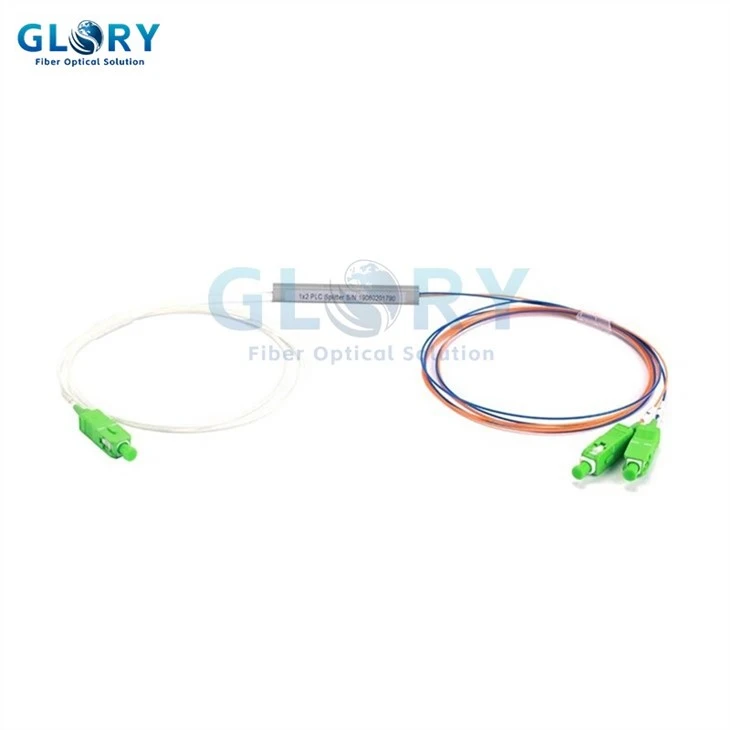

Blockless Fiber Optic PLC Splitters
A Fiber Optic PLC Splitter is a network component that distributes incoming light (from one or two input fibers) equally among multiple output fibers (2-64). Splitters are available with 250μm bare fibers, 900μm buffered fibers, and 2.0 mm cords. Input and output cords or fibers can vary in length and can be terminated with optical connectors. Our fiber optic splitters can be integrated into several products and applications and are compatible with advanced fiber and cable management systems. All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network deployment.
Features:
• Wide operating wavelength from 1260-1650nm
• Low Insertion loss & High performance
• Good uniformity & Low PDL
• Small package size
• Various connector type & Package Size available
Specifications:
1xN Fiber Optic PLC Splitter
|
Parameters |
1x2 Port |
1x4 Port |
1x8 Port |
1x16 Port |
1x32 Port |
1x64 Port |
|
Operation Wavelength(nm) |
1260~1650 |
|||||
|
Fiber Type |
G657A1/G657A2 |
|||||
|
Insert Loss (dB) |
3.8 |
7.1 |
10.2 |
13.5 |
16.8 |
20.5 |
|
Uniformity(dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2 |
|
Return Loss(dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
PDL (dB) |
0.2 |
0.2 |
0.2 |
0.3 |
0.3 |
0.35 |
|
Directivity(dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Temperature Stability (-40~85℃) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature(℃) |
-25~70 |
|||||
|
Storage Temperature(℃) |
-25~70 |
|||||
|
MINI Module Dimension (LxWxH) |
60x7x4 |
60x7x4 |
60x7x4 |
60x12x4 |
80x20x6 |
100x40x6 |
|
ABS Box Dimension (LxWxH) |
100x80x10 |
100x80x10 |
100x80x10 |
120x80x18 |
120x80x18 |
140x115x18 |
|
Bare Fiber Dimension (LxWxH) |
40x4x4 |
40x4x4 |
40x4x4 |
50x7x4 |
50x7x4 |
60x12x4 |
Note: Add an additional 0.3dB Insert loss per connector.
2xN Fiber Optic PLC Splitter
|
Parameters |
2x2 Port |
2x4 Port |
2x8 Port |
2x16 Port |
2x32 Port |
2x64 Port |
|
Operation Wavelength(nm) |
1260~1650 |
|||||
|
Fiber Type |
G657A1/G657A2 |
|||||
|
Insert Loss (dB) |
4.1 |
7.4 |
10.8 |
14.3 |
17.3 |
21 |
|
Uniformity(dB) |
1 |
1.5 |
1.5 |
2 |
2 |
2.5 |
|
Return Loss(dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
PDL (dB) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Directivity(dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Temperature Stability (-40~85℃) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (℃) |
-25~70 |
|||||
|
Storage Temperature (℃) |
-25~70 |
|||||
|
MINI module Dimension (LxWxH) |
60x7x4 |
60x7x4 |
60x7x4 |
60x12x4 |
80x20x6 |
100x40x6 |
|
ABS Box Dimension (LxWxH) |
100x80x10 |
100x80x10 |
100x80x10 |
120x80x18 |
120x80x18 |
140x115x18 |
|
Bare Fiber Dimension (LxWxH) |
40x4x4 |
40x4x4 |
40x4x4 |
50x7x4 |
50x7x4 |
60x12x4 |
Note: Add an additional 0.3dB Insert loss per connector.

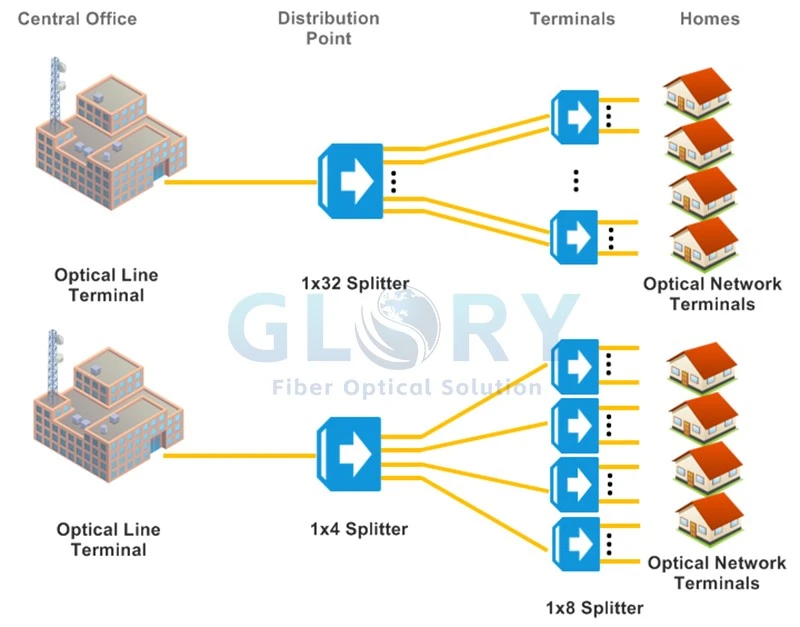

Applications of Blockless Fiber Optic PLC Splitters:
• CATV system
• Optical Equipment
• Fiber Optical Sensors
• FTTH FTTX FTTD GPON
• Telecommunications networks

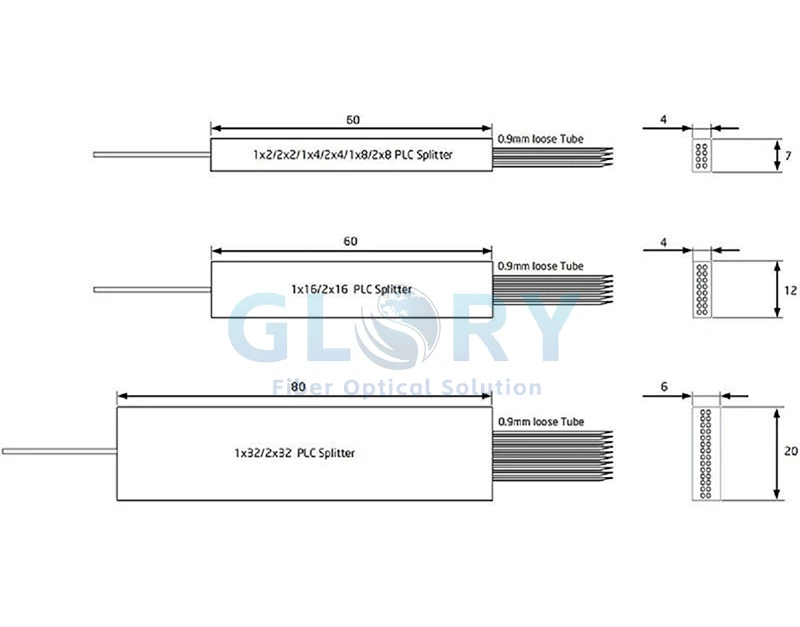

Product Drawings:
Ordering Information:
|
Port |
1xN 2xN |
|
Fiber Type |
G657A1, G657A2 |
|
Package type |
40x4x4, 50x7x4, 60x12x4, 60x7x4, 60x12x4, 80x20x6, 100x40x6, 100x80x10, 120x80x18, 140x115x18mm |
|
Input tube diameter |
0.9mm loose tube, 0.9mm tight tube, 2.0mm cable, 3.0mm cable, 250um fiber, Ribbon fiber |
|
Output tube diameter |
0.9mm loose tube, 0.9mm tight tube, 2.0mm cable, 3.0mm cable, 250um fiber, Ribbon fiber |
|
Each Leg Length |
0.5m, 1.0m, 1.5m |
|
Input Connectors |
SC/APC, SC/UPC, LC/APC, LC/UPC, FC/APC, FC/UPC, ST/UPC, No connectors |
|
Output Connectors |
SC/APC, SC/UPC, LC/APC, LC/UPC, FC/APC, FC/UPC, ST/UPC, No connectors |
