Ftth Drop Fiber Optic Cable
Model: Indoor/Outdoor FTTH Flat Drop Fiber Optic Cable, Single Mode, 1/2/4 Core, G657A1
• Packaging Details: Plywood drum or Steel-bound wooden drum or Fumigated wood drum or Cardboard boxes (optional)
• Delivery Time: 1-2 weeks, based on length
• Supply Ability: 10,000 KM per month
- Product Introduction
Indoor/Outdoor FTTH Flat Drop Fiber Optic Cable

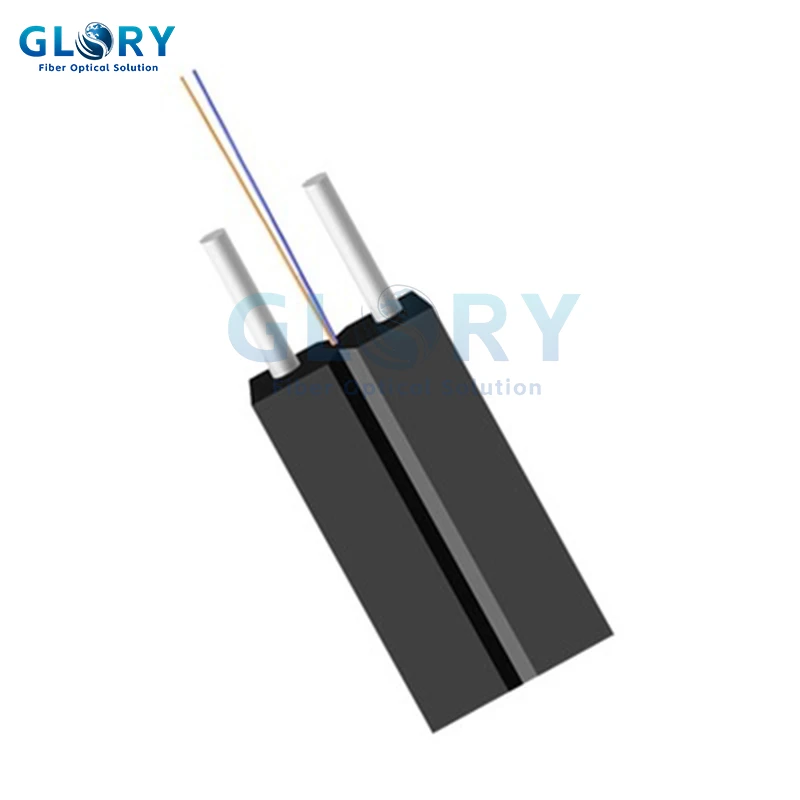

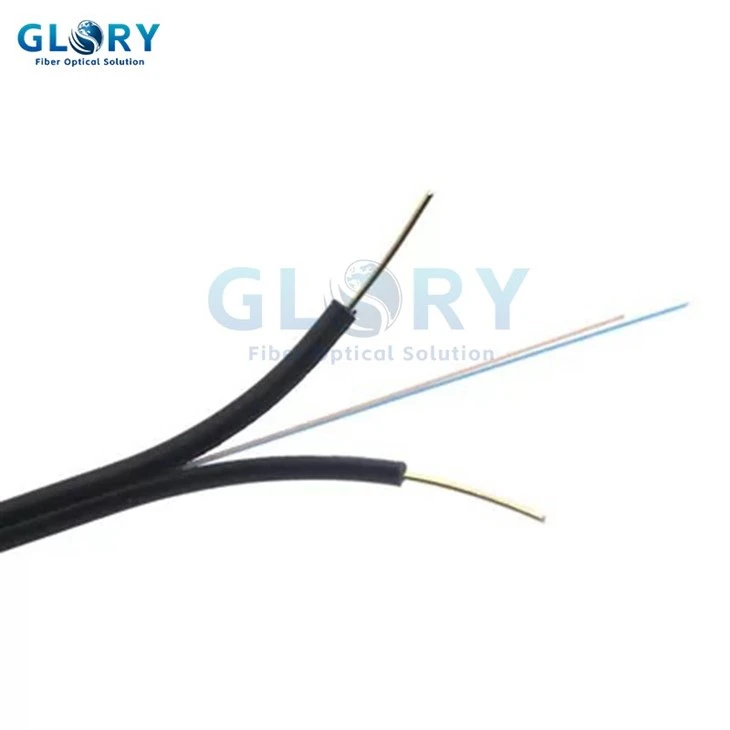

This indoor FTTH drop fiber optic cable has a 2mm x 3mm design. It is designed for Fiber to the Home (FTTH) applications. Suitable for connecting communication equipment, it is also used as a building access cable in premises distribution systems. Optical fibers are positioned in the center of the cable, with two parallel Fiber Reinforced Plastic (FRP) or steel wire strength members placed on both sides. The outer jacket is typically made of black and white LSZH (Low Smoke Zero Halogen) material, featuring a relatively small diameter and good flexibility.

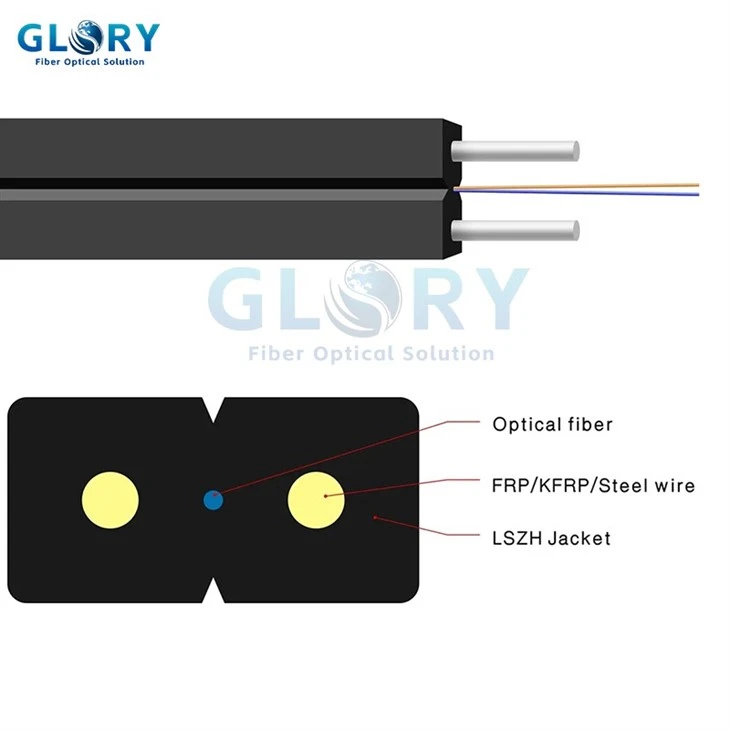

This FTTH drop cable has an '8'-shaped cross-section. The reinforcing members are located at the center of the two circles and can be either metal or non-metal. The optical fiber is positioned at the geometric center of the '8'-shaped cross-section. The fiber inside the cable is primarily G.657A2 small bending radius fiber, allowing installation with a bending radius as small as 20mm.
Features for FTTH Flat Drop Cable:
1. Easy to Strip
2. Direct Termination
3. Small Diameter
4. Complete Dry Design
5. Water Resistance
6. Halogen Free Fire Retardant / Low Smoke Zero Halogen
7. Flexible
8. Enforced with Non-Metallic Strength Members

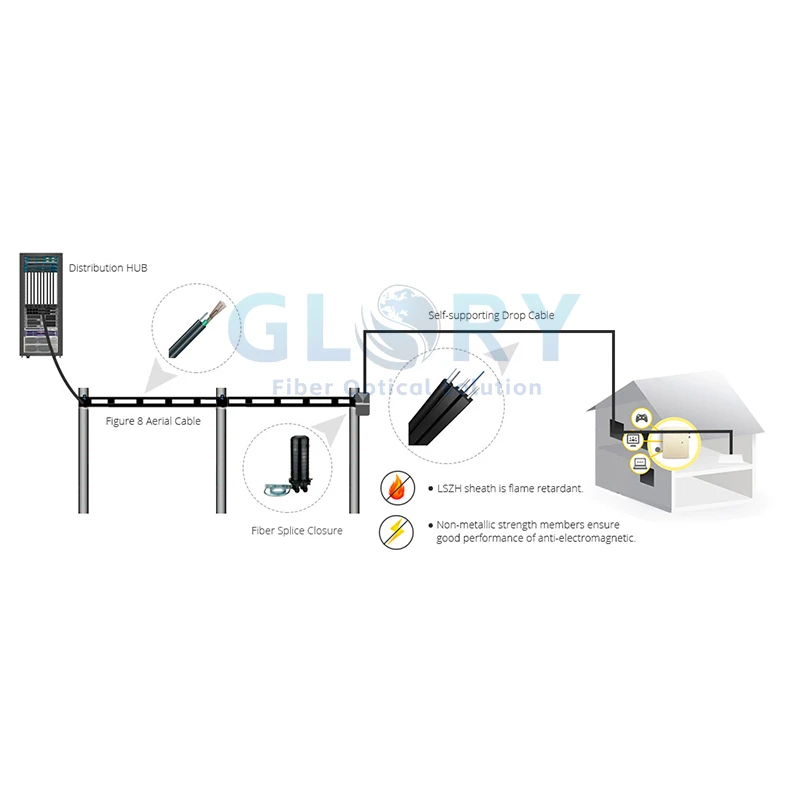

Applications of FTTH Drop Fiber Optic Cable:
FTTH outdoor drop cable is a new type of fiber-optic cable. It features a butterfly/ figure-8 shape. Being compact and lightweight, it is well-suited for Fiber to the Home (FTTH). It can be cut to fit the required distance on site. This feature increases construction efficiency. The cable's unique figure-8 structure enables rapid field termination.
Technical Parameters:
|
Item |
Technology parameter |
|
Cable type |
Drop Cable |
|
Cable Count |
1 2 4 6 8 12 |
|
Fiber color |
Green, Yellow |
|
Fiber type |
9/125 (G657A2) |
|
Sheath color |
Black and white |
|
Sheath material |
LSZH |
|
Cable dimension (mm) |
3.0(±0.1) *2.0(±0.1); 5.2(±0.1) *2.0(±0.1) |
|
Cable weight (Kg/km) |
15 |
|
Min. bending radius (mm) |
10 (Static) 25 (Static) 30 (Static) 60 (Static) |
|
Attenuation (dB/km) |
0.4 at 1310nm, 0.3 at 1550nm |
|
Short term tensile (N) |
200; 600 |
|
Crush resistance (N/100mm) |
1000; 2200 |
|
Operation temperature (℃) |
-20~+70℃ |
|
Fiber Count |
|
|
|
|
|
|
1 |
2.0×3.0 |
8 |
100/200 |
1000/2200 |
15D/30D |
|
2 |
2.0×3.0 |
8 |
100/200 |
1000/2200 |
15D/30D |
|
4 |
2.0×3.0 |
8 |
100/200 |
1000/2200 |
15D/30D |
|
6 |
2.0×3.5 |
8.5 |
100/200 |
1000/2200 |
15D/30D |
|
8 |
2.0*4.0 |
9.0 |
100/200 |
1000/2200 |
15D/30D |
|
12 |
2.0*5.0 |
9.7 |
100/200 |
1000/2200 |
15D/30D |

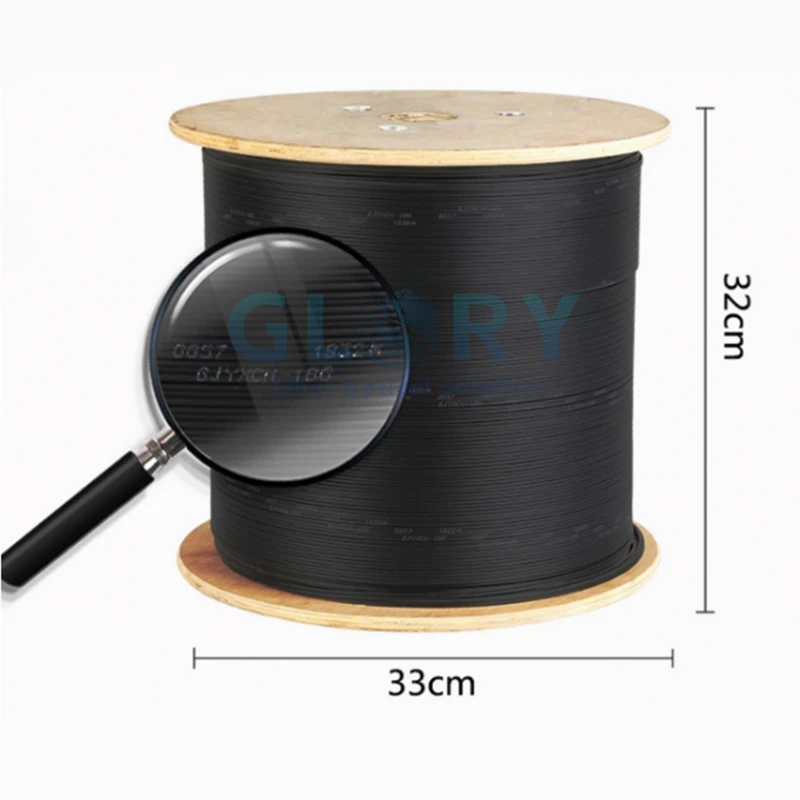

Packaging Details:
1-2KM per roll. Packed by wooden drum. Other packing available according to client's Request.
Sheath mark:
The following printing (white hot foil indentation) is applied at 1meter intervals.
a. Supplier: gloryoptic or as customer required;
b. Standard Code (Product Type, Fiber Type, Fiber Count);
c. Year of manufacture
d. Length marking in meters.
Note:
The Packing standard and details as above is estimated and final size&weight shall be confirmed before shipment.
The cables are packed in carton, coiled on Bakelite & wooden drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture, kept away from high temperature and fire sparks, protected from over bending and crushing, protected from mechanical stress and damage.
