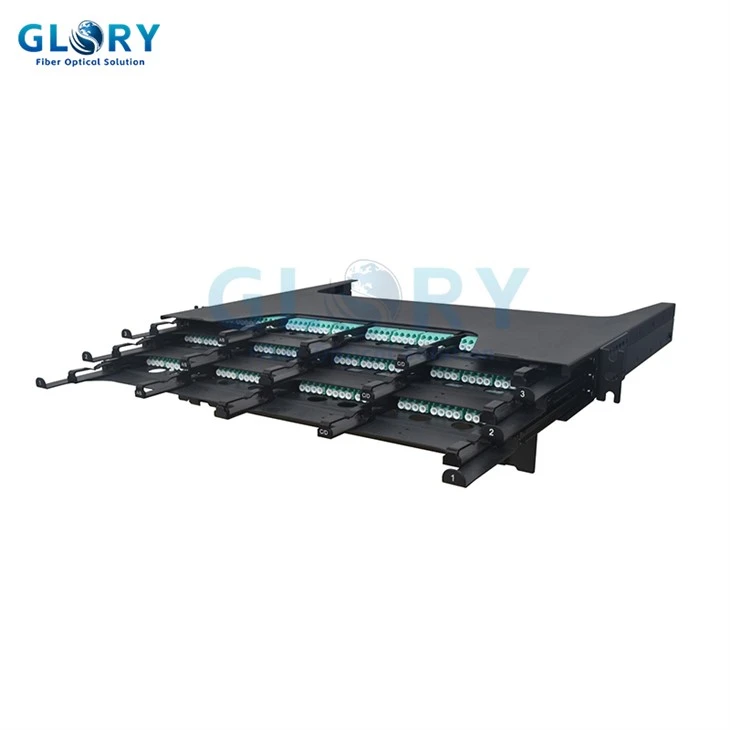

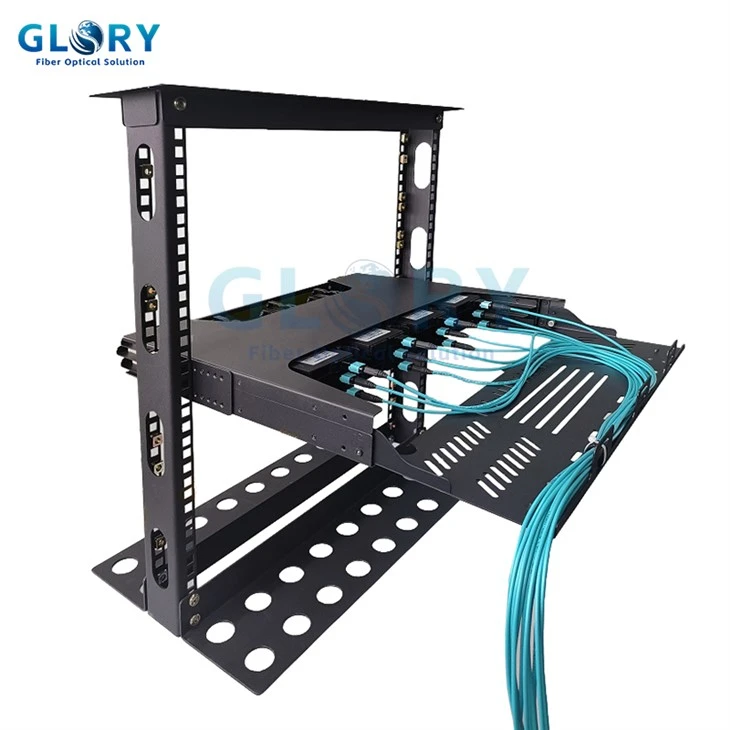

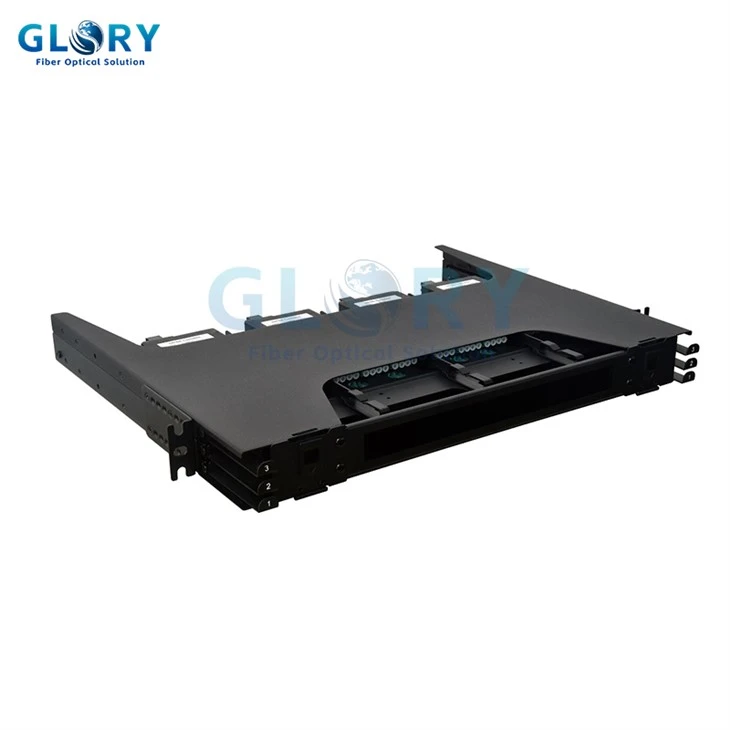

1u Fiber Patch Panel
Item: 1u Fiber Patch Panel
Model: GL-MP6 Pre-terminated Modular Cassette System
•Data Center Wiring Product
• 1U/2U/4U
• Modular design, can be pulled out by rails
•Optional MTP/MPO/LC/CS connection
Fiber Patch Panel with Pre-terminated Modular Cassette System makes the installation or upgrading of multimode and singlemode fiber links simple and quick. As each fiber link is factory terminated and tested.
No on-site termination using specialist skills, labor or tools is required, installation times are cut and project costs are lowered.
- Product Introduction
The GL-MP6 and GL-MPB6 series 1u Fiber Patch Panel with Pre-terminated Modular Cassette System have modular designs and front and rear pull-out mechanical structures, which are the biggest features that differentiate this product from competing products, including rapid
deployment, rapid response, and accurate troubleshooting. The optional LC adapter supports up to 1U-144F, 2U-288F, and 4U-576F, and the optional CS adapter supports up to 1U-216F.

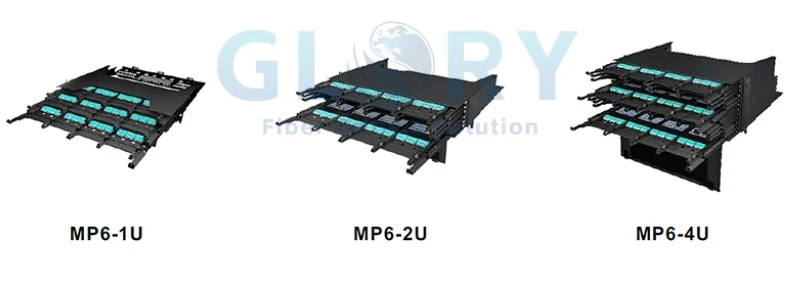

Product Model And Appearance
Features
High Performance
•Modular design, can be pulled out by rails
•Each floor can install 4 or 6 cassettes
•Provides front and rear cable management functions
High Density
•1U supports up to 144-core LC or 216-core CS connections
•2U supports up to 288-core LC, and 4U supports 576-core LC connections.
•1U supports up to 1728-core MPO/MTP access
High Flexibility
•Support MTP/MPO-MTP/MPO conversion
•Optional MTP/MPO/LC/CS connection
•Support pigtail splicing

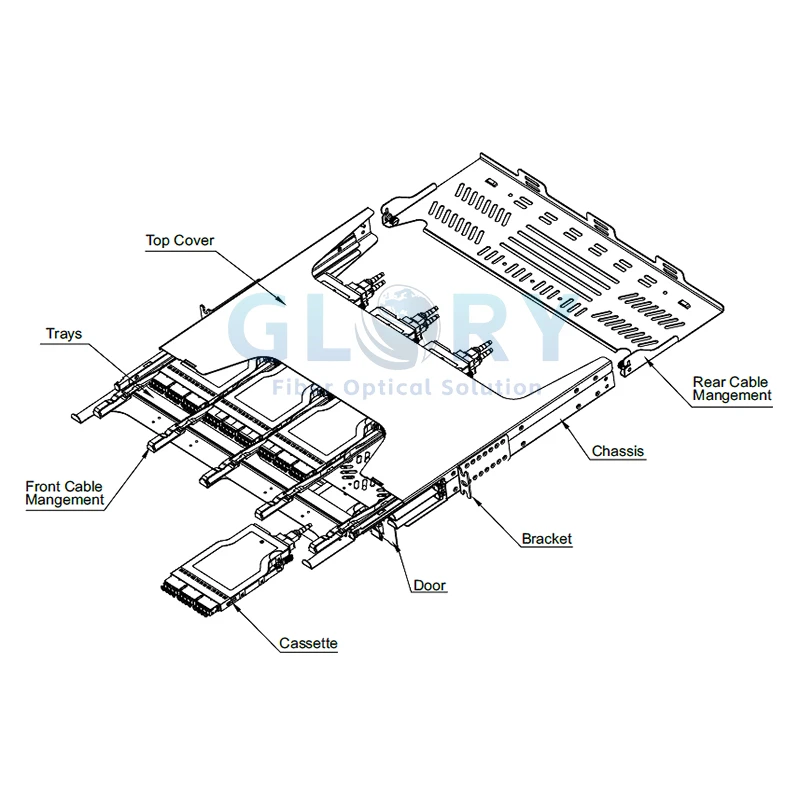

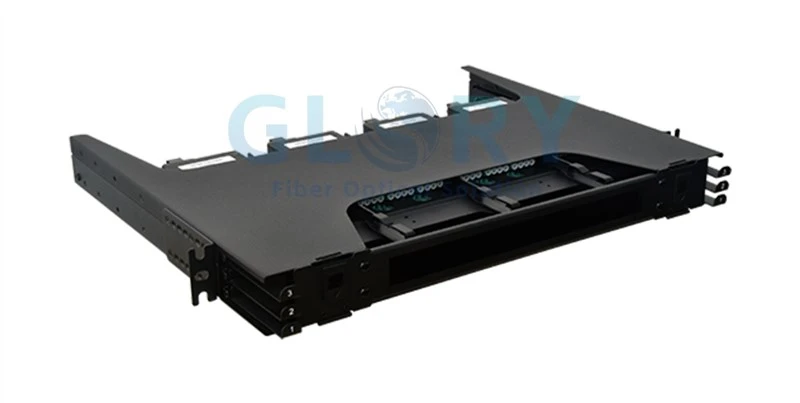

Patch Panel Structure
Specifications
|
Item Name |
Fiber Patch Panel GL-MP6 Pre-terminated Modular Cassette System |
|
Operating Temperature |
-40℃ ~ +75℃ |
|
Storage Temperature |
-40℃ ~ +75℃ |
|
Relative Humidity |
≤85%(+30 ℃) |
|
Atmospheric Pressure |
70kPa ~106kPa |
|
Cabinet Material |
Cold Rolled Steel Plate |
|
Dimensions (WxDxH) |
482.8mm×350mm×1/2/4U(With tailgate:497mm) |
|
Fiber Count(LC adapter) |
1U:144F |
|
2U:288F |
|
|
4U:576F |
|
|
Fiber Count(CS adapter) |
1U:216F |
|
Fiber Count (MPO adapter) |
1U:1728F/1U:864F |
|

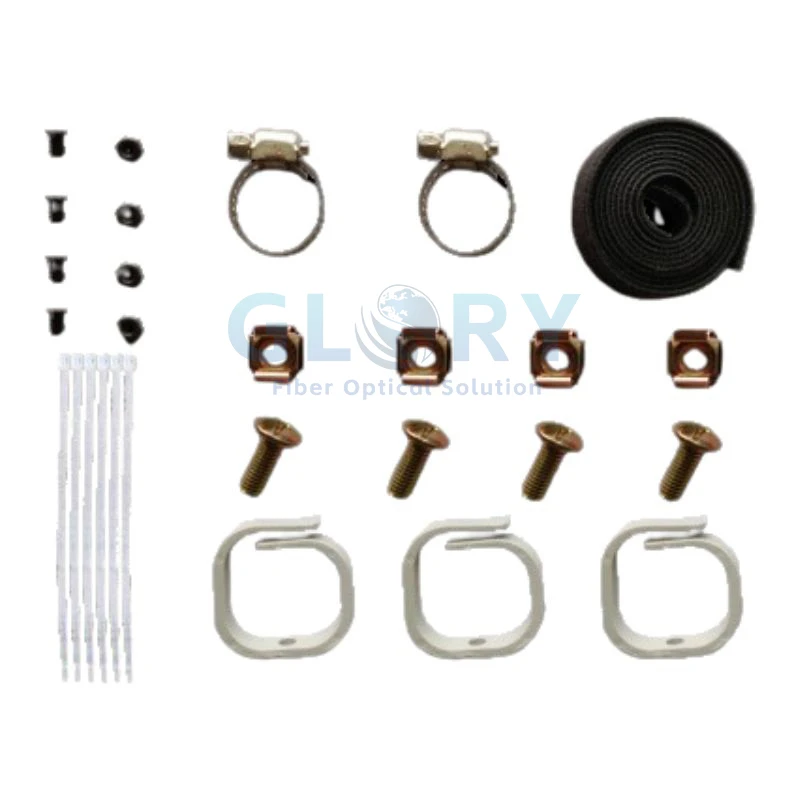

Accessories |
|
|
|
Ties × 6PCS |
|
Hoop pliers × 2PCS |
|
|
Hose clamp × 2PCS |
|
|
1 Meter magic tie × 1PCS |
|
|
M6 screws and screw nuts × 4PCS |
|
|
Link tag × 1PCS |
|
|
Cable management bracket × 3PCS |
|
|
M3 screws and nuts × 3PCS |
|

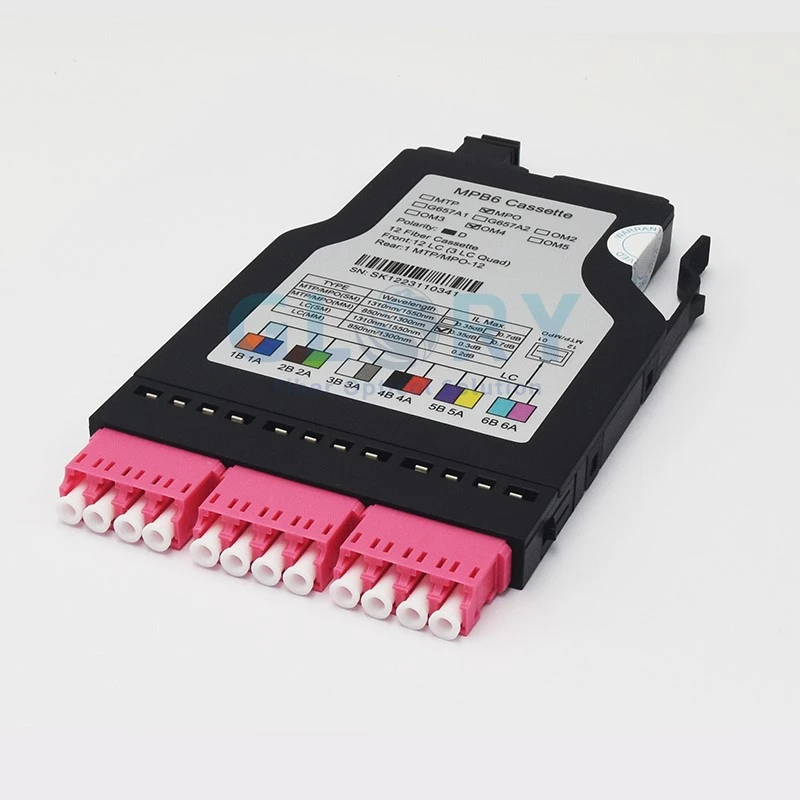

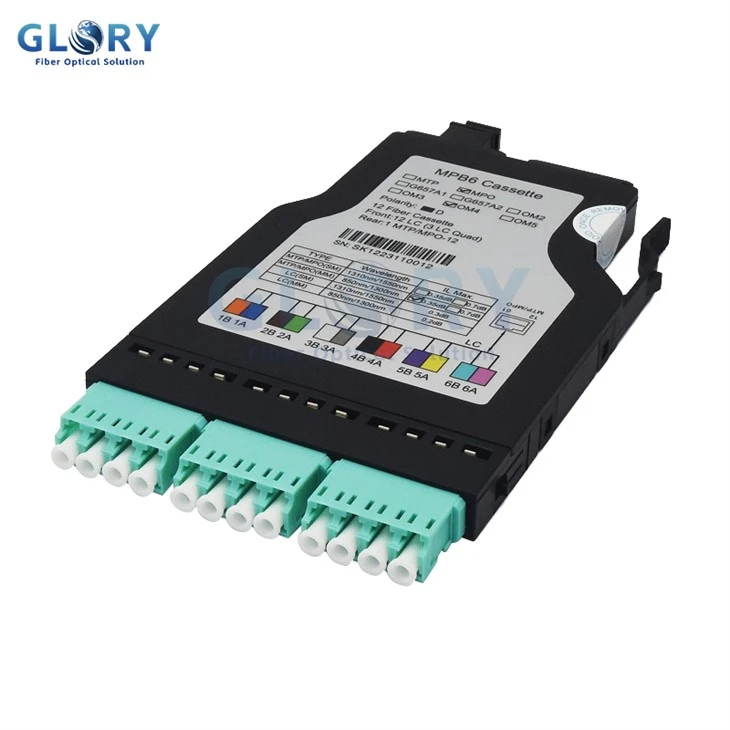

Cassettes for Fiber Patch Panel are designed for optimized cabling management, plug-and-play, rapid deployment, increased flexibility and manageability, and reduced installation costs. The models as follows:

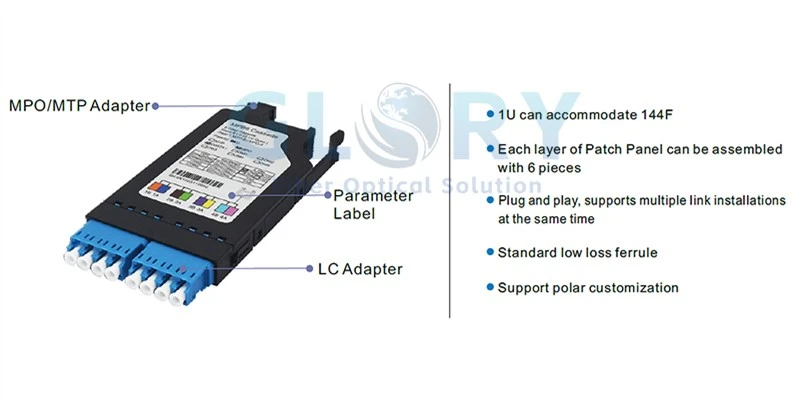

GL-MPB6 Cassettes (8F-LC Cassettes)
|
Product Specifications |
|
|
Fiber Count |
8F |
|
Fiber Type |
G657A1,OM3,OM4,OM5 |
|
Fiber Mode |
SM/MM |
|
Polarity Type |
Type B |
|
Material |
Plastic |
|
Front Connector |
SM:LC-UPC/APC(UPC:Blue/APC:Green) |
|
MM:LC-UPC(OM3:Aqua/OM4:Violet/OM5:Lime Green) |
|
|
Rear Connector |
SM:MPO/MTP-APC Male |
|
MM:MPO/MTP-UPC Male |
|
|
Dimensions (WxDxH) |
60mm×105mm×11.4mm(No Adapter) |
|
Performance Properties |
|
|
Front Connector Insertion Loss |
SM:UPC≤0.3dB;APC≤0.3dB |
|
MM:UPC≤0.2dB |
|
|
Front Connector Return Loss |
SM:UPC≥50dB,APC≥60dB;MM:UPC≥35dB |
|
Rear Connector Insertion Loss |
SM:UPC≤0.35dB(LL) |
|
MM:UPC≤0.35dB(LL) |
|
|
Rear Connector Return Loss |
SM:APC≥50dB;MM:UPC≥35dB |

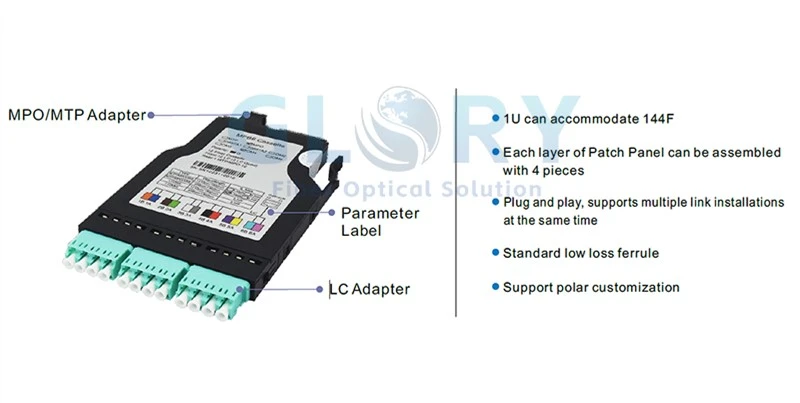

GL-MPB6 Cassettes (12F-LC Cassettes)
|
Product Specifications |
||
|
Fiber Count |
12F |
|
|
Fiber Type |
G657A1,OM3,OM4,OM5 |
|
|
Fiber Mode |
SM/MM |
|
|
Polarity Type |
Type A |
|
|
Material |
Plastic |
|
|
Front Connector |
SM:LC-UPC/APC(UPC:Blue/APC:Green) |
|
|
MM:LC-UPC(OM3:Aqua/OM4:Violet/OM5:Lime Green) |
||
|
Rear Connector |
SM:MPO/MTP-APC Male |
|
|
MM:MPO/MTP-UPC Male |
||
|
Dimensions (WxDxH) |
90mm×130mm×11.4mm(No Adapter) |
|
|
Performance Properties |
||
|
Front Connector Insertion Loss |
SM:UPC≤0.3dB;APC≤0.3dB |
|
|
MM:UPC≤0.2dB |
||
|
Front Connector Return Loss |
SM:UPC≥50dB,APC≥60dB;MM:UPC≥35dB |
|
|
Rear Connector Insertion Loss |
SM:UPC≤0.35dB(LL) |
|
|
MM:UPC≤0.35dB(LL) |
||
|
Rear Connector Return Loss |
SM:APC≥50dB;MM:UPC≥35dB |
|

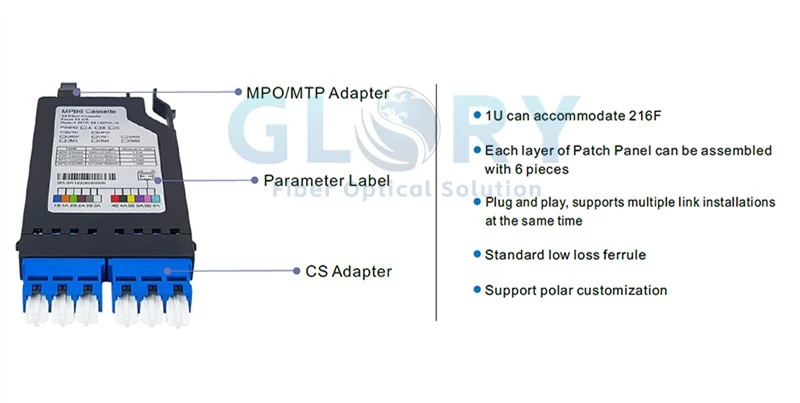

GL-MPB6 Cassettes (12F-CS Cassettes)
|
Product Specifications |
|
|
Fiber Count |
12F |
|
Fiber Type |
G657A1,OM3,OM4,OM5 |
|
Fiber Mode |
SM/MM |
|
Polarity Type |
Type A |
|
Material |
Plastic |
|
Front Connector |
SM:CS-UPC/APC(UPC:Blue/APC:Green) |
|
MM:CS-UPC(OM3:Aqua/OM4:Violet/OM5:Lime Green) |
|
|
Rear Connector |
SM:MPO/MTP-APC Male |
|
MM:MPO/MTP-UPC Male |
|
|
Dimensions (WxDxH) |
60mm×105mm×11.4mm(No Adapter) |
|
Performance Properties |
|
|
Front Connector Insertion Loss |
SM:UPC≤0.3dB;APC≤0.3dB |
|
MM:UPC≤0.2dB |
|
|
Front Connector Return Loss |
SM:UPC≥50dB,APC≥60dB;MM:UPC≥35dB |
|
Rear Connector Insertion Loss |
SM:UPC≤0.35dB(LL) |
|
MM:UPC≤0.35dB(LL) |
|
|
Rear Connector Return Loss |
SM:APC≥50dB;MM:UPC≥35dB |
GL-MPB6 Cassettes (Cassettes Panel)
|
Product Specifications |
|
|
Fiber Count |
1728F/144F |
|
Fiber Type |
G657A1,OM3,OM4,OM5 |
|
Fiber Mode |
SM/MM |
|
Material |
Plastic |
|
Front Adapter |
MPO/MTP/LC |
|
Dimensions(WxDxH) |
90mm×130mm×11.4mm (No Adapter) |

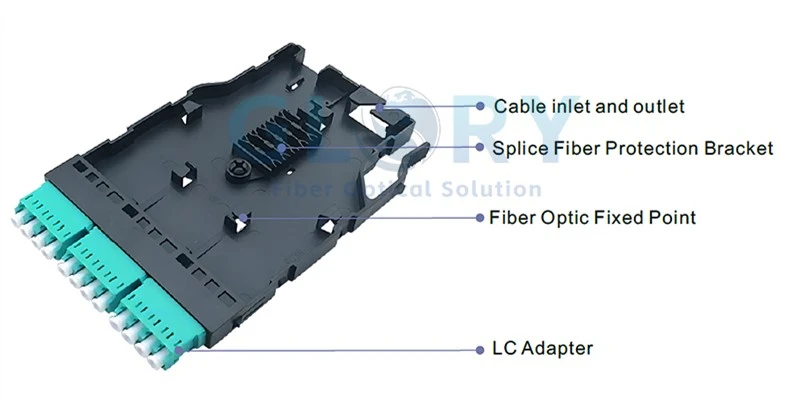

GL-MPB6 Cassettes(12F-LC Splicing Cassettes)
|
Product Specifications |
|
|
Fiber Count |
12F |
|
Fiber Type |
G657A1,OM3,OM4,OM5 |
|
Fiber Mode |
SM/MM |
|
Material |
Plastic |
|
Front Connector |
SM:LC-UPC/APC(UPC:Blue/APC:Green) |
|
MM:LC-UPC(OM3:Aqua/OM4:Violet/OM5:Lime Green) |
|
|
Dimensions(WxDxH) |
90mm×130mm×11.4mm(No Adapter) |
|
Performance Properties |
|
|
Front Connector Insertion Loss |
SM:UPC≤0.3dB;APC≤0.3dB |
|
MM:UPC≤0.2dB |
|
|
Front Connector Return Loss |
SM:UPC≥50dB,APC≥60dB;MM:UPC≥35dB |
Fiber Patch Panel Ordering Information
GL-Patch Panel-MP6
|
MP6 - EM - SP - B - 9004 - N×12F - N×8F - 1U 1 2 3 4 5 6 7 8 |
|
|
1-Model |
MP6 |
|
2-Configuration |
EM:Empty |
|
3-Material |
SP:Cold Rolled Steel Plate |
|
4-Spray |
B:Fine Sand Grain |
|
5-Spray Color |
9004:RAL9004 |
|
6-12F Cassettes Quantity |
N×12,N=1,2,3,4,5... |
|
7-8F Cassettes Quantity |
N×8,N=1,2,3,4,5... |
|
8-Cabinet Height |
1U,2U,4U |
|
Note: 1. Each panel can be configured with 6pcs 8F cassettes or 4pcs 12F cassettes. 2.1U can be configured with 3 layers of panels, 2U with 6 layers, and 4U with 12 layers. |
|
Cassettes-GL-MPB6
|
MPB6_12F- AP - P - Black - 1×12 - MPO/PC - LC/UPC - OM4 1 2 3 4 5 6 7 8 |
|
|
1-Model |
MPB6_8F;MPB6_12F;MPB6S_12F |
|
2-Configuration |
EM:Empty; AD:Adapter Included; AP:Fully Equipped |
|
3-Material |
P:Plastic |
|
4-Color |
Black |
|
5-Cassettes Patch Cord |
1×12:1PCS 12-Core Patch Cord |
|
6-Rear Connector |
MPO/PC;MPO/APC;MTP/PC;MTP/APC |
|
7-Front Connector |
LC/PC;LC/APC;CS/PC;CS/APC |
|
8-Fiber Type |
G657A1;OM3;OM4;OM5 |
|
Note：The front end uses CS adapter and the module box uses MPB6_8F. |
|

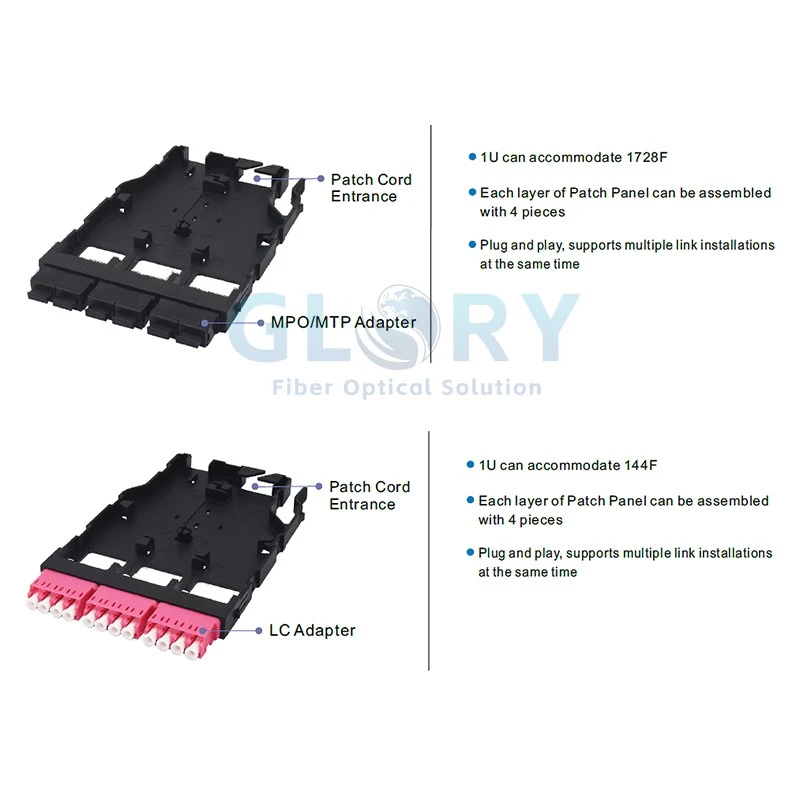

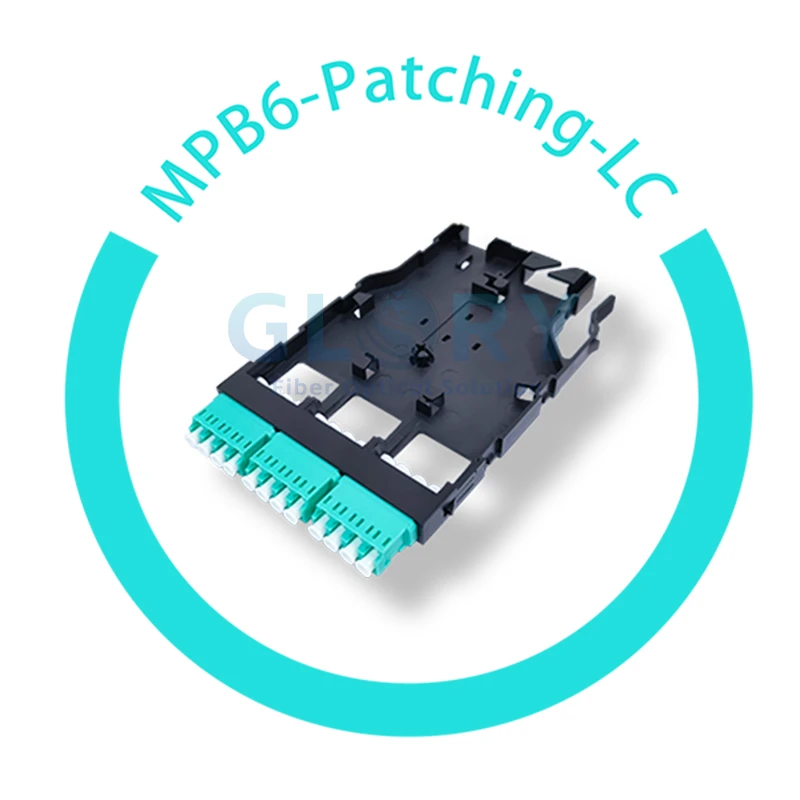

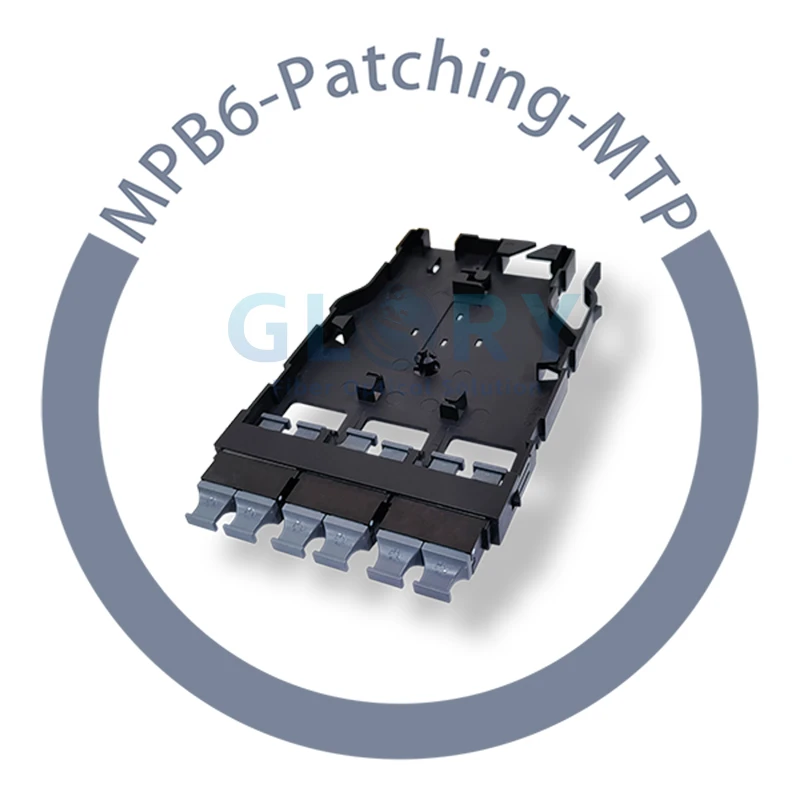

Cassettes Panel
|
MPB6P- AD - P - Black - 3MPO(DX) - SM/UPC 1 2 3 4 5 6 |
|
|
1-Model |
MPB6P |
|
2-Configuration |
EM:Empty; AD:Adapter Included |
|
3-Material |
P:Plastic |
|
4-Color |
Black |
|
5-Adapter Type |
3MPO(DX),3MTP(DX),3LC(QT) |
|
6-Connection Type |
SM/UPC,SM/APC,MM/UPC,OM3/UPC,OM4/UPC |
|
Note: 1.① LC adapter: straight four-pin short lug; ② MPO/MTP adapter: SC type short lug flange, with one end of the key facing up and the other end facing down. 2. There are 3 square holes at the bottom of the panel. |
|
