Fiber Optic Splitter

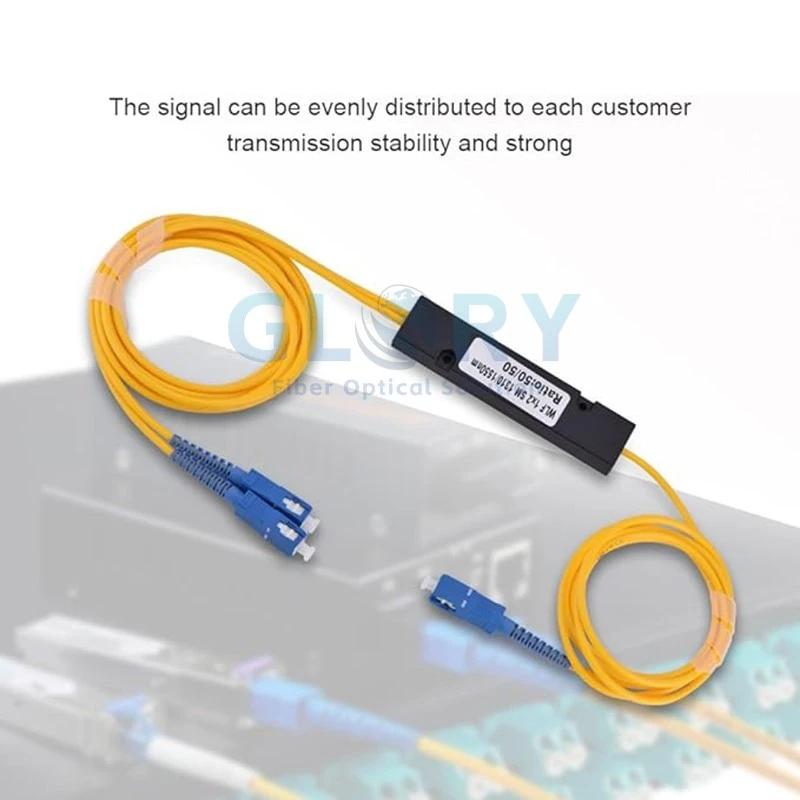

Item: 1x2 Fiber Optic Splitter
Model: Optical Fiber Splitter or 1 to 2 SC Optical Fiber Splitter with SC-SC
Connector Application for FTTX (FTTP, FTTH, FTTN, FTTC)
- Product Introduction
The 1x2 Fiber Optic Splitter has carrier-class - low insertion loss, good stability and good channel-to-channel uniformity, low polarization dependent loss. It is compact design, lightweight, only occupy a little space.
The fiber optic splitter is convenient, fast and practical, can be installed directly in a variety of fiber optical exchange box, and can distribute the signal evenly to each customer with strong transmission stability.
With good directivity, good environmental stability, not sensitive to wavelength loss.
Features
• Low Insertion Loss
• Various Coupling Ratio
• Compact Size
Specifications
|
Three-Window Coupler (TWC) |
|||
|
Grade |
P |
A |
|
|
Port configuration |
1×2 or 2×2 |
||
|
Operating wavelength (nm) |
1310 ,1490 and 1550 |
||
|
Operating bandwidth (nm) |
1310±40,1490±10 and 1550±40 |
||
|
Typical excess loss (dB) |
0.07 |
0.10 |
|
|
Insertion Loss (dB) |
50/50 |
≤3.6 |
≤3.8 |
|
40/60 |
≤4.7/2.7 |
≤4.9/2.9 |
|
|
30/70 |
≤6.0/1.9 |
≤6.3/2.1 |
|
|
20/80 |
≤7.9/1.3 |
≤8.4/1.4 |
|
|
10/90 |
9.20~11.00/≤0.75 |
8.80~11.40/≤0.8 |
|
|
5/95 |
12.05~14.20/≤0.4 |
11.55~14.65/≤0.5 |
|
|
3/97 |
14.10~16.50/≤0.35 |
13.60~17.05/≤0.45 |
|
|
2/98 |
15.60~18.55/≤0.3 |
15.00~19.20/≤0.4 |
|
|
1/99 |
18.45~21.70/≤0.25 |
17.80~22.40/≤0.35 |
|
|
PDL (dB) |
≤0.15 |
≤0.20 |
|
|
Directivity (dB) |
≥55 |
||
|
Operating temperature (℃) |
-40 ~ +85 |
||
|
Package Dimension |
250μm bare fiber: Φ3.0×45mm 900μm loose tube: Φ3.0×54mm 900um/2mm/3mm loose tube: 90×20×10mm |
||
Applications
• Fiber Optic Communication
• CATV System
• Local Area Network
