2x32 Fiber Splitter
Item: 2x32 Fiber Optic PLC Splitter ABS Module 2.0mm
Connector type: LC/APC or SC/APC
Certification: ISO9001, RoHS
- Product Introduction

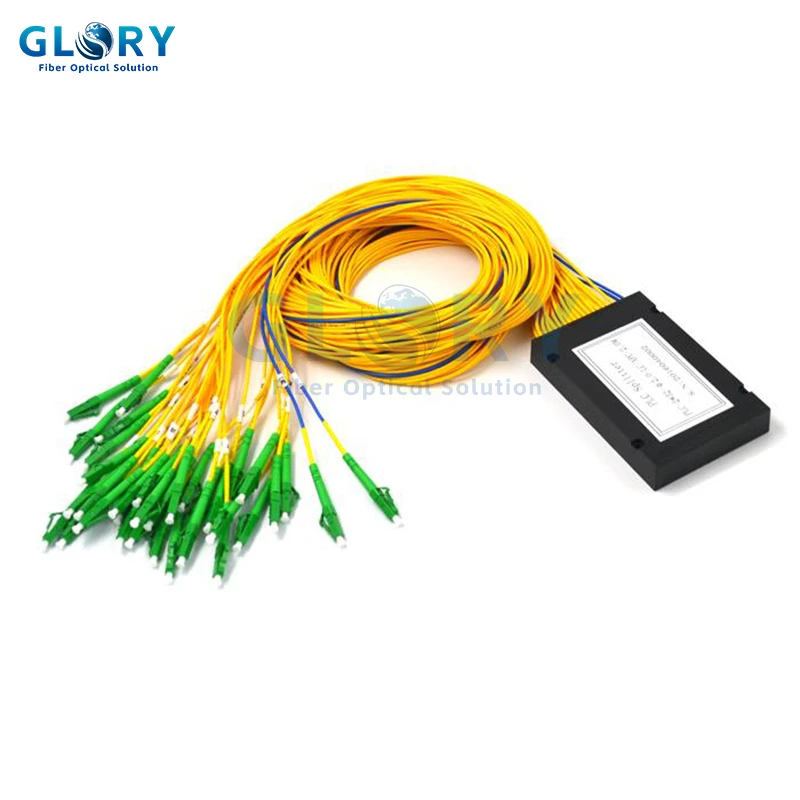

2x32 Fiber Splitter ABS Module
A Fiber PLC Splitter, also referred to as an optical splitter or fiber splitter, is a device that evenly splits an optical signal from one input fiber into multiple output fibers. It is characterized by uniform broadband power distribution, featuring exceptional insertion loss uniformity across all channels, resulting in practical wavelength independence across the entire transmission range (1260 to 1650 nm). Optical splitters play a critical role in passive optical networks (PONs), such as EPON, GPON, BPON, FTTX, and FTTH, by enabling a single PON interface to be shared among multiple subscribers.
The 2x32 Fiber Splitter ABS Module is widely used in PON networks. It provides complete protection for internal optical components and cables, while its design ensures convenient and reliable installation. However, its physical size is relatively large. This splitter is primarily deployed in connection and distribution equipment or network cabinets.
Our 2x32 Fiber Splitter delivers highly stable splitting performance across varying temperatures and wavelengths, with low insertion loss, minimal polarization sensitivity, excellent uniformity, and low return loss. Custom splitting ratios are available, including 1x2, 1x4, 2x4, 1x8, 2x8, 1x16, 2x16, 1x32, 2x32, and 1x64.
Specifications:
|
Fiber length |
1m or custom length |
|||||
|
Connector Type |
Custom specified |
|||||
|
Optical Fiber Type |
Corning SMF-28e fiber, G657A1 or as customized |
|||||
|
Directivity (dB) Min * |
55 |
|||||
|
Return Loss (dB) Min * |
55 (50) |
|||||
|
Power Handling (mW) |
300 |
|||||
|
Operating Wavelength (nm) |
1260 ~ 1650 |
|||||
|
Operating Temperature (°C) |
-40~ +85 |
|||||
|
Storage Temperature (°C) |
-40 ~ +85 |
|||||
|
Port Configuration |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
|
Insertion Loss (dB) Typical |
3.6 |
7.1 |
10.2 |
13.5 |
16.5 |
20.5 |
|
Insertion Loss (dB) Max |
4.0 |
7.3 |
10.5 |
13.7 |
16.9 |
21.0 |
|
Loss Uniformity (dB) |
0.6 |
0.6 |
0.8 |
1.2 |
1.5 |
2 |
|
PDL (dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
|
Wavelength Dependent Loss (dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temp. Dependent Loss (-40~85) (dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Port Configuration |
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
|
Insertion Loss (dB) Typical |
3.8 |
7.4 |
10.8 |
14.2 |
17 |
21 |
|
Insertion Loss (dB) Max |
4.2 |
7.8 |
11.2 |
14.6 |
17.5 |
21.5 |
|
Loss Uniformity (dB) |
1 |
1.4 |
1.5 |
2 |
2.5 |
2.5 |
|
PDL (dB) |
0.2 |
0.2 |
0.4 |
0.4 |
0.4 |
0.5 |
|
Wavelength Dependent Loss (dB) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
1 |
|
Temp. Dependent Loss (-40~+85°C) |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
1 |
Features of 2x32 Fiber Splitter ABS Module:
• Low insertion loss & PDL
• Good channel-to-channel uniformity
• Compact design
• Wide operating temperature range
• Wide operating wavelength: 1260–1650 nm
• High reliability and stability
• Excellent environmental & mechanical stability
• Qualified under Telcordia GR-1221 and GR-1209
Applications:
• FTTx (FTTB, FTTH, FTTC)
• Passive Optical Networks (PON, GEPON)
• Local Area Networks (LAN)
• CATV Systems
• Test instruments
• Telecommunication Networks
