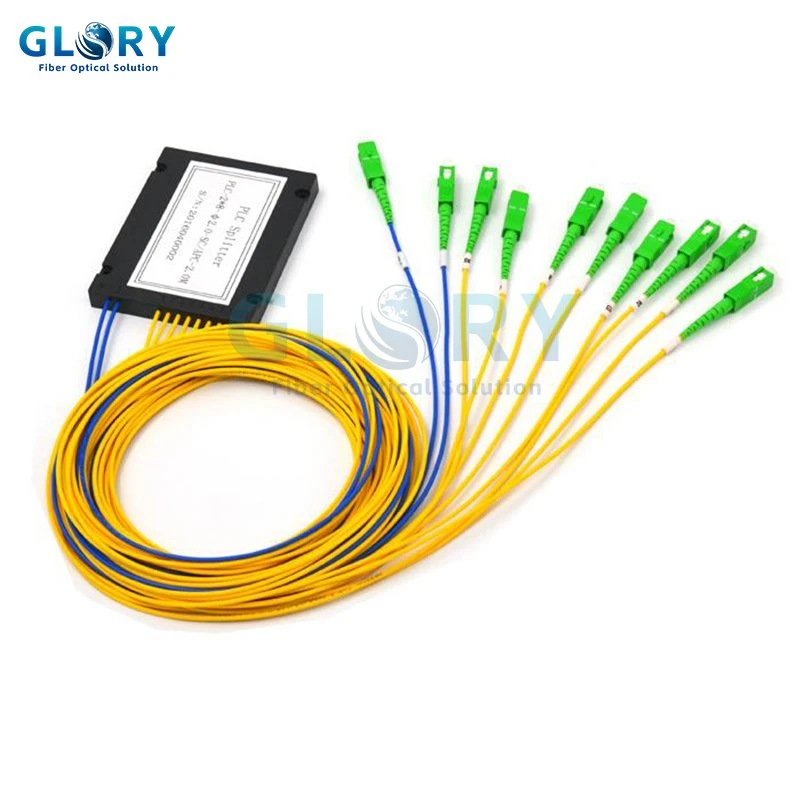

Item: 2x8 PLC Splitter
Model: 2x8 Fiber Optic Splitter ABS Module 2.0mmwith LC/APC Connectors
2X8 ABS Box Fiber PLC Splitter With LC/APC Connector Options: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits；2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits.
- Product Introduction

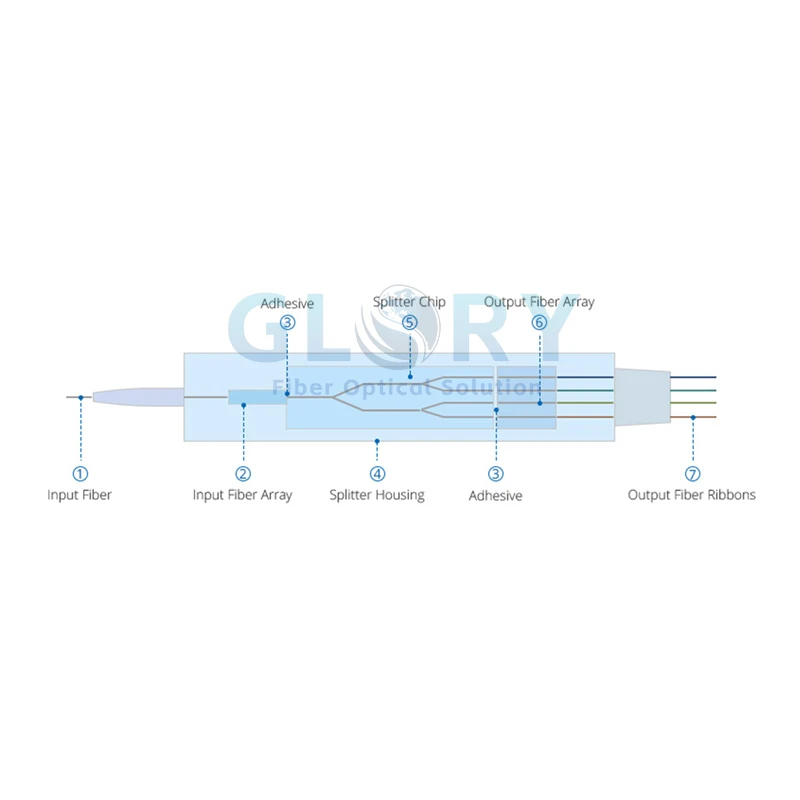

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Blockless 2x8 PLC Splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.
Features
Low insertion loss
low polarization dependent loss
low back reflection
Wide Operating Wavelength: 1260~1650nm
High Reliability and Stability

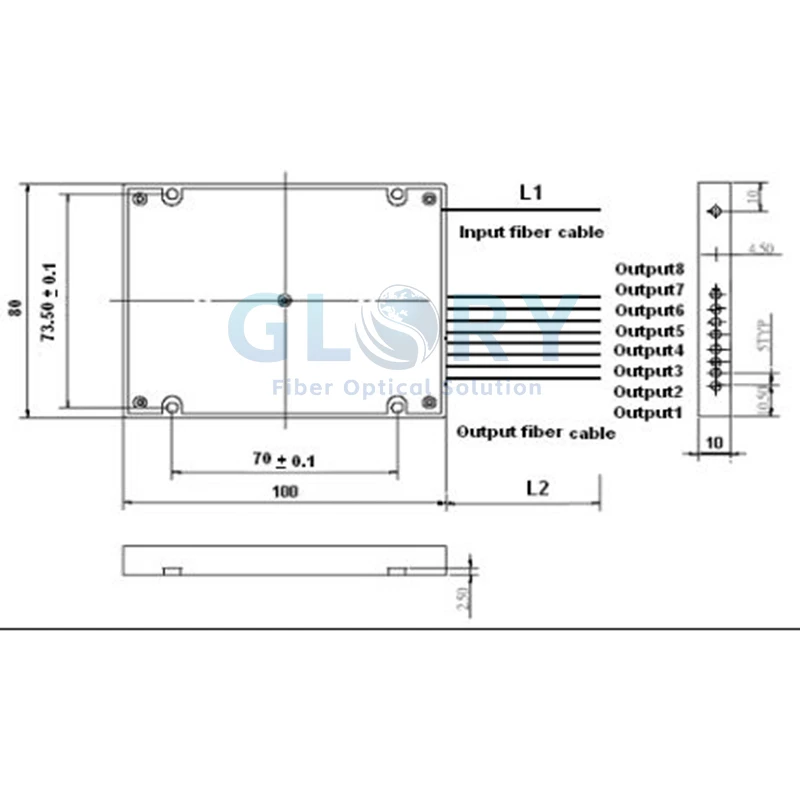

Below is structure of 1X8 and 2X8 PLC splitter ABS box type:
Specifications
2x8 ABS Box PLC Splitter Exclude Connector Loss
|
TYPE |
2x8 |
||
|
Fiber Type |
9/125 um SMF-28e or customer appoint |
||
|
Operating Wavelength(nm) |
1260～1650 |
||
|
Insertion Loss(dB) |
Typical |
10.8 |
|
|
Max |
11.2 |
||
|
Loss Uniformity(dB) |
Max |
1.5 |
|
|
Polarization Dependent Loss(dB) |
Max |
0.4 |
|
|
Directivity(dB) |
≥55 |
||
|
Return Loss (dB) |
UPC:50 APC:55 |
||
|
Operating Temperature (°C) |
-40～+85 |
Storage Temperature (°C) |
|
2x8 ABS Box PLC Splitter Include Connector Loss
|
TYPE |
2x8 |
||
|
Fiber Type |
9/125 um SMF-28e or customer appoint |
||
|
Operating Wavelength(nm) |
1260～1650 |
||
|
Insertion Loss(dB) |
Typical |
11.3 |
|
|
Max |
11.2 |
||
|
Loss Uniformity(dB) |
Max |
1.5 |
|
|
Polarization Dependent Loss(dB) |
Max |
0.4 |
|
|
Directivity(dB) |
≥55 |
||
|
Return Loss (dB) |
UPC:50 APC:55 |
||
|
Operating Temperature (°C) |
-40～+85 |
Storage Temperature (°C) |
|
Applications
PON
FTTx
CATV
Network monitoring

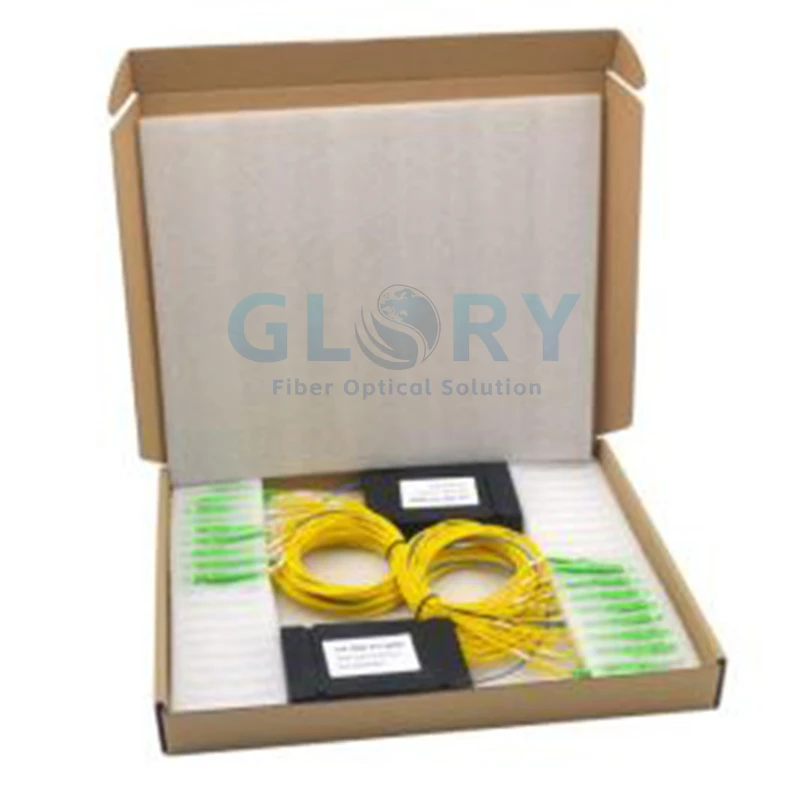

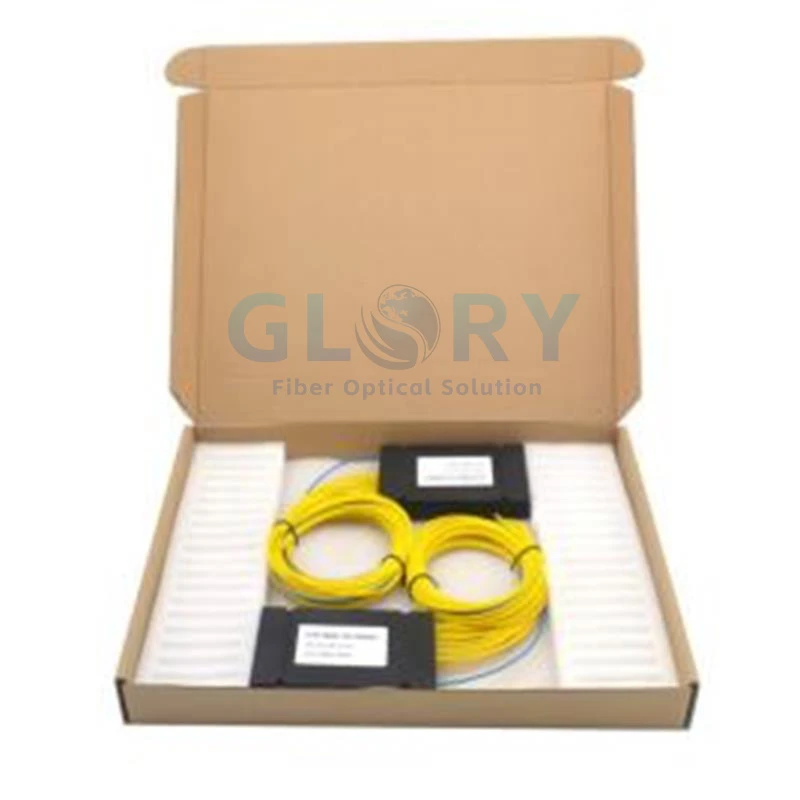

Packing Way Of ABS Box Type 2x8 PLC Splitter
How To Make Orders
|
Configuration Type |
Package Style |
Fiber Input |
Fiber Output |
Connector Type |
Each Leg Length |
|
1x2 1x4 1x8 1x16 1x32 1x64 2x2 2x4 2x8 2x16 2x32 2x64 |
Bare fiber Blockless ABS Fan-out LGX Box Tray type 1U Rack mount |
250um 900um 2.0mm 3.0mm |
250um 900um 2.0mm 3.0mm |
None SC/UPC SC/APC LC/UPC LC/APC FC/UPC FC/APC ST/UPC Others |
1M 1.5M Customsized |
