SC SC Simplex/Duplex Patch Cord
Item: SC SC Simplex/Duplex Patch Cord
Model: MINI SC APC FTTA Fiber Optic Patch Cables Pigtails with IP67 Waterproof Reinforced Connectors
The [re-terminated OSP drop cables provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps. The Ruggedized Connector, an outside plant Mini SC/APC, is compatible with industry standard OSP terminals.
- Product Introduction
Mini SC APC Simplex Waterproof IP67 (Mini-SC) Patch Cords is a small high waterproof SC single core waterproof connector. Built-in SC connector core, to better reduce the size of the waterproof connector. Mini SC APC Simplex/Duplex Patch cord is made of special plastic shell IP67 (which is resistant to high and low temperature, acid and alkali corrosion resistance, anti-UV) and auxiliary waterproof rubber pad. Cable Diameter can be many different sizes. We also accept OEM Services. Cable outer jacket LSZH or HDPE materials. Outer jacket color can be yellow and black. Cable can be flat bow drop cable or round cables.
Specifications:
|
Product Name |
Waterproof Mini-SC Patch Cords |
|
Fiber Type |
SM: G657A1/G657A2/G657B3, customized; MM: OM1/OM2/OM3/OM4 |
|
Fiber Count |
Simplex |
|
Cable Dia. |
3.0/2.0*3.0/5.0/2.0*5.0/4.0*7.0mm |
|
Outer Jacket Material |
LSZH/HDPE |
|
Outer Jacket Color |
Gray/Black |
|
Connectors |
Connector A: IPSC |
|
Insertion Loss |
SM /APC≤0.3dB |
|
Return Loss |
SM/APC≥60dB |
|
Cable Length |
1~200M or Customized |
|
Branch Length |
Customized |
|
Working Temperature |
-20°C~+70°C |
|
Storage Temperature |
-20°C~+70°C |
|
Tensile Data |
Tensile between junction and fiber cable≥100N |
Features for SC SC Simplex/Duplex Patch Cord:
• Low insertion loss and added loss
• Compact size, easy to operate, durable
• Easy connection to hardened adapters on terminals or closures
• Reduce welding, connect directly to achieve interconnection
• Spiral clamping mechanism ensures long-term reliable connection
• Guide mechanism, can be blinded with one hand, simple and quick, connect and install
• Seal design: It is waterproof, dust-proof, anti-corrosion and so on.
• Cost effective solution for in house termination
Application:
• FTTH Application
• Fiber optic communications in harsh outdoor environments
• Outdoor communication equipment connection
• waterproof fiber equipment SC port
• Remote wireless base station
• FTTx FTTA wiring project

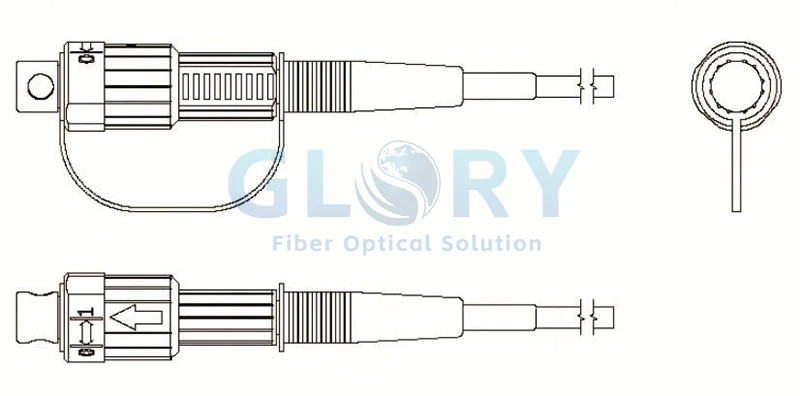

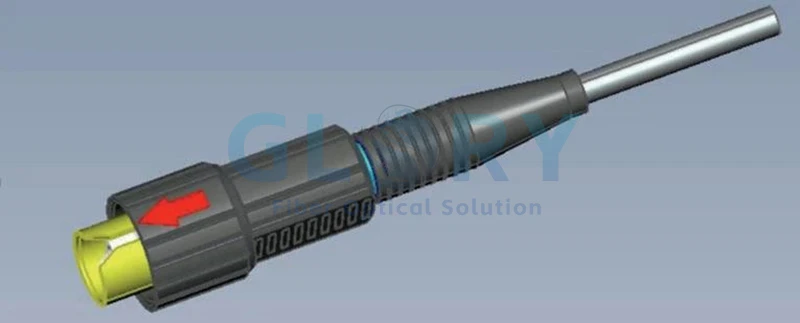

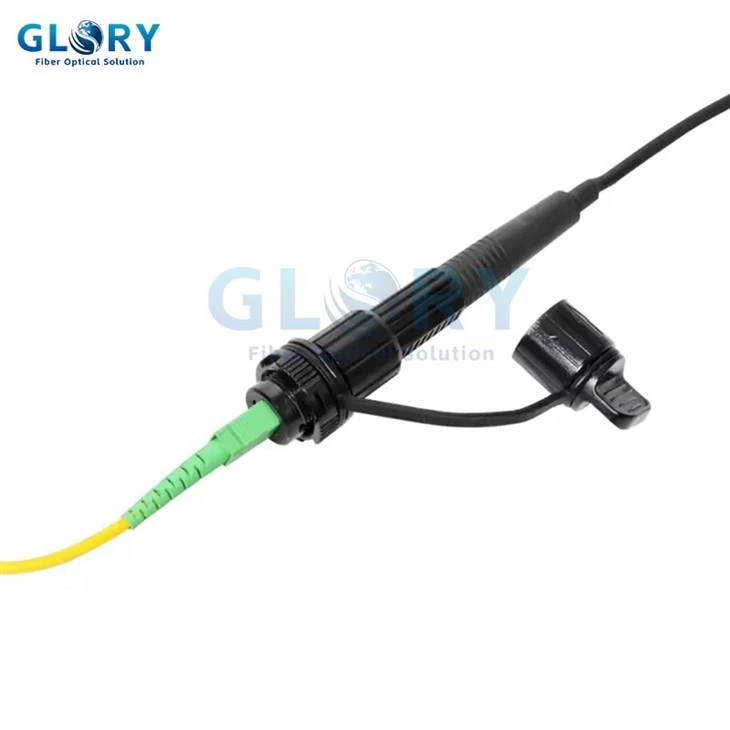

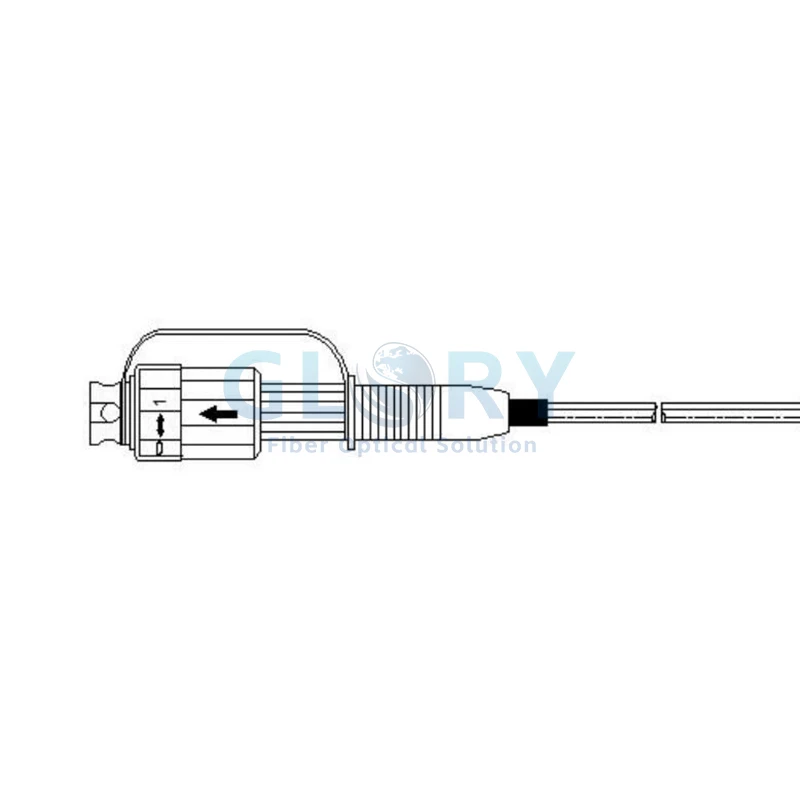

MINI SC Connectors Pictures:
