Fiber Distribution Terminal

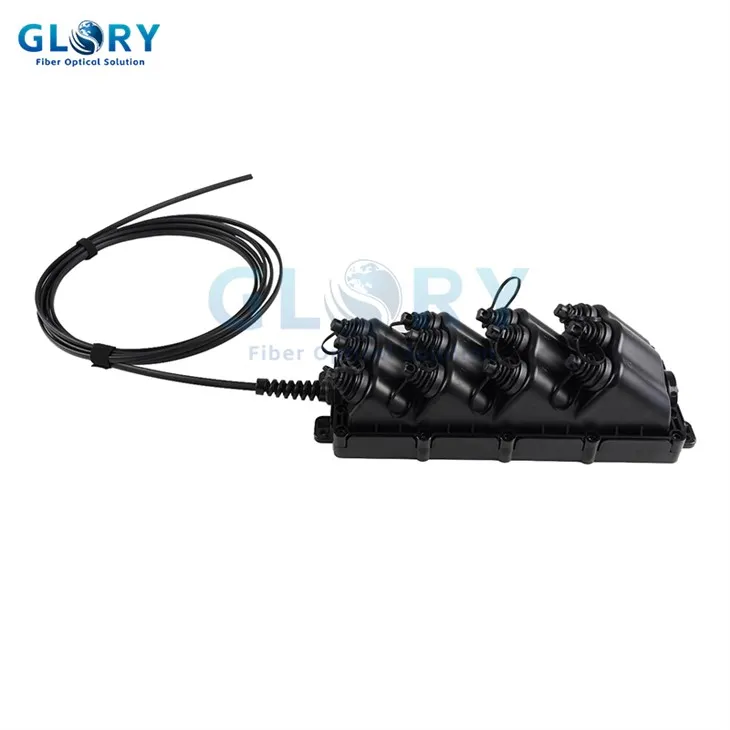

Model: GL-MST01-12 MST Fiber Distribution Terminal
• 12-port MST FiberHub BOX
• IP68 rated for outdoor use
• Pre-connected Optitap hardened connectors
• UV-Resistant
• Cost-effective: Saves 40% on operating time
- Product Introduction
Fiber Distribution Terminal
Model: GL-MST01-12 MST FiberHub BOX
- 12-Port MST Fiber Hub Box
- IP68 Rating for Outdoor Environments
- Pre-connectorized OptiTap Hardened Connectors
- UV Resistant Material
- Saves 40% Installation Time, High Cost Efficiency
Product Overview
The GL-MST01-12 Fiber Distribution Terminal is a new, economical fiber distribution solution for outdoor environments. Compared with traditional products, FiberHub is easy to operate and highly compatible. It can be wall-mounted, aerial, or pole-mounted according to actual conditions. FiberHub is not only used in FTTH applications but also suitable for FTTA or other harsh environments.
This terminal box is a versatile fiber connection device with a reasonable internal structure design. It is mainly used for splicing, distribution, and protection in optical communication links. This 12-core FTTA Fiber Hub Box is equipped with hardened FastConnect adapters compatible with OptiTap products and FTTA solutions.
Product Specifications
|
Item Name |
Fiber Distribution Terminal MST BOX GL-MST01-12 |
|
Size |
137.9x364.7x110.2mm |
|
IP Rate |
IP68 |
|
Product Type |
Access Terminal |
|
Port |
12 ports |
|
Adapter |
OptiTap SC, OptiTap LC Duplex, OptiTap MPO |
|
Entrance |
Cable gland or OptiTap adapter |
|
Feeder Cable |
1, 2, 4, 6, 8, 12 cores for options |
|
Feed Cable Length |
Customized |
|
Stub Type |
Stub Tail |
|
Stub Tail |
-40 to +85℃ |
|
Mounting Method |
Pole, pedestal, handhole, or strand mounting |
Product Features
High Compatibility
Compatible with ODVA, H-connector (OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapters.
Factory Sealed or Field Assembly
Available in factory pre-assembled and field assembly options to suit different installation needs.
Excellent Protection
IP68 rated for water and dust resistance, suitable for various harsh outdoor environments.
High Strength Design
Can withstand 1200N pulling force long-term, ensuring stable operation in demanding conditions.
Multiple Installation Methods
Supports wall mounting, aerial, or pole mounting to adapt to different application scenarios.
Cost Saving
Saves 40% installation time, improves project efficiency, and reduces operating costs.
Size drawing of Fiber Distribution Terminal GL-MST01-12
