Aerial Fiber Splice Enclosure

Model: Aerial Inline Fiber Splice Enclosure GL-6807
• Maximum Capacity: 96 fibers (24/48/72/96F)

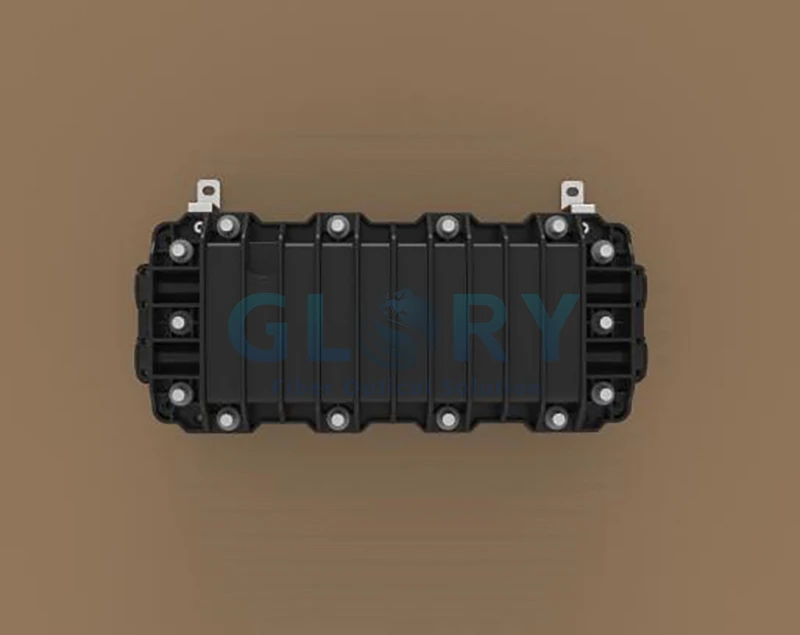

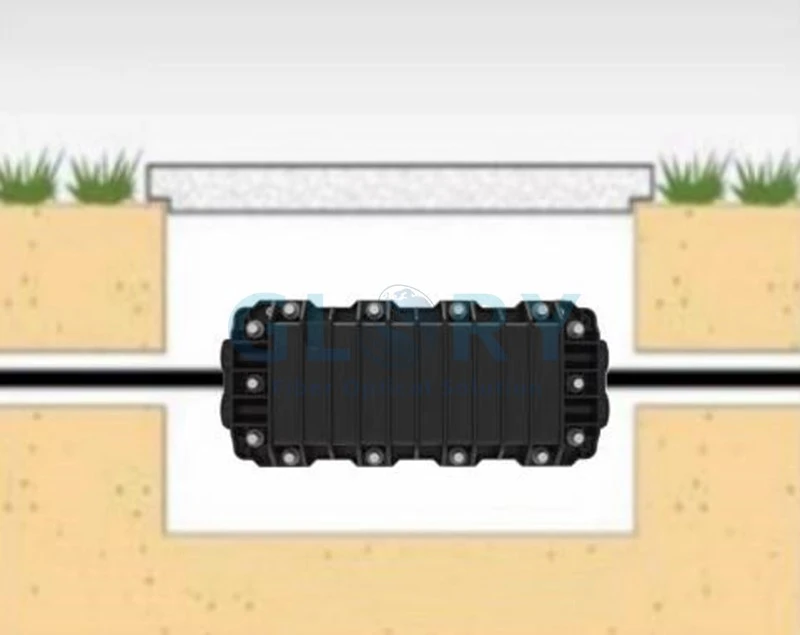

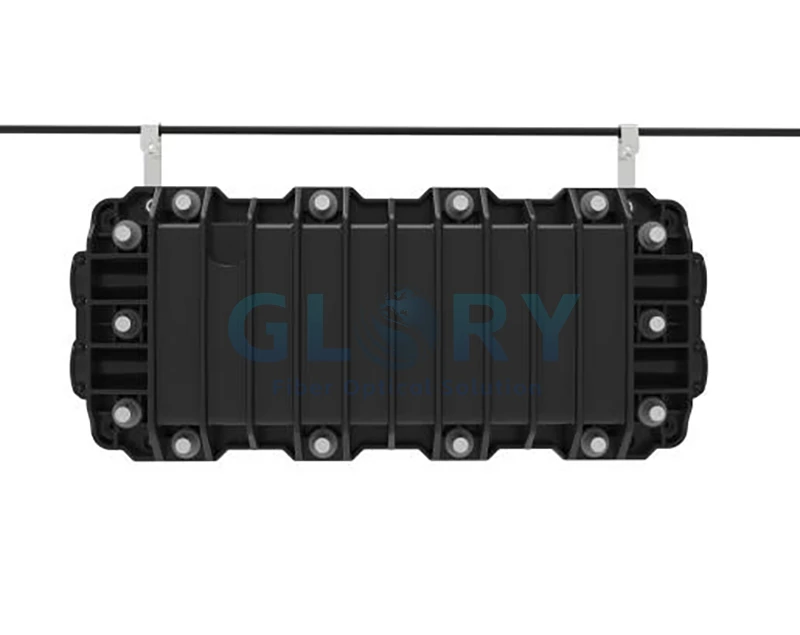

• Application: Aerial/Manhole/Wall mounting/Pole mounting
• Strong & Robust Shell
• Mechanical Sealing
• RoHS-Compliant Materials

Send Inquiry

Product Introduction

2 inlet and 2 outlet Aerial Inline Fiber Splice Enclosure

GL-6807 is a horizontal (inline) type aerial fiber splice enclosure, a multi-purpose optical cable connection product designed for fiber optic splicing and branching. The enclosure accommodates various optical cable types (loose sleeve, skeleton, ribbon, etc.) and features a compact, lightweight design for versatile installation. It can be mounted aerially, as well as on walls, pipelines, manholes, or underground, and supports multiple connection methods (distribution, bridging, branching, etc.).

This Aerial inline fiber splice enclosure protects fiber optic splices in aerial installations and other challenging environments. Specifically engineered for aerial lines, it ensures safety with a one-touch handle clip and delivers reliable sealing performance in low-pressure conditions. Its pole-friendly design maintains structural integrity without requiring cable splicing, while its streamlined appearance supports aesthetic integration with urban environments. The enclosure optimizes maintenance workflows and operational reliability across diverse deployment scenarios.

Specifications:

Item Name	Aerial Fiber Splice Enclosure GL-6807
Size (mm)	420(L)×201(W)×128(H)
Color	Black
Cable ports	2 inlet and 2 outlet Suitable for fiber cable Φ10-20 mm
Protection Grade	IP68
Fiber Splice Capacity	96 Fibers
Capacity of single tray	24 Fibers
Max Qty. tray assembly	4 pcs
Application	Aerial/Manhole/Wall/Pole mounting
Inner Carton (mm)	460×220×145 (1 piece)
Outer Carton (mm)	480×470×480 (6 pcs)

Features:

• Horizontal structure with a mechanical seal.
• All tightening screws and gaskets are made of 304 stainless steel for enhanced corrosion resistance.
• Reusable silicone gel seal allows easy reopening and re-entry.
• Double press buckle securely fixes the cable, meeting torque, stretching, compression, and bending test requirements.
• Vulcanized sealing strip accommodates φ10-20mm cables and ensures reliable resealing.
• Compact size, simple design, and user-friendly operation.

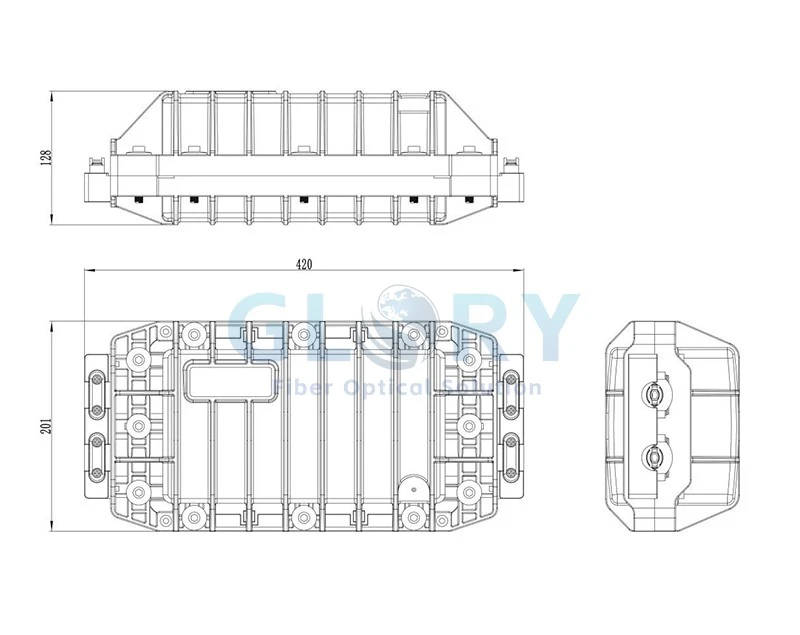

Structure drawing:

inline fiber splice enclosure 6807 size
