Inline Fiber Optic Splice Closure
Model: Inline Fiber Optic Splice Closure GL-6208
Max Capacity: 48 fibers
Cable port: 4 inlet and 4 outlet
ROHS material and IP68 grade
Application：Aerial/ Wall/Manhole/Direct burial mounting
- Product Introduction
Inline Fiber Optic Splice Closure
GL-6208 Series Inline Fiber Optic Splice Closure features a compact structure with 4 inlet and 4 outlet cable ports. It is a multi-purpose optical cable connection product designed for splicing and splitting optical fibers. The closure is compatible with various types of optical cables (loose sleeve, skeleton, ribbon, etc.), can be installed in diverse environments (overhead, wall-mounted, pipeline, manhole, or underground), and supports multiple connection methods (distribution, bridging, branching, etc.).
The small Inline Fiber Optic Splice Closure is constructed from PP (polypropylene) + glass fiber, offering excellent mechanical performance and environmental resistance.
Specifications:
|
Item Name |
Inline Fiber Optic Splice Closure GL-6208 |
|
Size (mm) |
280(L)×180(W)×85(H) |
|
Color |
Black |
|
Cable ports |
4 inlet and 4 outlet (6 ports for Φ6～8mm, 2 ports: Φ6～12mm) |
|
Protection Grade |
IP68 |
|
Fiber Splice Capacity |
48 Fibers |
|
Capacity of single tray |
24 Fibers |
|
Max Qty. tray assembly |
2 pcs |
|
Application |
Aerial/Manhole/Wall mounting |
|
Inner Carton (mm) |
300×230×110 (1 piece) |
|
Outer Carton (mm) |
485×325×465 (8 pcs) |
Features:
• In-line structure with mechanical seal.
• Compact size, simple structure, and easy operation.
• Combined use of vulcanized rubber and non-vulcanized rubber for sealing, making it highly practical.
• Internally suspended fixation ensures the cable meets test requirements for torque, stretching, compression, and bending.

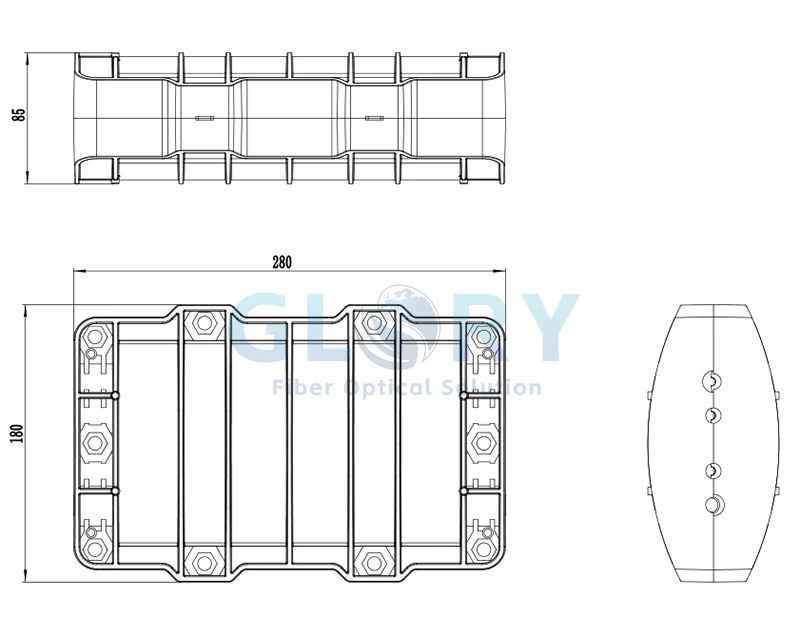

Structure drawing:

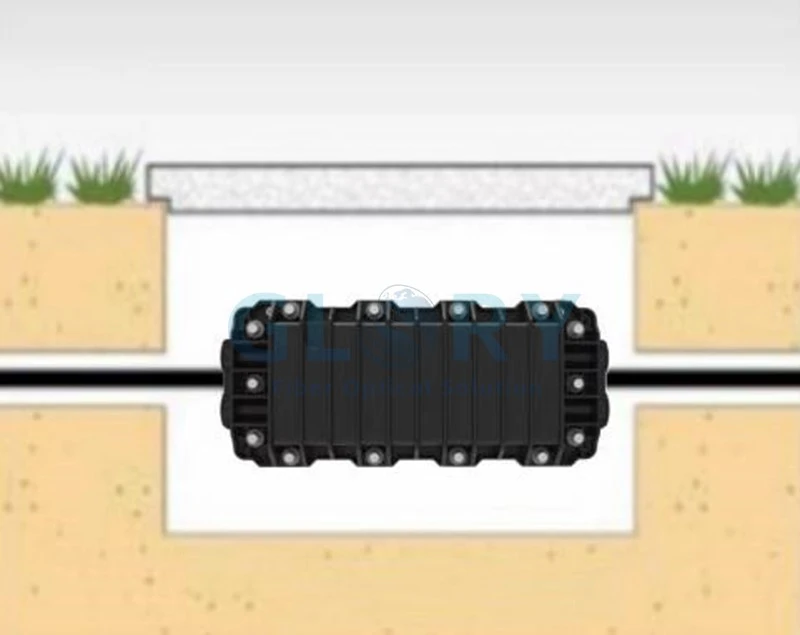

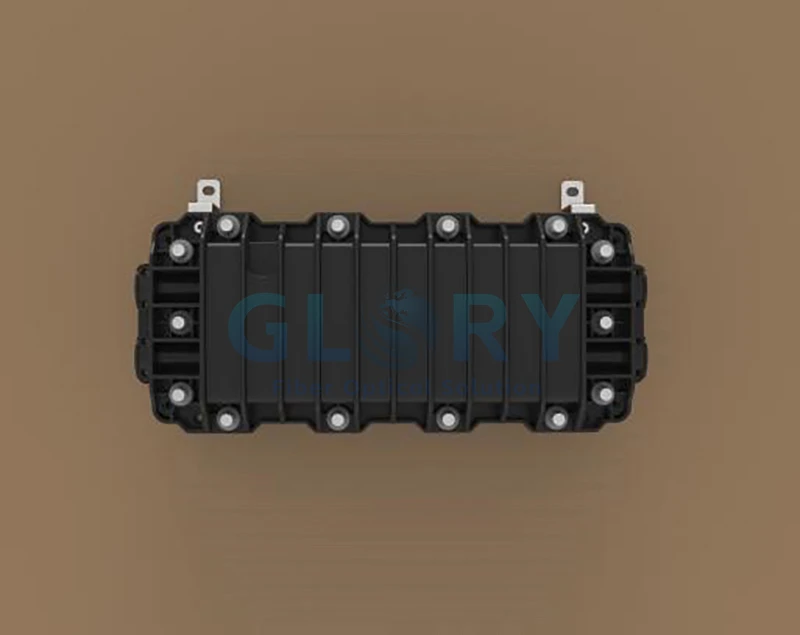

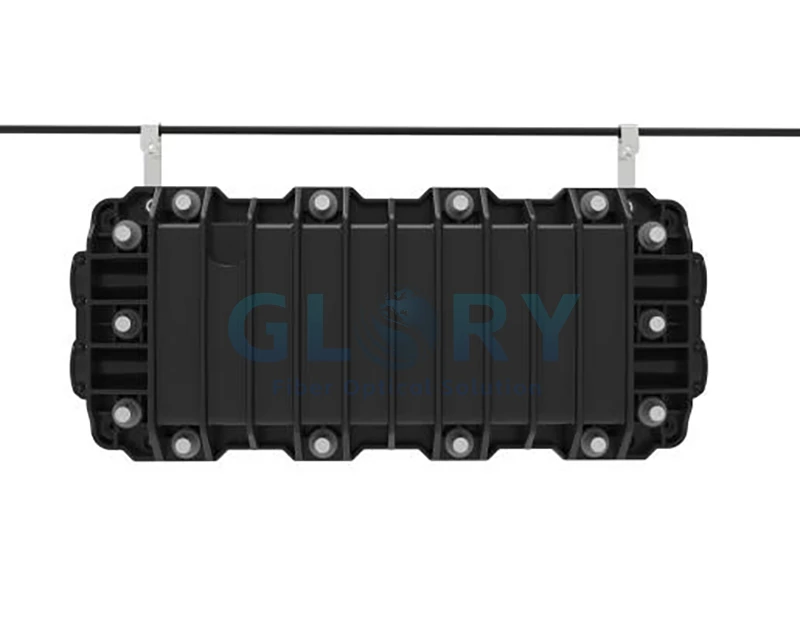

Installation diagram:
FAQ:
1 Package Transport and Storage of Inline Fiber Optic Splice Closure
• Packaging Requirements: Products and components shall be packed in cartons marked according to regulatory standards, ensuring damp-proof and shock-proof protection.
• Transportation Guidelines:
Ensure products are securely positioned to prevent rolling, collision, and moisture exposure during transport.
Maintain a transportation temperature range of -35°C to +55°C.
• Storage Conditions:
Do not stack excessive weight on cartons.
Protect products from exposure to corrosive gases.
Maintain an ambient temperature of -5°C to +45°C.
• Humidity Control: Prolonged exposure to high relative humidity must be avoided. Maintain relative humidity below 75% under normal conditions.
