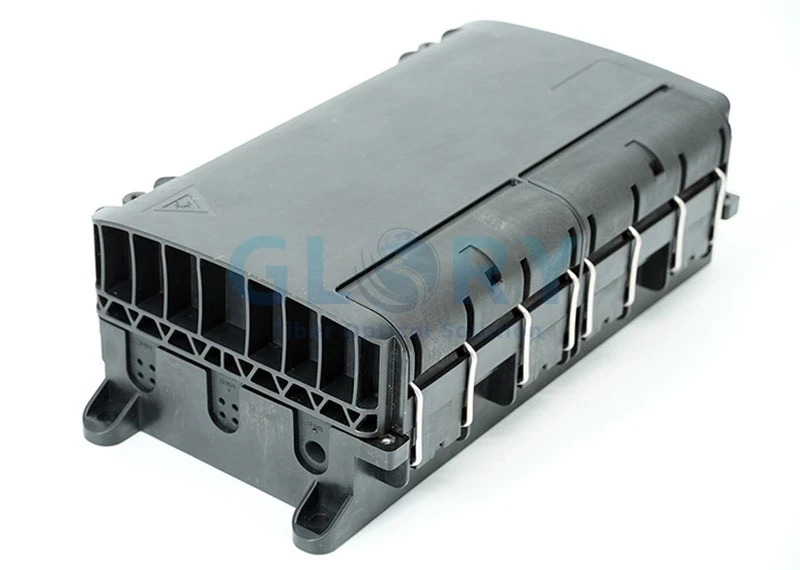

Fiber Optic Cable Splice Enclosure
Model: Fiber Optic Cable Splice Enclosure GL-9417-B
The fiber optic splice closure is a multifunctional optical cable connection product featuring a hinged structure, screwless design, and watertight construction, allowing for easy opening.
- Product Introduction

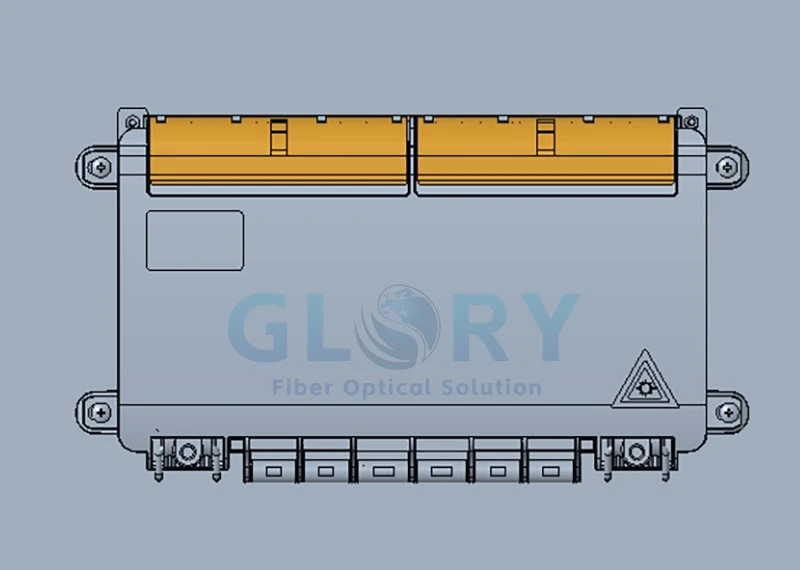

Fiber Optic Cable Splice Enclosure Pre-connect Hardened SC adapter
The Fiber Optic Cable Splice Enclosure GL-9417-B is a multipurpose enclosure designed to connect and split optical fibers. It is compatible with various types of optical cables, including loose sleeve, skeleton, and others. The enclosure's main body is constructed from modified polypropylene (PP) material, which provides excellent weather resistance, chemical corrosion resistance, UV resistance, waterproof performance, and physical impact resistance.
This fiber optic cable splice enclosure can be pre-installed with 16 hardened SC-compatible adapters for simple connectivity with Corning devices. It is suitable for aerial mounting, manhole mounting, wall mounting, and pole mounting.
Specifications:
|
Item Name |
Fiber Optic Cable Splice Enclosure GL-9417-B |
|
Size (mm) |
360(L)×200(W)×145(H) |
|
Color |
Black |
|
Cable ports |
Inlet: 3 ports; Outlet: 3 ports (suitable for Ф3mm and Ф8-20mm cables) |
|
Protection Grade |
IP68 |
|
Fiber Splice Capacity |
72 core (4 pcs trays) |
|
Capacity of single tray |
24 core |
|
PLC Splitters |
2pcs 1:8 or 2pcs 1:16 |
|
Connector |
16 pcs Hardened SC adapter |
|
Application |
Aerial mounting, Manhole mounting, Wall mounting and underground |
|
Inner Carton (mm) |
375x215x180 (1 piece) |
|
Outer Carton (mm) |
460x390x590 (6pcs) |
Features:
• Sealing: Flip-open (or hinged) structure, sealed with a hasp and vulcanized silicone tape.
• Performance: Complies with the IEC standards.
• Spacious design: The fiber optic splice enclosure provides ample space for the placement of fiber optic connectors and the storage of excess fibers, ensuring the connectors are protected from environmental factors.

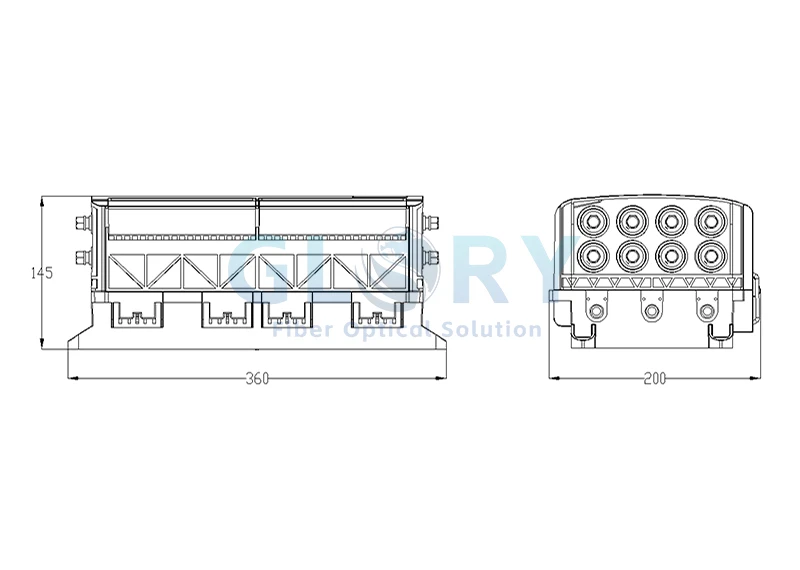

Structure drawing:

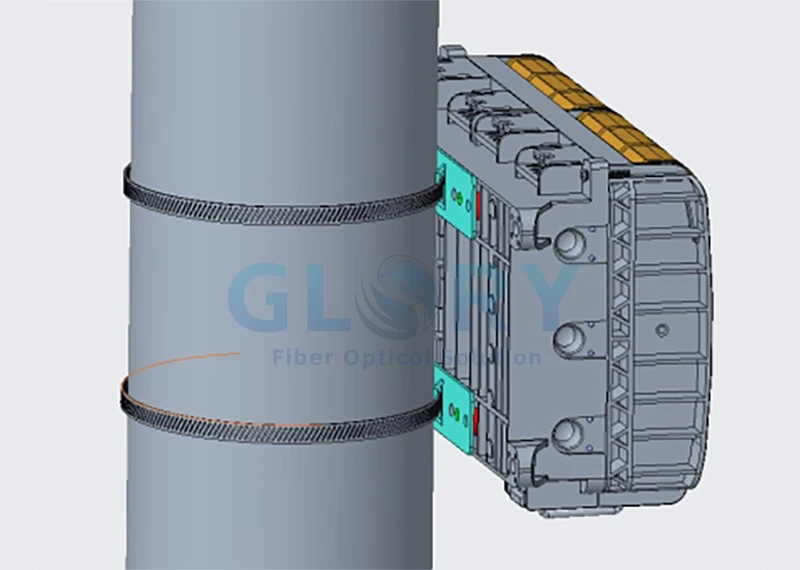

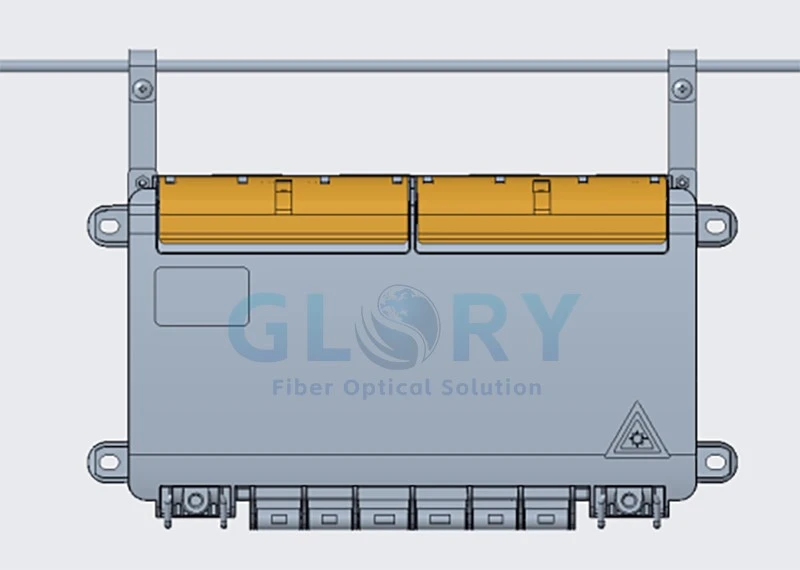

Installation:
Proper installation of Fibre Optic Enclosures is essential to ensure the efficient and reliable functioning of fibre optic networks. By choosing the right installation method and following proper installation procedures can enjoy the benefits of a reliable and efficient fibre optic network.
FAQ:
Q: If do not need to install Hardened SC adapter, is there other structure for fiber splicing and distribution?
A: Yes, our model Fiber Optic Cable Splice Enclosure GL-9417 can meet your requirements. Please check the pictures, if need detailed information, pls contact us.
