Outdoor Fiber Optic Splice Enclosure
Model: GL-6808 series Outdoor Fiber Optic Splice Enclosure (Type A and Type B)
• Max Capacity: 72 fibers for Type A, 288 fibers for Type B
• Application: Aerial/Manhole/Wall mounting
• The structure of Type A and Type B is the same; they are compact, watertight, and feature a screwless design. The difference between both types is the size of the box.
- Product Introduction
Outdoor Fiber Optic Splice Enclosure
The GL-6808 Series Outdoor Fiber Optic Splice Enclosure is a horizontal enclosure featuring 2 inlet and 2 outlet cable ports. Designed as a versatile optical cable connection solution, it enables fiber optic splicing and distribution. Compatible with various optical cable types (loose tube, skeleton, ribbon, etc.), the enclosure can be installed in diverse environments (overhead, wall-mounted, pipeline, manhole, or underground) and supports multiple connection methods (distribution, bridging, branching, etc.).
Constructed from PP (polypropylene) and glass fiber, the outdoor inine fiber optic splice enclosure delivers robust mechanical performance and environmental durability.
Specifications:
|
Item Name |
Outdoor Fiber Optic Splice Enclosure GL-6808-A |
|
Size (mm) |
487(L)×194(W)×118(H) |
|
Color |
Black |
|
Cable ports |
2 inlet and 2 outlet Suitable for fiber cable Φ10-18 mm |
|
Protection Grade |
IP68 |
|
Fiber Splice Capacity |
72 Fibers |
|
Capacity of single tray |
24 Fibers |
|
Max Qty. tray assembly |
3 pcs |
|
Application |
Aerial/Manhole/Wall mounting |
|
Inner Carton (mm) |
510×220×150 (1 piece) |
|
Outer Carton (mm) |
530×460×480 (6 pcs) |
|
Item Name |
Outdoor Fiber Optic Splice Enclosure GL-6808-B |
|
Size (mm) |
525(L)×200(W)×151(H) |
|
Color |
Black |
|
Cable ports |
2 inlet and 2 outlet Suitable for fiber cable Φ10-18 mm |
|
Protection Grade |
IP68 |
|
Fiber Splice Capacity |
288 Fibers |
|
Capacity of single tray |
48 Fibers |
|
Max Qty. tray assembly |
6 pcs |
|
Application |
Aerial/Manhole/Wall mounting |
|
Inner Carton (mm) |
540×220×180 (1 piece) |
|
Outer Carton (mm) |
560×460×570 (6 pcs) |
Features:
• Horizontal structure with mechanical seals.
• Cable ports secured with nuts to meet IP68 standards.
• Buckle design around the box enables reopening without screws.
• Tightening screws and gaskets are manufactured from 304 stainless steel for enhanced corrosion resistance.
• Nut compression sealing for cables; accommodates a wide cable range.
• Detachable cap nut allows installation without cutting the cable.
• Flame-retardant, UV-resistant materials; customizable to meet customer requirements.
Structure drawing:
|

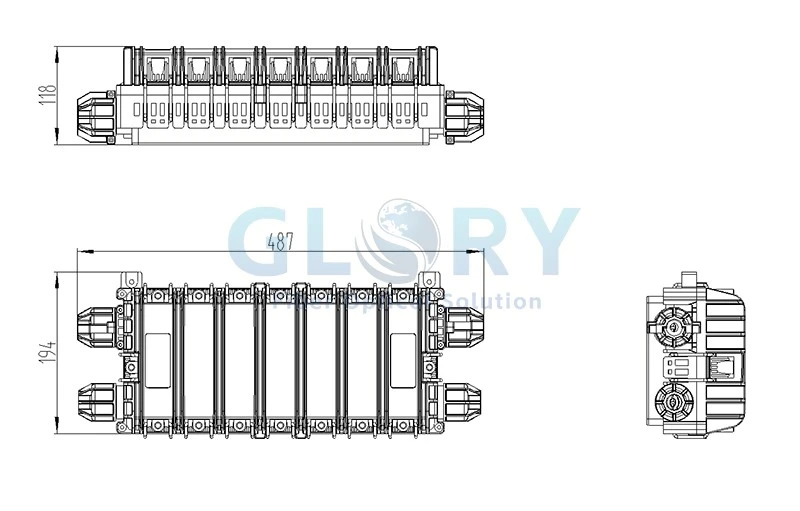

GL-6808-A |

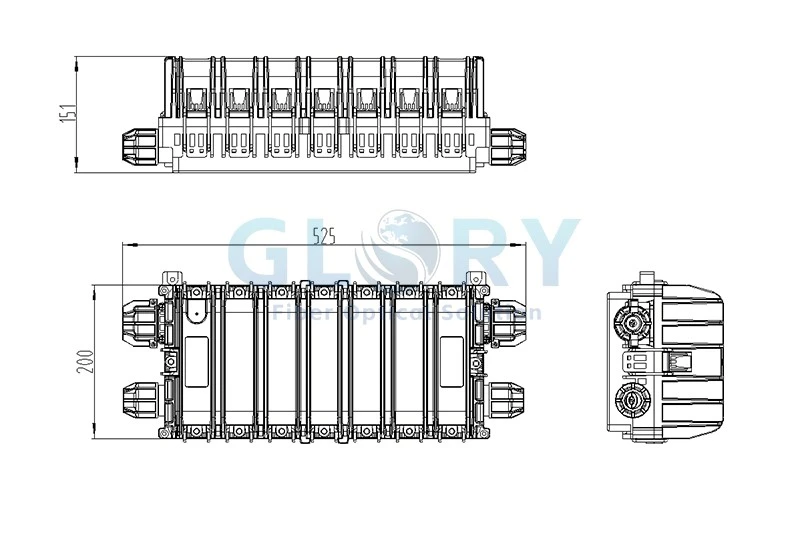

GL-6808-B |
|
|
|

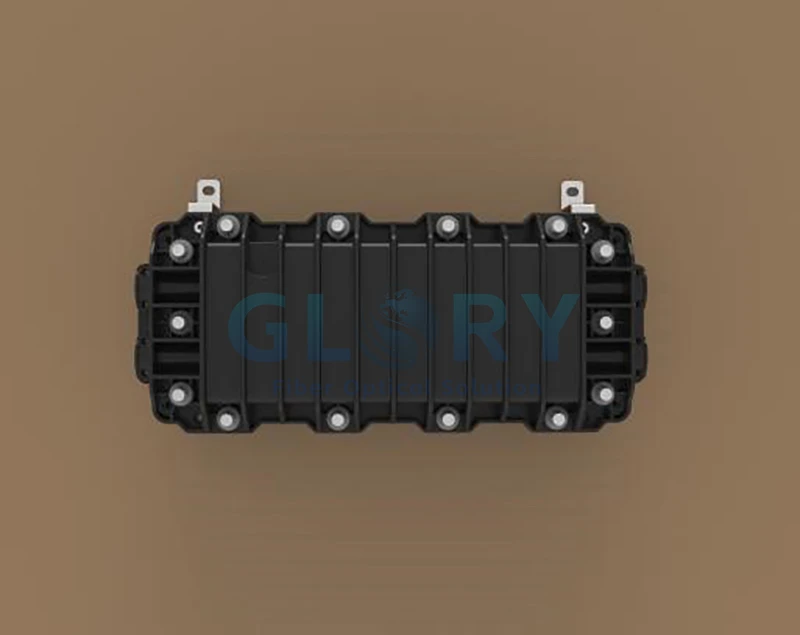

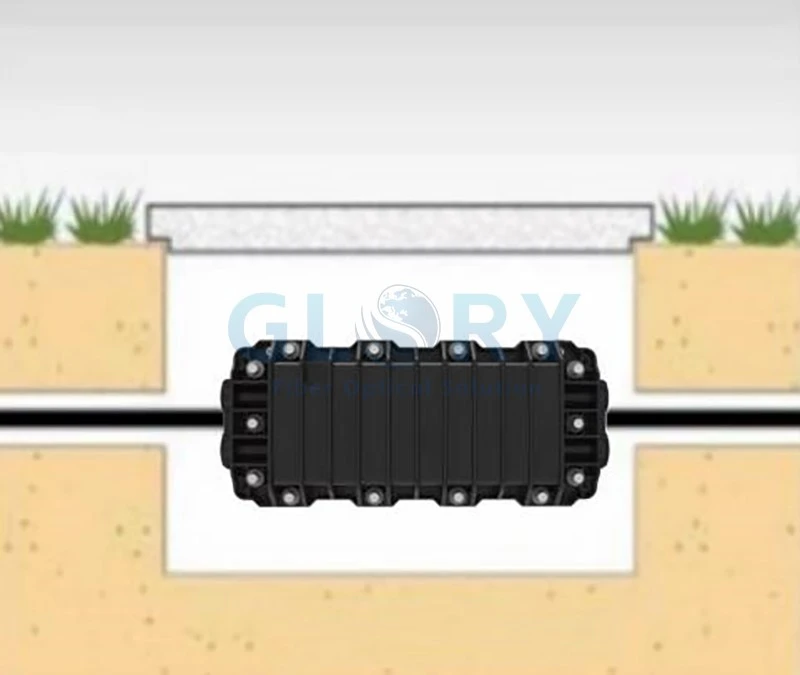

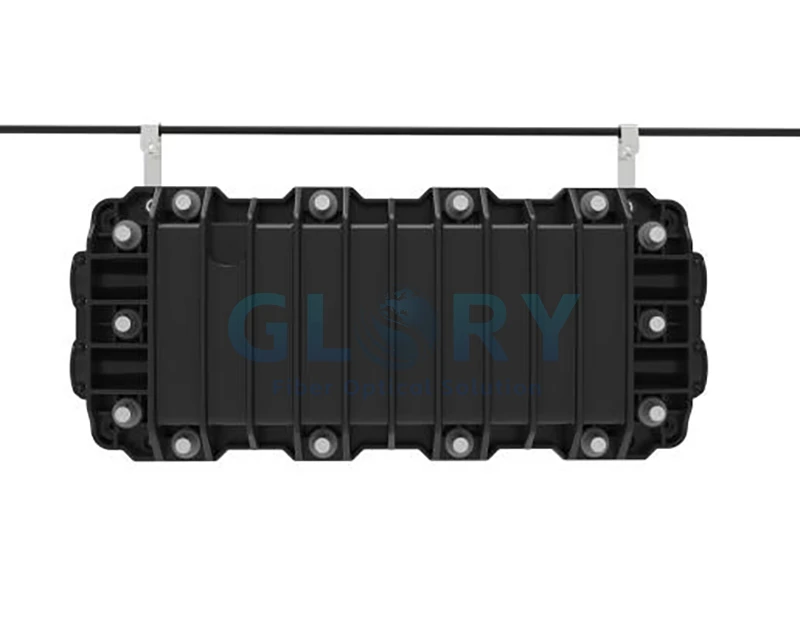

Installation diagram:
FAQs:

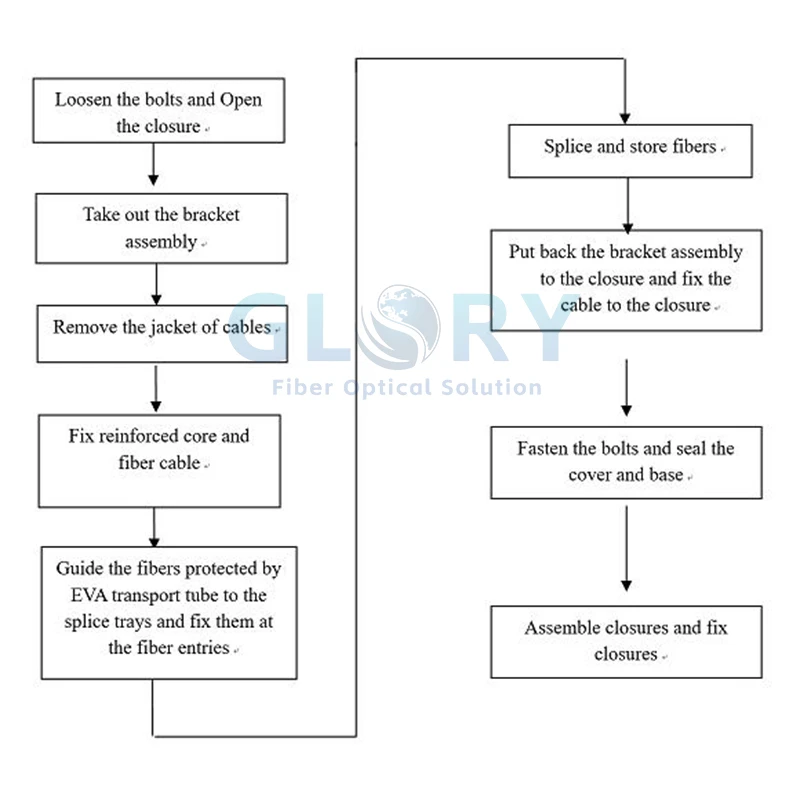

1 Installation flow chart for Outdoor Fiber Optic Splice Enclosure
2 What are the basic requirements that must be met for an Outdoor Fiber Optic Splice Enclosure?
• Waterproof and Dustproof – A high-quality enclosure should be IP68-rated, meaning it is completely dust-tight and waterproof.
• Impact Resistance – The enclosure should be made of durable materials that resist damage from accidental bumps or impacts.
• UV Resistant – Protection against UV exposure ensures long-lasting durability for the cables inside.
• Temperature Resistance – Outdoor environments can experience extreme temperatures, from hot summer days to freezing winters. The enclosure must withstand a temperature range of -40°C to 65°C.
• Easy to Install – Installation should be straightforward and quick, requiring no special tools or expertise. Clear instructions should be provided.
In conclusion, outdoor fiber optic splice enclosures are critical components of any network. They protect fiber optic cables from environmental damage, ensure reliable communication, and improve overall network performance.
