Fiber Optic Splice Enclosure

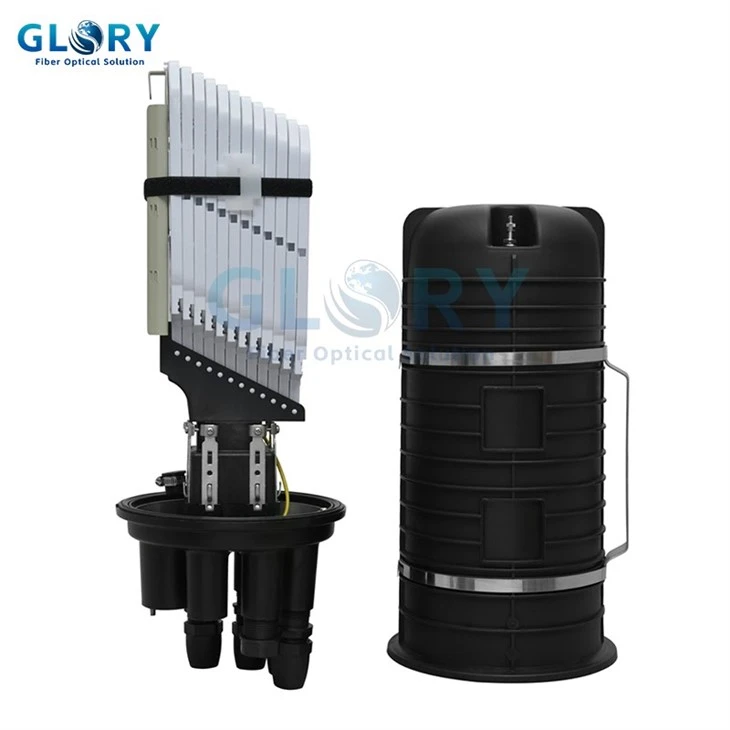

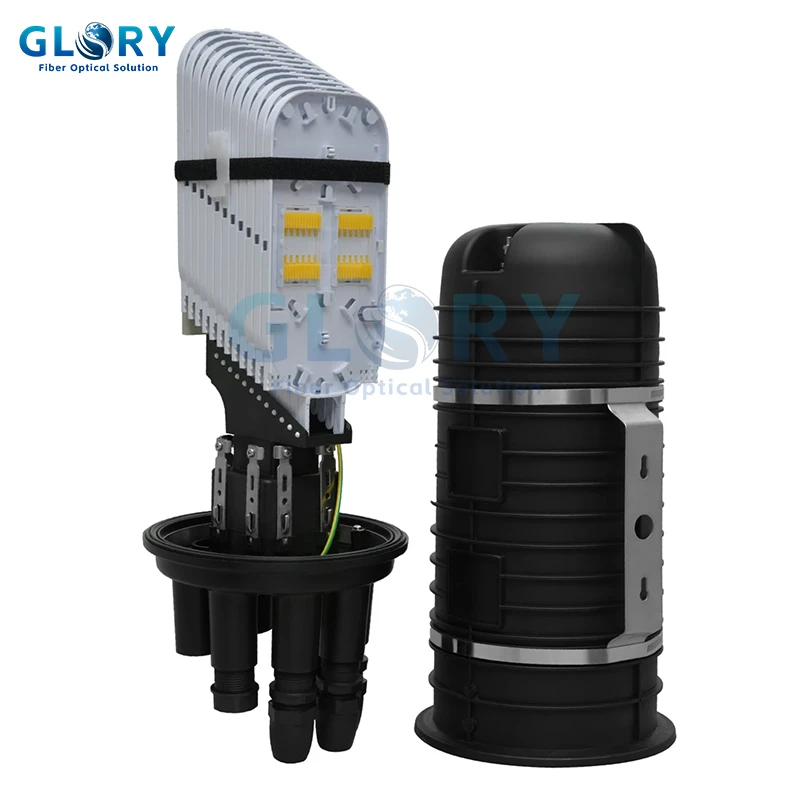

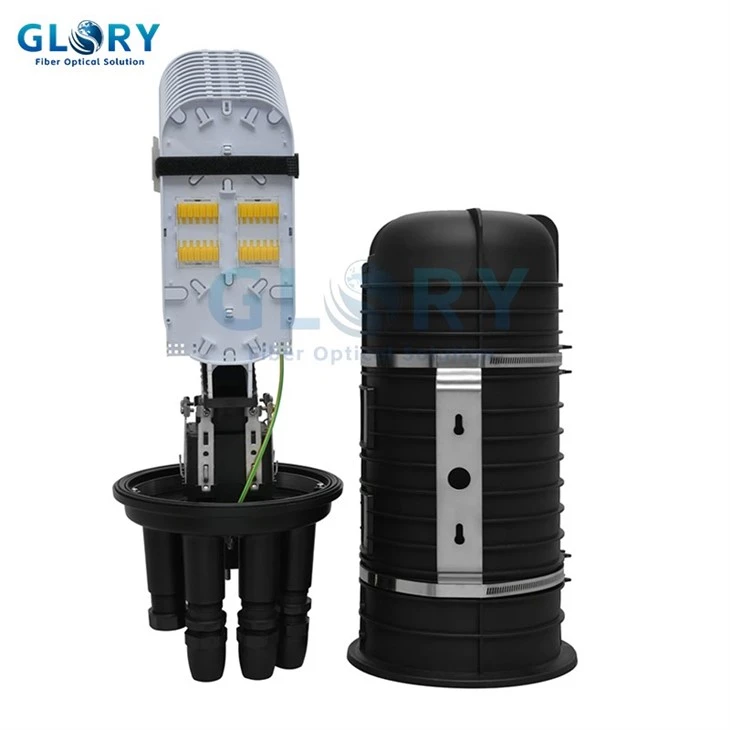

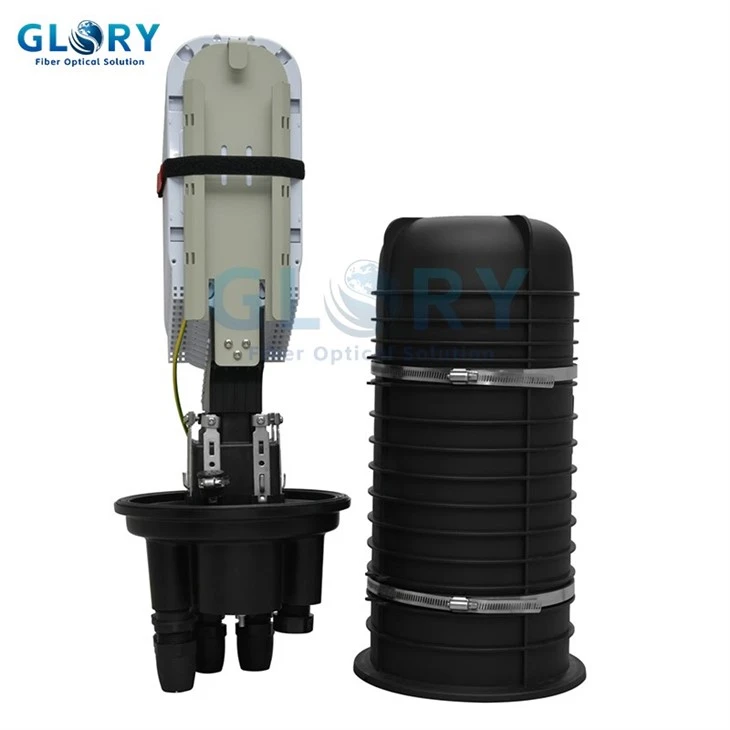

Item: Fiber Optic Splice Enclosure 288 fibers Dome FOSC
Mechanical sealing base, IP68, 12 Trays 288 Fibers 7 Ports
- Product Introduction
In the Fiber Optic network, generally cables are limited to have 2km or 3km per reel, thus it requires a device to extending the fiber cable in the long-haul cable network, CATV network, FTTH PON network, etc. A traditional Fiber Optic Splice Enclosure with multiple ports for cable entry in and with ports for cable extending, distributing, branching, etc. inside the box body, there is space with fiber optic splice tray installed for holding, protecting and managing the fiber cable after cable been spliced. There are inline type, sometimes we say horizontal type Fiber Optic Splice Enclosure, and dome type or vertical type, butt type. However, recently closures are with more function than cable protection and joint, but splitting, thus splitting type fiber optic splice closure is very popular now, all these joint closures are made of high strength plastic, with excellent waterproof, dustproof features.
This 12 trays 7 ports Fiber Optic Splice Enclosure, with high capacity, can hold and protect up to 288 fibers. Our fiber optic splice closures are ideal for physically protecting fiber splices in aerial and buried underground applications. Fiber splice closures are an essential element in FTTX and 5G infrastructure.
Specifications:
|
Model: |
GL-03-M9AX-288C |
||
|
Size: with clamp's max outer dia. |
592.5x271.6 mm |
Raw material |
Dome Base： modified PP, Clamp：Nylon +GF Tray: ABS Metal parts：Stainless steel |
|
Entry ports number: |
1 oval port,6 round ports |
Available cable dia. |

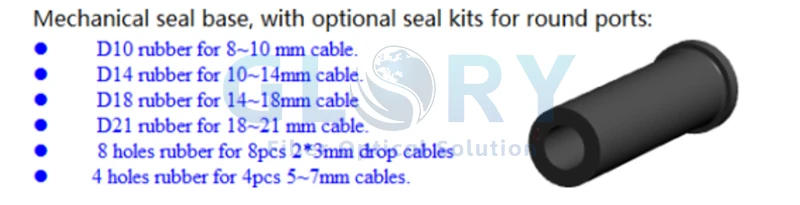

Oval port：available for 2 pcs, with optional rubber for different cable dia. Round ports：with optional seal rubber for different cable dia. |
|
Max. tray number |
12 trays |
Base sealing method |
Mechanical |
|
Tray capacity： |
24F |
Applications: |
Aerial, directly buried, Wall/ pole mounting |
|
Max. closure splice capacity |
288 F |
|
|

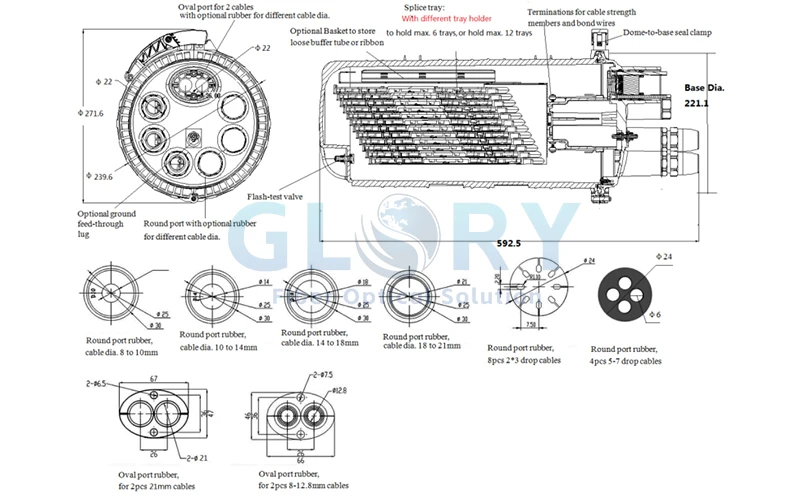

Exterior Structure Diagram:
Features:
- The Fiber Optic Splice Enclosure Applied for bunchy fiber
- Dome type/cap type/butt type
- Splicing trays are layered and easy to be dis assembled, convenient installation
- Easy to install and re-entry with a common can wrench
Application:
- Aerial, Duct, Direct Bury and Wall mounting application
- FTTH PON network, CATV network, other fiber optic network

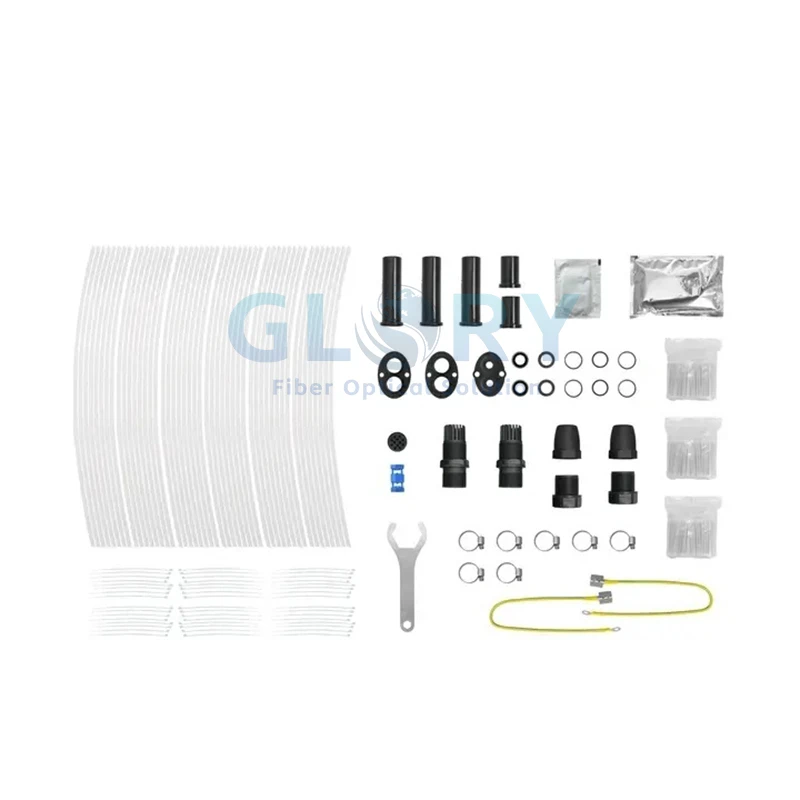

Standard accessories:
