Outdoor Splice Enclosure

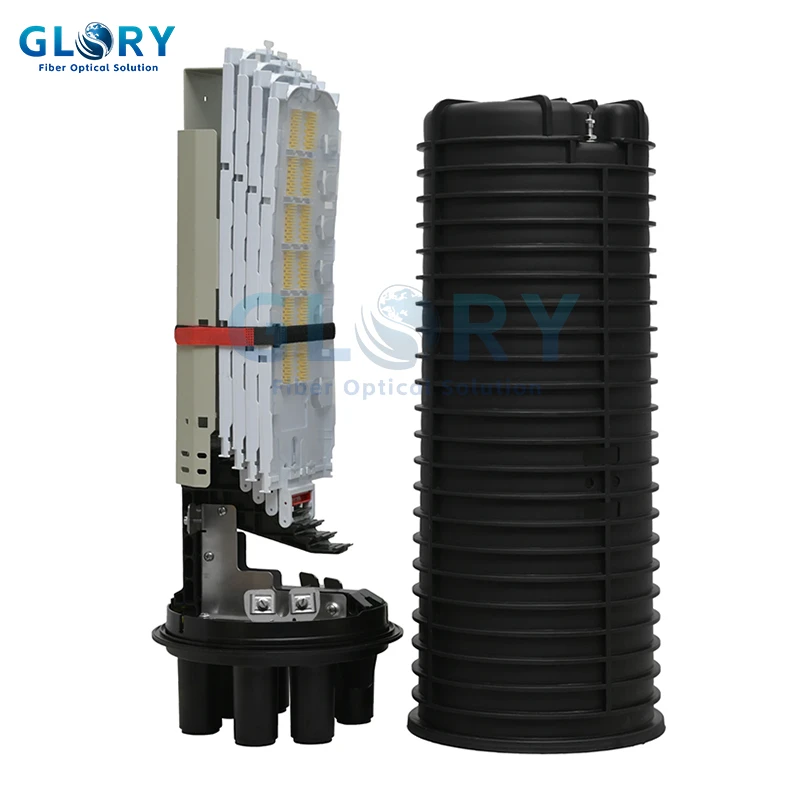

Item: GL-03E-576C Outdoor Splice Enclosure
High-Quality 576-Core Dome-Type Fiber Optic Splice Closure with Heat-Shrink Base, IP68 Rating, 1 Oval Port, and 5 Round Ports
- Product Introduction
576 Cores Outdoor Dome Splice Enclosure
This outdoor dome splice enclosure is used to connect distribution cables and incoming cables. It is widely applied in communications, network systems, CATV (Community Antenna Television), and similar systems. The enclosure is made from scientifically formulated engineering plastic and shaped through injection molding, providing anti-aging, anti-corrosion, flame-retardant, waterproof, anti-vibration, and anti-shock properties. It effectively protects optical fibers from harsh outdoor environmental conditions.
Featuring a dome-to-base design, it accommodates up to 8 splice trays with an ample loose buffer storage basket. The hinged structure allows access to individual splices without disturbing other trays. Its fast and reliable sealing mechanism ensures easy reassembly multiple times. Equipped with a lightning protection grounding device, the enclosure is suitable for overhead, pole/wall-mounted, or direct-buried installations.
Specifications:
|
Model: |
GL-03E Outdoor Splice Enclosure |
||
|

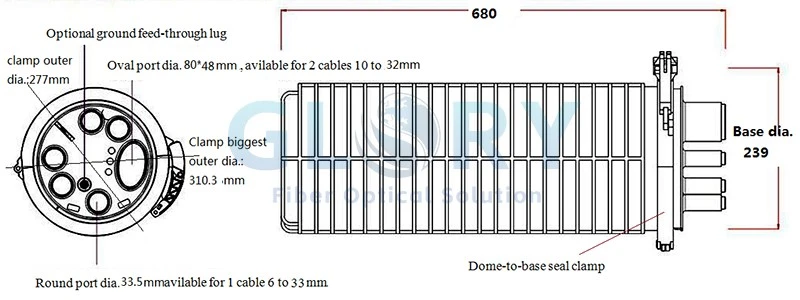

Size: With clamp biggest outer dia. |
680x310.3 mm |
Raw material |
Dome, Base： modified PP, clamp：Nylon +GF Tray: ABS Metal parts：Stainless steel |
|
Entry ports number: |
1 oval port, 5 round ports |
Available cable dia. |
Oval port：available for 2 pcs, 10~32mm cables Round ports：Each available for 1pc 6-33mm cable |
|
Max. tray number |
8 trays |
Base sealing method |
Heat-shrink |
|
Tray capacity： |
72 F |
Applications: |
Aerial, Pole mounting, directly buried, Wall mounting |
|
Max. closure splice capacity |
576 F |
IP grade |
68 |

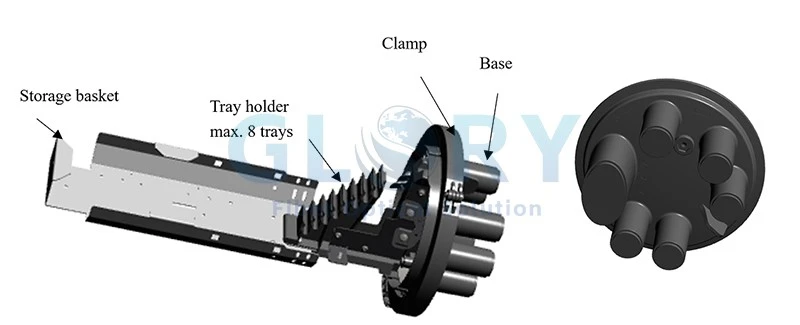

Exterior Structure Diagram:
Technical Parameter:
• Working Temperature: -40°C to +65°C
• Atmospheric Pressure: 62–106 kPa
• Axial Tension: >1000 N (1 min)
• Flattening Resistance: 2000 N/100 mm (1 min)
• Insulation Resistance: >2 × 10⁴ MΩ
• Voltage Strength: 15 kV DC (1 min), no arcing or breakdown
• Temperature Cycling: -40°C to +65°C, with internal pressure of 60 (+5) kPa for 10 cycles; internal pressure shall decrease by less than 5 kPa when the outdoor splice enclosure returns to ambient temperature.
• Durability: 25 years
