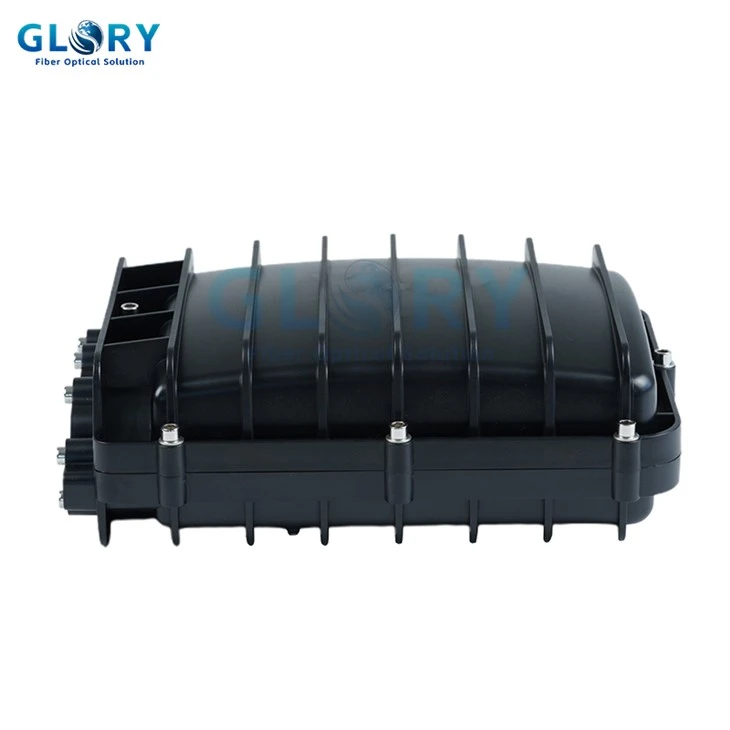

Fiber Optic Joint Enclosure Box
Item: Fiber Optic Joint Enclosure Box
Model: GL-8201 Fiber Optic Splice Closure 60 cores IP68 Mechanical sealing
Size: 300×220×100mm
- Product Introduction
GL-8201 Fiber Optic Joint Enclosure Box is a multifunctional fiber splice equipment which is designed for fiber connection, branching and terminal connection.
This Joint Enclosure Box has three single fiber ports, one fiber port for uncut cable usage, one testing port (Φ6mm) and four pigtail outlets (Φ2.0mm).

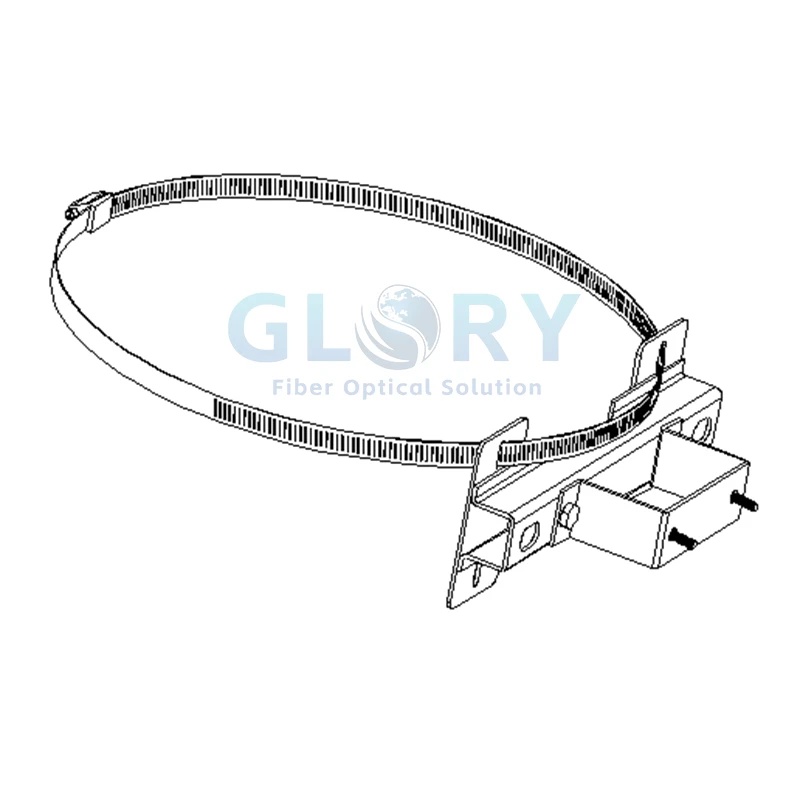

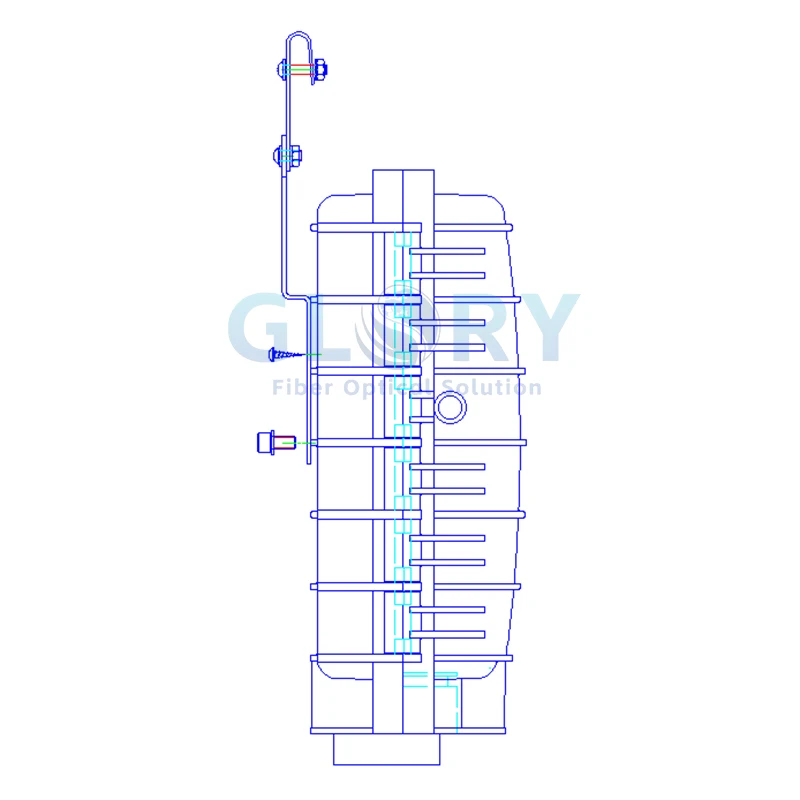

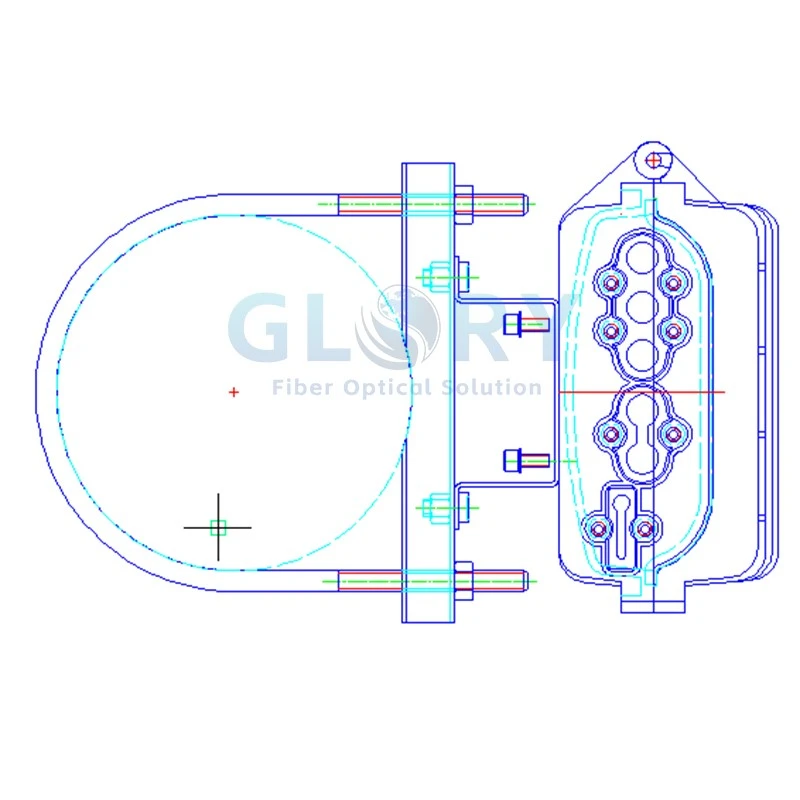

It is suitable for wall-mounting, aerial, pole-mounting, especially used for FTTH fiber distribution. We are always in pursue of doing research and developing the telecommunication connection equipment.
Our Fiber Optic Joint Enclosure is your reliable choice to guarantee the quality of information transform.
Specifications
|
Size H×W×D(mm) |
300×220×100 |
Max capacity (single fiber) |
60 |
|
Weight(kg) |
2.4～2.7 |
Airproof style |
Mechanical |
|
Entrances |
5 |
Capacity of tray |
12 |
|
Suitable cable diameter |
Ф8～ф15 |
||
|
Number of trays |
5 |
Main Technical Data
• Environment temperature:-40℃～+55℃
• Max capacity:60 cores(single fibers)
• Range of the suitable diameter of the cables:ф8 mm～ф15mm
• Airproof performance: airing pressure inside box 100Kpa, pointer immovability after 24 hours or no air bell within 15min when placed under normal temperature water.
• Re-encapsulation performance: no change in the index of air-proof performance after three times of repeat encapsulation.
• Insulation resistance: ≥2×104MΩ
• Voltage-resistance strength: under the effect of 15KVDC/1min, non-puncture, no arc-over
