Fiber Sealed Drop Closures
Model: GL-8219-B FTTH Fiber Sealed Drop Closures
It is one type of BPEO fiber closure, IP68/IK10 product performance
- Product Introduction
IP68 Hinged BPEO Fiber Sealed Drop Closures
Fiber Optic Sealed Drop Closures (FSDC) provide a versatile, functional, and cost-effective solution for FTTH network connections to the subscriber. FSDC series closures are fully-sealed units which can be strand, pole, or pedestal mounted. They can also be placed in below ground vaults and enclosures to meet any installation scenario. In addition to an express main feed cable, the closure can accommodate up to two branch cables. The closures have built-in adapters to support up to 16 drop cables. FSDC closures feature a compact size for easy handling, yet provide ample room for express fiber storage.
Specifications:
|
Model Name. |
Fiber Sealed Drop Closures GL-8219-B |
|
Size(mm) |
363*234*130mm |
|
Gross Weight(kg) |
3.5 |
|
No of un-cut port |
1 oval port, support Φ10-Φ16mm cable diameter |
|
No of branch port |
2 round ports,support Φ8-Φ14mm cable diameter |
|
No of drop port |
16 drop ports, support Φ2*3 flat cable |
|
Adapter |
16 pcs SC/APC |
|
Splitter |
2*2:8 mini PLC |
|
Splice Tray |
24F |
|
Max Capacity |
24F |
|
Operation temperature |
－40℃～65℃ |
|
Storage temperature |
－40℃～70℃ |
|
Relative humidity |
≤93% 40℃ |
Features：
• Compact design, light weight and easy installation.
• Hinged snap cover allows easy access for installation, maintenance, and upgrades
• Mechanical compression technology provides cost-effective reliable cable sealing
• Robust UV stabilized glass-filled polypropylene housing and meet 120 hours salt spray
• Build in one splice tray (24F) and two cassette splitter (1:8)
• Provide one uncut, two branch ports and 16 pcs fast connectors
• Sealed IP68 rated for use in aerial, pole, pedestal, or below grade applications
• Compliance with RoHs standard
• Internal adapters to plug in up to 16 drops for quick subscriber adds

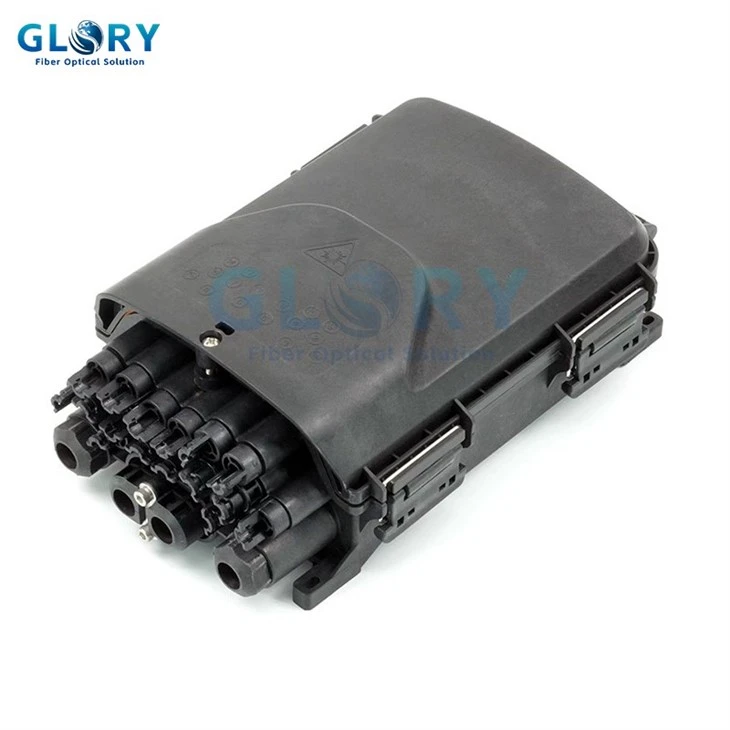

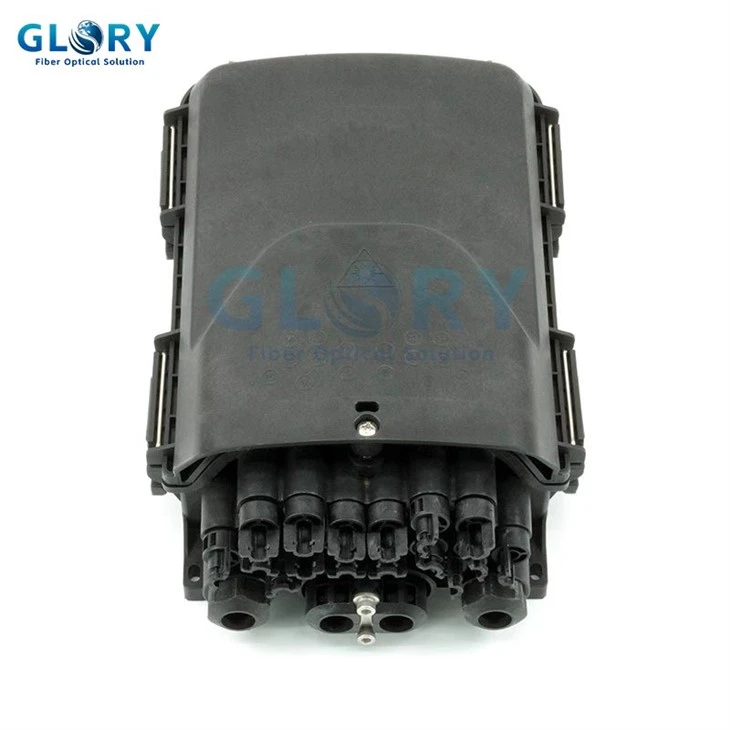

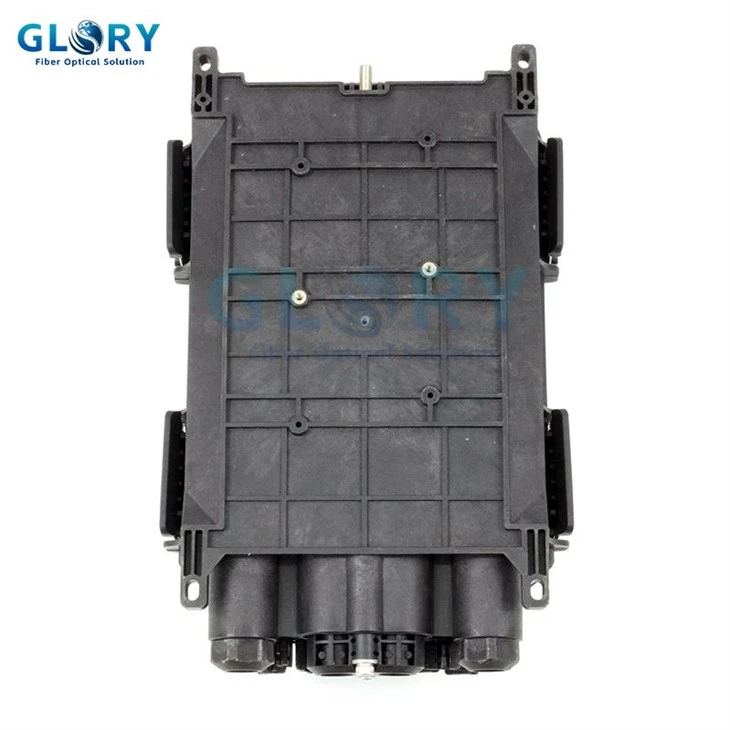

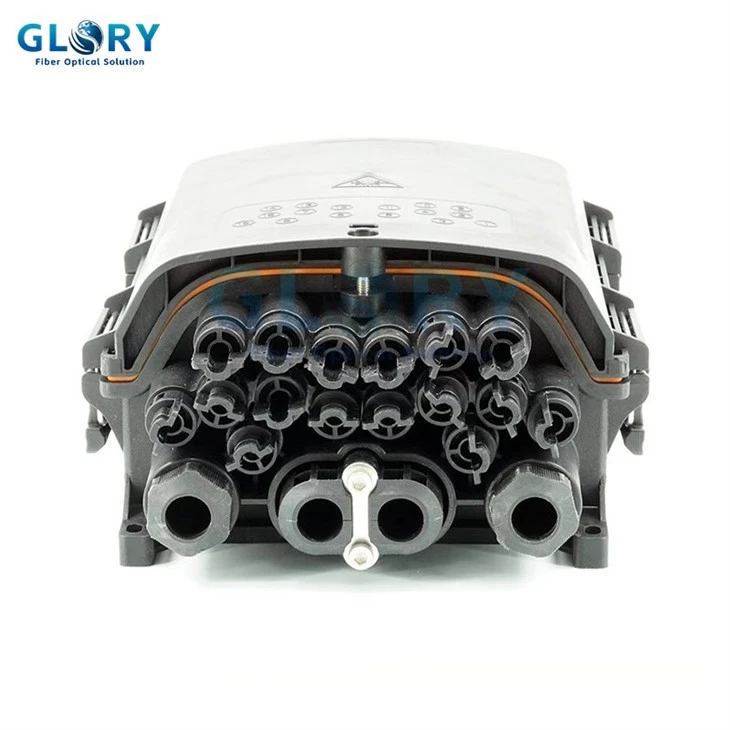

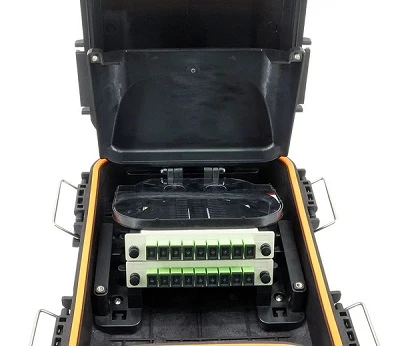

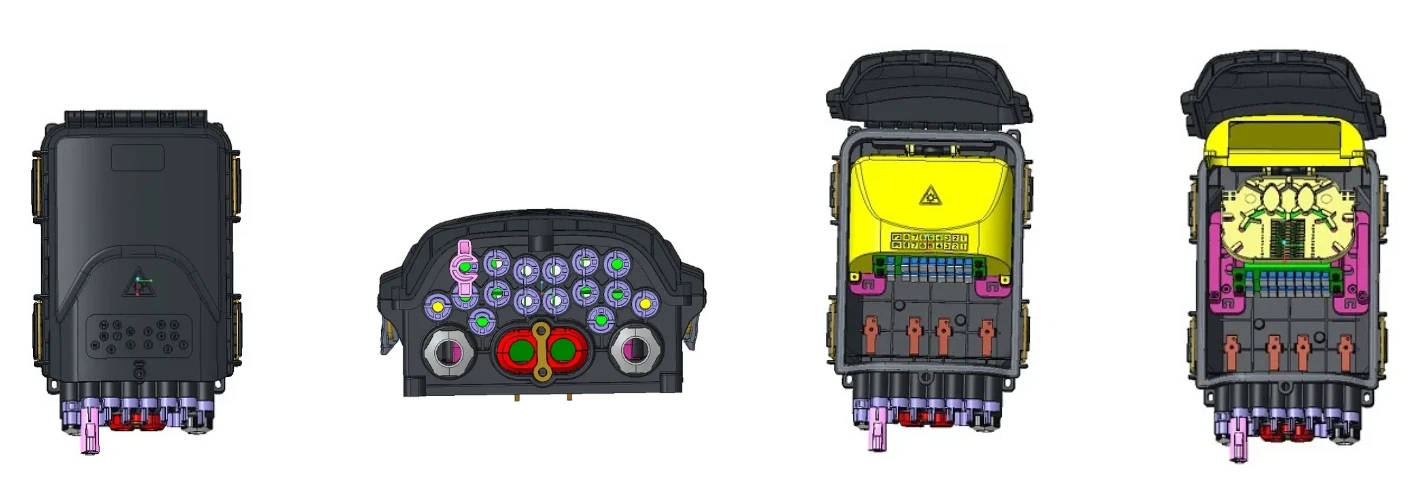

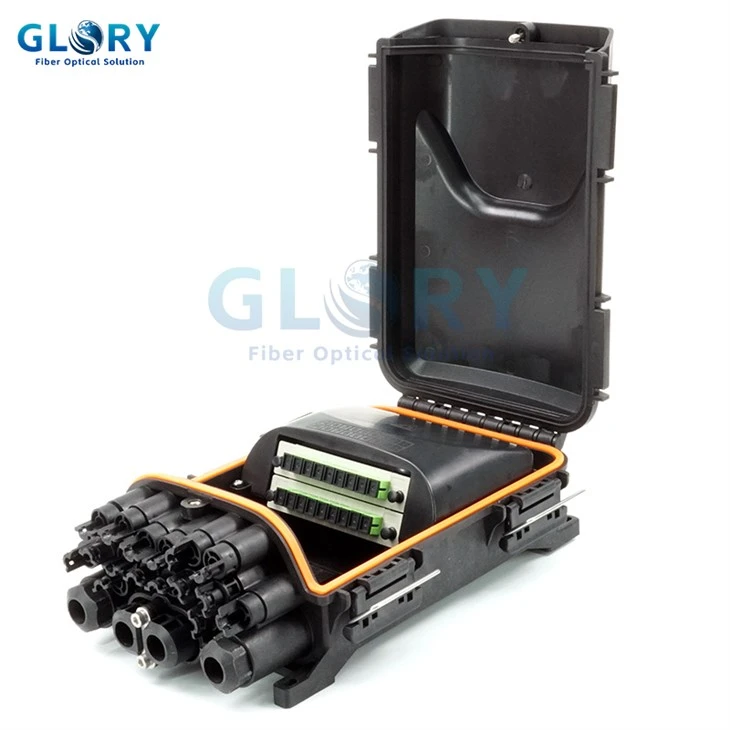

Product Appearance:

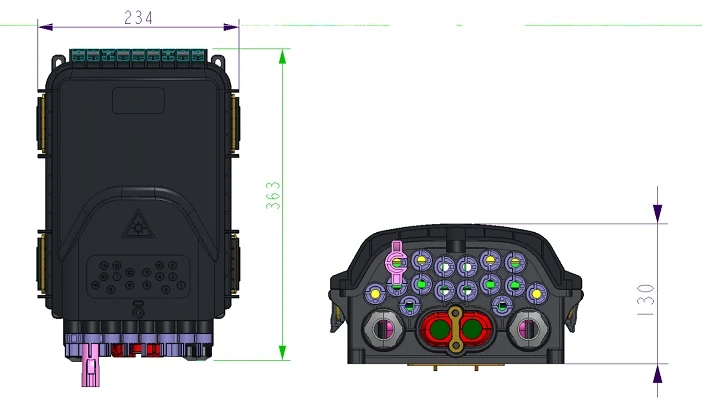

Fiber Sealed Drop Closures Dimension:

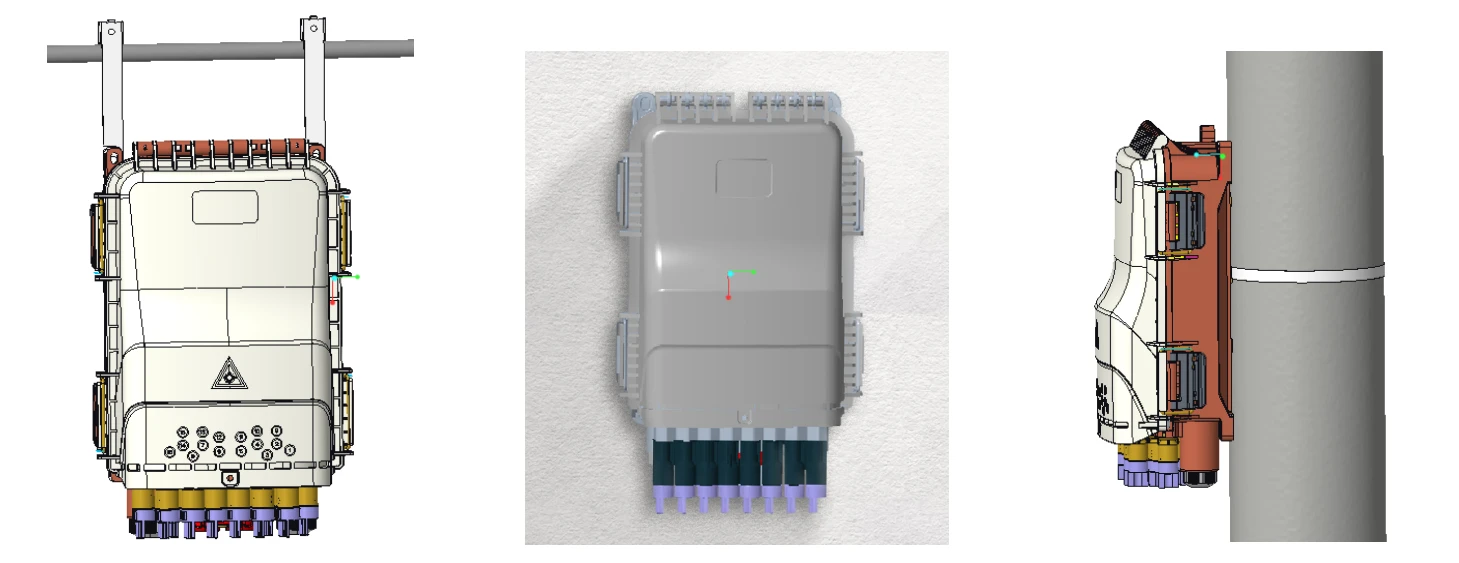

Application Scenario:
Aerial mounting Wall mounting Pole mounting
