Gyxtw Fiber Cable



Gyxtw Armored Fiber Cable



GYXTW Armored Fiber Cable​​ is a high-quality fiber optic cable designed to ensure reliable connectivity and durability in harsh outdoor environments. The cable features a central strength member made of steel wire and a layer of corrugated steel tape armor, which provides excellent mechanical protection against impacts, crushing, and rodents.



It is also capable of withstanding extreme temperatures, moisture, and UV exposure, making it ideal for use in demanding outdoor applications such as industrial installations, railways, and oil and gas pipelines.



The GYXTW Armored Fiber Cable excels in data transmission, offering low attenuation, high bandwidth capacity, and the ability to carry signals over long distances without signal distortion or interference.





Features:



• Excellent mechanical and temperature performance guaranteed by the accurate excess fiber lent.
• Critical protection to fibers, based on the excellent hydrolysis resistance.
• Excellent crush resistance and flexibility
• Crush-resistance, impact-resistance and moisture-proof

• Two parallel steel wires ensure tensile strength
• Excellent ultraviolet prevention with PE sheath, small diameter, light weight and installation friendliness.



Technical Parameters:



Fiber Number	24	48
Fiber No. per tube	4	4
Number of loose tubes	6	12
Loose tube diameter	1.8mm
Loose tube material	PBT polybutylene terephthalate
Gel filled in loose tube	Yes
Messenger wire	2x1.0mm
Cable OD	10mm
Operation temperature range	-40℃~+70℃
Installation temperature range	-20℃~+60℃
Transport and storage temperature range	-40℃~+70℃
Tensile force (N)	Short term 1500N Long term 1000N
Minimal installation bending radius	20xOD
Minimal operation bending radius	10xOD

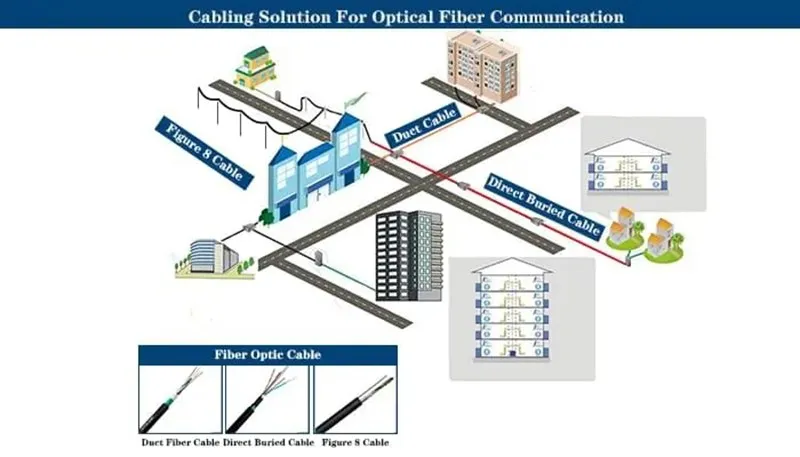

Applications:



• Telecommunications: Because of its robust and reliable nature, Gyxtw Fiber Cable can be used for transmitting high-speed data, voice, and video signals over long distances.



• Industrial: Manufacturing plants, mining operations, oil rigs, and other industrial settings 3. • Military: Connect various military installations, communication towers, and other critical infrastructure.



• Transportation: Underground railways, road tunnels, and other transportation networks to connect communication systems and other equipment.



• Public Utilities: Power grids and water treatment plants.
