Outdoor Fiber Cable
Item: Outdoor Fiber Cable FTTH outdoor armored single mode cable
Product Description:
Fiber Type: G652D/G657; SM or MM
Jacket Material: PE, TPU, PVC/LSZH
Color: Black
Operating Temperature: -55~+85°C
- Product Introduction

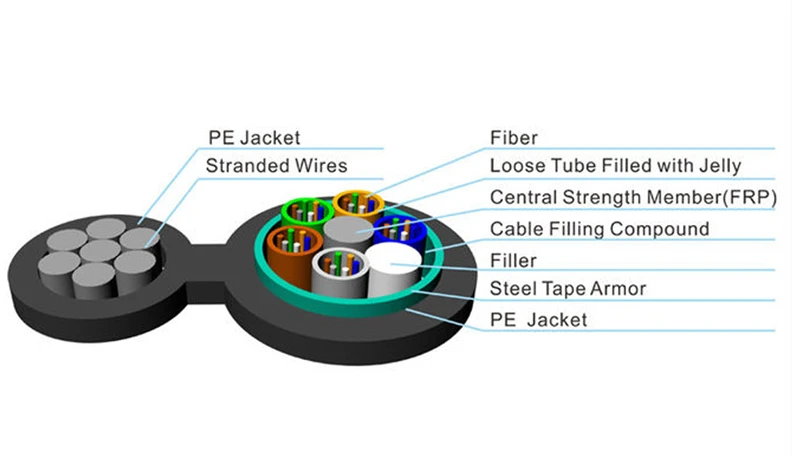

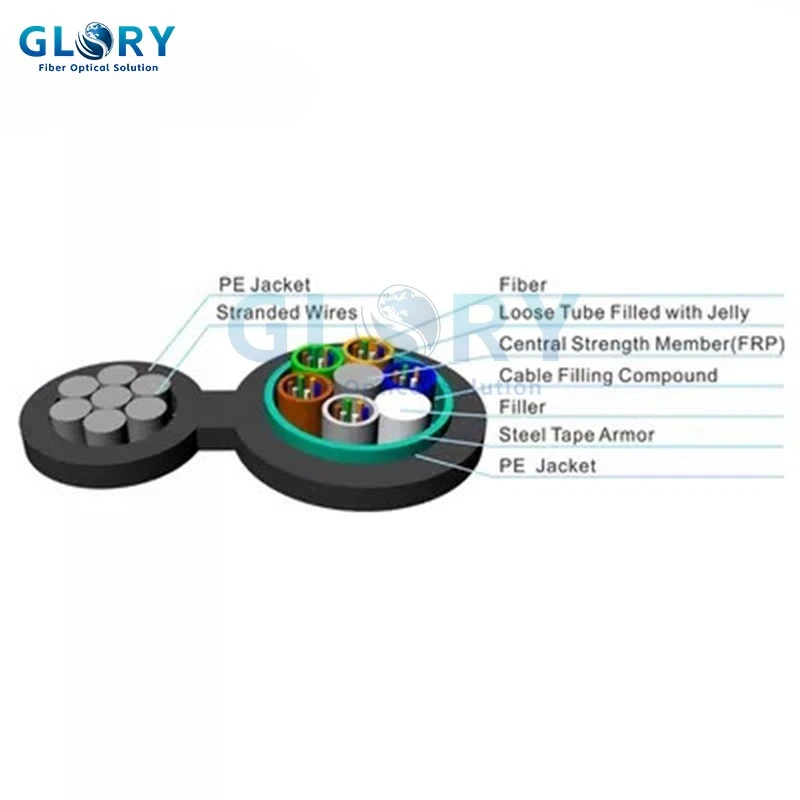

The mental strength member of outdoor fiber cable is made up of stranded steel wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gunshot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure of outdoor fiber cable ensures excellent mechanical and environmental performance.
Optical Parameters:
|
Fiber Type |
50/125µm |
62.5/125µm |
G.652 |
G.655 |
|
|
Attenuation(+20°C) |
@850nm |
≤3.0dB/km |
≤3.3dB/km |
||
|
@1300nm |
≤1.0dB/km |
≤ 1.0dB/km |
|||
|
@1310nm |
≤0.36dB/km |
≤0.4dB/km |
|||
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|||
|
Bandwidth (Class A) |
@850nm |
≥ 500MHz.km |
≥ 200MHz.km |
||
|
@1300nm |
≥ 1000MHz.km |
≥ 600MHz.km |
|||
|
Numerical Aperture |
0.200 ±0.015NA |
0.275 ±0.015NA |
|||
|
Cable Cut-off Wavelength |
≤ 1260nm |
≤ 1450nm |
Technical Parameters:
|
Fiber Count |
Cable Weight kg/km |
Tensile Strength |
Crush Resistance |
Bending Radius |
|
2~6 |
214 |
1000/3000 |
300/1000 |
10D/20D |
|
8~12 |
214 |
1000/3000 |
300/1000 |
10D/20D |
|
14-18 |
214 |
1000/3000 |
300/1000 |
10D/20D |
|
20-24 |
214 |
1000/3000 |
300/1000 |
10D/20D |
|
26-30 |
214 |
1000/3000 |
300/1000 |
10D/20D |
Features of Outdoor Fiber Cable:
• Figure 8 Self-supporting fiber optic cable
• 02-144 fibers, SM G652D
• Stranded loose tube structure
• Corrugated steel tape armored
• PE outer sheath
• Good mechanical and temperature resistant performance.
• Crush resistance and flexibility.
• Easy to installation and operation.
• More than 30 years life span.
Application of Outdoor Fiber Cable:
• Laying modes: Direct Buried
• Long-distance communication,
• Local trunk line,
• CATV & computer networks system
• Adopted to Outdoor distribution
• Suitable for aerial duct and buried method
