Outdoor Optical Cable
Model: GYTY53 24 Core Outdoor Optical Cable
The 24-core outdoor armored double-jacket optical cable is designed for direct burial underground. It is suitable for long-distance and LAN fiber optic communications
- Product Introduction

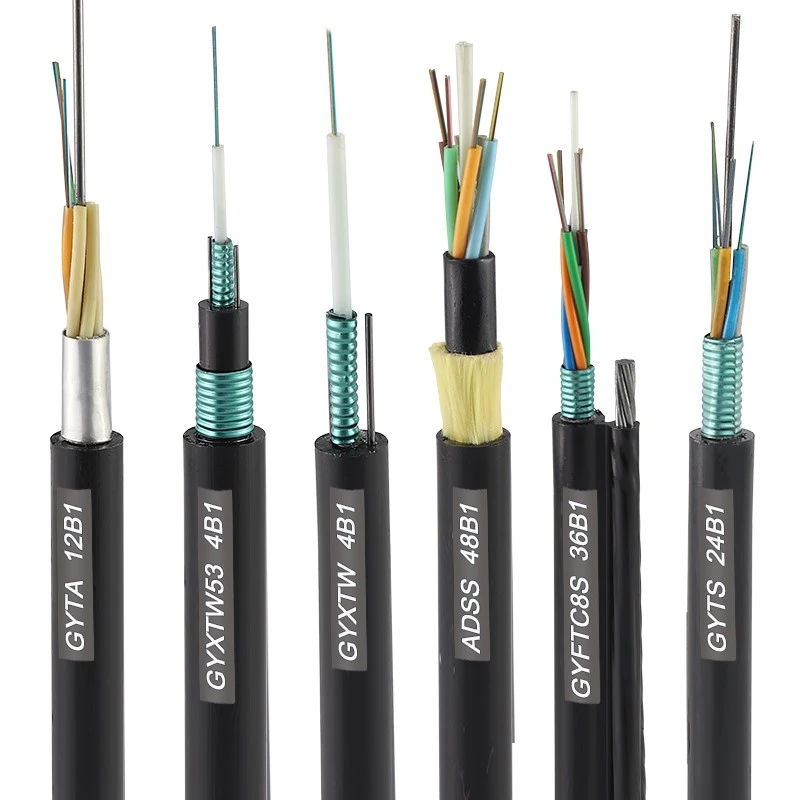

Outdoor Optical Cable
Outdoor fiber optic cable, as the name suggests, is a type of fiber optic cable designed for outdoor use and suitable for outdoor applications. These cables are durable and can withstand wind, sunlight, cold, and freezing temperatures. They typically include a thick outer sheath, armoring elements, and strength members. As a result, outdoor fiber optic cables possess mechanical and environmental resistance properties such as crush resistance, corrosion resistance, and tensile strength.
Outdoor Optical Cable, 2~144 fibers, central strength member (steel), jelly-filled, fiber-contained loose tube with PP filler (if necessary) stranded, water-blocking tape, PE inner sheath, longitudinally covered with copolymer-coated steel tape, PE outer sheath. It is available in two types: single-mode cable and multimode cable.
The cable features a stranded loose-tube structure with steel-tape double sheaths. The loose-tube stranding technology provides the fibers with good secondary excess length and allows them to move freely within the tube, ensuring the fibers remain stress-free when the cable is subjected to longitudinal stress. The steel-tape armor and double PE sheath offer excellent crush resistance and rodent resistance. The metal strength member delivers superior strain performance.
Features of Outdoor Optical Cable:
• Structure Design: Dual-jacket structure (moisture/crush resistance), high-strength steel wire central strength member with steel tape armor, compact and lightweight for easy installation.
• Protection: Triple waterproofing (tube/core filling + water-blocking materials), UV-resistant outer layer, hydrolysis-resistant loose tube, and specialized gel for fiber protection.
• Environmental Adaptability: Operating temperature -40℃ ~ +60℃, robust mechanical performance (crush/flex resistance), and moisture-proof design.
• Precision Engineering: Optimized fiber excess length control and unique stranding process ensure structural stability and durability.
Application of Outdoor Optical Cable:
• Laying modes: Direct Buried
• Long-distance communication,
• Local trunk line,
• CATV & computer networks system
• Adopted to Outdoor distribution
• Suitable for aerial duct and buried method
Package and shipping mark:
• Printing at out jacket of Outdoor Optical Cable
• White color printing words at each meter distance, standard printing content as following, also can match the customer require for the printing content
• Meter mark
• Style of optical cable and fiber account
• Manufacturer name
• Manufacture date
