Outdoor Fiber Optic Cable
Item: Outdoor Fiber Optic Cable GYXTS Armored Uni tube Anti Rodent 2-24 Core
Detailed Product Description：
Product Name: Outdoor Fiber Optic Cable
Use: Outdoor
Jacket Material: PE
Fiber Core: 2-24 Core
Jacket Color: Black
Application: Duct/Aerial/Direct Buried
- Product Introduction

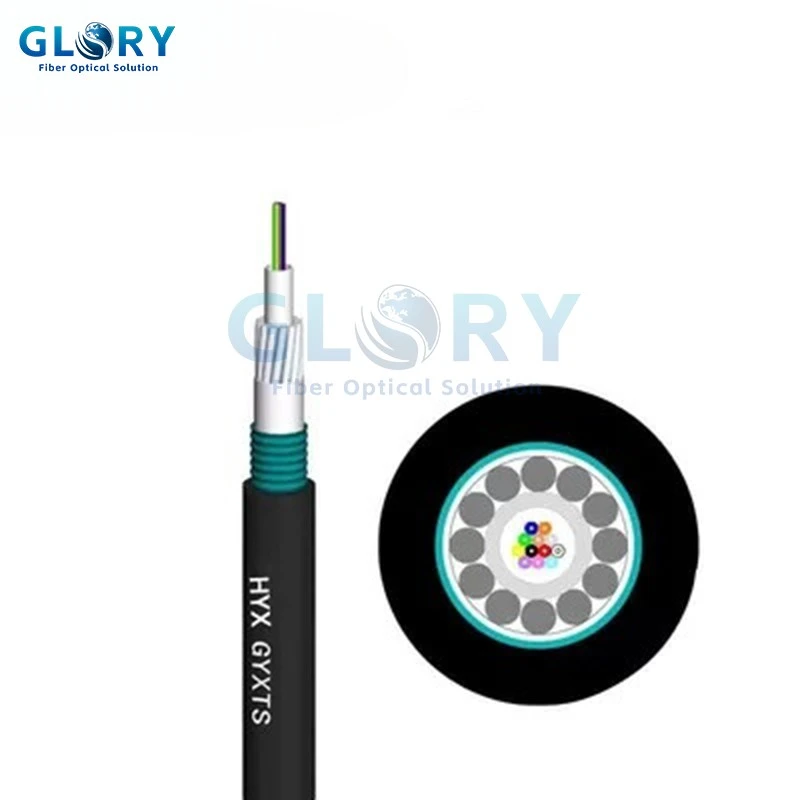

Outdoor GYXTS fiber optic cable Unitube Anti rodent Outdoor Armored optical fiber cable 2-24 core GYXTS

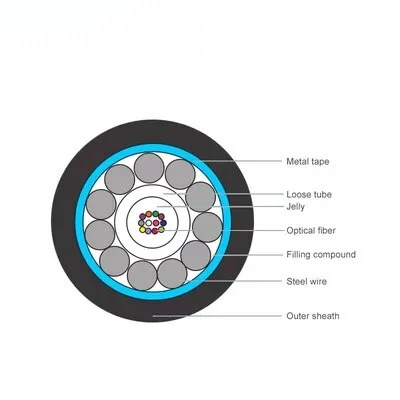

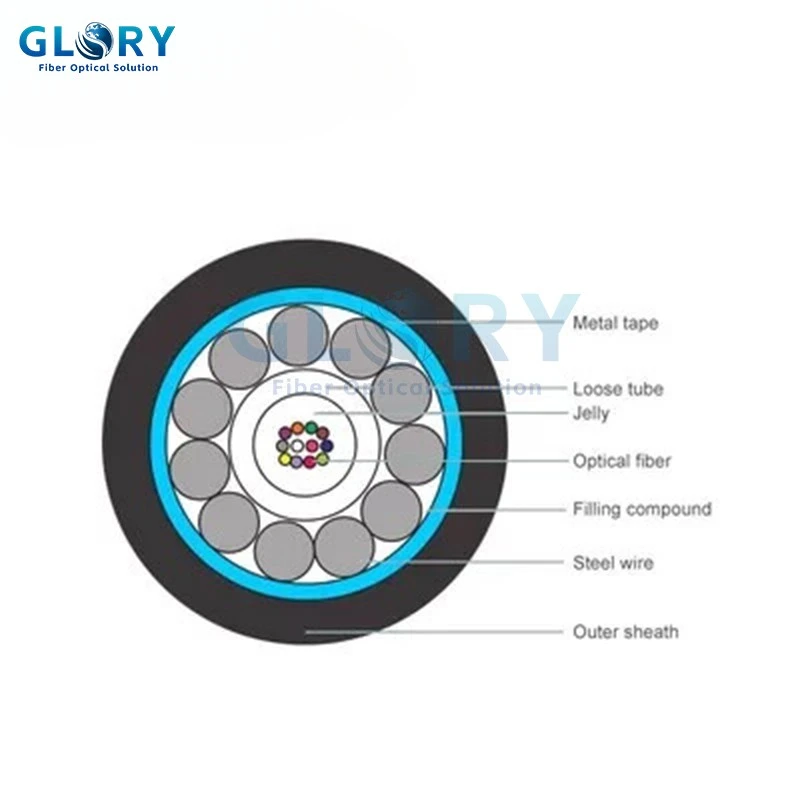

The Single-mode/multimode fibers are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound.
The loose tube is armored with steel wires and corrugated steel tape. Then a PE outer sheath is extruded.
Technical Parameters:
|
Fiber count |
Tube size(mm) |
Nominal thickness of sheath(mm) |
Cable diameter(mm) |
Cable weight (kg/km) |
Tensile strength Long/short term(N) |
Crush Long/short term (N/100mm) |
|
2-12 |
2.5 |
2.0 |
8.8 |
108 |
600/1500 |
1000/3000 |
|
14-18 |
2.8 |
2.0 |
9.2 |
116 |
1000/3000 |
1000/3000 |
|
20-24 |
3.2 |
2.0 |
9.6 |
126 |
1000/3000 |
1000/3000 |
|
26-30 |
3.5 |
2.0 |
9.8 |
137 |
1000/3000 |
1000/3000 |
|
32-36 |
3.8 |
2.0 |
10.1 |
142 |
1000/3000 |
1000/3000 |
Optical Parameters:
|
Fiber Type |
50/125µm |
62.5/125µm |
G.652 |
G.655 |
|
|
Attenuation(+20°C) |
@850nm |
≤3.0dB/km |
≤3.3dB/km |
||
|
@1300nm |
≤1.0dB/km |
≤ 1.0dB/km |
|||
|
@1310nm |
≤0.36dB/km |
≤0.4dB/km |
|||
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|||
|
Bandwidth (Class A) |
@850nm |
≥ 500MHz.km |
≥ 200MHz.km |
||
|
@1300nm |
≥ 1000MHz.km |
≥ 600MHz.km |
|||
|
Numerical Aperture |
0.200 ±0.015NA |
0.275 ±0.015NA |
|||
|
Cable Cut-off Wavelength |
≤ 1260nm |
≤ 1450nm |
Features of Outdoor Fiber Optic Cable:
- Accurate process control ensuring good mechanical and temperature performances
- The material of loose tubes with good hydrolysis resistance and relatively high strength
- Tube filling compound providing key protection for fibers
- Excellent crush resistance and flexibility
- Wrapped steel wires providing good anti-rodent performance
- Small size and light weight, easy for installation
- Applicable to duct and aerial installations
Application of Outdoor Optical Cable:
- Duct
- Aerial
- Direct buried
