Om3 Fiber Optic Cable
Item: Om3 Fiber Optic Cable
Model: Om1 Om2 Om3 Om4 Outdoor Fiber Optic Cable GYXTW Unitube Light Armored Wire

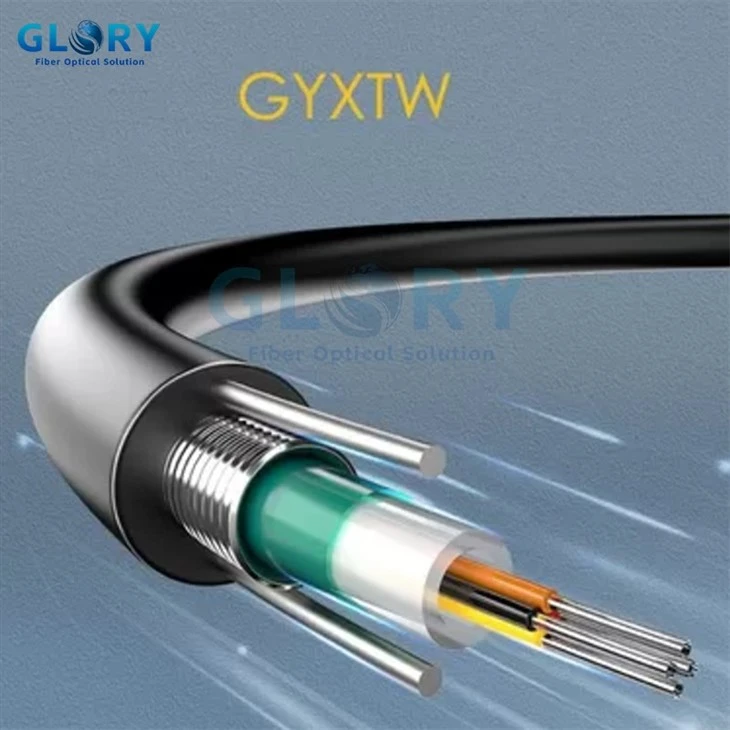

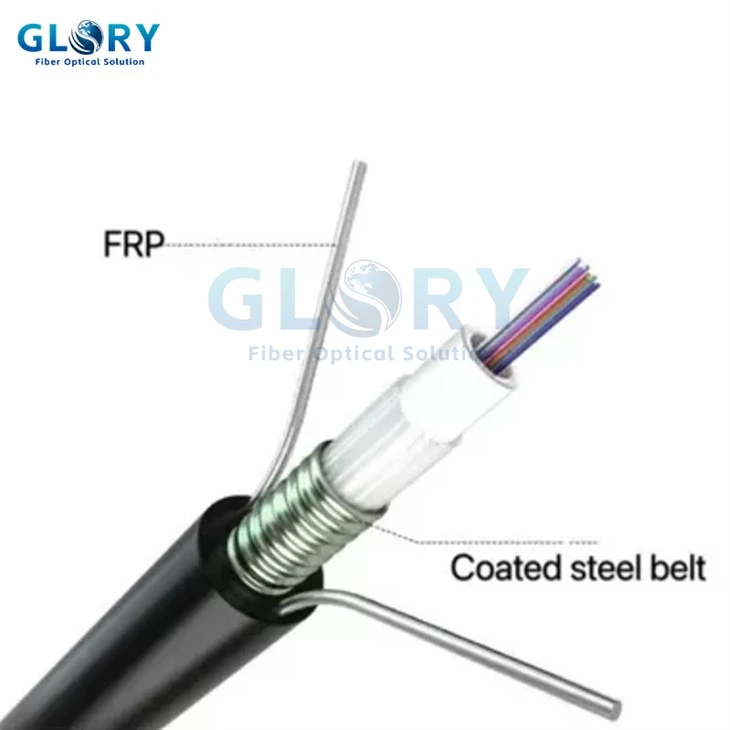

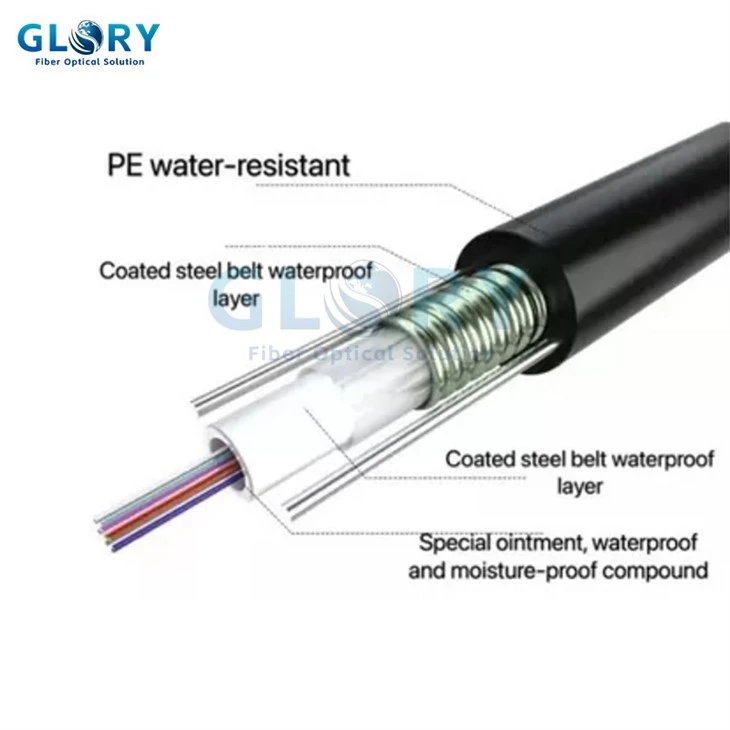

GYXTW armored loose tube fiber optic cable, single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blocking performance. Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.
- Product Introduction
Om1/Om2/Om3/Om4 Armored Fiber Optic Cable is a specialized optical fiber cable designed for high-speed data transmission in both indoor and outdoor environments. Its advanced features make it suitable for various applications, including data centers, enterprise networks, and telecommunications.
The cable features a unitube structure, where optical fibers are contained within a single central tube. This design enhances flexibility and simplifies installation while providing effective protection against physical stresses and environmental factors.
The fiber optic cable is suitable for both indoor and outdoor installations, the cable can be used in various environments, including data centers, telecommunications networks, and enterprise infrastructures. Its flexibility and durability make it a versatile choice for a wide range of deployment scenarios.
Features of Om3 Fiber Optic Cable :
• Good mechanical and temperature performance
• High strength loose tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Crush resistance and flexibility
• PSP enhancing moisture-proof

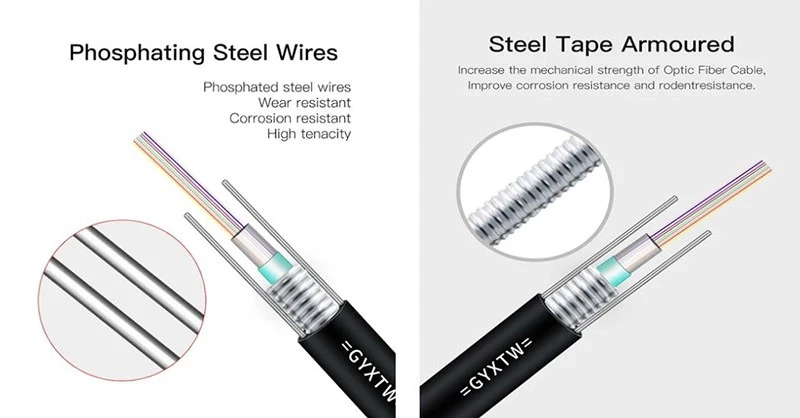

• Two parallel steel wires ensure tensile strength
• PE sheath gives excellent UV protection
• Small diameter, light weight and friendly installation
• Long delivery length
Specifications:
|
Product Name |
GYXTW fiber optic cable |
|
Fiber Count |
8 Fibers |
|
Construction |
Central Loose Tube |
|
Fiber Type |
Singlemode 9/125 |
|
Outer Jacket Material |
PE(Black) |
|
Strength Member Material |
Steel Wire |
|
Weight |
50KG/KM |
|
Armor Layer |
PSP Steel |
|
Application |
Aerial and Duct |
|
Steel Diameter |
0.8mm *2 |
|
Jacket Diameter |
8.0mm-10.0mm |
|
Jacket Material |
PE |
|
Test Wavelength |
1310/1550nm |
|
Operation temperature |
-40℃~ 85℃ |
Application of Om3 Fiber Optic Cable:
• Adopted to Outdoor distribution
• Suitable for direct buried method
• Long distance and local area network communication
• Used outdoor cabling
