Lc Single Mode Pigtail
Item: LC Single Mode Pigtail
Model: LC/UPC Singlemode Simplex 0.9mm Fiber Optic Pigtails
Type: Single-mode Fiber
Connection Structure: LC
Available to customize as request
- Product Introduction

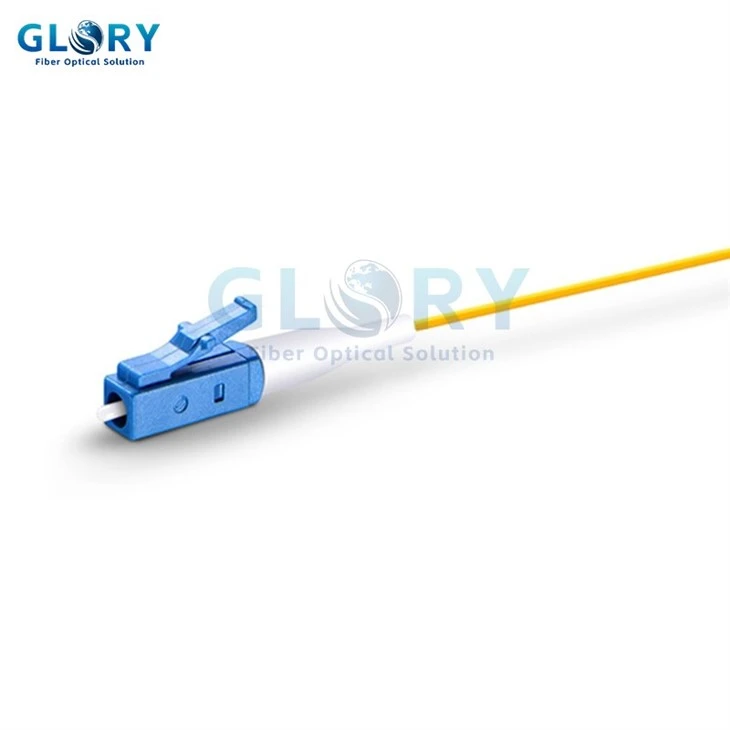

LC Single Mode Pigtail is a single mode cable with high-grade LC UPC fiber optic connector on one end, another end unterminated. This series of LC pigtail Assemblies are available to configure single mode or multimode in UPC, APC polish with simplex, duplex, quad fiber optic cable versions. Cable length, cable diameter, and jacket are optional. The typical type of fiber pigtail most uses 0.9mm cable, because it is especially suitable for high-density splice application.

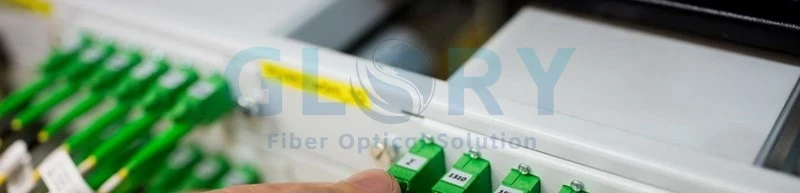

Fiber Pigtail is utilized to achieve accurate mounting for precision alignment of fiber optical components. Fiber optic pigtail provides a fast way to link communication devices, mostly used to terminate fiber optic cable by fusion or mechanical splicing. And the pigtails are usually found in ODF, fiber distribution box and terminal box, etc. They are widely used in CATV, FTTH/FTTX, LAN/WAN network, and etc.
Key Features Of Single Mode Pigtail:
•Low insertion loss and back reflection loss
•Good exchangeability, Good Durability
•High temperature stability
•Compliant to IEC, TIA/EIA, NTT and JIS specifications
Specification:
|
Parameter |
Single mode |
Multi mode |
|
Insertion loss |
≤0.3dB, typical ≤0.2dB |
≤0.30dB |
|
Return loss |
≥45dB(PC) |
≥35dB |
|
≥50dB(UPC) |
||
|
≥60dB(APC) |
||
|
Durability |
≤0.2dB typical change,1000 mating cycles |
|
|
Repeat ability |
≤0.10dB |
|
|
Fiber Type |
Corning fiber 9um |
|
|
Operation temperature |
-40 ~ +75 |
|
|
Storage temperature |
-40 ~ +85 |
|
|
Operating wavelength |
1310/1550nm |
|
FAQ:

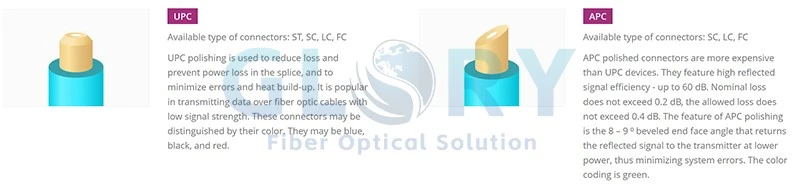

1 Polish types

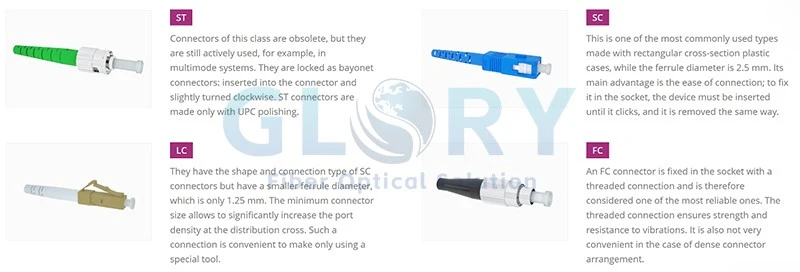

2 Connector types

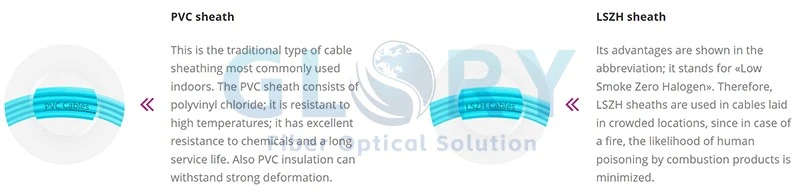

3 How to Choose the sheath material
