Indoor Drop Cable
Model: Single Mode Indoor FTTH Flat Drop Cable
Jacket Material: UV-Resistant, Flame-Resistant LSZH
Strength Member: 0.5mm Steel Wire or FRP
Highlights: Indoor/Outdoor Fiber Optic Cable, Steel Wire Reinforced
- Product Introduction
Single Mode Indoor FTTH Flat Drop Cable
The compact, self-supporting Figure 8 aerial indoor drop cable was developed to interconnect optical equipment indoors and outdoors in FTTH network branches. It serves as an enhanced-performance FTTH solution. The cable is constructed with one or two single-mode bend-sensitive fibers (ITU-T G.657.A/G.652.D), protected by two strength members and a messenger wire. This cable is lightweight, easy to install, and simple to strip.
Features for Indoor/outdoor Drop Cable:
• Special low-bend-sensitivity fiber provides high bandwidth and excellent signal transmission performance.
• Two parallel FRP or steel wire strength members ensure enhanced crush resistance to protect the fiber.
• A single steel wire or messenger wire serves as an additional strength member, ensuring superior tensile strength.
• Simple structure, lightweight design, and high practicality.

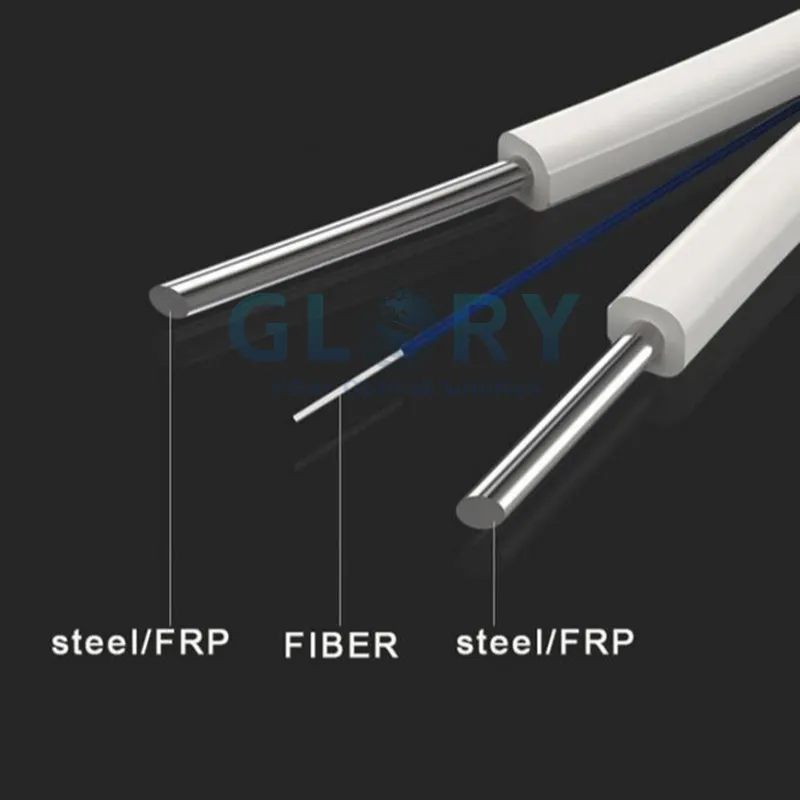

• Novel fluted design allows for easy stripping and splicing, simplifying installation and maintenance.
• Features a low-smoke, zero-halogen, flame-retardant sheath material.
Application for Indoor/outdoor Drop Cable:
•FTTH (fiber to the home) indoor cabling and distribution.
• Access network and local area network (LAN).
• Indoor Interconnect and Patch-cord Applications
• Indoor FTTH applications horizontal and riser
• Clipping to surfaces including skirting boards
• Short distance external use with black LSZH jacket
• Used end users directly cabling and Fiber optic communication system
Technical Parameters:
|
Structure |
Unit |
Parameter |
|
|
Fiber count |
Fibers |
1/2 |
|
|
Diameter |
mm |
4.0*2.0 |
|
|
Weight |
Kg/km |
Approx.17.7 |
|
|
Sheath color |
|
Black |
|
|
Sheath material |
|
LSZH |
|
|
O.D of steel wire |
mm |
1.0±0.05mm |
|
|
Strength member |
mm |
0.5mm FRP |
|
|
Tensile strength |
N |
1500 |
|
|
Crush Resistance |
N |
2200 |
|
|
Bending Radius |
Dynamic |
|
30×Cable Diameter |
|
Static |
|
15×Cable Diameter |
|
|
Operating Temperature |
℃ |
-40 --- +70 |
|
Test Datasheet：
|
Category |
Description |
Specifications |
|
|
G.657A1 |
|||
|
Optical Specifications |
Attenuation |
@1310-1625nm |
≤0.36dB/km |
|
@1383±3nm |
≤0.36dB/km |
||
|
@1550nm |
≤0.22dB/km |
||
|
Attenuation discontinuity |
≤0.05 dB |
||
|
Attenuation vs. Wavelength |
@1285~1330nm |
≤0.05 dB/km |
|
|
@1525~1575nm |
≤0.05 dB/km |
||
|
Zero Dispersion Wavelength |
1300~1324nm |
||
|
Zero Dispersion Slope |
≤0.092ps/(nm2.km) |
||
|
Dispersion |
@1310nm |
≤3.5 ps/nm.km |
|
|
@1550nm |
≤18 ps/nm.km |
||
|
Polarization Mode Dispersion (PMD) |
≤0.2ps/km1/2 |
||
|
Cable Cutoff Wavelength |
≤1260nm |
||
|
Effective Group Index of Refraction |
@1310nm |
1.4675 |
|
|
@1550nm |
1.4681 |
||
|
Macro bend loss (30mm radius ,100turns) 1625nm |
≤0.1 dB |
||
|
Geometric Specifications |
Mode Field Diameter |
@1310nm |
9.2±0.6μm |
|
@1550nm |
10.4±0.8μm |
||
|
Cladding Diameter |
125±1μm |
||
|
Cladding Non-Circularity |
≤1.0% |
||
|
Coating Diameter |
245±7μm |
||
|
Coating/Cladding Concentricity Error |
≤8μm |
||
|
Core/Cladding Concentricity Error |
≤0.8μm |
||
|
Mechanical Specifications |
Proof Test level |
≥1.0% |
|
|
Fiber Curl Radius |
≥4.0m |
||
|
Peak Coating Strip Force |
1.3~8.9N |
||
More picture
Noted:
• Only a portion of FTTH cables are listed in the table. Cables with other specifications are available upon inquiry.
• Cables can be supplied with a variety of single-mode or multimode fibers.
• Specially designed cable structures are available upon request.
