Pigtail for Fiber Optic Cable
Item: Pigtail For Fiber Optic Cable

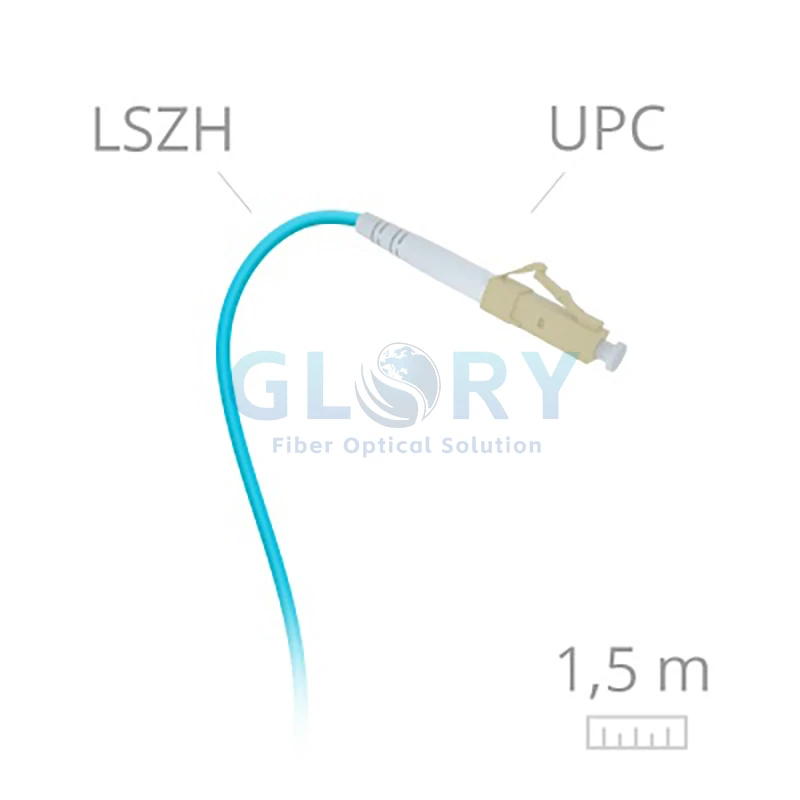

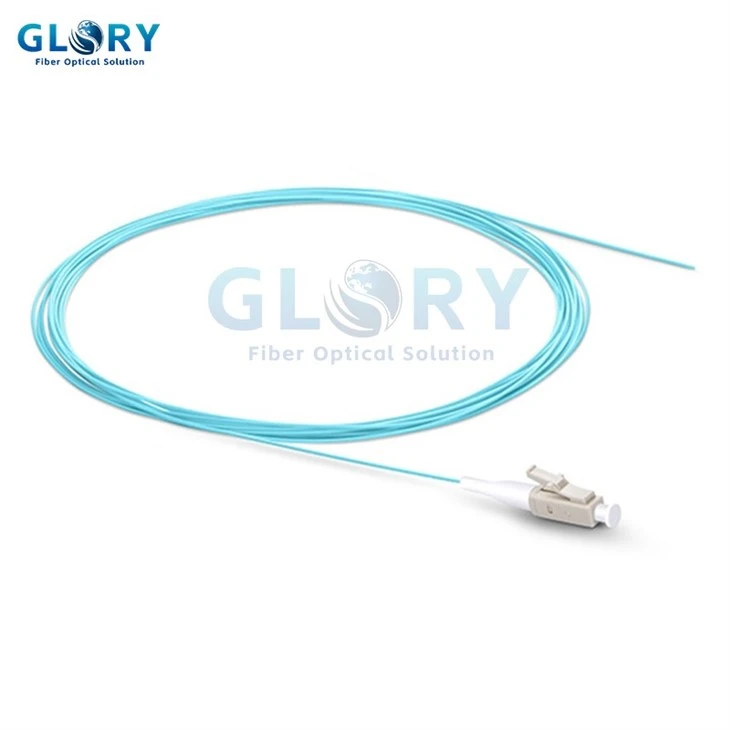

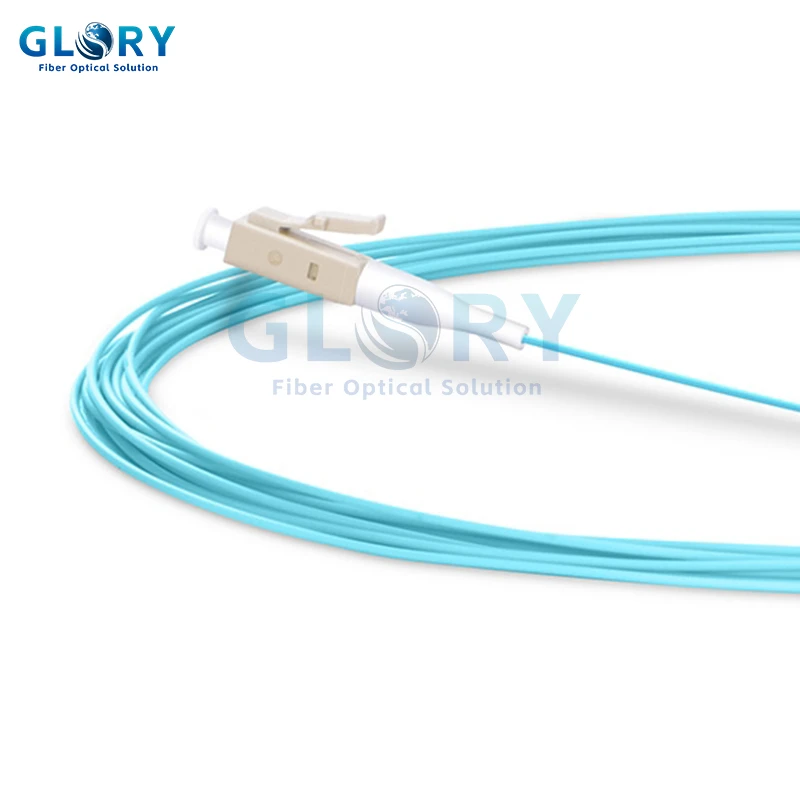

Model: LC/UPC 10GB OM3 Simplex 0.9mm Fiber Optic Pigtails
Each LC Multimode 50/125µm 10G OM3 Simplex Fiber Optic Pigtail (0.9mm, UPC Polish, PVC/OFNR) has passed the Insertion Loss, Return Loss Test, and End-face Inspection in the factory to complies and exceeds industry standards.
- Product Introduction
Gloryoptic offers simplex LC 10G OM3 fiber optic pigtails at a very competitive price. Our LC OM3 fiber optic pigtail comprises an exposed 50/125μm 10G OM3 multimode fiber cable at one end and a pre-installed simplex LC connector at the other end. This OM3 fiber optic pigtail features a laser-optimized multimode fiber (LOMMF) cable for use with 10 Gigabit Ethernet applications. It features extremely high bandwidth, providing nearly three times the bandwidth over conventional 62.5/125µm multimode fiber. The fiber optic pigtails are commonly used to splice the fiber in the cable to connect with the patch panel or equipment. This pigtail features typical 900μm tight-buffered cables as default. Available in different lengths, jacket material, polish, and cable diameter, Fiber Pigtail can be ordered to customize any fiber optic protocol to meet your various network applications.
Features Of Fiber Pigtail:
• Low insertion loss
• High back reflection loss
• Stable capability and high reliability
• Superior qualified standard PC polishing
• Boots in a variety of colors
• PVC jacket as default, LSZH optional
• 0.9mm as default, 2.0mm and 3.0mm cable optional
• 100% inspected for optical characteristics before shipment
• Customized specifications are available

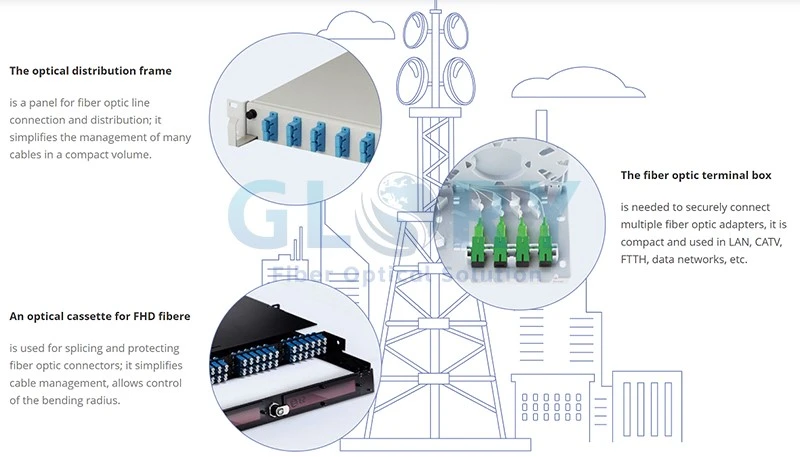

Applications Of Optical Pigtail:
Pigtails may be used in telecommunication networks, cell tower equipment, LAN \WAN, CATV, FTTH, etc.
Specification:
|
Parameter |
Single mode |
Multi mode |
|
Insertion loss |
≤0.3dB, typical ≤0.2dB |
≤0.30dB |
|
Return loss |
≥45dB(PC) |
≥35dB |
|
≥50dB(UPC) |
||
|
≥60dB(APC) |
||
|
Durability |
≤0.2dB typical change,1000 mating cycles |
|
|
Repeat ability |
≤0.10dB |
|
|
Fiber Type |
Corning fiber 9um |
|
|
Operation temperature |
-40 ~ +75 |
|
|
Storage temperature |
-40 ~ +85 |
|
|
Operating wavelength |
1310/1550nm |
|
Fiber Pigtails are an important part of networks, therefore we pay special attention to their quality
High-speed data transfer
Zirconia ceramic ferrule provides minimal input and return losses.

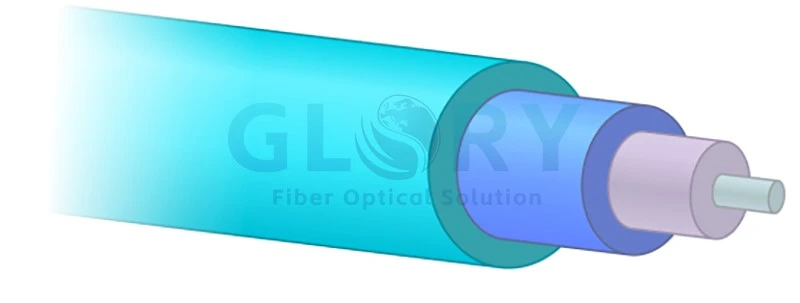

Optical cable structure
The cable has several layers that protect the most important part, the optical fiber.

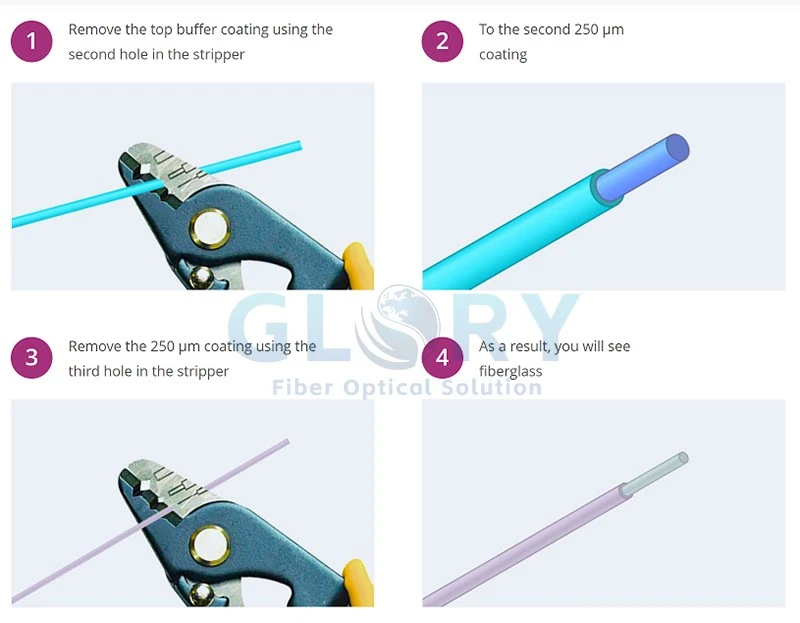

How to cut fiber pigtail cables properly
Tips:
It is generally recommended to preheat the pigtail before cutting.
It is recommended to remove only 1-2 cm in one action.

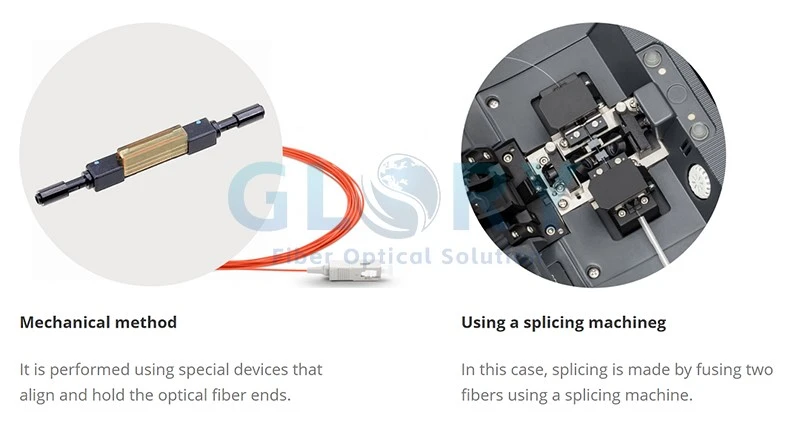

Two main methods of welding (splicing) fiber optic pigtails
