FPV Drone Optical Fiber Kit
Model: Inner Pay-off Type Fiber Optic Cable For UAV 5KM/10KM/15KM/20KM/25KM/30KM/50KM
This Inside-Wound FPV drone optical fiber kit is used for drone communication.
- Product Introduction

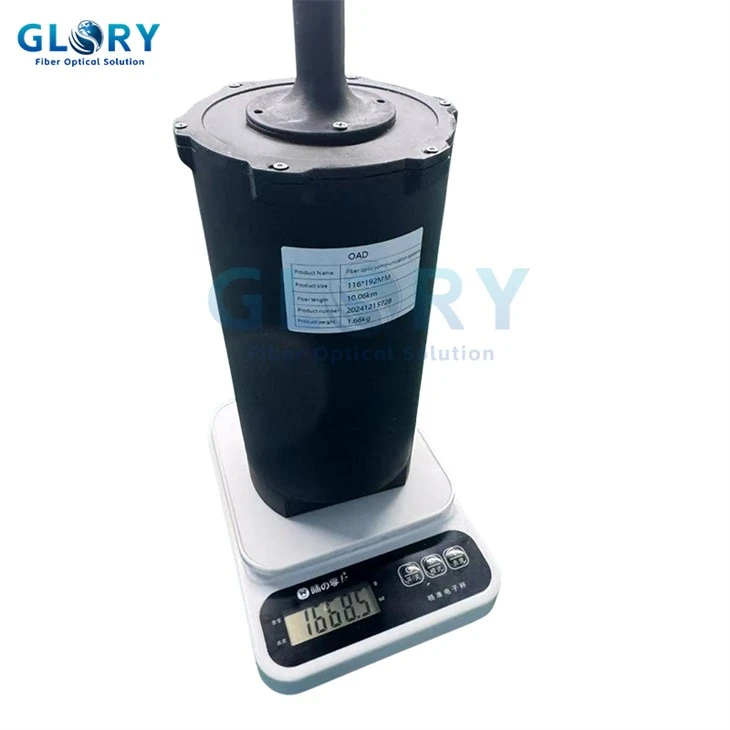

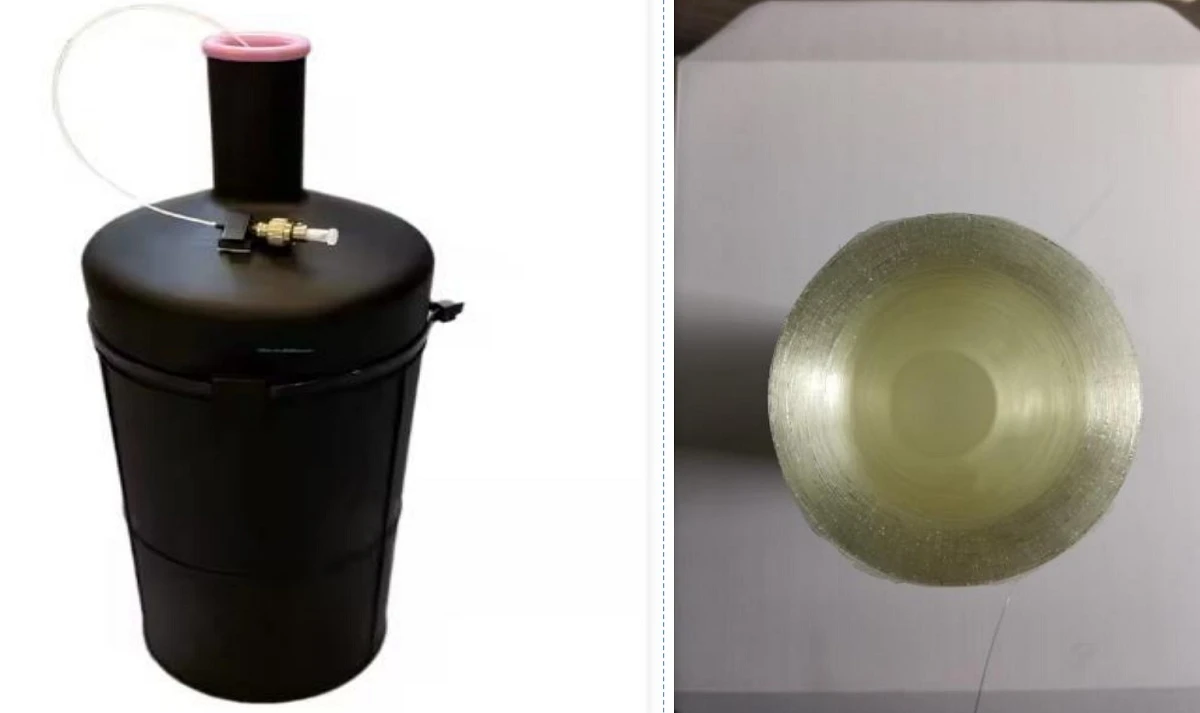

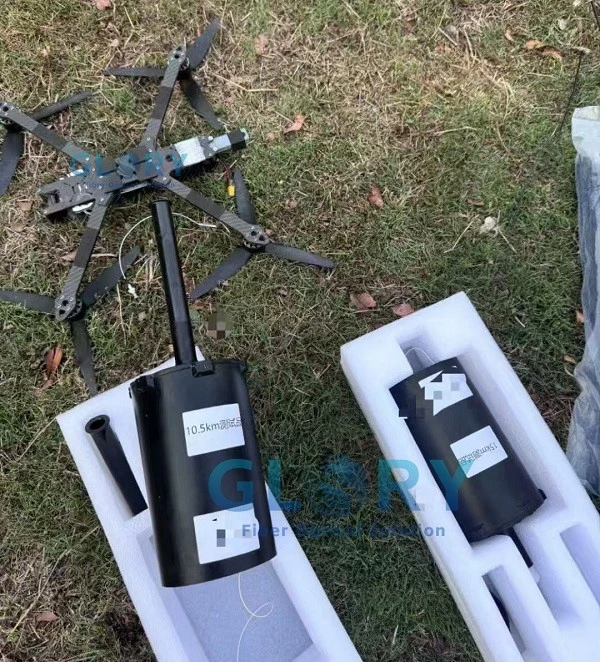

Inside-Wound FPV Drone Optical Fiber Kit
The FPV drone Optical fiber kit uses optical fiber as the transmission medium, making it impervious to electronic interference, environmental interference, and ensuring stable signal transmission. Optical fiber transmission does not generate electromagnetic radiation, making it difficult to detect and interfere with, which improves the concealment and safety of drones.
Features:
• Signal stability: Fiber-optic transmission offers low latency and high bandwidth, supports ultra-long-distance communication, and ensures the instantaneous transmission of high-definition video and real-time data. This stability is particularly crucial for flight missions over complex terrain and vast waters.
• Fast transmission speed: Fiber-optic transmission provides high speed and bandwidth, supporting the instantaneous transfer of large-scale data flows, making it ideal for scenarios requiring high-speed data transmission.
• Lightweight and flexible: The FPV Drone Optical Fiber Kit are available in a variety of lengths and are lightweight, reducing flight burden.
• Operating temperature: -50℃ ~ +85℃
Compared to outer pay-off types, this inside-wound FPV drone optical fiber kit offers the following advantages:
• Lightweight: Its design eliminates the need for a central axle in the special cable reel, further reducing flight burden.
• High stability: During the pay-off process, the optical cable experiences no friction against a central axle or obstacles, significantly reducing damage potential. The cable is less prone to breakage, ensuring a more stable and smoother pay-off.
Transmission performance:
|
Fiber type |
Optical fiber for UAV 1310nm |
|
Maximum value of the link loss(dBm) |
20 |
|
Typical value of the link loss(dBm) |
15 |
|
Note: Other types optical fiber can also be provided as required. |
|
Technical parameters (typical values):
|
Product Description: |
FPV Drone Optical Fiber Kit (Optical fiber, Resin, and Packages) |
||||
|
Number of fiber |
Typical specifications(mm) |
Weight(kg/km) |
Rated Tensile Strength(N) |
Bending radius (mm) |
|
|
Static |
Dynamic |
||||
|
1 |
0.27 |
0.08 |
60 |
7.5 |
15 |
|
1 |
0.30 |
0.08 |
60 |
7.5 |
15 |
Note：Corresponding technical parameters can be adjusted according to customer needs.
