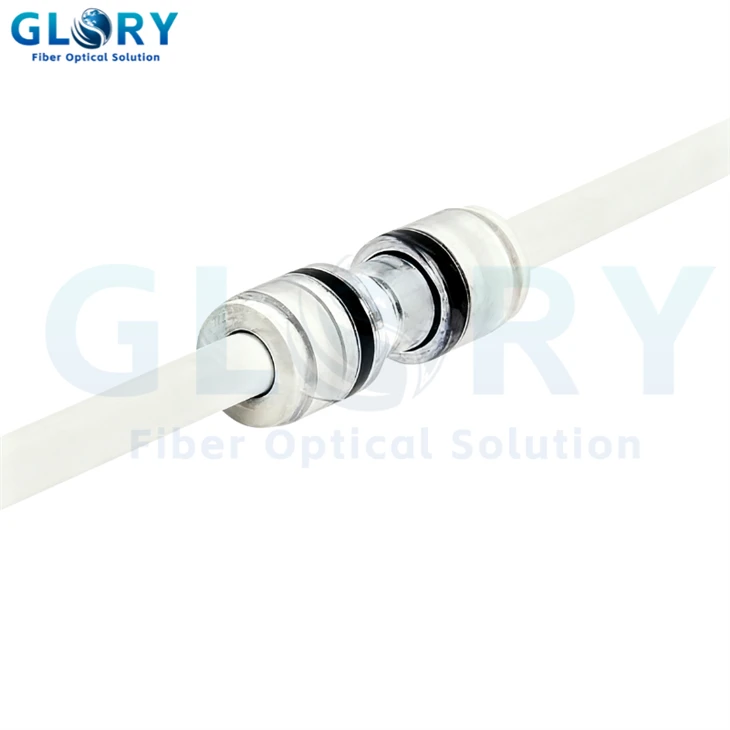

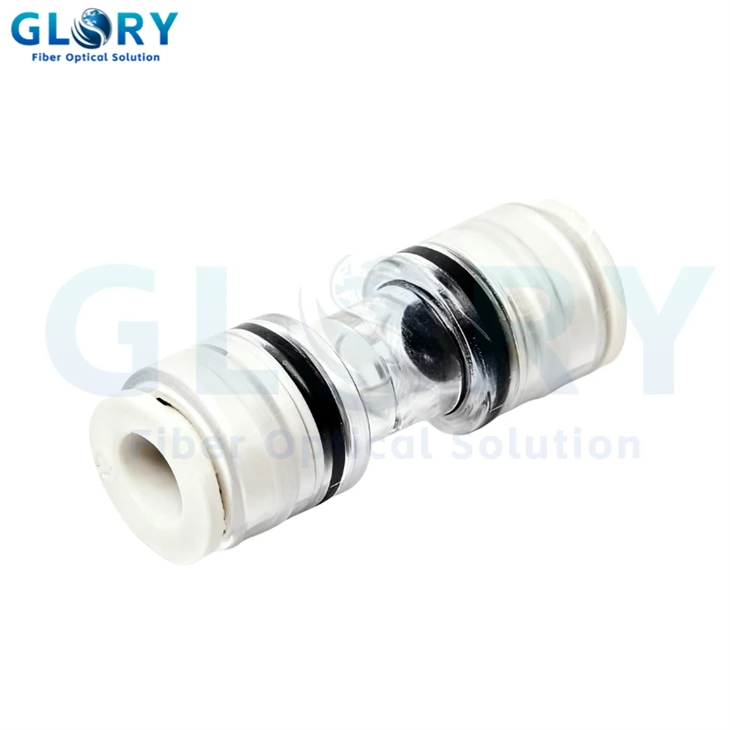

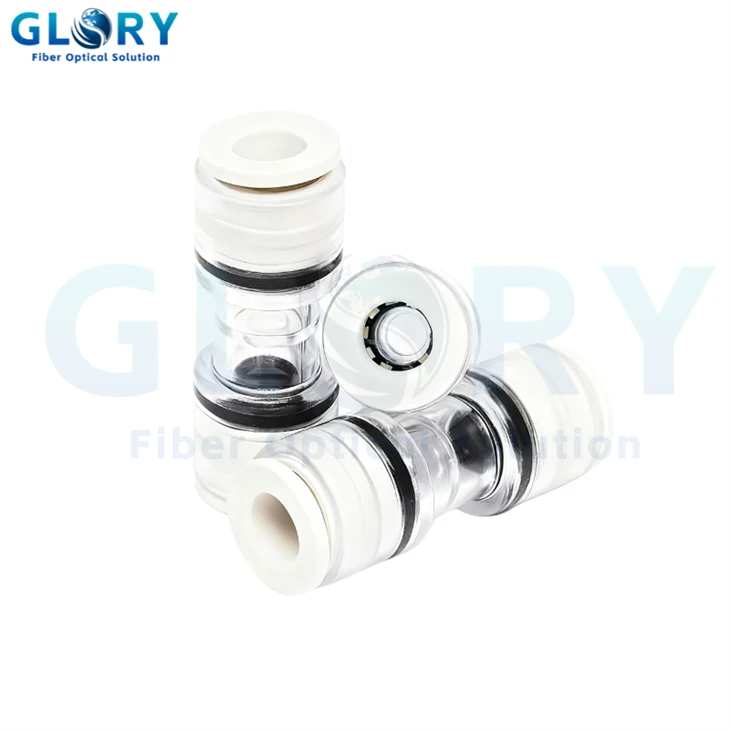

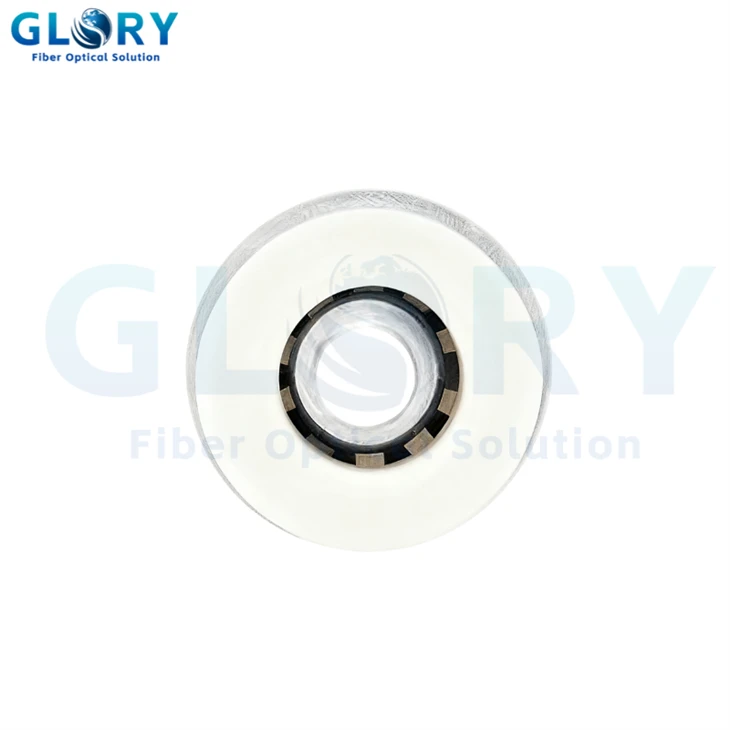

Micro Duct Straight Connector
Model:Micro Duct Straight Connector
Excellent stay ability.
Soft material cushions cable ends.
Resistant to acids, alkalis and salts.
For use on ducts of 5mm up to 20mm.
Flexible, easily adaptable, does not crack.
- Product Introduction
Product Overview
Our LSZH (Low Smoke Zero Halogen) Micro Duct Straight Connector is engineered for seamless in-building fiber optic network installations. This connector enables quick and effortless connections between 5-14mm microducts without requiring any tools. Its innovative transparent body provides installers with superior control during the connection process and allows for immediate visual confirmation of successful cable placement, ensuring reliability and efficiency in FTTH (Fiber to the Home) deployments.
Key Features
Tool-Less Push-In Installation
Designed for exceptional ease of use, significantly reducing installation time and labor costs
Crystal Clear Transparency
The transparent housing allows for visual inspection to confirm microduct and cable presence, preventing errors
Enhanced Safety (LSZH Material)
onstructed from eco-friendly, flame-retardant Low Smoke Zero Halogen material, complying with UL94 V-0 standards for superior fire safety in indoor environments
Secure Locking Mechanism
Integrated locking rings prevent accidental disconnection, guaranteeing a stable and reliable link
Wide Compatibility
Effortlessly connects microducts within the 5mm to 14mm diameter range
Rigorous Certification
Tested and certified in accordance with EN 50411-2-8:2009 for performance and reliability. Also complies with ROHS and REACH environmental standards
Industry application scenarios and solutions

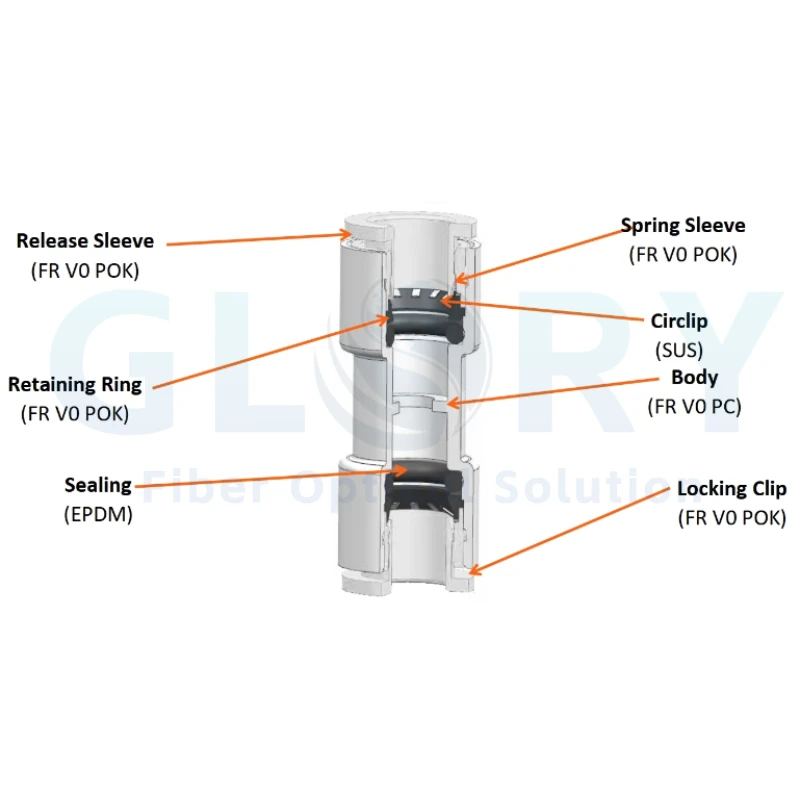

Structure
Specifications
|
Construction |
Description |
|
Tube To Connector |
LSZH Microduct(Indoor) |
|
Fluid |
Air with blowing system |
|
Working Pressure |
20 bar |
|
Burst Pressure |
25 bar |
|
Userful Life |
25 years |
|
Water Ingress Test |
0.5 bar during 168 hours |
|
Installation Temperature |
-15°C to +45°C |
|
Operation Temperature |
-15°C to +45°C |
|
Transport and Storage Temperature |
-15°C to +45°C |
|
Insertion Force |
≤ 50 N |
|
Impact Resistance |
1.5joule |
|
According To Standards |
UL94 V-0,CEI EN 50411-2-8,EN 50411-2-5 |
|
Related Documents |
EN61300,EN61753-1,EN60068-2-10,EN60794-1-2:2003 |
|
Related Documents |
ISO 3601,ISO 4397:1993(2000), |
