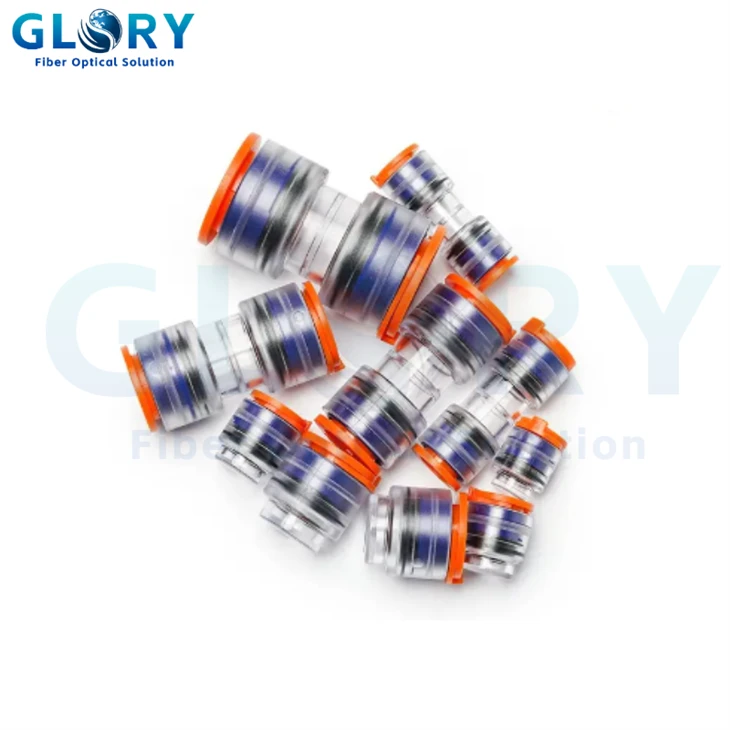

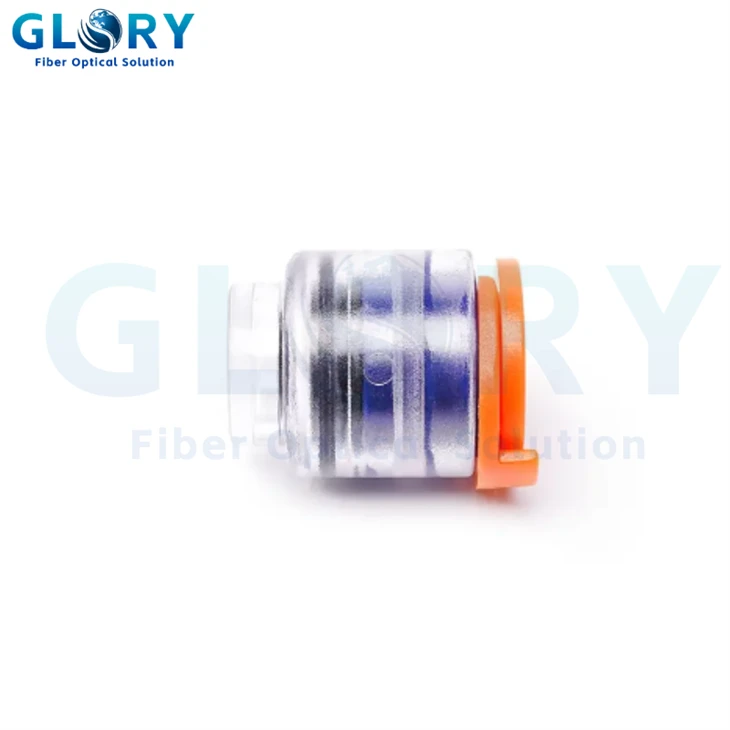

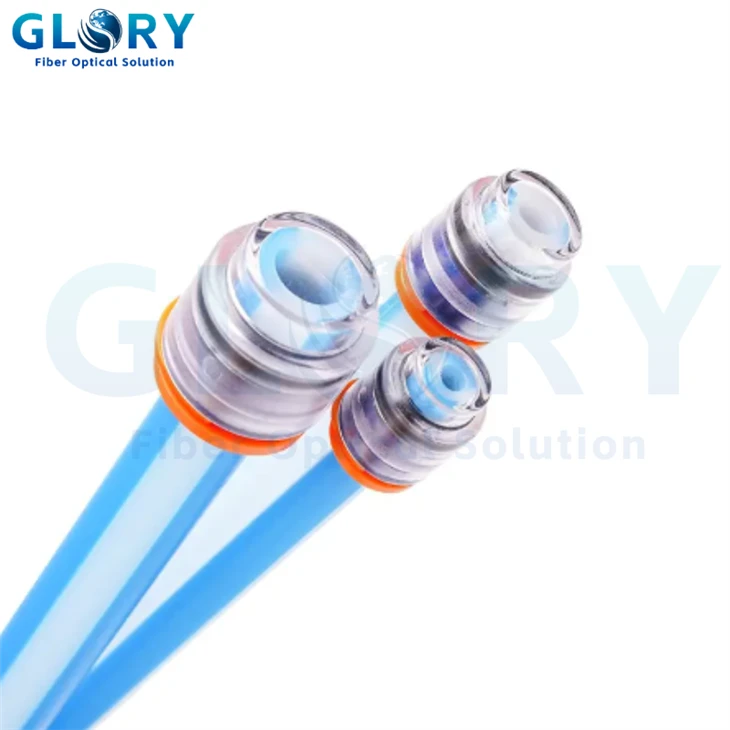

Micro Duct End Cap
Model:Micro Duct End Cap For 3-27 mm Microducts.
Excellent stay ability.
Soft material cushions cable ends.
Resistant to acids, alkalis and salts.
For use on ducts of 5mm up to 20mm.
Flexible, easily adaptable, does not crack.
- Product Introduction
Product Overview
In the rapidly advancing digital era, high-density polyethylene (HDPE) Micro Duct End Cap constitute essential elements within next-generation optical fiber infrastructures.
This connector is a critical component for modern fiber networks, enabling efficient Air Blown Fiber (ABF) deployment. Every aspect of this connector is designed to deliver exceptional performance in the field,It ensures leak-free, high-pressure integrity essential for successful fiber jetting, reducing installation time and costs.
Key Features
Effortless Push-Fit Installation
The tool-free design allows for quick and secure connections: simply push the microduct into the connector until it locks into place
Clear and Definitive Visual Confirmation
This feature is critical for quality assurance, preventing incomplete installations that could lead to leaks or failures
Clear and Definitive Visual Confirmation
Constructed from high-quality materials. It complies with EN 50411-2-8 standards.
High-Pressure Sealing for Air Blown Fiber
The dual O-ring sealing system is rated for continuous operation at 20 bar (290 PSI) and burst pressures exceeding 25 bar (363 PSI).
Cost-Effective Reusability
This reusability reduces material waste and total cost of ownership, while providing flexibility for network evolution.
Certified Performance and Reliability
Compliant with BS EN 50411-2-8 and IP68 ratings

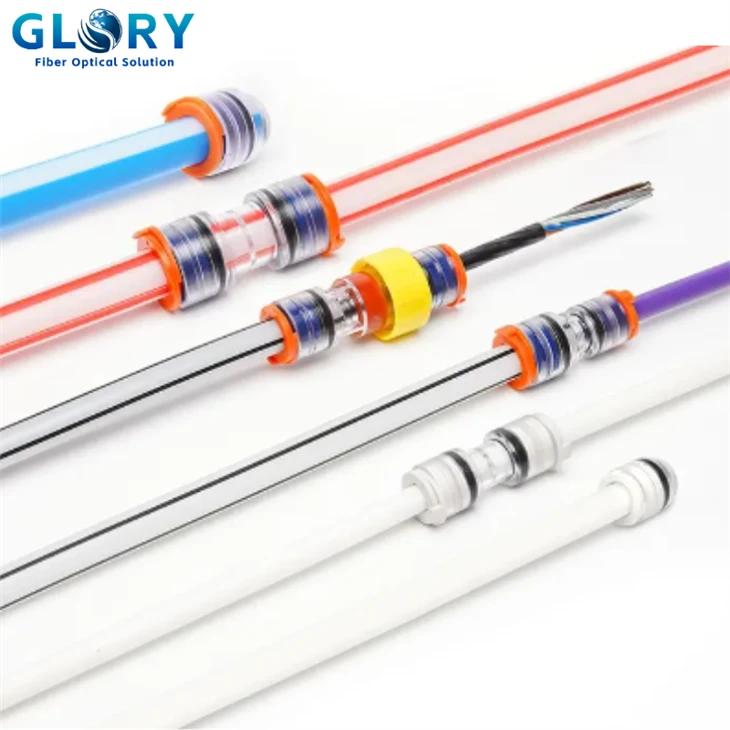

Industry application scenarios and solutions

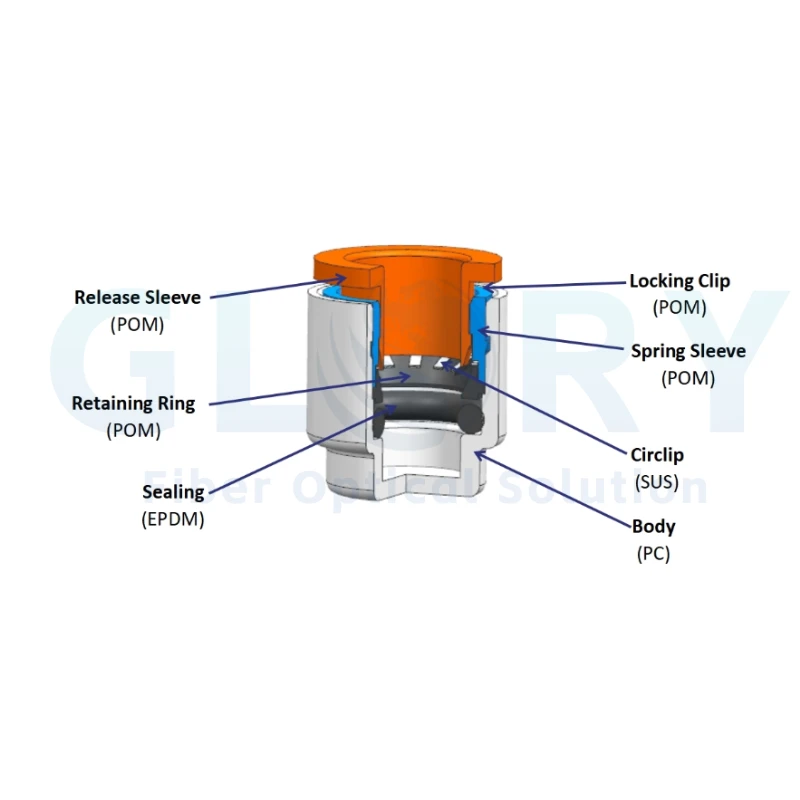

Structure
Specifications
|
Construction |
Description |
|
Material |
PVC |
|
Inner Diameter |
5,6,7,8,10,12,14,16,18,20mm,customized |
|
Colour |
Black, Red,customized |
